CLOG contention

Robert Haas <robertmhaas@gmail.com> writes:

So, what do we do about this? The obvious answer is "increase
NUM_CLOG_BUFFERS", and I'm not sure that's a bad idea.

As you say, that's likely to hurt people running in small shared
memory. I too have thought about merging the SLRU areas into the main
shared buffer arena, and likewise have concluded that it is likely to
be way more painful than it's worth. What I think might be an
appropriate compromise is something similar to what we did for
autotuning wal_buffers: use a fixed percentage of shared_buffers, with
some minimum and maximum limits to ensure sanity. But picking the
appropriate percentage would take a bit of research.

regards, tom lane

Robert Haas <robertmhaas@gmail.com> writes:

... while the main buffer manager is
content with some loosey-goosey approximation of recency, the SLRU
code makes a fervent attempt at strict LRU (slightly compromised for
the sake of reduced locking in SimpleLruReadPage_Readonly).

Oh btw, I haven't looked at that code recently, but I have a nasty
feeling that there are parts of it that assume that the number of
buffers it is managing is fairly small. Cranking up the number
might require more work than just changing the value.

regards, tom lane

On Wed, Dec 21, 2011 at 5:33 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Robert Haas <robertmhaas@gmail.com> writes:

... while the main buffer manager is
content with some loosey-goosey approximation of recency, the SLRU
code makes a fervent attempt at strict LRU (slightly compromised for
the sake of reduced locking in SimpleLruReadPage_Readonly).

Oh btw, I haven't looked at that code recently, but I have a nasty
feeling that there are parts of it that assume that the number of
buffers it is managing is fairly small.  Cranking up the number
might require more work than just changing the value.

My memory was that you'd said benchmarks showed NUM_CLOG_BUFFERS needs
to be low enough to allow fast lookups, since the lookups don't use an
LRU they just scan all buffers. Indeed, it was your objection that
stopped NUM_CLOG_BUFFERS being increased many years before this.

With the increased performance we have now, I don't think increasing
that alone will be that useful since it doesn't solve all of the
problems and (I am told) likely increases lookup speed.

The full list of clog problems I'm aware of is: raw lookup speed,
multi-user contention, writes at checkpoint and new xid allocation.

Would it be better just to have multiple SLRUs dedicated to the clog?
Simply partition things so we have 2^N sets of everything, and we look
up the xid in partition (xid % (2^N)). That would overcome all of the
problems, not just lookup, in exactly the same way that we partitioned
the buffer and lock manager. We would use a graduated offset on the
page to avoid zeroing pages at the same time. Clog size wouldn't
increase, we'd have the same number of bits, just spread across 2^N
files. We'd have more pages too, but that's not a bad thing since it
spreads out the contention.

Code-wise, those changes would be isolated to clog.c only, probably a
days work if you like the idea.

--
 Simon Riggs                   http://www.2ndQuadrant.com/
 PostgreSQL Development, 24x7 Support, Training & Services

On Wed, Dec 21, 2011 at 12:33 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Oh btw, I haven't looked at that code recently, but I have a nasty
feeling that there are parts of it that assume that the number of
buffers it is managing is fairly small.  Cranking up the number
might require more work than just changing the value.

Oh, you mean like the fact that it tries to do strict LRU page
replacement? *rolls eyes* We seem to have named the SLRU system
after one of its scalability limitations...

I think there probably are some scalability limits to the current
implementation, but also I think we could probably increase the
current value modestly with something less than a total rewrite.
Linearly scanning the slot array won't scale indefinitely, but I think

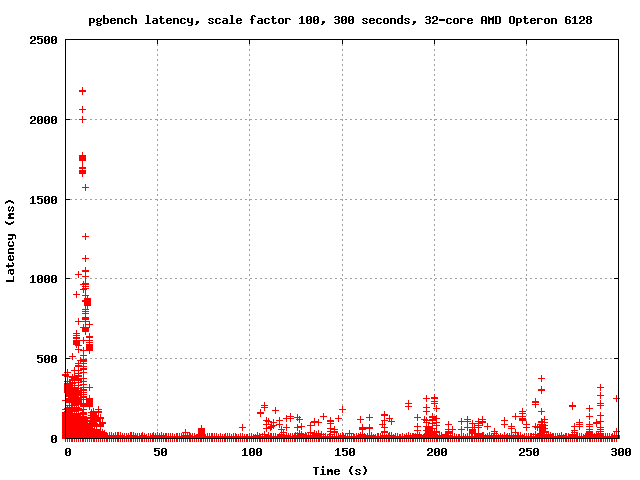

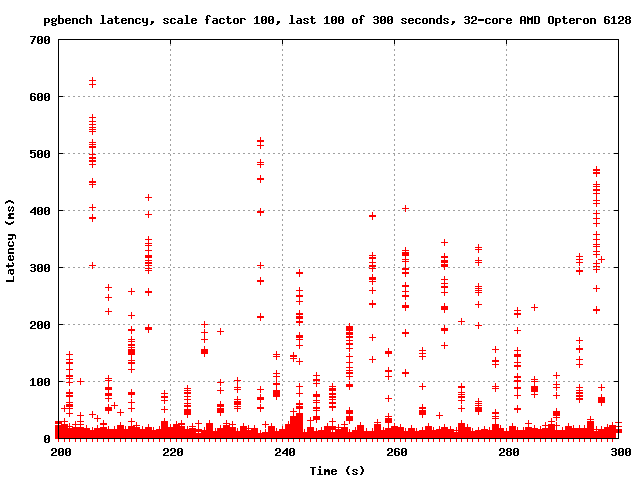

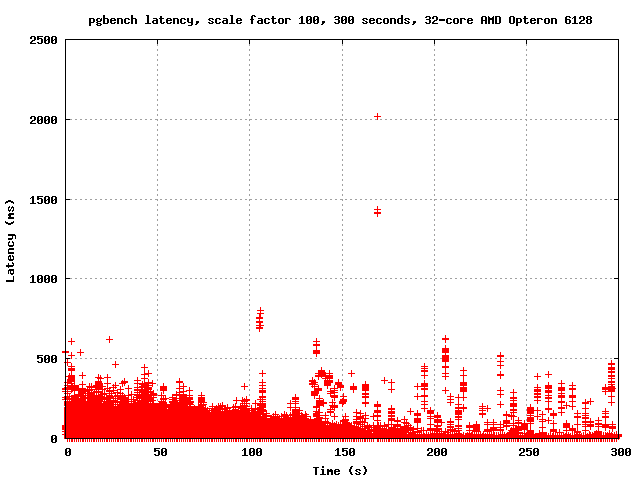

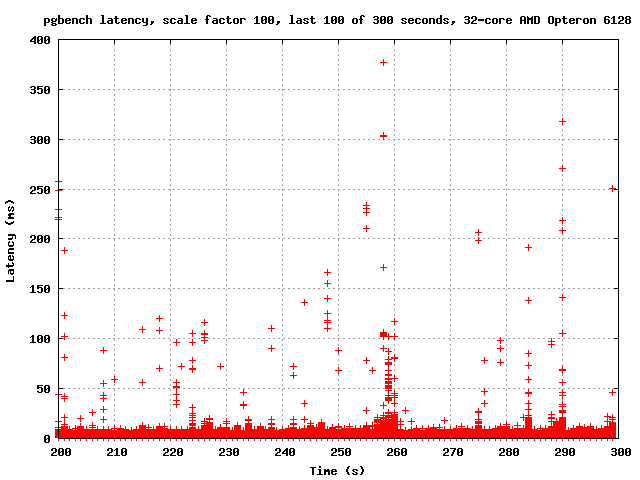

it will scale to more than 8 elements. The performance results I
posted previously make it clear that 8 -> 32 is a net win at least on
that system. One fairly low-impact option might be to make the cache
less than fully associative - e.g. given N buffers, a page with pageno
% 4 == X is only allowed to be in a slot numbered between (N/4)*X and
(N/4)*(X+1)-1. That likely would be counterproductive at N = 8 but
might be OK at larger values. We could also switch to using a hash
table but that seems awfully heavy-weight.

The real question is how to decide how many buffers to create. You
suggested a formula based on shared_buffers, but what would that
formula be? I mean, a typical large system is going to have 1,048,576
shared buffers, and it probably needs less than 0.1% of that amount of
CLOG buffers. My guess is that there's no real reason to skimp: if
you are really tight for memory, you might want to crank this down,
but otherwise you may as well just go with whatever we decide the
best-performing value is.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, Dec 21, 2011 at 5:17 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

With the increased performance we have now, I don't think increasing
that alone will be that useful since it doesn't solve all of the
problems and (I am told) likely increases lookup speed.

I have benchmarks showing that it works, for whatever that's worth.

The full list of clog problems I'm aware of is: raw lookup speed,
multi-user contention, writes at checkpoint and new xid allocation.

What is the best workload to show a bottleneck on raw lookup speed?

I wouldn't expect writes at checkpoint to be a big problem because
it's so little data.

What's the problem with new XID allocation?

Would it be better just to have multiple SLRUs dedicated to the clog?
Simply partition things so we have 2^N sets of everything, and we look
up the xid in partition (xid % (2^N)).  That would overcome all of the
problems, not just lookup, in exactly the same way that we partitioned
the buffer and lock manager. We would use a graduated offset on the
page to avoid zeroing pages at the same time. Clog size wouldn't
increase, we'd have the same number of bits, just spread across 2^N
files. We'd have more pages too, but that's not a bad thing since it
spreads out the contention.

It seems that would increase memory requirements (clog1 through clog4
with 2 pages each doesn't sound workable). It would also break
on-disk compatibility for pg_upgrade. I'm still holding out hope that
we can find a simpler solution...

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Robert Haas <robertmhaas@gmail.com> wrote:

Any thoughts on what makes most sense here? I find it fairly
tempting to just crank up NUM_CLOG_BUFFERS and call it good,

The only thought I have to add to discussion so far is that the need
to do anything may be reduced significantly by any work to write
hint bits more aggressively. We only consult CLOG for tuples on
which hint bits have not yet been set, right? What if, before
writing a page, we try to set hint bits where we can? When
successful, it would not only prevent one or more later writes of
the page, but could also prevent having to load old CLOG pages.
Perhaps the hint bit issue should be addressed first, and *then* we
check whether we still have a problem with CLOG.

-Kevin

On Wed, Dec 21, 2011 at 10:51 AM, Kevin Grittner
<Kevin.Grittner@wicourts.gov> wrote:

Robert Haas <robertmhaas@gmail.com> wrote:

Any thoughts on what makes most sense here?  I find it fairly
tempting to just crank up NUM_CLOG_BUFFERS and call it good,

The only thought I have to add to discussion so far is that the need
to do anything may be reduced significantly by any work to write
hint bits more aggressively.  We only consult CLOG for tuples on
which hint bits have not yet been set, right?  What if, before
writing a page, we try to set hint bits where we can?  When
successful, it would not only prevent one or more later writes of
the page, but could also prevent having to load old CLOG pages.
Perhaps the hint bit issue should be addressed first, and *then* we
check whether we still have a problem with CLOG.

There may be workloads where that will help, but it's definitely not
going to cover all cases. Consider my trusty
pgbench-at-scale-factor-100 test case: since the working set fits
inside shared buffers, we're only writing pages at checkpoint time.
The contention happens because we randomly select rows from the table,
and whatever row we select hasn't been examined since it was last
updated, and so it's unhinted. But we're not reading the page in:
it's already in shared buffers, and has never been written out. I
don't see any realistic way to avoid the CLOG lookups in that case:
nobody else has had any reason to touch that page in any way since the
tuple was first written.

So I think we need a more general solution.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Excerpts from Robert Haas's message of mié dic 21 13:18:36 -0300 2011:

There may be workloads where that will help, but it's definitely not
going to cover all cases. Consider my trusty
pgbench-at-scale-factor-100 test case: since the working set fits
inside shared buffers, we're only writing pages at checkpoint time.
The contention happens because we randomly select rows from the table,
and whatever row we select hasn't been examined since it was last
updated, and so it's unhinted. But we're not reading the page in:
it's already in shared buffers, and has never been written out. I
don't see any realistic way to avoid the CLOG lookups in that case:
nobody else has had any reason to touch that page in any way since the
tuple was first written.

Maybe we need a background "tuple hinter" process ...

--
Álvaro Herrera <alvherre@commandprompt.com>
The PostgreSQL Company - Command Prompt, Inc.
PostgreSQL Replication, Consulting, Custom Development, 24x7 support

Robert Haas <robertmhaas@gmail.com> writes:

I think there probably are some scalability limits to the current
implementation, but also I think we could probably increase the
current value modestly with something less than a total rewrite.
Linearly scanning the slot array won't scale indefinitely, but I think
it will scale to more than 8 elements. The performance results I
posted previously make it clear that 8 -> 32 is a net win at least on
that system.

Agreed, the question is whether 32 is enough to fix the problem for
anything except this one benchmark.

One fairly low-impact option might be to make the cache
less than fully associative - e.g. given N buffers, a page with pageno
% 4 == X is only allowed to be in a slot numbered between (N/4)*X and
(N/4)*(X+1)-1. That likely would be counterproductive at N = 8 but
might be OK at larger values.

I'm inclined to think that that specific arrangement wouldn't be good.
The normal access pattern for CLOG is, I believe, an exponentially
decaying probability-of-access for each page as you go further back from
current. We have a hack to pin the current (latest) page into SLRU all
the time, but you want the design to be such that the next-to-latest
page is most likely to still be around, then the second-latest, etc.

If I'm reading your equation correctly then the most recent pages would
compete against each other, not against much older pages, which is
exactly the wrong thing. Perhaps what you actually meant to say was
that all pages with the same number mod 4 are in one bucket, which would
be better, but still not really ideal: for instance the next-to-latest
page could end up getting removed while say the third-latest page is
still there because it's in a different associative bucket that's under
less pressure.

But possibly we could fix that with some other variant of the idea.
I certainly agree that strict LRU isn't an essential property here,
so long as we have a design that is matched to the expected access
pattern statistics.

We could also switch to using a hash
table but that seems awfully heavy-weight.

Yeah. If we're not going to go to hundreds of CLOG buffers, which
I think probably wouldn't be useful, then hashing is unlikely to be the
best answer.

The real question is how to decide how many buffers to create. You
suggested a formula based on shared_buffers, but what would that
formula be? I mean, a typical large system is going to have 1,048,576
shared buffers, and it probably needs less than 0.1% of that amount of
CLOG buffers.

Well, something like "0.1% with minimum of 8 and max of 32" might be
reasonable. What I'm mainly fuzzy about is the upper limit.

regards, tom lane

On Wed, Dec 21, 2011 at 3:28 PM, Robert Haas <robertmhaas@gmail.com> wrote:

On Wed, Dec 21, 2011 at 5:17 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

With the increased performance we have now, I don't think increasing
that alone will be that useful since it doesn't solve all of the
problems and (I am told) likely increases lookup speed.

I have benchmarks showing that it works, for whatever that's worth.

The full list of clog problems I'm aware of is: raw lookup speed,
multi-user contention, writes at checkpoint and new xid allocation.

What is the best workload to show a bottleneck on raw lookup speed?

A microbenchmark.

I wouldn't expect writes at checkpoint to be a big problem because
it's so little data.

What's the problem with new XID allocation?

Earlier experience shows that those are areas of concern. You aren't
measuring response time in your tests, so you won't notice them as
problems. But they do effect throughput much more than intuition says
it would.

Would it be better just to have multiple SLRUs dedicated to the clog?
Simply partition things so we have 2^N sets of everything, and we look
up the xid in partition (xid % (2^N)).  That would overcome all of the
problems, not just lookup, in exactly the same way that we partitioned
the buffer and lock manager. We would use a graduated offset on the
page to avoid zeroing pages at the same time. Clog size wouldn't
increase, we'd have the same number of bits, just spread across 2^N
files. We'd have more pages too, but that's not a bad thing since it
spreads out the contention.

It seems that would increase memory requirements (clog1 through clog4
with 2 pages each doesn't sound workable).  It would also break
on-disk compatibility for pg_upgrade.  I'm still holding out hope that
we can find a simpler solution...

Not sure what you mean by "increase memory requirements". How would
increasing NUM_CLOG_BUFFERS = 64 differ from having NUM_CLOG_BUFFERS =
8 and NUM_CLOG_PARTITIONS = 8?

I think you appreciate that having 8 lwlocks rather than 1 might help
scalability.

I'm sure pg_upgrade can be tweaked easily enough and it would still
work quickly.

--
 Simon Riggs                   http://www.2ndQuadrant.com/
 PostgreSQL Development, 24x7 Support, Training & Services

On Wed, Dec 21, 2011 at 11:48 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Agreed, the question is whether 32 is enough to fix the problem for
anything except this one benchmark.

Right. My thought on that topic is that it depends on what you mean
by "fix". It's clearly NOT possible to keep enough CLOG buffers
around to cover the entire range of XID space that might get probed,
at least not without some massive rethinking of the infrastructure.
It seems that the amount of space that might need to be covered there
is at least on the order of vacuum_freeze_table_age, which is to say
150 million by default. At 32K txns/page, that would require almost
5K pages, which is a lot more than 8.

On the other hand, if we just want to avoid having more requests
simultaneously in flight than we have buffers, so that backends don't
need to wait for an available buffer before beginning their I/O, then
something on the order of the number of CPUs in the machine is likely
sufficient. I'll do a little more testing and see if I can figure out
where the tipping point is on this 32-core box.

One fairly low-impact option might be to make the cache
less than fully associative - e.g. given N buffers, a page with pageno
% 4 == X is only allowed to be in a slot numbered between (N/4)*X and
(N/4)*(X+1)-1.  That likely would be counterproductive at N = 8 but
might be OK at larger values.

I'm inclined to think that that specific arrangement wouldn't be good.
The normal access pattern for CLOG is, I believe, an exponentially
decaying probability-of-access for each page as you go further back from
current.  We have a hack to pin the current (latest) page into SLRU all
the time, but you want the design to be such that the next-to-latest
page is most likely to still be around, then the second-latest, etc.

If I'm reading your equation correctly then the most recent pages would
compete against each other, not against much older pages, which is
exactly the wrong thing.  Perhaps what you actually meant to say was
that all pages with the same number mod 4 are in one bucket, which would
be better,

That's what I meant. I think the formula works out to that, but in
any case it's what I meant. :-)

but still not really ideal: for instance the next-to-latest
page could end up getting removed while say the third-latest page is
still there because it's in a different associative bucket that's under
less pressure.

Well, sure. But who is to say that's bad? I think you can find a way
to throw stones at any given algorithm we might choose to implement.
For example, if you contrive things so that you repeatedly access the
same old CLOG pages cyclically: 1,2,3,4,5,6,7,8,1,2,3,4,5,6,7,8,...

...then our existing LRU algorithm will be anti-optimal, because we'll
keep the latest page plus the most recently accessed 7 old pages in
memory, and every lookup will fault out the page that the next lookup
is about to need. If you're not that excited about that happening in
real life, neither am I. But neither am I that excited about your
scenario: if the next-to-last page gets kicked out, there are a whole
bunch of pages -- maybe 8, if you imagine 32 buffers split 4 ways --
that have been accessed more recently than that next-to-last page. So
it wouldn't be resident in an 8-buffer pool either. Maybe the last
page was mostly transactions updating some infrequently-accessed
table, and we don't really need that page right now.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Robert Haas <robertmhaas@gmail.com> writes:

On Wed, Dec 21, 2011 at 11:48 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

I'm inclined to think that that specific arrangement wouldn't be good.
The normal access pattern for CLOG is, I believe, an exponentially
decaying probability-of-access for each page as you go further back from
current. ... for instance the next-to-latest
page could end up getting removed while say the third-latest page is
still there because it's in a different associative bucket that's under
less pressure.

Well, sure. But who is to say that's bad? I think you can find a way
to throw stones at any given algorithm we might choose to implement.

The point I'm trying to make is that buffer management schemes like
that one are built on the assumption that the probability of access is
roughly uniform for all pages. We know (or at least have strong reason
to presume) that CLOG pages have very non-uniform probability of access.
The straight LRU scheme is good because it deals well with non-uniform
access patterns. Dividing the buffers into independent buckets in a way
that doesn't account for the expected access probabilities is going to
degrade things. (The approach Simon suggests nearby seems isomorphic to
yours and so suffers from this same objection, btw.)

For example, if you contrive things so that you repeatedly access the
same old CLOG pages cyclically: 1,2,3,4,5,6,7,8,1,2,3,4,5,6,7,8,...

Sure, and the reason that that's contrived is that it flies in the face
of reasonable assumptions about CLOG access probabilities. Any scheme
will lose some of the time, but you don't want to pick a scheme that is
more likely to lose for more probable access patterns.

It strikes me that one simple thing we could do is extend the current
heuristic that says "pin the latest page". That is, pin the last K
pages into SLRU, and apply LRU or some other method across the rest.
If K is large enough, that should get us down to where the differential
in access probability among the older pages is small enough to neglect,
and then we could apply associative bucketing or other methods to the
rest without fear of getting burnt by the common usage pattern. I don't
know what K would need to be, though. Maybe it's worth instrumenting
a benchmark run or two so we can get some facts rather than guesses
about the access frequencies?

regards, tom lane

On Wed, Dec 21, 2011 at 1:09 PM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

It strikes me that one simple thing we could do is extend the current
heuristic that says "pin the latest page".  That is, pin the last K
pages into SLRU, and apply LRU or some other method across the rest.
If K is large enough, that should get us down to where the differential
in access probability among the older pages is small enough to neglect,
and then we could apply associative bucketing or other methods to the
rest without fear of getting burnt by the common usage pattern.  I don't
know what K would need to be, though.  Maybe it's worth instrumenting
a benchmark run or two so we can get some facts rather than guesses
about the access frequencies?

I guess the point is that it seems to me to depend rather heavily on
what benchmark you run. For something like pgbench, we initialize the
cluster with one or a few big transactions, so the page containing
those XIDs figures to stay hot for a very long time. Then after that
we choose rows to update randomly, which will produce the sort of
newer-pages-are-hotter-than-older-pages effect that you're talking
about. But the slope of the curve depends heavily on the scale
factor. If we have scale factor 1 (= 100,000 rows) then chances are
that when we randomly pick a row to update, we'll hit one that's been
touched within the last few hundred thousand updates - i.e. the last
couple of CLOG pages. But if we have scale factor 100 (= 10,000,000
rows) we might easily hit a row that hasn't been updated for many
millions of transactions, so there's going to be a much longer tail
there. And some other test could yield very different results - e.g.
something that uses lots of subtransactions might well have a much
longer tail, while something that does more than one update per
transaction would presumably have a shorter one.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, Dec 21, 2011 at 3:24 PM, Robert Haas <robertmhaas@gmail.com> wrote:

I think there probably are some scalability limits to the current
implementation, but also I think we could probably increase the
current value modestly with something less than a total rewrite.
Linearly scanning the slot array won't scale indefinitely, but I think
it will scale to more than 8 elements.  The performance results I
posted previously make it clear that 8 -> 32 is a net win at least on
that system.

Agreed to that, but I don't think its nearly enough.

One fairly low-impact option might be to make the cache
less than fully associative - e.g. given N buffers, a page with pageno
% 4 == X is only allowed to be in a slot numbered between (N/4)*X and
(N/4)*(X+1)-1.  That likely would be counterproductive at N = 8 but
might be OK at larger values.

Which is pretty much the same as saying, yes, lets partition the clog
as I suggested, but by a different route.

We could also switch to using a hash
table but that seems awfully heavy-weight.

Which is a re-write of SLRU ground up and inapproriate for most SLRU
usage. We'd get partitioning "for free" as long as we re-write.

--
 Simon Riggs                   http://www.2ndQuadrant.com/
 PostgreSQL Development, 24x7 Support, Training & Services

On Wed, Dec 21, 2011 at 2:05 PM, Simon Riggs <simon@2ndquadrant.com> wrote:

On Wed, Dec 21, 2011 at 3:24 PM, Robert Haas <robertmhaas@gmail.com> wrote:

I think there probably are some scalability limits to the current
implementation, but also I think we could probably increase the
current value modestly with something less than a total rewrite.
Linearly scanning the slot array won't scale indefinitely, but I think
it will scale to more than 8 elements.  The performance results I
posted previously make it clear that 8 -> 32 is a net win at least on
that system.

Agreed to that, but I don't think its nearly enough.

One fairly low-impact option might be to make the cache
less than fully associative - e.g. given N buffers, a page with pageno
% 4 == X is only allowed to be in a slot numbered between (N/4)*X and
(N/4)*(X+1)-1.  That likely would be counterproductive at N = 8 but
might be OK at larger values.

Which is pretty much the same as saying, yes, lets partition the clog
as I suggested, but by a different route.

We could also switch to using a hash
table but that seems awfully heavy-weight.

Which is a re-write of SLRU ground up and inapproriate for most SLRU
usage. We'd get partitioning "for free" as long as we re-write.

I'm not sure what your point is here. I feel like this is on the edge
of turning into an argument, and if we're going to have an argument
I'd like to know what we're arguing about. I am not arguing that
under no circumstances should we partition anything related to CLOG,
nor am I trying to deny you credit for your ideas. I'm merely saying
that the specific plan of having multiple SLRUs for CLOG doesn't
appeal to me -- mostly because I think it will make life difficult for
pg_upgrade without any compensating advantage. If we're going to go
that route, I'd rather build something into the SLRU machinery
generally that allows for the cache to be less than fully-associative,
with all of the savings in terms of lock contention that this entails.
Such a system could be used by any SLRU, not just CLOG, if it proved
to be helpful; and it would avoid any on-disk changes, with, as far as
I can see, basically no downside.

That having been said, Tom isn't convinced that any form of
partitioning is the right way to go, and since Tom often has good
ideas, I'd like to explore his notions of how we might fix this
problem other than via some form of partitioning before we focus in on
partitioning. Partitioning may ultimately be the right way to go, but
let's keep an open mind: this thread is only 14 hours old. The only
things I'm completely convinced of at this point are (1) we need more
CLOG buffers (but I don't know exactly how many) and (2) the current
code isn't designed to manage large numbers of buffers (but I don't
know exactly where it starts to fall over).

If I'm completely misunderstanding the point of your email, please set
me straight (gently).

Thanks,

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, Dec 21, 2011 at 12:48 PM, Robert Haas <robertmhaas@gmail.com> wrote:

On the other hand, if we just want to avoid having more requests
simultaneously in flight than we have buffers, so that backends don't
need to wait for an available buffer before beginning their I/O, then
something on the order of the number of CPUs in the machine is likely
sufficient.  I'll do a little more testing and see if I can figure out
where the tipping point is on this 32-core box.

I recompiled with NUM_CLOG_BUFFERS = 8, 16, 24, 32, 40, 48 and ran
5-minute tests, using unlogged tables to avoid getting killed by
WALInsertLock contentions. With 32-clients on this 32-core box, the
tipping point is somewhere in the neighborhood of 32 buffers. 40
buffers might still be winning over 32, or maybe not, but 48 is
definitely losing. Below 32, more is better, all the way up. Here
are the full results:

resultswu.clog16.32.100.300:tps = 19549.454462 (including connections
establishing)
resultswu.clog16.32.100.300:tps = 19883.583245 (including connections
establishing)
resultswu.clog16.32.100.300:tps = 19984.857186 (including connections
establishing)
resultswu.clog24.32.100.300:tps = 20124.147651 (including connections
establishing)
resultswu.clog24.32.100.300:tps = 20108.504407 (including connections
establishing)
resultswu.clog24.32.100.300:tps = 20303.964120 (including connections
establishing)
resultswu.clog32.32.100.300:tps = 20573.873097 (including connections
establishing)
resultswu.clog32.32.100.300:tps = 20444.289259 (including connections
establishing)
resultswu.clog32.32.100.300:tps = 20234.209965 (including connections
establishing)
resultswu.clog40.32.100.300:tps = 21762.222195 (including connections
establishing)
resultswu.clog40.32.100.300:tps = 20621.749677 (including connections
establishing)
resultswu.clog40.32.100.300:tps = 20290.990673 (including connections
establishing)
resultswu.clog48.32.100.300:tps = 19253.424997 (including connections
establishing)
resultswu.clog48.32.100.300:tps = 19542.095191 (including connections
establishing)
resultswu.clog48.32.100.300:tps = 19284.962036 (including connections
establishing)
resultswu.master.32.100.300:tps = 18694.886622 (including connections
establishing)
resultswu.master.32.100.300:tps = 18417.647703 (including connections
establishing)
resultswu.master.32.100.300:tps = 18331.718955 (including connections
establishing)

Parameters in use: shared_buffers = 8GB, maintenance_work_mem = 1GB,
synchronous_commit = off, checkpoint_segments = 300,
checkpoint_timeout = 15min, checkpoint_completion_target = 0.9,
wal_writer_delay = 20ms

It isn't clear to me whether we can extrapolate anything more general
from this. It'd be awfully interesting to repeat this experiment on,
say, an 8-core server, but I don't have one of those I can use at the
moment.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, Dec 21, 2011 at 7:25 PM, Robert Haas <robertmhaas@gmail.com> wrote:

I am not arguing

This seems like a normal and cool technical discussion to me here.

 I'm merely saying
that the specific plan of having multiple SLRUs for CLOG doesn't
appeal to me -- mostly because I think it will make life difficult for
pg_upgrade without any compensating advantage.  If we're going to go
that route, I'd rather build something into the SLRU machinery
generally that allows for the cache to be less than fully-associative,
with all of the savings in terms of lock contention that this entails.
 Such a system could be used by any SLRU, not just CLOG, if it proved
to be helpful; and it would avoid any on-disk changes, with, as far as
I can see, basically no downside.

Partitioning will give us more buffers and more LWlocks, to spread the
contention when we access the buffers. I use that word because its
what we call the technique already used in the buffer manager and lock
manager. If you wish to call this "less than fully-associative" I
really don't mind, as long as we're discussing the same overall
concept, so we can then focus on an implementation of that concept,
which no doubt has many ways of doing it.

More buffers per lock does reduce the lock contention somewhat, but
not by much. So for me, it seems essential that we have more LWlocks
to solve the problem, which is where partitioning comes in.

My perspective is that there is clog contention in many places, not
just in the ones you identified. Main places I see are:

* Access to older pages (identified by you upthread). More buffers
addresses this problem.

* Committing requires us to hold exclusive lock on a page, so there is
contention from nearly all sessions for the same page. The only way to
solve that is by striping pages, so that one page in the current clog
architecture would be striped across N pages with consecutive xids in
separate partitions. Notably this addresses Tom's concern that there
is a much higher request rate on very recent pages - each page would
be split into N pages, so reducing contention.

* We allocate a new clog page every 32k xids. At the rates you have
now measured, we will do this every 1-2 seconds. When we do this, we
must allocate a new page, which means writing the LRU page, which will
be dirty, since we fill 8 buffers in 16 seconds (or even 32 buffers in
about a minute), yet only flush buffers at checkpoint every 5 minutes.
We then need to write an XLogRecord for the new page. All of that
happens while we have the XidGenLock held. Also, while this is
happening nothing can commit, or check clog. That causes nearly all
work to halt for about a second, perhaps longer while the traffic
queue clears. More obvious when writing to logged tables, since the
XLogInsert for the new clog page is then very badly contended. If we
partition then we will be able to continue accessing most of the clog
pages.

So I think we need
* more buffers
* clog page striping
* partitioning

And I would characterise what I am suggesting as "partitioning +
striping" with the free benefit that we increase the number of buffers
as well via partitioning.

With all of that in mind, its relatively easy to rewrite the clog code
so we allocate N SLRUs rather than just 1. That means we just touch
the clog code. Striping adjacent xids onto separate pages in other
ways would gut the SLRU code. We could just partition but then won't
address Tom's concern, as you say. That is based upon code analysis
and hacking something together while thinking - if it helps discussion
I post that hack here, but its not working yet. I don't think reusing
code from bufmgr/lockmgr would help either.

Yes, you're right that I'm suggesting we change the clog data
structures and that therefore we'd need to change pg_upgrade as well.
But that seems like a relatively simple piece of code given the clear
mapping between old and new structures. It would be able to run
quickly at upgrade time.

--
 Simon Riggs                   http://www.2ndQuadrant.com/
 PostgreSQL Development, 24x7 Support, Training & Services

On Wed, Dec 21, 2011 at 4:17 PM, Simon Riggs <simon@2ndquadrant.com> wrote:

Partitioning will give us more buffers and more LWlocks, to spread the
contention when we access the buffers. I use that word because its
what we call the technique already used in the buffer manager and lock
manager. If you wish to call this "less than fully-associative" I
really don't mind, as long as we're discussing the same overall
concept, so we can then focus on an implementation of that concept,
which no doubt has many ways of doing it.

More buffers per lock does reduce the lock contention somewhat, but
not by much. So for me, it seems essential that we have more LWlocks
to solve the problem, which is where partitioning comes in.

My perspective is that there is clog contention in many places, not
just in the ones you identified.

Well, that's possible. The locking in slru.c is pretty screwy and
could probably benefit from better locking granularity. One point
worth noting is that the control lock for each SLRU protects all the
SLRU buffer mappings and the contents of all the buffers; in the main
buffer manager, those responsibilities are split across
BufFreelistLock, 16 buffer manager partition locks, one content lock
per buffer, and the buffer header spinlocks. (The SLRU per-buffer
locks are the equivalent of the I/O-in-progresss locks, not the
content locks.) So splitting up CLOG into multiple SLRUs might not be
the only way of improving the lock granularity; the current situation
is almost comical.

But on the flip side, I feel like your discussion of the problems is a
bit hand-wavy. I think we need some real test cases that we can look
at and measure, not just an informal description of what we think is
happening. I'm sure, for example, that repeatedly reading different
CLOG pages costs something - but I'm not sure that it's enough to have
a material impact on performance. And if it doesn't, then we'd be
better off leaving it alone and working on things that do. And if it
does, then we need a way to assess how successful any given approach
is in addressing that problem, so we can decide which of various
proposed approaches is best.

* We allocate a new clog page every 32k xids. At the rates you have
now measured, we will do this every 1-2 seconds.

And a new pg_subtrans page quite a bit more frequently than that.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Thu, Dec 22, 2011 at 12:28 AM, Robert Haas <robertmhaas@gmail.com> wrote:

But on the flip side, I feel like your discussion of the problems is a
bit hand-wavy.  I think we need some real test cases that we can look
at and measure, not just an informal description of what we think is
happening.

I understand why you say that and take no offence. All I can say is
last time I has access to a good test rig and well structured
reporting and analysis I was able to see evidence of what I described
to you here.

I no longer have that access, which is the main reason I've not done
anything in the last few years. We both know you do have good access
and that's the main reason I'm telling you about it rather than just
doing it myself.

* We allocate a new clog page every 32k xids. At the rates you have
now measured, we will do this every 1-2 seconds.

And a new pg_subtrans page quite a bit more frequently than that.

It is less of a concern, all the same. In most cases we can simply
drop pg_subtrans pages (though we don't do that as often as we could),
no fsync is required on write, no WAL record required for extension
and no update required at commit.

--
 Simon Riggs                   http://www.2ndQuadrant.com/
 PostgreSQL Development, 24x7 Support, Training & Services
