autovacuum stress-testing our system

Really, as far as autovacuum is concerned, it would be much more useful
to be able to reliably detect that a table has been recently vacuumed,
without having to request a 10ms-recent pgstat snapshot. That would
greatly reduce the amount of time autovac spends on pgstat requests.

--
Álvaro Herrera http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On Wed, Sep 26, 2012 at 5:43 AM, Tomas Vondra <tv@fuzzy.cz> wrote:

First - our system really is not a "common" one - we do have ~1000 of
databases of
various size, each containing up to several thousands of tables (several
user-defined
tables, the rest serve as caches for a reporting application - yes, it's a
bit weird
design but that's life). This all leads to pgstat.stat significantly larger
than 60 MB.

...

Now, let's suppose the write takes >10 ms, which is the PGSTAT_RETRY_DELAY
values.
With our current pgstat.stat filesize/num of relations, this is quite
common.
Actually the common write time in our case is ~100 ms, even if we move the
file
into tmpfs. That means that almost all the calls to backend_read_statsfile
(which
happen in all pgstat_fetch_stat_*entry calls) result in continuous stream of
inquiries from the autovacuum workers, writing/reading of the file.

I don't think it actually does. What you are missing is the same
thing I was missing a few weeks ago when I also looked into something
like this.

3962:

* We don't recompute min_ts after sleeping, except in the
* unlikely case that cur_ts went backwards.

That means the file must have been written within 10 ms of when we
*first* asked for it.

What is generating the endless stream you are seeing is that you have
1000 databases so if naptime is one minute you are vacuuming 16 per
second. Since every database gets a new process, that process needs
to read the file as it doesn't inherit one.

...

First, I'm interested in feedback - did I get all the details right, or am I
missing something important?

Next, I'm thinking about ways to solve this:

1) turning of autovacuum, doing regular VACUUM ANALYZE from cron

Increasing autovacuum_naptime seems like a far better way to do
effectively the same thing.

2) tweaking the timer values, especially increasing PGSTAT_RETRY_DELAY and
so on
to consider several seconds to be fresh enough - Would be nice to have
this
as a GUC variables, although we can do another private patch on our own.
But
more knobs is not always better.

I think forking it off to to another value would be better. If you
are an autovacuum worker which is just starting up and so getting its
initial stats, you can tolerate a stats file up to "autovacuum_naptime
/ 5.0" stale. If you are already started up and are just about to
vacuum a table, then keep the staleness at PGSTAT_RETRY_DELAY as it
currently is, so as not to redundantly vacuum a table.

3) logic detecting the proper PGSTAT_RETRY_DELAY value - based mostly on the
time
it takes to write the file (e.g. 10x the write time or something).

This is already in place.

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

I think this needs to happen eventually.

Cheers,

Jeff

On 26-09-2012 09:43, Tomas Vondra wrote:

I've been struggling with autovacuum generating a lot of I/O and CPU on some
of our
systems - after a night spent analyzing this behavior, I believe the current
autovacuum accidentally behaves a bit like a stress-test in some corner cases
(but
I may be seriously wrong, after all it was a long night).

It is known that statistic collector doesn't scale for a lot of databases. It
wouldn't be a problem if we don't have automatic maintenance (aka autovacuum).

Next, I'm thinking about ways to solve this:

1) turning of autovacuum, doing regular VACUUM ANALYZE from cron - certainly an
option, but it's rather a workaround than a solution and I'm not very fond of
it. Moreover it fixes only one side of the problem - triggering the statfile
writes over and over. The file will be written anyway, although not that
frequently.

It solves your problem if you combine scheduled VA with pgstat.stat in a
tmpfs. I don't see it as a definitive solution if we want to scale auto
maintenance for several hundreds or even thousands databases in a single
cluster (Someone could think it is not that common but in hosting scenarios
this is true. DBAs don't want to run several VMs or pg servers just to
minimize the auto maintenance scalability problem).

2) tweaking the timer values, especially increasing PGSTAT_RETRY_DELAY and so on
to consider several seconds to be fresh enough - Would be nice to have this
as a GUC variables, although we can do another private patch on our own. But
more knobs is not always better.

It doesn't solve the problem. Also it could be a problem for autovacuum (that
make assumptions based in those fixed values).

3) logic detecting the proper PGSTAT_RETRY_DELAY value - based mostly on the time
it takes to write the file (e.g. 10x the write time or something).

Such adaptive logic would be good only iff it takes a small time fraction to
execute. It have to pay attention to the limits. It appears to be a candidate
for exploration.

4) keeping some sort of "dirty flag" in stat entries - and then writing only info
about objects were modified enough to be eligible for vacuum/analyze (e.g.
increasing number of index scans can't trigger autovacuum while inserting
rows can). Also, I'm not worried about getting a bit older num of index scans,
so 'clean' records might be written less frequently than 'dirty' ones.

It minimizes your problem but harms collector tools (that want fresh
statistics about databases).

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

IMHO that's the definitive solution. It would be one file per database plus a
global one. That way, the check would only read the global.stat and process
those database that were modified. Also, an in-memory map could store that
information to speed up the checks. The only downside I can see is that you
will increase the number of opened file descriptors.

Ideas? Objections? Preferred options?

I prefer to attack 3, sort of 4 (explained in 5 -- in-memory map) and 5.

Out of curiosity, did you run perf (or some other performance analyzer) to
verify if some (stats and/or autovac) functions pop up in the report?

--
Euler Taveira de Oliveira - Timbira http://www.timbira.com.br/
PostgreSQL: Consultoria, Desenvolvimento, Suporte 24x7 e Treinamento

Dne 26.09.2012 16:51, Jeff Janes napsal:

On Wed, Sep 26, 2012 at 5:43 AM, Tomas Vondra <tv@fuzzy.cz> wrote:

First - our system really is not a "common" one - we do have ~1000
of
databases of
various size, each containing up to several thousands of tables
(several
user-defined
tables, the rest serve as caches for a reporting application - yes,
it's a
bit weird
design but that's life). This all leads to pgstat.stat significantly
larger
than 60 MB.

...

Now, let's suppose the write takes >10 ms, which is the
PGSTAT_RETRY_DELAY
values.
With our current pgstat.stat filesize/num of relations, this is
quite
common.
Actually the common write time in our case is ~100 ms, even if we
move the
file
into tmpfs. That means that almost all the calls to
backend_read_statsfile
(which
happen in all pgstat_fetch_stat_*entry calls) result in continuous
stream of
inquiries from the autovacuum workers, writing/reading of the file.

I don't think it actually does. What you are missing is the same
thing I was missing a few weeks ago when I also looked into something
like this.

3962:

* We don't recompute min_ts after sleeping, except in
the
* unlikely case that cur_ts went backwards.

That means the file must have been written within 10 ms of when we
*first* asked for it.

Yeah, right - I've missed the first "if (pgStatDBHash)" check right at
the beginning.

What is generating the endless stream you are seeing is that you have
1000 databases so if naptime is one minute you are vacuuming 16 per
second. Since every database gets a new process, that process needs
to read the file as it doesn't inherit one.

Right. But that makes the 10ms timeout even more strange, because the
worker is then using the data for very long time (even minutes).

...

First, I'm interested in feedback - did I get all the details right,
or am I
missing something important?

Next, I'm thinking about ways to solve this:

1) turning of autovacuum, doing regular VACUUM ANALYZE from cron

Increasing autovacuum_naptime seems like a far better way to do
effectively the same thing.

Agreed. One of my colleagues turned autovacuum off a few years back and
that
was a nice lesson how not to solve this kind of issues.

2) tweaking the timer values, especially increasing
PGSTAT_RETRY_DELAY and
so on
to consider several seconds to be fresh enough - Would be nice to
have
this
as a GUC variables, although we can do another private patch on
our own.
But
more knobs is not always better.

I think forking it off to to another value would be better. If you
are an autovacuum worker which is just starting up and so getting its
initial stats, you can tolerate a stats file up to
"autovacuum_naptime
/ 5.0" stale. If you are already started up and are just about to
vacuum a table, then keep the staleness at PGSTAT_RETRY_DELAY as it
currently is, so as not to redundantly vacuum a table.

I always thought there's a "no more than one worker per database"
limit,
and that the file is always reloaded when switching to another
database.
So I'm not sure how could a worker see such a stale table info? Or are
the workers keeping the stats across multiple databases?

3) logic detecting the proper PGSTAT_RETRY_DELAY value - based
mostly on the
time
it takes to write the file (e.g. 10x the write time or
something).

This is already in place.

Really? Where?

I've checked the current master, and the only thing I see in
pgstat_write_statsfile
is this (line 3558):

last_statwrite = globalStats.stats_timestamp;

https://github.com/postgres/postgres/blob/master/src/backend/postmaster/pgstat.c#L3558

I don't think that's doing what I meant. That really doesn't scale the
timeout
according to write time. What happens right now is that when the stats
file is
written at time 0 (starts at zero, write finishes at 100 ms), and a
worker asks
for the file at 99 ms (i.e. 1ms before the write finishes), it will set
the time
of the inquiry to last_statrequest and then do this

if (last_statwrite < last_statrequest)
pgstat_write_statsfile(false);

i.e. comparing it to the start of the write. So another write will
start right
after the file is written out. And over and over.

Moreover there's the 'rename' step making the new file invisible for
the worker
processes, which makes the thing a bit more complicated.

What I'm suggesting it that there should be some sort of tracking the
write time
and then deciding whether the file is fresh enough using 10x that
value. So when
a file is written in 100 ms, it's be considered OK for the next 900 ms,
i.e. 1 sec
in total. Sure, we could use 5x or other coefficient, doesn't really
matter.

5) splitting the single stat file into multiple pieces - e.g. per
database,
written separately, so that the autovacuum workers don't need to
read all
the data even for databases that don't need to be vacuumed. This
might be
combined with (4).

I think this needs to happen eventually.

Yes, a nice patch idea ;-)

thanks for the feedback

Tomas

Excerpts from Euler Taveira's message of mié sep 26 11:53:27 -0300 2012:

On 26-09-2012 09:43, Tomas Vondra wrote:

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

IMHO that's the definitive solution. It would be one file per database plus a
global one. That way, the check would only read the global.stat and process
those database that were modified. Also, an in-memory map could store that
information to speed up the checks.

+1

The only downside I can see is that you
will increase the number of opened file descriptors.

Note that most users of pgstat will only have two files open (instead of
one as currently) -- one for shared, one for their own database. Only
pgstat itself and autovac launcher would need to open pgstat files for
all databases; but both do not have a need to open other files
(arbitrary tables) so this shouldn't be a major problem.

--
Álvaro Herrera http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Excerpts from Tomas Vondra's message of mié sep 26 12:25:58 -0300 2012:

Dne 26.09.2012 16:51, Jeff Janes napsal:

I think forking it off to to another value would be better. If you
are an autovacuum worker which is just starting up and so getting its
initial stats, you can tolerate a stats file up to
"autovacuum_naptime
/ 5.0" stale. If you are already started up and are just about to
vacuum a table, then keep the staleness at PGSTAT_RETRY_DELAY as it
currently is, so as not to redundantly vacuum a table.

I always thought there's a "no more than one worker per database"
limit,

There is no such limitation.

--
Álvaro Herrera http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Dne 26.09.2012 17:29, Alvaro Herrera napsal:

Excerpts from Tomas Vondra's message of mié sep 26 12:25:58 -0300
2012:

Dne 26.09.2012 16:51, Jeff Janes napsal:

I think forking it off to to another value would be better. If

you

are an autovacuum worker which is just starting up and so getting

its

initial stats, you can tolerate a stats file up to
"autovacuum_naptime
/ 5.0" stale. If you are already started up and are just about to
vacuum a table, then keep the staleness at PGSTAT_RETRY_DELAY as

it

currently is, so as not to redundantly vacuum a table.

I always thought there's a "no more than one worker per database"
limit,

There is no such limitation.

OK, thanks. Still, reading/writing the small (per-database) files would
be
much faster so it would be easy to read/write them more often on
demand.

Tomas

On Wed, Sep 26, 2012 at 8:25 AM, Tomas Vondra <tv@fuzzy.cz> wrote:

Dne 26.09.2012 16:51, Jeff Janes napsal:

What is generating the endless stream you are seeing is that you have
1000 databases so if naptime is one minute you are vacuuming 16 per
second. Since every database gets a new process, that process needs
to read the file as it doesn't inherit one.

Right. But that makes the 10ms timeout even more strange, because the
worker is then using the data for very long time (even minutes).

On average that can't happen, or else your vacuuming would fall way
behind. But I agree, there is no reason to have very fresh statistics
to start with. naptime/5 seems like a good cutoff for me for the
start up reading. If a table only becomes eligible for vacuuming in
the last 20% of the naptime, I see no reason that it can't wait
another round. But that just means the statistics collector needs to
write the file less often, the workers still need to read it once per
database since each one only vacuums one database and don't inherit
the data from the launcher.

I think forking it off to to another value would be better. If you
are an autovacuum worker which is just starting up and so getting its
initial stats, you can tolerate a stats file up to "autovacuum_naptime
/ 5.0" stale. If you are already started up and are just about to
vacuum a table, then keep the staleness at PGSTAT_RETRY_DELAY as it
currently is, so as not to redundantly vacuum a table.

I always thought there's a "no more than one worker per database" limit,
and that the file is always reloaded when switching to another database.
So I'm not sure how could a worker see such a stale table info? Or are
the workers keeping the stats across multiple databases?

If you only have one "active" database, then all the workers will be
in it. I don't how likely it is that they will leap frog each other
and collide. But anyway, if you 1000s of databases, then each one
will generally require zero vacuums per naptime (as you say, it is
mostly read only), so it is the reads upon start-up, not the reads per
table that needs vacuuming, which generates most of the traffic. Once
you separate those two parameters out, playing around with the
PGSTAT_RETRY_DELAY one seems like a needless risk.

3) logic detecting the proper PGSTAT_RETRY_DELAY value - based mostly on
the
time
it takes to write the file (e.g. 10x the write time or something).

This is already in place.

Really? Where?

I had thought that this part was effectively the same thing:

* We don't recompute min_ts after sleeping, except in the
* unlikely case that cur_ts went backwards.

But I think I did not understand your proposal.

I've checked the current master, and the only thing I see in
pgstat_write_statsfile
is this (line 3558):

last_statwrite = globalStats.stats_timestamp;

https://github.com/postgres/postgres/blob/master/src/backend/postmaster/pgstat.c#L3558

I don't think that's doing what I meant. That really doesn't scale the
timeout
according to write time. What happens right now is that when the stats file
is
written at time 0 (starts at zero, write finishes at 100 ms), and a worker
asks
for the file at 99 ms (i.e. 1ms before the write finishes), it will set the
time
of the inquiry to last_statrequest and then do this

if (last_statwrite < last_statrequest)
pgstat_write_statsfile(false);

i.e. comparing it to the start of the write. So another write will start
right
after the file is written out. And over and over.

Ah. I had wondered about this before too, and wondered if it would be
a good idea to have it go back to the beginning of the stats file, and
overwrite the timestamp with the current time (rather than the time it
started writing it), as the last action it does before the rename. I
think that would automatically make it adaptive to the time it takes
to write out the file, in a fairly simple way.

Moreover there's the 'rename' step making the new file invisible for the
worker
processes, which makes the thing a bit more complicated.

I think renames are assumed to be atomic. Either it sees the old one,
or the new one, but never sees neither.

Cheers,

Jeff

Alvaro Herrera <alvherre@2ndquadrant.com> writes:

Excerpts from Euler Taveira's message of mié sep 26 11:53:27 -0300 2012:

On 26-09-2012 09:43, Tomas Vondra wrote:

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

IMHO that's the definitive solution. It would be one file per database plus a
global one. That way, the check would only read the global.stat and process
those database that were modified. Also, an in-memory map could store that
information to speed up the checks.

+1

That would help for the case of hundreds of databases, but how much
does it help for lots of tables in a single database?

I'm a bit suspicious of the idea that we should encourage people to use
hundreds of databases per installation anyway: the duplicated system
catalogs are going to be mighty expensive, both in disk space and in
their cache footprint in shared buffers. There was some speculation
at the last PGCon about how we might avoid the duplication, but I think
we're years away from any such thing actually happening.

What seems to me like it could help more is fixing things so that the
autovac launcher needn't even launch a child process for databases that
haven't had any updates lately. I'm not sure how to do that, but it
probably involves getting the stats collector to produce some kind of
summary file.

regards, tom lane

On Wed, Sep 26, 2012 at 9:29 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Alvaro Herrera <alvherre@2ndquadrant.com> writes:

Excerpts from Euler Taveira's message of mié sep 26 11:53:27 -0300 2012:

On 26-09-2012 09:43, Tomas Vondra wrote:

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

IMHO that's the definitive solution. It would be one file per database plus a
global one. That way, the check would only read the global.stat and process
those database that were modified. Also, an in-memory map could store that
information to speed up the checks.

+1

That would help for the case of hundreds of databases, but how much
does it help for lots of tables in a single database?

It doesn't help that case, but that case doesn't need much help. If
you have N statistics-kept objects in total spread over M databases,
of which T objects need vacuuming per naptime, the stats file traffic
is proportional to N*(M+T). If T is low, then there is generally is
no problem if M is also low. Or at least, the problem is much smaller
than when M is high for a fixed value of N.

I'm a bit suspicious of the idea that we should encourage people to use
hundreds of databases per installation anyway:

I agree with that, but we could still do a better job of tolerating
it; without encouraging it. If someone volunteers to write the code
to do this, what trade-offs would there be?

Cheers,

Jeff

On 26.9.2012 18:29, Tom Lane wrote:

Alvaro Herrera <alvherre@2ndquadrant.com> writes:

Excerpts from Euler Taveira's message of miĂŠ sep 26 11:53:27 -0300 2012:

On 26-09-2012 09:43, Tomas Vondra wrote:

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

IMHO that's the definitive solution. It would be one file per database plus a
global one. That way, the check would only read the global.stat and process
those database that were modified. Also, an in-memory map could store that
information to speed up the checks.

+1

That would help for the case of hundreds of databases, but how much
does it help for lots of tables in a single database?

Well, it wouldn't, but it wouldn't make it worse either. Or at least
that's how I understand it.

I'm a bit suspicious of the idea that we should encourage people to use
hundreds of databases per installation anyway: the duplicated system
catalogs are going to be mighty expensive, both in disk space and in
their cache footprint in shared buffers. There was some speculation
at the last PGCon about how we might avoid the duplication, but I think
we're years away from any such thing actually happening.

You don't need to encourage us to do that ;-) We know it's not perfect
and considering a good alternative - e.g. several databases (~10) with
schemas inside, replacing the current database-only approach. This way
we'd get multiple stat files (thus gaining the benefits) with less
overhead (shared catalogs).

And yes, using tens of thousands of tables (serving as "caches") for a
reporting solution is "interesting" (as in the old Chinese curse) too.

What seems to me like it could help more is fixing things so that the
autovac launcher needn't even launch a child process for databases that
haven't had any updates lately. I'm not sure how to do that, but it
probably involves getting the stats collector to produce some kind of
summary file.

Yes, I've proposed something like this in my original mail - setting a
"dirty" flag on objects (a database in this case) whenever a table in it
gets eligible for vacuum/analyze.

Tomas

On 26.9.2012 18:14, Jeff Janes wrote:

On Wed, Sep 26, 2012 at 8:25 AM, Tomas Vondra <tv@fuzzy.cz> wrote:

Dne 26.09.2012 16:51, Jeff Janes napsal:

What is generating the endless stream you are seeing is that you have
1000 databases so if naptime is one minute you are vacuuming 16 per
second. Since every database gets a new process, that process needs
to read the file as it doesn't inherit one.

Right. But that makes the 10ms timeout even more strange, because the
worker is then using the data for very long time (even minutes).

On average that can't happen, or else your vacuuming would fall way
behind. But I agree, there is no reason to have very fresh statistics
to start with. naptime/5 seems like a good cutoff for me for the
start up reading. If a table only becomes eligible for vacuuming in
the last 20% of the naptime, I see no reason that it can't wait
another round. But that just means the statistics collector needs to
write the file less often, the workers still need to read it once per
database since each one only vacuums one database and don't inherit
the data from the launcher.

So what happens if there are two workers vacuuming the same database?
Wouldn't that make it more probable that were already vacuumed by the
other worker?

See the comment at the beginning of autovacuum.c, where it also states
that the statfile is reloaded before each table (probably because of the
calls to autovac_refresh_stats which in turn calls clear_snapshot).

I think forking it off to to another value would be better. If you
are an autovacuum worker which is just starting up and so getting its
initial stats, you can tolerate a stats file up to "autovacuum_naptime
/ 5.0" stale. If you are already started up and are just about to
vacuum a table, then keep the staleness at PGSTAT_RETRY_DELAY as it
currently is, so as not to redundantly vacuum a table.

I always thought there's a "no more than one worker per database" limit,
and that the file is always reloaded when switching to another database.
So I'm not sure how could a worker see such a stale table info? Or are
the workers keeping the stats across multiple databases?

If you only have one "active" database, then all the workers will be
in it. I don't how likely it is that they will leap frog each other
and collide. But anyway, if you 1000s of databases, then each one
will generally require zero vacuums per naptime (as you say, it is
mostly read only), so it is the reads upon start-up, not the reads per
table that needs vacuuming, which generates most of the traffic. Once
you separate those two parameters out, playing around with the
PGSTAT_RETRY_DELAY one seems like a needless risk.

OK, right. My fault.

Yes, our databases are mostly readable - more precisely whenever we load
data, we immediately do VACUUM ANALYZE on the tables, so autovacuum
never kicks in on them. The only thing it works on are system catalogs
and such stuff.

3) logic detecting the proper PGSTAT_RETRY_DELAY value - based mostly on
the
time
it takes to write the file (e.g. 10x the write time or something).

This is already in place.

Really? Where?

I had thought that this part was effectively the same thing:

* We don't recompute min_ts after sleeping, except in the
* unlikely case that cur_ts went backwards.

But I think I did not understand your proposal.

I've checked the current master, and the only thing I see in
pgstat_write_statsfile
is this (line 3558):

last_statwrite = globalStats.stats_timestamp;

https://github.com/postgres/postgres/blob/master/src/backend/postmaster/pgstat.c#L3558

I don't think that's doing what I meant. That really doesn't scale the
timeout
according to write time. What happens right now is that when the stats file
is
written at time 0 (starts at zero, write finishes at 100 ms), and a worker
asks
for the file at 99 ms (i.e. 1ms before the write finishes), it will set the
time
of the inquiry to last_statrequest and then do this

if (last_statwrite < last_statrequest)
pgstat_write_statsfile(false);

i.e. comparing it to the start of the write. So another write will start
right
after the file is written out. And over and over.

Ah. I had wondered about this before too, and wondered if it would be
a good idea to have it go back to the beginning of the stats file, and
overwrite the timestamp with the current time (rather than the time it
started writing it), as the last action it does before the rename. I
think that would automatically make it adaptive to the time it takes
to write out the file, in a fairly simple way.

Yeah, I was thinking about that too.

Moreover there's the 'rename' step making the new file invisible for the
worker
processes, which makes the thing a bit more complicated.

I think renames are assumed to be atomic. Either it sees the old one,
or the new one, but never sees neither.

I'm not quite sure what I meant, but not this - I know the renames are
atomic. I probably haven't noticed that inquiries are using min_ts, so I
though that an inquiry sent right after the write starts (with min_ts
before the write) would trigger another write, but that's not the case.

regards
Tomas

On 26 September 2012 15:47, Alvaro Herrera <alvherre@2ndquadrant.com> wrote:

Really, as far as autovacuum is concerned, it would be much more useful
to be able to reliably detect that a table has been recently vacuumed,
without having to request a 10ms-recent pgstat snapshot. That would
greatly reduce the amount of time autovac spends on pgstat requests.

VACUUMing generates a relcache invalidation. Can we arrange for those
invalidations to be received by autovac launcher, so it gets immediate
feedback of recent activity without polling?

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Excerpts from Simon Riggs's message of jue sep 27 06:51:28 -0300 2012:

On 26 September 2012 15:47, Alvaro Herrera <alvherre@2ndquadrant.com> wrote:

Really, as far as autovacuum is concerned, it would be much more useful
to be able to reliably detect that a table has been recently vacuumed,
without having to request a 10ms-recent pgstat snapshot. That would
greatly reduce the amount of time autovac spends on pgstat requests.

VACUUMing generates a relcache invalidation. Can we arrange for those
invalidations to be received by autovac launcher, so it gets immediate
feedback of recent activity without polling?

Hmm, this is an interesting idea worth exploring, I think. Maybe we
should sort tables in the autovac worker to-do list by age of last
invalidation messages received, or something like that. Totally unclear
on the details, but as I said, worth exploring.

--
Álvaro Herrera http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 27 September 2012 15:57, Alvaro Herrera <alvherre@2ndquadrant.com> wrote:

Excerpts from Simon Riggs's message of jue sep 27 06:51:28 -0300 2012:

On 26 September 2012 15:47, Alvaro Herrera <alvherre@2ndquadrant.com> wrote:

Really, as far as autovacuum is concerned, it would be much more useful
to be able to reliably detect that a table has been recently vacuumed,
without having to request a 10ms-recent pgstat snapshot. That would
greatly reduce the amount of time autovac spends on pgstat requests.

VACUUMing generates a relcache invalidation. Can we arrange for those
invalidations to be received by autovac launcher, so it gets immediate
feedback of recent activity without polling?

Hmm, this is an interesting idea worth exploring, I think. Maybe we
should sort tables in the autovac worker to-do list by age of last
invalidation messages received, or something like that. Totally unclear
on the details, but as I said, worth exploring.

Just put them to back of queue if an inval is received.

There is already support for listening and yet never generating to
relcache inval messages.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Hi!

On 26.9.2012 19:18, Jeff Janes wrote:

On Wed, Sep 26, 2012 at 9:29 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Alvaro Herrera <alvherre@2ndquadrant.com> writes:

Excerpts from Euler Taveira's message of mié sep 26 11:53:27 -0300 2012:

On 26-09-2012 09:43, Tomas Vondra wrote:

5) splitting the single stat file into multiple pieces - e.g. per database,
written separately, so that the autovacuum workers don't need to read all
the data even for databases that don't need to be vacuumed. This might be
combined with (4).

IMHO that's the definitive solution. It would be one file per database plus a
global one. That way, the check would only read the global.stat and process
those database that were modified. Also, an in-memory map could store that
information to speed up the checks.

+1

That would help for the case of hundreds of databases, but how much
does it help for lots of tables in a single database?

It doesn't help that case, but that case doesn't need much help. If
you have N statistics-kept objects in total spread over M databases,
of which T objects need vacuuming per naptime, the stats file traffic
is proportional to N*(M+T). If T is low, then there is generally is
no problem if M is also low. Or at least, the problem is much smaller
than when M is high for a fixed value of N.

I've done some initial hacking on splitting the stat file into multiple
smaller pieces over the weekend, and it seems promising (at least with
respect to the issues we're having).

See the patch attached, but be aware that this is a very early WIP (or
rather a proof of concept), so it has many rough edges (read "sloppy
coding"). I haven't even added it to the commitfest yet ...

The two main changes are these:

(1) The stats file is split into a common "db" file, containing all the
DB Entries, and per-database files with tables/functions. The common
file is still called "pgstat.stat", the per-db files have the
database OID appended, so for example "pgstat.stat.12345" etc.

This was a trivial hack pgstat_read_statsfile/pgstat_write_statsfile
functions, introducing two new functions:

pgstat_read_db_statsfile
pgstat_write_db_statsfile

that do the trick of reading/writing stat file for one database.

(2) The pgstat_read_statsfile has an additional parameter "onlydbs" that
says that you don't need table/func stats - just the list of db
entries. This is used for autovacuum launcher, which does not need
to read the table/stats (if I'm reading the code in autovacuum.c
correctly - it seems to be working as expected).

So what are the benefits?

(a) When a launcher asks for info about databases, something like this
is called in the end:

pgstat_read_db_statsfile(InvalidOid, false, true)

which means all databases (InvalidOid) and only db info (true). So
it reads only the one common file with db entries, not the
table/func stats.

(b) When a worker asks for stats for a given DB, something like this is
called in the end:

pgstat_read_db_statsfile(MyDatabaseId, false, false)

which reads only the common stats file (with db entries) and only
one file for the one database.

The current implementation (with the single pgstat.stat file), all
the data had to be read (and skipped silently) in both cases.

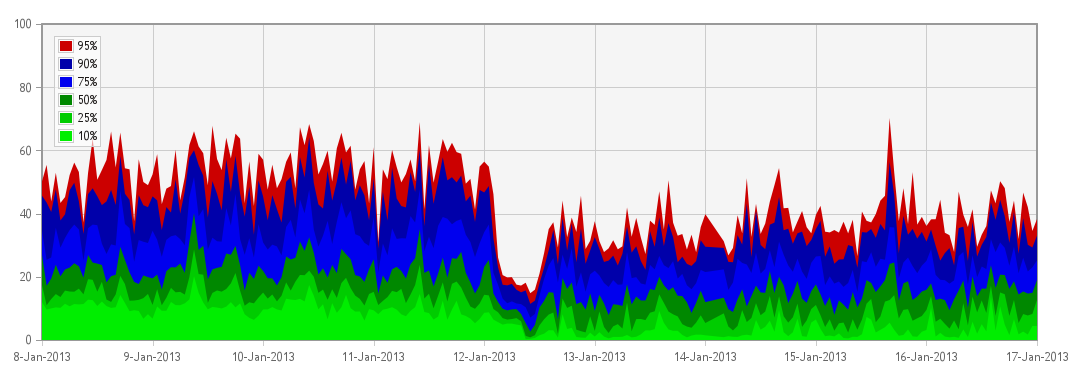

That's a lot of CPU time, and we're seeing ~60% of CPU spent on
doing just this (writing/reading huge statsfile).

So with a lot of databases/objects, this "pgstat.stat split" saves
us a lot of CPU ...

(c) This should lower the space requirements too - with a single file,
you actually need at least 2x the disk space (or RAM, if you're
using tmpfs as we are), because you need to keep two versions of
the file at the same time (pgstat.stat and pgstat.tmp).

Thanks to this split you only need additional space for a copy of
the largest piece (with some reasonable safety reserve).

Well, it's very early patch, so there are rough edges too

(a) It does not solve the "many-schema" scenario at all - that'll need
a completely new approach I guess :-(

(b) It does not solve the writing part at all - the current code uses a
single timestamp (last_statwrite) to decide if a new file needs to
be written.

That clearly is not enough for multiple files - there should be one
timestamp for each database/file. I'm thinking about how to solve
this and how to integrate it with pgstat_send_inquiry etc.

One way might be adding the timestamp(s) into PgStat_StatDBEntry
and the other one is using an array of inquiries for each database.

And yet another one I'm thinking about is using a fixed-length
array of timestamps (e.g. 256), indexed by mod(dboid,256). That
would mean stats for all databases with the same mod(oid,256) would
be written at the same time. Seems like an over-engineering though.

(c) I'm a bit worried about the number of files - right now there's one
for each database and I'm thinking about splitting them by type
(one for tables, one for functions) which might make it even faster
for some apps with a lot of stored procedures etc.

But is the large number of files actually a problem? After all,
we're using one file per relation fork in the "base" directory, so
this seems like a minor issue.

And if really an issue, this might be solved by the mod(oid,256) to
combine multiple files into one (which would work neatly with the
fixed-length array of timestamps).

kind regards
Tomas

On 26.9.2012 18:29, Tom Lane wrote:

What seems to me like it could help more is fixing things so that the
autovac launcher needn't even launch a child process for databases that
haven't had any updates lately. I'm not sure how to do that, but it
probably involves getting the stats collector to produce some kind of
summary file.

Couldn't we use the PgStat_StatDBEntry for this? By splitting the
pgstat.stat file into multiple pieces (see my other post in this thread)
there's a file with StatDBEntry items only, so maybe it could be used as
the summary file ...

I've been thinking about this:

(a) add "needs_autovacuuming" flag to PgStat_(TableEntry|StatDBEntry)

(b) when table stats are updated, run quick check to decide whether
the table needs to be processed by autovacuum (vacuumed or
analyzed), and if yes then set needs_autovacuuming=true and both
for table and database

The worker may read the DB entries from the file and act only on those
that need to be processed (those with needs_autovacuuming=true).

Maybe the DB-level field might be a counter of tables that need to be
processed, and the autovacuum daemon might act on those first? Although
the simpler the better I guess.

Or did you mean something else?

regards
Tomas

On Sun, Nov 18, 2012 at 5:49 PM, Tomas Vondra <tv@fuzzy.cz> wrote:

The two main changes are these:

(1) The stats file is split into a common "db" file, containing all the
DB Entries, and per-database files with tables/functions. The common
file is still called "pgstat.stat", the per-db files have the
database OID appended, so for example "pgstat.stat.12345" etc.

This was a trivial hack pgstat_read_statsfile/pgstat_write_statsfile
functions, introducing two new functions:

pgstat_read_db_statsfile
pgstat_write_db_statsfile

that do the trick of reading/writing stat file for one database.

(2) The pgstat_read_statsfile has an additional parameter "onlydbs" that
says that you don't need table/func stats - just the list of db
entries. This is used for autovacuum launcher, which does not need
to read the table/stats (if I'm reading the code in autovacuum.c
correctly - it seems to be working as expected).

I'm not an expert on the stats system, but this seems like a promising
approach to me.

(a) It does not solve the "many-schema" scenario at all - that'll need
a completely new approach I guess :-(

We don't need to solve every problem in the first patch. I've got no
problem kicking this one down the road.

(b) It does not solve the writing part at all - the current code uses a
single timestamp (last_statwrite) to decide if a new file needs to
be written.

That clearly is not enough for multiple files - there should be one
timestamp for each database/file. I'm thinking about how to solve
this and how to integrate it with pgstat_send_inquiry etc.

Presumably you need a last_statwrite for each file, in a hash table or
something, and requests need to specify which file is needed.

And yet another one I'm thinking about is using a fixed-length
array of timestamps (e.g. 256), indexed by mod(dboid,256). That
would mean stats for all databases with the same mod(oid,256) would
be written at the same time. Seems like an over-engineering though.

That seems like an unnecessary kludge.

(c) I'm a bit worried about the number of files - right now there's one
for each database and I'm thinking about splitting them by type
(one for tables, one for functions) which might make it even faster
for some apps with a lot of stored procedures etc.

But is the large number of files actually a problem? After all,
we're using one file per relation fork in the "base" directory, so
this seems like a minor issue.

I don't see why one file per database would be a problem. After all,
we already have on directory per database inside base/. If the user
has so many databases that dirent lookups in a directory of that size
are a problem, they're already hosed, and this will probably still
work out to a net win.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On 21.11.2012 19:02, Robert Haas wrote:

On Sun, Nov 18, 2012 at 5:49 PM, Tomas Vondra <tv@fuzzy.cz> wrote:

The two main changes are these:

(1) The stats file is split into a common "db" file, containing all the
DB Entries, and per-database files with tables/functions. The common
file is still called "pgstat.stat", the per-db files have the
database OID appended, so for example "pgstat.stat.12345" etc.

This was a trivial hack pgstat_read_statsfile/pgstat_write_statsfile
functions, introducing two new functions:

pgstat_read_db_statsfile
pgstat_write_db_statsfile

that do the trick of reading/writing stat file for one database.

(2) The pgstat_read_statsfile has an additional parameter "onlydbs" that
says that you don't need table/func stats - just the list of db
entries. This is used for autovacuum launcher, which does not need
to read the table/stats (if I'm reading the code in autovacuum.c
correctly - it seems to be working as expected).

I'm not an expert on the stats system, but this seems like a promising
approach to me.

(a) It does not solve the "many-schema" scenario at all - that'll need
a completely new approach I guess :-(

We don't need to solve every problem in the first patch. I've got no
problem kicking this one down the road.

(b) It does not solve the writing part at all - the current code uses a
single timestamp (last_statwrite) to decide if a new file needs to
be written.

That clearly is not enough for multiple files - there should be one
timestamp for each database/file. I'm thinking about how to solve
this and how to integrate it with pgstat_send_inquiry etc.

Presumably you need a last_statwrite for each file, in a hash table or
something, and requests need to specify which file is needed.

And yet another one I'm thinking about is using a fixed-length
array of timestamps (e.g. 256), indexed by mod(dboid,256). That
would mean stats for all databases with the same mod(oid,256) would
be written at the same time. Seems like an over-engineering though.

That seems like an unnecessary kludge.

(c) I'm a bit worried about the number of files - right now there's one
for each database and I'm thinking about splitting them by type
(one for tables, one for functions) which might make it even faster
for some apps with a lot of stored procedures etc.

But is the large number of files actually a problem? After all,
we're using one file per relation fork in the "base" directory, so
this seems like a minor issue.

I don't see why one file per database would be a problem. After all,
we already have on directory per database inside base/. If the user
has so many databases that dirent lookups in a directory of that size
are a problem, they're already hosed, and this will probably still
work out to a net win.

Attached is a v2 of the patch, fixing some of the issues and unclear
points from the initial version.

The main improvement is that it implements writing only stats for the
requested database (set when sending inquiry). There's a dynamic array
of request - for each DB only the last request is kept.

I've done a number of changes - most importantly:

- added a stats_timestamp field to PgStat_StatDBEntry, keeping the last
write of the database (i.e. a per-database last_statwrite), which is
used to decide whether the file is stale or not

- handling of the 'permanent' flag correctly (used when starting or
stopping the cluster) for per-db files

- added a very simple header to the per-db files (basically just a
format ID and a timestamp) - this is needed for checking of the
timestamp of the last write from workers (although maybe we could
just read the pgstat.stat, which is now rather small)

- a 'force' parameter (true - write all databases, even if they weren't
specifically requested)

So with the exception of 'multi-schema' case (which was not the aim of
this effort), it should solve all the issues of the initial version.

There are two blocks of code dealing with clock glitches. I haven't
fixed those yet, but that can wait I guess. I've also left there some
logging I've used during development (printing inquiries and which file
is written and when).

The main unsolved problem I'm struggling with is what to do when a
database is dropped? Right now, the statfile remains in pg_stat_tmp
forewer (or until the restart) - is there a good way to remove the
file? I'm thinking about adding a message to be sent to the collector
from the code that handles DROP TABLE.

I've done some very simple performance testing - I've created 1000
databases with 1000 tables each, done ANALYZE on all of them. With only
autovacum running, I've seen this:

Without the patch
-----------------

%CPU %MEM TIME+ COMMAND
18 3.0 0:10.10 postgres: autovacuum launcher process
17 2.6 0:11.44 postgres: stats collector process

The I/O was seriously bogged down, doing ~150 MB/s (basically what the
drive can handle) - with less dbs, or when the statfiles are placed on
tmpfs filesystem, we usually see ~70% of one core doing just this.

With the patch
--------------

Then, the typical "top" for PostgreSQL processes looked like this:

%CPU %MEM TIME+ COMMAND
2 0.3 1:16.57 postgres: autovacuum launcher process
2 3.1 0:25.34 postgres: stats collector process

and the average write speed from the stats collector was ~3.5MB/s
(measured using iotop), and even when running the ANALYZE etc. I was
getting rather light IO usage (like ~15 MB/s or something).

With both cases, the total size was ~150MB, but without the space
requirements are actually 2x that (because of writing a copy and then
renaming).

I'd like to put this into 2013-01 commit fest, but if we can do some
prior testing / comments, that'd be great.

regards
Tomas
