Proposing pg_hibernate

Please find attached the updated code of Postgres Hibenator. Notable
changes since the first proposal are:

.) The name has been changed to pg_hibernator (from pg_hibernate), to
avoid confusion with the ORM Hibernate.
.) Works with Postgres 9.4
.) Uses DynamicBackgroundWorker infrastructure.
.) Ability to restore one database at a time, to avoid random-read
storms. Can be disabled by parameter.
.) A couple of bug-fixes.
.) Detailed documentation.

I am pasting the README here (also included in the attachment).

Best regards,

Postgres Hibernator
===================

This Postgres extension is a set-it-and-forget-it solution to save and restore
the Postgres shared-buffers contents, across Postgres server restarts.

It performs the automatic save and restore of database buffers, integrated with
database shutdown and startup, hence reducing the durations of
database maintenance
windows, in effect increasing the uptime of your applications.

Postgres Hibernator automatically saves the list of shared buffers to the disk
on database shutdown, and automatically restores the buffers on
database startup.
This acts pretty much like your Operating System's hibernate feature, except,
instead of saving the contents of the memory to disk, Postgres Hibernator saves
just a list of block identifiers. And it uses that list after startup to restore
the blocks from data directory into Postgres' shared buffers.

Why
--------------

DBAs are often faced with the task of performing some maintenance on their
database server(s) which requires shutting down the database. The maintenance
may involve anything from a database patch application, to a hardware upgrade.
One ugly side-effect of restarting the database server/service is that all the
data currently in database server's memory will be all lost, which was
painstakingly fetched from disk and put there in response to application queries
over time. And this data will have to be rebuilt as applications start querying
database again. The query response times will be very high until all the "hot"
data is fetched from disk and put back in memory again.

People employ a few tricks to get around this ugly truth, which range from
running a `select * from app_table;`, to `dd if=table_file ...`, to using
specialized utilities like pgfincore to prefetch data files into OS cache.
Wouldn't it be ideal if the database itself could save and restore its memory
contents across restarts!

The duration for which the server is building up caches, and trying to reach its
optimal cache performance is called ramp-up time. Postgres Hibernator is aimed
at reducing the ramp-up time of Postgres servers.

How
--------------

Compile and install the extension (you'll need a Postgres instalation and its
`pg_config` in `$PATH`):

$ cd pg_hibernator
$ make install

Then.

1. Add `pg_hibernator` to the `shared_preload_libraries` variable in
`postgresql.conf` file.
2. Restart the Postgres server.
3. You are done.

How it works
--------------

This extension uses the `Background Worker` infrastructure of
Postgres, which was
introduced in Postgres 9.3. When the server starts, this extension registers
background workers; one for saving the buffers (called `Buffer Saver`) when the
server shuts down, and one for each database in the cluster (called
`Block Readers`)
for restoring the buffers saved during previous shutdown.

When the Postgres server is being stopped/shut down, the `Buffer
Saver` scans the
shared-buffers of Postgres, and stores the unique block identifiers of
each cached
block to the disk. This information is saved under the `$PGDATA/pg_hibernator/`
directory. For each of the database whose blocks are resident in shared buffers,
one file is created; for eg.: `$PGDATA/pg_hibernator/2.postgres.save`.

During the next startup sequence, the `Block Reader` threads are
registered, one for
each file present under `$PGDATA/pg_hibernator/` directory. When the
Postgres server
has reached stable state (that is, it's ready for database connections), these
`Block Reader` processes are launched. The `Block Reader` process
reads the save-files
looking for block-ids to restore. It then connects to the respective database,
and requests Postgres to fetch the blocks into shared-buffers.

Configuration
--------------

This extension can be controlled via the following parameters. These parameters
can be set in postgresql.conf or on postmaster's command-line.

- `pg_hibernator.enabled`

Setting this parameter to false disables the hibernator features. That is,
on server startup the BlockReader processes will not be launched, and on
server shutdown the list of blocks in shared buffers will not be saved.

Note that the BuffersSaver process exists at all times, even when this
parameter is set to `false`. This is to allow the DBA to enable/disable the
extension without having to restart the server. The BufferSaver process
checks this parameter during server startup and right before shutdown, and
honors this parameter's value at that time.

To enable/disable Postgres Hibernator at runtime, change the value in
`postgresql.conf` and use `pg_ctl reload` to make Postgres re-read the new
parameter values from `postgresql.conf`.

Default value: `true`.

- `pg_hibernator.parallel`

This parameter controls whether Postgres Hibernator launches the BlockReader
processes in parallel, or sequentially, waiting for current BlockReader to
exit before launching the next one.

When enabled, all the BlockReaders, one for each database, will be launched
simultaneously, and this may cause huge random-read flood on disks if there
are many databases in cluster. This may also cause some BlockReaders to fail
to launch successfully because of `max_worker_processes` limit.

Default value: `false`.

- `pg_hibernator.default_database`

The BufferSaver process needs to connect to a database in order to perform
the database-name lookups etc. This parameter controls which database the
BufferSaver process connects to for performing these operations.

Default value: `postgres`.

Caveats
--------------

- Buffer list is saved only when Postgres is shutdown in "smart" and
"fast" modes.

That is, buffer list is not saved when database crashes, or on "immediate"
shutdown.

- A reduction in `shared_buffers` is not detected.

If the `shared_buffers` is reduced across a restart, and if the combined
saved buffer list is larger than the new shared_buffers, Postgres
Hibernator continues to read and restore blocks even after `shared_buffers`
worth of buffers have been restored.

FAQ
--------------

- What is the relationship between `pg_buffercache`, `pg_prewarm`, and
`pg_hibernator`?

They all allow you to do different things with Postgres' shared buffers.

+ pg_buffercahce:

Inspect and show contents of shared buffers

+ pg_prewarm:

Load some table/index/fork blocks into shared buffers. User needs
to tell it which blocks to load.

+ pg_hibernator:

Upon shutdown, save list of blocks stored in shared buffers. Upon
startup, loads those blocks back into shared buffers.

The goal of Postgres Hibernator is to be invisible to the user/DBA.
Whereas with `pg_prewarm` the user needs to know a lot of stuff about
what they really want to do, most likely information gathered via
`pg_buffercahce`.

- Does `pg_hibernate` use either `pg_buffercache` or `pg_prewarm`?

No, Postgres Hibernator works all on its own.

If the concern is, "Do I have to install pg_buffercache and pg_prewarm
to use pg_hibernator", the answer is no. pg_hibernator is a stand-alone
extension, although influenced by pg_buffercache and pg_prewarm.

With `pg_prewarm` you can load blocks of **only** the database
you're connected
to. So if you have `N` databases in your cluster, to restore blocks of all
databases, the DBA will have to connect to each database and invoke
`pg_prewarm` functions.

With `pg_hibernator`, DBA isn't required to do anything, let alone
connecting to the database!

- Where can I learn more about it?

There are a couple of blog posts and initial proposal to Postgres
hackers' mailing list. They may provide a better understanding of
Postgres Hibernator.

[Proposal](/messages/by-id/CABwTF4Ui_anAG+ybseFunAH5Z6DE9aw2NPdy4HryK+M5OdXCCA@mail.gmail.com)

[Introducing Postrges
Hibernator](http://gurjeet.singh.im/blog/2014/02/03/introducing-postgres-hibernator/)

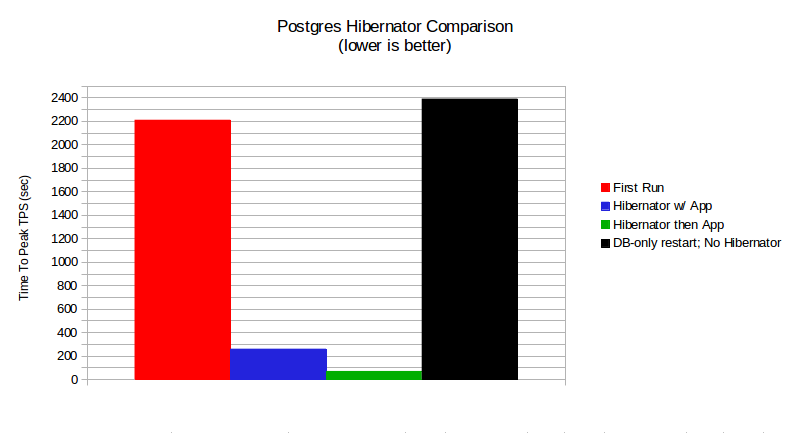

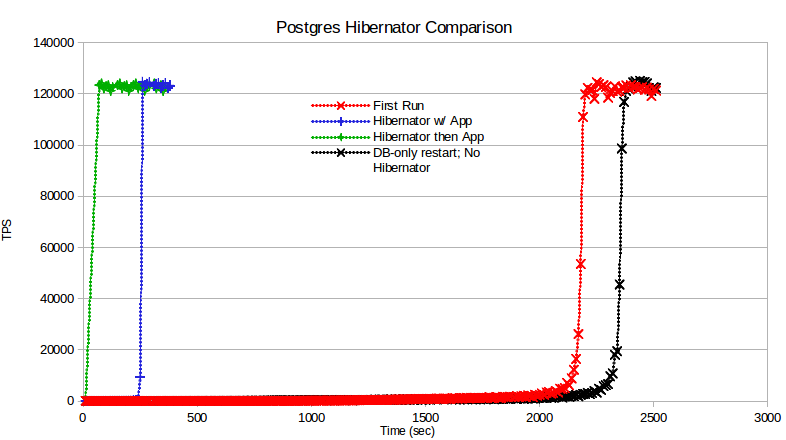

[Demostrating Performance
Benefits](http://gurjeet.singh.im/blog/2014/04/30/postgres-hibernator-reduce-planned-database-down-times/)

On Mon, Feb 3, 2014 at 7:18 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

Please find attached the pg_hibernate extension. It is a
set-it-and-forget-it solution to enable hibernation of Postgres
shared-buffers. It can be thought of as an amalgam of pg_buffercache and
pg_prewarm.

It uses the background worker infrastructure. It registers one worker
process (BufferSaver) to save the shared-buffer metadata when server is
shutting down, and one worker per database (BlockReader) when restoring the
shared buffers.

It stores the buffer metadata under $PGDATA/pg_database/, one file per
database, and one separate file for global objects. It sorts the list of
buffers before storage, so that when it encounters a range of consecutive
blocks of a relation's fork, it stores that range as just one entry, hence
reducing the storage and I/O overhead.

On-disk binary format, which is used to create the per-database save-files,
is defined as:
1. One or more relation filenodes; stored as r<relfilenode>.
2. Each realtion is followed by one or more fork number; stored as
f<forknumber>
3. Each fork number is followed by one or more block numbers; stored as
b<blocknumber>
4. Each block number is followed by zero or more range numbers; stored as
N<number>

{r {f {b N* }+ }+ }+

Possible enhancements:
- Ability to save/restore only specific databases.
- Control how many BlockReaders are active at a time; to avoid I/O storms.
- Be smart about lowered shared_buffers across the restart.
- Different modes of reading like pg_prewarm does.
- Include PgFincore functionality, at least for Linux platforms.

The extension currently works with PG 9.3, and may work on 9.4 without any
changes; I haven't tested, though. If not, I think it'd be easy to port to
HEAD/PG 9.4. I see that 9.4 has put a cap on maximum background workers via
a GUC, and since my aim is to provide a non-intrusive no-tuning-required
extension, I'd like to use the new dynamic-background-worker infrastructure
in 9.4, which doesn't seem to have any preset limits (I think it's limited
by max_connections, but I may be wrong). I can work on 9.4 port, if there's
interest in including this as a contrib/ module.

To see the extension in action:

.) Compile it.
.) Install it.
.) Add it to shared_preload_libraries.
.) Start/restart Postgres.
.) Install pg_buffercache extension, to inspect the shared buffers.
.) Note the result of pg_buffercache view.
.) Work on your database to fill up the shared buffers.
.) Note the result of pg_buffercache view, again; there should be more
blocks than last time we checked.
.) Stop and start the Postgres server.
.) Note the output of pg_buffercache view; it should contain the blocks seen
just before the shutdown.
.) Future server restarts will automatically save and restore the blocks in
shared-buffers.

The code is also available as Git repository at
https://github.com/gurjeet/pg_hibernate/

Demo:

$ make -C contrib/pg_hibernate/
$ make -C contrib/pg_hibernate/ install
$ vi $B/db/data/postgresql.conf
$ grep shared_preload_libraries $PGDATA/postgresql.conf
shared_preload_libraries = 'pg_hibernate' # (change requires restart)

$ pgstart
waiting for server to start.... done
server started

$ pgsql -c 'create extension pg_buffercache;'
CREATE EXTENSION

$ pgsql -c 'select count(*) from pg_buffercache where relblocknumber is not
null group by reldatabase;'
count
-------
163
14
(2 rows)

$ pgsql -c 'create table test_hibernate as select s as a, s::char(1000) as b
from generate_series(1, 100000) as s;'
SELECT 100000

$ pgsql -c 'create index on test_hibernate(a);'
CREATE INDEX

$ pgsql -c 'select count(*) from pg_buffercache where relblocknumber is not
null group by reldatabase;'
count
-------
2254
14
(2 rows)

$ pgstop
waiting for server to shut down....... done
server stopped

$ pgstart
waiting for server to start.... done
server started

$ pgsql -c 'select count(*) from pg_buffercache where relblocknumber is not
null group by reldatabase;'
count
-------
2264
17
(2 rows)

There are a few more blocks than the time they were saved, but all the
blocks from before the restart are present in shared buffers after the
restart.

Best regards,
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

On Wed, May 28, 2014 at 7:31 AM, Gurjeet Singh <gurjeet@singh.im> wrote:

Caveats
--------------

- Buffer list is saved only when Postgres is shutdown in "smart" and
"fast" modes.

That is, buffer list is not saved when database crashes, or on

"immediate"

shutdown.

- A reduction in `shared_buffers` is not detected.

If the `shared_buffers` is reduced across a restart, and if the

combined

saved buffer list is larger than the new shared_buffers, Postgres
Hibernator continues to read and restore blocks even after

`shared_buffers`

worth of buffers have been restored.

How about the cases when shared buffers already contain some
data:
a. Before Readers start filling shared buffers, if this cluster wishes
to join replication as a slave and receive the data from master, then
this utility might need to evict some buffers filled during startup
phase.
b. As soon as the server completes startup (reached consistent
point), it allows new connections which can also use some shared
buffers before Reader process could use shared buffers or are you
planing to change the time when users can connect to database.

I am not sure if replacing shared buffer contents in such cases can
always be considered useful.

With Regards,
Amit Kapila.
EnterpriseDB: http://www.enterprisedb.com

On Wed, May 28, 2014 at 2:15 AM, Amit Kapila <amit.kapila16@gmail.com> wrote:

On Wed, May 28, 2014 at 7:31 AM, Gurjeet Singh <gurjeet@singh.im> wrote:

Caveats
--------------

- Buffer list is saved only when Postgres is shutdown in "smart" and
"fast" modes.

That is, buffer list is not saved when database crashes, or on
"immediate"
shutdown.

- A reduction in `shared_buffers` is not detected.

If the `shared_buffers` is reduced across a restart, and if the
combined
saved buffer list is larger than the new shared_buffers, Postgres
Hibernator continues to read and restore blocks even after
`shared_buffers`
worth of buffers have been restored.

How about the cases when shared buffers already contain some
data:
a. Before Readers start filling shared buffers, if this cluster wishes
to join replication as a slave and receive the data from master, then
this utility might need to evict some buffers filled during startup
phase.

A cluster that wishes to be a replication standby, it would do so
while it's in startup phase. The BlockReaders are launched immediately
on cluster reaching consistent state, at which point, I presume, in
most of the cases, most of the buffers would be unoccupied. Hence
BlockReaders might evict the occupied buffers, which may be a small
fraction of total shared_buffers.

b. As soon as the server completes startup (reached consistent
point), it allows new connections which can also use some shared
buffers before Reader process could use shared buffers or are you
planing to change the time when users can connect to database.

The BlockReaders are launched immediately after the cluster reaches
consistent state, that is, just about when it is ready to accept
connections. So yes, there is a possibility that the I/O caused by the
BlockReaders may affect the performance of queries executed right at
cluster startup. But given that the performance of those queries was
anyway going to be low (because of empty shared buffers), and that
BlockReaders tend to cause sequential reads, and that by default
there's only one BlockReader active at a time, I think this won't be a
concern in most of the cases. By the time the shared buffers start
getting filled up, the buffer replacement strategy will evict any
buffers populated by BlockReaders if they are not used by the normal
queries.

In the 'Sample Runs' section of my blog [1]http://gurjeet.singh.im/blog/2014/04/30/postgres-hibernator-reduce-planned-database-down-times/, I compared the cases
'Hibernator w/ App' and 'Hibernator then App', which demonstrate that
launching application load while the BlockReaders are active does
cause performance of both to be impacted by each other. But overall
it's a net win for application performance.

I am not sure if replacing shared buffer contents in such cases can
always be considered useful.

IMHO, all of these caveats, would affect a very small fraction of
use-cases and are eclipsed by the benefits this extension provides in
normal cases.

[1]: http://gurjeet.singh.im/blog/2014/04/30/postgres-hibernator-reduce-planned-database-down-times/

Best regards,
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Wed, May 28, 2014 at 5:30 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

On Wed, May 28, 2014 at 2:15 AM, Amit Kapila <amit.kapila16@gmail.com>

wrote:

How about the cases when shared buffers already contain some
data:
a. Before Readers start filling shared buffers, if this cluster wishes
to join replication as a slave and receive the data from master, then
this utility might need to evict some buffers filled during startup
phase.

A cluster that wishes to be a replication standby, it would do so
while it's in startup phase. The BlockReaders are launched immediately
on cluster reaching consistent state, at which point, I presume, in
most of the cases, most of the buffers would be unoccupied.

Even to reach consistent state, it might need to get the records
from master (example to get to STANDBY_SNAPSHOT_READY state).

Hence
BlockReaders might evict the occupied buffers, which may be a small
fraction of total shared_buffers.

Yes, but I think still it depends on how much redo replay happens
on different pages.

b. As soon as the server completes startup (reached consistent
point), it allows new connections which can also use some shared
buffers before Reader process could use shared buffers or are you
planing to change the time when users can connect to database.

The BlockReaders are launched immediately after the cluster reaches
consistent state, that is, just about when it is ready to accept
connections. So yes, there is a possibility that the I/O caused by the
BlockReaders may affect the performance of queries executed right at
cluster startup. But given that the performance of those queries was
anyway going to be low (because of empty shared buffers), and that
BlockReaders tend to cause sequential reads, and that by default
there's only one BlockReader active at a time, I think this won't be a
concern in most of the cases. By the time the shared buffers start
getting filled up, the buffer replacement strategy will evict any
buffers populated by BlockReaders if they are not used by the normal
queries.

Even Block Readers might need to evict buffers filled by user
queries or by itself in which case there is chance of contention, but
again all these are quite rare scenario's.

I am not sure if replacing shared buffer contents in such cases can
always be considered useful.

IMHO, all of these caveats, would affect a very small fraction of
use-cases and are eclipsed by the benefits this extension provides in
normal cases.

I agree with you that there are only few corner cases where evicting
shared buffers by this utility would harm, but was wondering if we could
even save those, say if it would only use available free buffers. I think
currently there is no such interface and inventing a new interface for this
case doesn't seem to reasonable unless we see any other use case of
such a interface.

With Regards,
Amit Kapila.
EnterpriseDB: http://www.enterprisedb.com

On May 29, 2014 12:12 AM, "Amit Kapila" <amit.kapila16@gmail.com> wrote:

I agree with you that there are only few corner cases where evicting
shared buffers by this utility would harm, but was wondering if we could
even save those, say if it would only use available free buffers. I think
currently there is no such interface and inventing a new interface for

this

case doesn't seem to reasonable unless we see any other use case of
such a interface.

+1

On Tue, May 27, 2014 at 10:01 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

When the Postgres server is being stopped/shut down, the `Buffer
Saver` scans the
shared-buffers of Postgres, and stores the unique block identifiers of
each cached
block to the disk. This information is saved under the `$PGDATA/pg_hibernator/`
directory. For each of the database whose blocks are resident in shared buffers,
one file is created; for eg.: `$PGDATA/pg_hibernator/2.postgres.save`.

This file-naming convention seems a bit fragile. For example, on my
filesystem (HFS) if I create a database named "foo / bar", I'll get a
complaint like:

ERROR: could not open "pg_hibernator/5.foo / bar.save": No such file
or directory

during shutdown.

Josh

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Fri, May 30, 2014 at 5:33 PM, Josh Kupershmidt <schmiddy@gmail.com> wrote:

On Tue, May 27, 2014 at 10:01 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

When the Postgres server is being stopped/shut down, the `Buffer
Saver` scans the
shared-buffers of Postgres, and stores the unique block identifiers of
each cached
block to the disk. This information is saved under the `$PGDATA/pg_hibernator/`
directory. For each of the database whose blocks are resident in shared buffers,
one file is created; for eg.: `$PGDATA/pg_hibernator/2.postgres.save`.

This file-naming convention seems a bit fragile. For example, on my
filesystem (HFS) if I create a database named "foo / bar", I'll get a
complaint like:

ERROR: could not open "pg_hibernator/5.foo / bar.save": No such file
or directory

during shutdown.

Thanks for the report. I have reworked the file naming, and now the
save-file name is simply '<integer>.save', so the name of a database
does not affect the file name on disk. Instead, the null-terminated
database name is now written in the file, and read back for use when
restoring the buffers.

Attached is the new version of pg_hibernator, with updated code and README.

Just a heads up for anyone who might have read/reviewed previous
version's code, there's some unrelated trivial code and Makefile
changes as well in this version, which can be easily spotted by a
`diff -r`.

Best regards,
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

On Thu, May 29, 2014 at 12:12 AM, Amit Kapila <amit.kapila16@gmail.com> wrote:

IMHO, all of these caveats, would affect a very small fraction of
use-cases and are eclipsed by the benefits this extension provides in
normal cases.

I agree with you that there are only few corner cases where evicting
shared buffers by this utility would harm, but was wondering if we could
even save those, say if it would only use available free buffers. I think
currently there is no such interface and inventing a new interface for this
case doesn't seem to reasonable unless we see any other use case of
such a interface.

It seems like it would be best to try to do this at cluster startup
time, rather than once recovery has reached consistency. Of course,
that might mean doing it with a single process, which could have its
own share of problems. But I'm somewhat inclined to think that if
recovery has already run for a significant period of time, the blocks
that recovery has brought into shared_buffers are more likely to be
useful than whatever pg_hibernate would load.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Tue, Jun 3, 2014 at 7:57 AM, Robert Haas <robertmhaas@gmail.com> wrote:

On Thu, May 29, 2014 at 12:12 AM, Amit Kapila <amit.kapila16@gmail.com> wrote:

IMHO, all of these caveats, would affect a very small fraction of
use-cases and are eclipsed by the benefits this extension provides in
normal cases.

I agree with you that there are only few corner cases where evicting
shared buffers by this utility would harm, but was wondering if we could
even save those, say if it would only use available free buffers. I think
currently there is no such interface and inventing a new interface for this
case doesn't seem to reasonable unless we see any other use case of
such a interface.

It seems like it would be best to try to do this at cluster startup
time, rather than once recovery has reached consistency. Of course,
that might mean doing it with a single process, which could have its
own share of problems. But I'm somewhat inclined to think that if
recovery has already run for a significant period of time, the blocks
that recovery has brought into shared_buffers are more likely to be
useful than whatever pg_hibernate would load.

I am not absolutely sure of the order of execution between recovery
process and the BGWorker, but ...

For sizeable shared_buffers size, the restoration of the shared
buffers can take several seconds. I have a feeling the users wouldn't
like their master database take up to a few minutes to start accepting
connections. From my tests [1]http://gurjeet.singh.im/blog/2014/04/30/postgres-hibernator-reduce-planned-database-down-times/, " In the 'App after Hibernator' [case]
... This took 70 seconds for reading the ~4 GB database."

[1]: http://gurjeet.singh.im/blog/2014/04/30/postgres-hibernator-reduce-planned-database-down-times/

Best regards,
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Tue, Jun 3, 2014 at 8:13 AM, Gurjeet Singh <gurjeet@singh.im> wrote:

On Tue, Jun 3, 2014 at 7:57 AM, Robert Haas <robertmhaas@gmail.com> wrote:

On Thu, May 29, 2014 at 12:12 AM, Amit Kapila <amit.kapila16@gmail.com> wrote:

IMHO, all of these caveats, would affect a very small fraction of
use-cases and are eclipsed by the benefits this extension provides in
normal cases.

I agree with you that there are only few corner cases where evicting
shared buffers by this utility would harm, but was wondering if we could
even save those, say if it would only use available free buffers. I think
currently there is no such interface and inventing a new interface for this
case doesn't seem to reasonable unless we see any other use case of
such a interface.

It seems like it would be best to try to do this at cluster startup
time, rather than once recovery has reached consistency. Of course,
that might mean doing it with a single process, which could have its
own share of problems. But I'm somewhat inclined to think that if

Currently pg_hibernator uses ReadBufferExtended() API, and AIUI, that
API requires a database connection//shared-memory attachment, and that
a backend process cannot switch between databases after the initial
connection.

own share of problems. But I'm somewhat inclined to think that if
recovery has already run for a significant period of time, the blocks
that recovery has brought into shared_buffers are more likely to be
useful than whatever pg_hibernate would load.

The applications that connect to a standby may have a different access
pattern than the applications that are operating on the master
database. So the buffers that are being restored by startup process
may not be relevant to the workload on the standby.

Best regards,
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Tue, Jun 3, 2014 at 5:43 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

On Tue, Jun 3, 2014 at 7:57 AM, Robert Haas <robertmhaas@gmail.com> wrote:

It seems like it would be best to try to do this at cluster startup
time, rather than once recovery has reached consistency. Of course,
that might mean doing it with a single process, which could have its
own share of problems. But I'm somewhat inclined to think that if
recovery has already run for a significant period of time, the blocks
that recovery has brought into shared_buffers are more likely to be
useful than whatever pg_hibernate would load.

I am not absolutely sure of the order of execution between recovery
process and the BGWorker, but ...

For sizeable shared_buffers size, the restoration of the shared
buffers can take several seconds.

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

I have a feeling the users wouldn't
like their master database take up to a few minutes to start accepting
connections.

I think this is fair point and to address this we can have an option to
decide when to load buffer's and have default value as load before
recovery.

Currently pg_hibernator uses ReadBufferExtended() API, and AIUI, that
API requires a database connection//shared-memory attachment, and that
a backend process cannot switch between databases after the initial
connection.

If recovery can load the buffer's to apply WAL, why can't it be done with
pg_hibernator. Can't we use ReadBufferWithoutRelcache() to achieve
the purpose of pg_hibernator?

One other point:

Note that the BuffersSaver process exists at all times, even when this
parameter is set to `false`. This is to allow the DBA to enable/disable

the

extension without having to restart the server. The BufferSaver process
checks this parameter during server startup and right before shutdown, and
honors this parameter's value at that time.

Why can't it be done when user register's the extension by using dynamic
background facility "RegisterDynamicBackgroundWorker"?

With Regards,
Amit Kapila.
EnterpriseDB: http://www.enterprisedb.com

On 2014-06-04 10:24:13 +0530, Amit Kapila wrote:

On Tue, Jun 3, 2014 at 5:43 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

On Tue, Jun 3, 2014 at 7:57 AM, Robert Haas <robertmhaas@gmail.com> wrote:

It seems like it would be best to try to do this at cluster startup
time, rather than once recovery has reached consistency. Of course,
that might mean doing it with a single process, which could have its
own share of problems. But I'm somewhat inclined to think that if
recovery has already run for a significant period of time, the blocks
that recovery has brought into shared_buffers are more likely to be
useful than whatever pg_hibernate would load.

I am not absolutely sure of the order of execution between recovery
process and the BGWorker, but ...

For sizeable shared_buffers size, the restoration of the shared
buffers can take several seconds.

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

Why? The server might have been queried if it's a hot standby one?

Greetings,

Andres Freund

--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Wed, Jun 4, 2014 at 2:08 AM, Andres Freund <andres@2ndquadrant.com> wrote:

On 2014-06-04 10:24:13 +0530, Amit Kapila wrote:

On Tue, Jun 3, 2014 at 5:43 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

On Tue, Jun 3, 2014 at 7:57 AM, Robert Haas <robertmhaas@gmail.com> wrote:

It seems like it would be best to try to do this at cluster startup
time, rather than once recovery has reached consistency. Of course,
that might mean doing it with a single process, which could have its
own share of problems. But I'm somewhat inclined to think that if
recovery has already run for a significant period of time, the blocks
that recovery has brought into shared_buffers are more likely to be
useful than whatever pg_hibernate would load.

I am not absolutely sure of the order of execution between recovery
process and the BGWorker, but ...

For sizeable shared_buffers size, the restoration of the shared
buffers can take several seconds.

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

Why? The server might have been queried if it's a hot standby one?

I think that's essentially the same point Amit is making. Gurjeet is
arguing for reloading the buffers from the previous shutdown at end of
recovery; IIUC, Amit, you, and I all think this isn't a good idea.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On 2014-06-04 09:51:36 -0400, Robert Haas wrote:

On Wed, Jun 4, 2014 at 2:08 AM, Andres Freund <andres@2ndquadrant.com> wrote:

On 2014-06-04 10:24:13 +0530, Amit Kapila wrote:

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

Why? The server might have been queried if it's a hot standby one?

I think that's essentially the same point Amit is making. Gurjeet is
arguing for reloading the buffers from the previous shutdown at end of
recovery; IIUC, Amit, you, and I all think this isn't a good idea.

I think I am actually arguing for Gurjeet's position. If the server is
actively being queried (i.e. hot_standby=on and actually used for
queries) it's quite reasonable to expect that shared_buffers has lots of
content that is *not* determined by WAL replay.

There's not that much read IO going on during WAL replay anyway - after
a crash/start from a restartpoint most of it is loaded via full page
anyway. So it's only disadvantageous to fault in pages via pg_hibernate
if that causes pages that already have been read in via FPIs to be
thrown out.

Greetings,

Andres Freund

--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Wed, Jun 4, 2014 at 7:26 PM, Andres Freund <andres@2ndquadrant.com>
wrote:

On 2014-06-04 09:51:36 -0400, Robert Haas wrote:

On Wed, Jun 4, 2014 at 2:08 AM, Andres Freund <andres@2ndquadrant.com>

wrote:

On 2014-06-04 10:24:13 +0530, Amit Kapila wrote:

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

Why? The server might have been queried if it's a hot standby one?

Consider the case, crash (force kill or some other way) occurs when
BGSaver is saving the buffers, now I think it is possible that it has
saved partial information (information about some buffers is correct
and others is missing) and it is also possible by that time checkpoint
record is not written (which means recovery will start from previous
restart point). So whats going to happen is that pg_hibernate might
load some less used buffers/blocks (which have lower usage count)
and WAL replayed blocks will be sacrificed. So the WAL data from
previous restart point and some more due to delay in start of
standby (changes occured in master during that time) will be
sacrificed.

Another case is of standalone server in which case there is always
high chance that blocks recovered by recovery are the active one's.
Now I agree that case of standalone servers is less, but still some
small applications might be using it. Also I think same is true if
the crashed server is master.

I think that's essentially the same point Amit is making. Gurjeet is
arguing for reloading the buffers from the previous shutdown at end of
recovery; IIUC, Amit, you, and I all think this isn't a good idea.

I think I am actually arguing for Gurjeet's position. If the server is
actively being queried (i.e. hot_standby=on and actually used for
queries) it's quite reasonable to expect that shared_buffers has lots of
content that is *not* determined by WAL replay.

Yes, that's quite possible, however there can be situations where it
is not true as explained above.

There's not that much read IO going on during WAL replay anyway - after
a crash/start from a restartpoint most of it is loaded via full page
anyway.

So it's only disadvantageous to fault in pages via pg_hibernate
if that causes pages that already have been read in via FPIs to be
thrown out.

So for such cases, pages loaded by pg_hibernate turn out to be loss.

Overall I think there can be both kind of cases when it is beneficial
to load buffers after recovery and before recovery, thats why I
mentioned above that either it can be a parameter from user to
decide the same or may be we can have a new API which will
load buffers by BGworker without evicting any existing buffer
(use buffers from free list only).

With Regards,
Amit Kapila.
EnterpriseDB: http://www.enterprisedb.com

On Wed, Jun 4, 2014 at 9:56 AM, Andres Freund <andres@2ndquadrant.com> wrote:

On 2014-06-04 09:51:36 -0400, Robert Haas wrote:

On Wed, Jun 4, 2014 at 2:08 AM, Andres Freund <andres@2ndquadrant.com> wrote:

On 2014-06-04 10:24:13 +0530, Amit Kapila wrote:

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

Why? The server might have been queried if it's a hot standby one?

I think that's essentially the same point Amit is making. Gurjeet is
arguing for reloading the buffers from the previous shutdown at end of
recovery; IIUC, Amit, you, and I all think this isn't a good idea.

I think I am actually arguing for Gurjeet's position. If the server is
actively being queried (i.e. hot_standby=on and actually used for
queries) it's quite reasonable to expect that shared_buffers has lots of
content that is *not* determined by WAL replay.

There's not that much read IO going on during WAL replay anyway - after
a crash/start from a restartpoint most of it is loaded via full page
anyway. So it's only disadvantageous to fault in pages via pg_hibernate
if that causes pages that already have been read in via FPIs to be
thrown out.

The thing I was concerned about is that the system might have been in
recovery for months. What was hot at the time the base backup was
taken seems like a poor guide to what will be hot at the time of
promotion. Consider a history table, for example: the pages at the
end, which have just been written, are much more likely to be useful
than anything earlier.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On 2014-06-04 14:50:39 -0400, Robert Haas wrote:

The thing I was concerned about is that the system might have been in
recovery for months. What was hot at the time the base backup was
taken seems like a poor guide to what will be hot at the time of
promotion. Consider a history table, for example: the pages at the
end, which have just been written, are much more likely to be useful
than anything earlier.

I'd assumed that the hibernation files would simply be excluded from the
basebackup...

Greetings,

Andres Freund

--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Wed, Jun 4, 2014 at 12:54 AM, Amit Kapila <amit.kapila16@gmail.com> wrote:

On Tue, Jun 3, 2014 at 5:43 PM, Gurjeet Singh <gurjeet@singh.im> wrote:

For sizeable shared_buffers size, the restoration of the shared
buffers can take several seconds.

Incase of recovery, the shared buffers saved by this utility are
from previous shutdown which doesn't seem to be of more use
than buffers loaded by recovery.

I feel the need to enumerate the recovery scenarios we're talking
about so that we're all on the same page.

1) Hot backup (cp/rsync/pg_basebackup/.. while the master was running)
followed by
1a) recovery using archives or streaming replication.
1a.i) database in hot-standby mode
1a.ii) database not in hot-standby mode, i.e. it's in warm-standby mode.
1b) minimal recovery, that is, recover only the WAL available in
pg_xlog, then come online.

2) Cold backup of a crashed master, followed by startup of the copy
(causing crash recovery; IMHO same as case 1b above.).

3) Cold backup of clean-shutdown master, followed by startup of the
copy (no recovery).

In cases 1.x there won't be any save-files (*), because the
BlockReader processes remove their respective save-file when they are
done restoring the buffers, So the hot/warm-standby created thus will
not inherit the save-files, and hence post-recovery will not cause any
buffer restores.

Case 2 also won't cause any buffer restores because the save-files are
created only on clean shutdowons; not on a crash or immediate
shutdown.

Case 3, is the sweet spot of pg_hibernator. It will save buffer-list
on shutdown, and restore them when the backup-copy is started
(provided pg_hibernator is installed there).

(*) If a hot-backup is taken immediately after database comes online,
since BlockReaders may still be running and not have deleted the
save-files, the save-files may end up in backup, and hence cause the
recovery-time conflicts we're talking about. This should be rare in
practice, and even when it does happen, at worst it will affect the
initial performance of the cluster.

I have a feeling the users wouldn't
like their master database take up to a few minutes to start accepting
connections.

I think this is fair point and to address this we can have an option to
decide when to load buffer's and have default value as load before
recovery.

Given the above description, I don't think crash/archive recovery is a
concern anymore. But if that corner case is still a concern, I
wouldn't favour making recovery slow by default, and make users of
pg_hibernator pay for choosing to use the extension. I'd prefer the
user explicitly ask for a behaviour that makes startups slow.

One other point:

Note that the BuffersSaver process exists at all times, even when this
parameter is set to `false`. This is to allow the DBA to enable/disable
the
extension without having to restart the server. The BufferSaver process
checks this parameter during server startup and right before shutdown, and
honors this parameter's value at that time.

Why can't it be done when user register's the extension by using dynamic
background facility "RegisterDynamicBackgroundWorker"?

There's no user interface to this extension except for the 3 GUC
parameters; not even CREATE EXTENSION. The DBA is expected to append
this extension's name in shared_preload_libraries.

Since this extension declares one of its parameters PGC_POSTMASTER, it
can't be loaded via the SQL 'LOAD ' command.

postgres=# load 'pg_hibernator';
FATAL: cannot create PGC_POSTMASTER variables after startup
FATAL: cannot create PGC_POSTMASTER variables after startup
The connection to the server was lost. Attempting reset: Succeeded.

Best regards,

PS: I was out sick yesterday, so couldn't respond promptly.
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On Wed, Jun 4, 2014 at 2:52 PM, Andres Freund <andres@2ndquadrant.com> wrote:

On 2014-06-04 14:50:39 -0400, Robert Haas wrote:

The thing I was concerned about is that the system might have been in
recovery for months. What was hot at the time the base backup was
taken seems like a poor guide to what will be hot at the time of
promotion. Consider a history table, for example: the pages at the
end, which have just been written, are much more likely to be useful
than anything earlier.

I'd assumed that the hibernation files would simply be excluded from the
basebackup...

Yes, they will be excluded, provided the BlockReader processes have
finished, because each BlockReader unlinks its save-file after it is
done restoring buffers listed in it.

Best regards,
--
Gurjeet Singh http://gurjeet.singh.im/

EDB www.EnterpriseDB.com

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
