Changing WAL Header to reduce contention during ReserveXLogInsertLocation()

Hi Simon, Pavan,

I tried benchmarking your patch. I ran pgbench on a 72-core machine with
a simple append-only script:

BEGIN;
INSERT INTO pgbench_history (tid, bid, aid, delta, mtime) VALUES (:tid,
:bid, :aid, :delta, CURRENT_TIMESTAMP);
---- the insert repeated 20 times total -------
END;

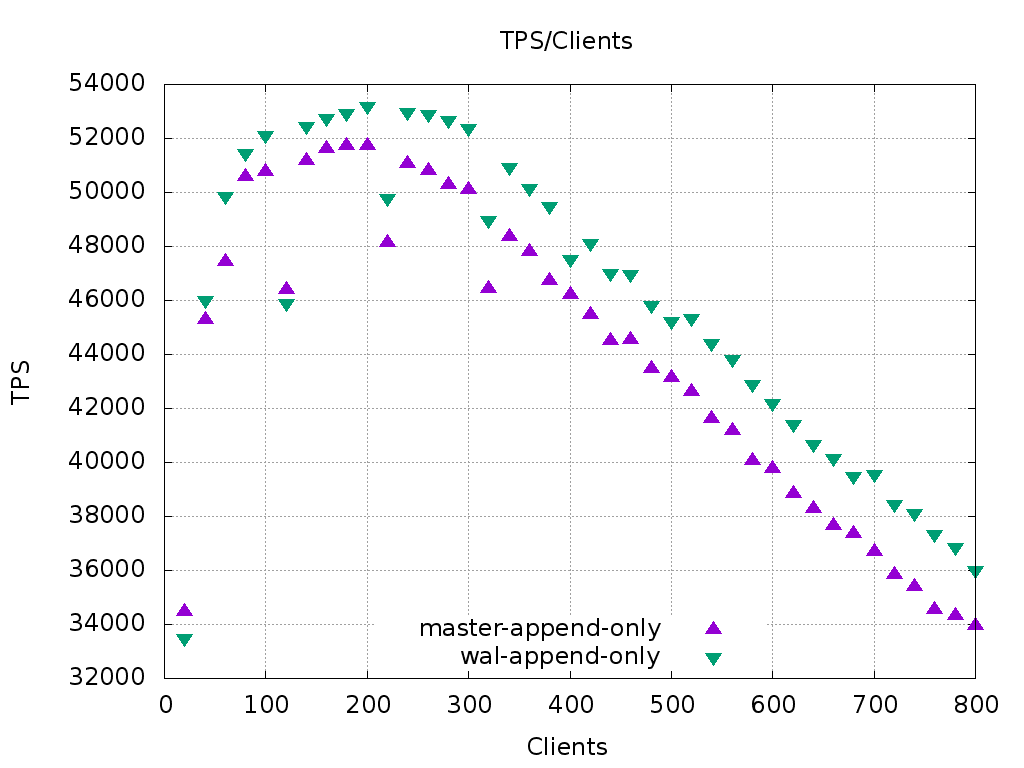

I can see an increase in transaction throughput of about 5%. Please see
the attached graph 'append-only.png'

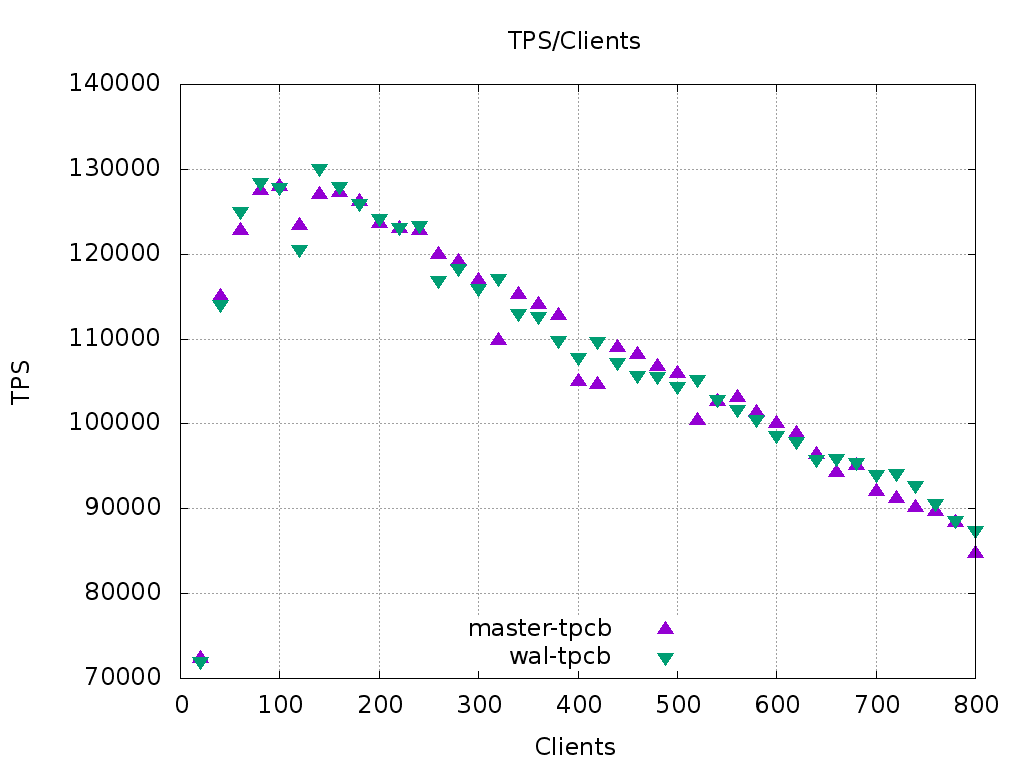

On the default tpcb-like benchmark, there is no meaningful change in
performance, as shown in 'tpcb.png'

Looking at the code, your changes seem reasonable to me. Some nitpicks:

XLogSegNoLowOrderMask -- this macro is not really needed,
XLogSegNoToSegID is enough (pg_resetwal should be changed to use the
latter, too).

The loop in findLastCheckpoint looks complex to me. It would be easier
to read with two loops, the outer one iterating over the segments and
the inner one iterating over the records.

+    uint16        xl_walid;        /* lowest 16 bits of the WAL file

to which this

+                                   record belongs */

I'd put a high-level description here, the low-level details are hidden
behind macros anyway. Something like this: /* identifier of the WAL
segment to which this record belongs. Used to detect stale WAL records
in a reused segment. */

+     * Make sure the above heavily-contended spinlock and byte

positions are

+     * on their own cache line. In particular, the RedoRecPtr and

full page

This comment in the definition of XLogCtlInsert mentions the spinlock
that is no more.

The signature of InstallXLogFileSegment looks overloaded now, not sure
how to simplify it. We could have two versions, one that looks for the
free slot and another that reuses the existing file. Also, it seems to
me that the lock doesn't have to be acquired inside this function, it
can be done by the caller.

--
Alexander Kuzmenkov
Postgres Professional: http://www.postgrespro.com
The Russian Postgres Company

On Sat, Dec 30, 2017 at 5:32 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

So we can't completely remove xl_prev field, without giving up some
functionality. But we don't really need to store the 8-byte previous
WAL pointer in order to detect torn pages. Something else which can
tell us that the WAL record does not belong to current WAL segno would
be enough as well. I propose that we replace it with a much smaller
2-byte field (let's call it xl_walid). The "xl_walid" (or whatever we
decide to call it) is the low order 16-bits of the WAL segno to which
the WAL record belongs. While reading WAL, we always match that the
"xl_walid" value stored in the WAL record matches with the current WAL
segno's lower order 16-bits and if not, then consider that as the end
of the stream.

For this to work, we must ensure that WAL files are either recycled in
such a way that the "xl_walid" of the previous (to be recycled) WAL
differs from the new WAL or we zero-out the new WAL file. Seems quite
easy to do with the existing infrastructure.

I have some reservations about whether this makes the mechanism less
reliable. It seems that an 8-byte field would have almost no chance
of matching by accident even if the location was filled with random
bytes, but with a 2-byte field it's not that unlikely. Of course, we
also have xl_crc, so I'm not sure whether there's any chance of real
harm...

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Robert Haas <robertmhaas@gmail.com> writes:

On Sat, Dec 30, 2017 at 5:32 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

So we can't completely remove xl_prev field, without giving up some
functionality. But we don't really need to store the 8-byte previous
WAL pointer in order to detect torn pages. Something else which can
tell us that the WAL record does not belong to current WAL segno would
be enough as well. I propose that we replace it with a much smaller
2-byte field (let's call it xl_walid). The "xl_walid" (or whatever we
decide to call it) is the low order 16-bits of the WAL segno to which
the WAL record belongs. While reading WAL, we always match that the
"xl_walid" value stored in the WAL record matches with the current WAL
segno's lower order 16-bits and if not, then consider that as the end
of the stream.

For this to work, we must ensure that WAL files are either recycled in
such a way that the "xl_walid" of the previous (to be recycled) WAL
differs from the new WAL or we zero-out the new WAL file. Seems quite
easy to do with the existing infrastructure.

I have some reservations about whether this makes the mechanism less
reliable.

Yeah, it scares me too. The xl_prev field is our only way of detecting
that we're looking at old WAL data when we cross a sector boundary.
I have no faith that we can prevent old WAL data from reappearing in the
file system across an OS crash, so I find Simon's assertion that we can
dodge the problem through file manipulation to be simply unbelievable.

If we could be sure that the WAL page size was no larger than the file
system's write quantum, then checking xlp_pageaddr would be sufficient
to detect stale WAL data. But I'm afraid 8K is way too big for that;
so we need to be able to recognize page tears within-page.

Of course, we also have xl_crc, so I'm not sure whether there's any
chance of real harm...

The CRC only tells you that you have a valid WAL record, it won't clue
you in that it's old data you shouldn't replay. If the previous WAL
record crossed the torn-page boundary, then you should have gotten a
CRC failure on that record --- but if the previous record ended at a
sector boundary, recognizing that the new record has an old xl_prev is
our ONLY defense against replaying stale data.

regards, tom lane

I wrote:

Robert Haas <robertmhaas@gmail.com> writes:

On Sat, Dec 30, 2017 at 5:32 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

For this to work, we must ensure that WAL files are either recycled in
such a way that the "xl_walid" of the previous (to be recycled) WAL
differs from the new WAL or we zero-out the new WAL file. Seems quite
easy to do with the existing infrastructure.

I have no faith that we can prevent old WAL data from reappearing in the
file system across an OS crash, so I find Simon's assertion that we can
dodge the problem through file manipulation to be simply unbelievable.

Forgot to say: if we *could* do it reliably, it would likely add
significant I/O traffic, eg an extra zeroing pass for every WAL segment.
That's a pretty heavy performance price to set against whatever win
we might get from contention reduction.

regards, tom lane

On 2018-01-12 10:45:54 -0500, Tom Lane wrote:

Robert Haas <robertmhaas@gmail.com> writes:

On Sat, Dec 30, 2017 at 5:32 AM, Simon Riggs <simon@2ndquadrant.com> wrote:
I have some reservations about whether this makes the mechanism less
reliable.

Yeah, it scares me too.

Same here.

The xl_prev field is our only way of detecting that we're looking at
old WAL data when we cross a sector boundary.

Right. I wonder if it be reasonable to move that to a page's header
instead of individual records? To avoid torn page issues we'd have to
reduce the page size to a sector size, but I'm not sure that's that bad?

Of course, we also have xl_crc, so I'm not sure whether there's any
chance of real harm...

The CRC only tells you that you have a valid WAL record, it won't clue
you in that it's old data you shouldn't replay.

Yea, I don't like relying on the CRC alone at all.

Greetings,

Andres Freund

Andres Freund <andres@anarazel.de> writes:

On 2018-01-12 10:45:54 -0500, Tom Lane wrote:

The xl_prev field is our only way of detecting that we're looking at
old WAL data when we cross a sector boundary.

Right. I wonder if it be reasonable to move that to a page's header
instead of individual records? To avoid torn page issues we'd have to
reduce the page size to a sector size, but I'm not sure that's that bad?

Giving up a dozen or two bytes out of every 512 sounds like quite an
overhead. Also, this'd mean that a much larger fraction of WAL records
need to be split across page boundaries, which I'd expect to produce a
performance hit in itself --- a page crossing has to complicate figuring
out how much space we need for the record.

regards, tom lane

On 2018-01-12 17:24:54 -0500, Tom Lane wrote:

Andres Freund <andres@anarazel.de> writes:

On 2018-01-12 10:45:54 -0500, Tom Lane wrote:

The xl_prev field is our only way of detecting that we're looking at
old WAL data when we cross a sector boundary.

Right. I wonder if it be reasonable to move that to a page's header
instead of individual records? To avoid torn page issues we'd have to
reduce the page size to a sector size, but I'm not sure that's that bad?

Giving up a dozen or two bytes out of every 512 sounds like quite an
overhead.

It's not nothing, that's true. But if it avoids 8 bytes in every record,
that'd probably at least as much in most usecases.

Also, this'd mean that a much larger fraction of WAL records
need to be split across page boundaries, which I'd expect to produce a
performance hit in itself --- a page crossing has to complicate figuring
out how much space we need for the record.

It does increase the computation a bit, see XLogBytePosToRecPtr(). I'd
guess that more of the overhead would come from the xlog buffer
management though.

Greetings,

Andres Freund

Andres Freund <andres@anarazel.de> writes:

On 2018-01-12 17:24:54 -0500, Tom Lane wrote:

Andres Freund <andres@anarazel.de> writes:

Right. I wonder if it be reasonable to move that to a page's header
instead of individual records? To avoid torn page issues we'd have to
reduce the page size to a sector size, but I'm not sure that's that bad?

Giving up a dozen or two bytes out of every 512 sounds like quite an
overhead.

It's not nothing, that's true. But if it avoids 8 bytes in every record,
that'd probably at least as much in most usecases.

Fair point. I don't have a very good handle on what "typical" WAL record
sizes are, but we might be fine with that --- some quick counting on the
fingers says we'd break even with an average record size of ~160 bytes,
and be ahead below that.

We'd need to investigate the page-crossing overhead carefully though.

regards, tom lane

On 2018-01-12 17:43:00 -0500, Tom Lane wrote:

Andres Freund <andres@anarazel.de> writes:

On 2018-01-12 17:24:54 -0500, Tom Lane wrote:

Andres Freund <andres@anarazel.de> writes:

Right. I wonder if it be reasonable to move that to a page's header
instead of individual records? To avoid torn page issues we'd have to
reduce the page size to a sector size, but I'm not sure that's that bad?

Giving up a dozen or two bytes out of every 512 sounds like quite an
overhead.

It's not nothing, that's true. But if it avoids 8 bytes in every record,
that'd probably at least as much in most usecases.

Fair point. I don't have a very good handle on what "typical" WAL record
sizes are, but we might be fine with that --- some quick counting on the
fingers says we'd break even with an average record size of ~160 bytes,
and be ahead below that.

This is far from a definitive answer, but here's some data:

pgbench -i -s 100 -q:
Type N (%) Record size (%) FPI size (%) Combined size (%)
---- - --- ----------- --- -------- --- ------------- ---
Total 308958 1077269060 [84.19%] 202269468 [15.81%] 1279538528 [100%]

So here records are really large, which makes sense, given it's
largelyinitialization of data. With wal_compression that'd probably look
different, but still commonly spanning multiple pages.

pgbench -M prepared -c 16 -j 16 -T 100
Type N (%) Record size (%) FPI size (%) Combined size (%)
---- - --- ----------- --- -------- --- ------------- ---
Total 14228881 947824170 [100.00%] 8192 [0.00%] 947832362 [100%]

Here we're at 66 bytes...

We'd need to investigate the page-crossing overhead carefully though.

agreed.

Greetings,

Andres Freund

On Sat, Dec 30, 2017 at 7:32 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

So we can't completely remove xl_prev field, without giving up some
functionality. But we don't really need to store the 8-byte previous
WAL pointer in order to detect torn pages. Something else which can
tell us that the WAL record does not belong to current WAL segno would
be enough as well. I propose that we replace it with a much smaller
2-byte field (let's call it xl_walid). The "xl_walid" (or whatever we
decide to call it) is the low order 16-bits of the WAL segno to which
the WAL record belongs. While reading WAL, we always match that the
"xl_walid" value stored in the WAL record matches with the current WAL
segno's lower order 16-bits and if not, then consider that as the end
of the stream.

For this to work, we must ensure that WAL files are either recycled in
such a way that the "xl_walid" of the previous (to be recycled) WAL
differs from the new WAL or we zero-out the new WAL file. Seems quite
easy to do with the existing infrastructure.

Or, you can use the lower 16-bits of the previous record's CRC

On Fri, Jan 12, 2018 at 8:43 PM, Claudio Freire <klaussfreire@gmail.com>
wrote:

On Sat, Dec 30, 2017 at 7:32 AM, Simon Riggs <simon@2ndquadrant.com>
wrote:

So we can't completely remove xl_prev field, without giving up some
functionality. But we don't really need to store the 8-byte previous
WAL pointer in order to detect torn pages. Something else which can
tell us that the WAL record does not belong to current WAL segno would
be enough as well. I propose that we replace it with a much smaller
2-byte field (let's call it xl_walid). The "xl_walid" (or whatever we
decide to call it) is the low order 16-bits of the WAL segno to which
the WAL record belongs. While reading WAL, we always match that the
"xl_walid" value stored in the WAL record matches with the current WAL
segno's lower order 16-bits and if not, then consider that as the end
of the stream.

For this to work, we must ensure that WAL files are either recycled in
such a way that the "xl_walid" of the previous (to be recycled) WAL
differs from the new WAL or we zero-out the new WAL file. Seems quite
easy to do with the existing infrastructure.

Or, you can use the lower 16-bits of the previous record's CRC

Sorry, missed the whole point. Of the *first* record's CRC

Claudio Freire <klaussfreire@gmail.com> writes:

On Sat, Dec 30, 2017 at 7:32 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

So we can't completely remove xl_prev field, without giving up some
functionality.

Or, you can use the lower 16-bits of the previous record's CRC

Hmm ... that is an interesting idea, but I'm not sure it helps much
towards Simon's actual objective. AIUI the core problem here is the
contention involved in retrieving the previous WAL record's address.
Changing things so that we need the previous record's CRC isn't really
gonna improve that --- if anything, it'll be worse, because the
record's address can (in principle) be known sooner than its CRC.

Still, if we were just looking to shave some bits off of WAL record
headers, it might be possible to do something with this idea.

regards, tom lane

On Fri, Jan 12, 2018 at 10:49 PM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Claudio Freire <klaussfreire@gmail.com> writes:

On Sat, Dec 30, 2017 at 7:32 AM, Simon Riggs <simon@2ndquadrant.com>

wrote:

So we can't completely remove xl_prev field, without giving up some
functionality.

Or, you can use the lower 16-bits of the previous record's CRC

Hmm ... that is an interesting idea, but I'm not sure it helps much
towards Simon's actual objective. AIUI the core problem here is the
contention involved in retrieving the previous WAL record's address.
Changing things so that we need the previous record's CRC isn't really
gonna improve that --- if anything, it'll be worse, because the
record's address can (in principle) be known sooner than its CRC.

Still, if we were just looking to shave some bits off of WAL record
headers, it might be possible to do something with this idea.

regards, tom lane

I later realized. That's why I corrected myself to the first record, not
the previous.

Now, that assumes there's enough entropy in CRC values to actually make
good use of those 16 bits... there may not. WAL segments are highly
compressible after all.

So, maybe a hash of the LSN of the first record instead? That should be
guaranteed to have good entropy (given a good hash).

In any case, there are many rather good alternatives to the segment number
that should be reasonably safe from consistent collisions with garbage data.

On 12 January 2018 at 15:45, Tom Lane <tgl@sss.pgh.pa.us> wrote:

I have some reservations about whether this makes the mechanism less
reliable.

Yeah, it scares me too. The xl_prev field is our only way of detecting
that we're looking at old WAL data when we cross a sector boundary.
I have no faith that we can prevent old WAL data from reappearing in the
file system across an OS crash, so I find Simon's assertion that we can
dodge the problem through file manipulation to be simply unbelievable.

Not really sure what you mean by "file manipulation". Maybe the
proposal wasn't clear.

We need a way of detecting that we are looking at old WAL data. More
specifically, we need to know whether we are looking at a current file
or an older file. My main assertion here is that the detection only
needs to happen at file-level, not at record level, so it is OK to
lose some bits of information without changing our ability to protect
data - they were not being used productively.

Let's do the math to see if it is believable, or not.

The new two byte value is protected by CRC. The 2 byte value repeats
every 32768 WAL files. Any bit error in that value that made it appear
to be a current value would need to have a rare set of circumstances.

1. We would need to suffer a bit error that did not get caught by the CRC.

2. An old WAL record would need to occur right on the boundary of the
last WAL record.

3. The bit error would need to occur within the 2 byte value. WAL
records are usually fairly long, but so this has a Probability of
<1/16

4. The bit error would need to change an old value to the current
value of the new 2 byte field. If the current value is N, and the
previous value is M, then a single bit error that takes M -> N can
only happen if N-M is divisible by 2. The maximum probability of an
issue would occur when we reuse WAL every 3 files, so probability of
such a change would be 1/16. If the distance between M and N is not a
power of two then a single bit error cannot change M into N. So what
probability do we assign to the situation that M and N are exactly a
power of two apart?

So the probability of this occurring requires a single undetectable
bit error and would then happen less than 1 in 256 times, but arguably
much less. Notice that this probability is therefore at least 2 orders
of magnitude smaller than the chance that a single bit error occurs
and simply corrupts data, a mere rounding error in risk.

I don't find that unbelievable at all.

If you still do, then I would borrow Andres' idea of using the page
header. If we copy the new 2 byte value into the page header, we can
use that to match against in the case of error. XLogPageHeaderData can
be extended by 2 bytes without increasing its size when using 8 byte
alignment. The new 2 byte value is the same anywhere in the file, so
that works quickly and easily. And it doesn't increase the size of the
header.

So with that change it looks completely viable.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Sat, Jan 13, 2018 at 03:40:01PM +0000, Simon Riggs wrote:

The new two byte value is protected by CRC. The 2 byte value repeats
every 32768 WAL files. Any bit error in that value that made it appear
to be a current value would need to have a rare set of circumstances.

If you use the two lower bytes of the segment number, then this gets
repeated every 64k segments, no? In terms of space this represents
500GB worth of WAL segments with a default segment size. Hence the more
PostgreSQL scales, the more there is a risk of collision, and I am
pretty sure that there are already deployments around allocating
hundreds of gigs worth of space for the WAL partition. There are no
problems of this class if using the 8-byte field xl_prev. It seems to
me that we don't want to take any risks here.
--
Michael

On Thu, Feb 1, 2018 at 11:05 AM, Michael Paquier <michael.paquier@gmail.com>
wrote:

On Sat, Jan 13, 2018 at 03:40:01PM +0000, Simon Riggs wrote:

The new two byte value is protected by CRC. The 2 byte value repeats
every 32768 WAL files. Any bit error in that value that made it appear
to be a current value would need to have a rare set of circumstances.

If you use the two lower bytes of the segment number, then this gets
repeated every 64k segments, no? In terms of space this represents
500GB worth of WAL segments with a default segment size. Hence the more
PostgreSQL scales, the more there is a risk of collision, and I am
pretty sure that there are already deployments around allocating
hundreds of gigs worth of space for the WAL partition. There are no
problems of this class if using the 8-byte field xl_prev. It seems to
me that we don't want to take any risks here.

IMHO we're missing a point here. When xl_prev is changed to a 2-byte value
(as the patch suggests), the risk only comes when an old WAL file is
recycled for some future WAL file and the old and the future WAL file's
segment numbers share the same low order 16-bits. Now as the patch stands,
we take precaution to never reuse a WAL file with conflicting low order
bits.

This particular piece of the patch deals with that:

@@ -3496,6 +3495,16 @@ InstallXLogFileSegment(XLogSegNo *segno, char
*tmppath,
                return false;
            }
            (*segno)++;
+
+           /*
+            * If avoid_conflicting_walid is true, then we must not recycle
the
+            * WAL files so that the old and the recycled WAL segnos have
the
+            * same lower order 16-bits.
+            */
+           if (avoid_conflicting_walid &&
+               XLogSegNoToSegID(tmpsegno) == XLogSegNoToSegID(*segno))
+               (*segno)++;
+
            XLogFilePath(path, ThisTimeLineID, *segno, wal_segment_size);
        }
    }

For example, old WAL file 000000010000000000000001 will NEVER be reused
as 000000010000000000010001. So even if there are any intact old WAL
records in the recycled file, they will be detected correctly during replay
since the SegID stored in the WAL record will not match the SegID as
derived from the WAL file segment number. The replay code does this for
every WAL record it sees.

There were some concerns about bit-flipping, which may inadvertently SegID
stored in the carried over WAL record so that it now matches with the
current WAL files' SegID, but TBH I don't see why we can't trust CRC to
detect that. Because if we can't, then there would be other problems during
WAL replay.

Thanks,
Pavan

--
Pavan Deolasee http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On Thu, Feb 1, 2018 at 1:00 AM, Pavan Deolasee <pavan.deolasee@gmail.com> wrote:

IMHO we're missing a point here. When xl_prev is changed to a 2-byte value
(as the patch suggests), the risk only comes when an old WAL file is
recycled for some future WAL file and the old and the future WAL file's
segment numbers share the same low order 16-bits. Now as the patch stands,
we take precaution to never reuse a WAL file with conflicting low order
bits.

You and Simon seem to be assuming that the only case we need to worry
about is when the old segment had an xl_prev value at the same offset,
and you may be right, but if that is guaranteed, I don't understand
why it's guaranteed. Why couldn't that offset in the old WAL file
been in the middle of a WAL record and thus subject to containing any
random garbage?

If we know that, at the same offset in the previous WAL file, there
was definitely an xl_prev pointer, then it seems like some trick like
what you're proposing might work, although I'm not sure of the
details. But if that could've been something else -- like the middle
of a WAL record -- then that doesn't really help. Our chance of a
false match is pretty much just 2^-nbits.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On 1 February 2018 at 18:55, Robert Haas <robertmhaas@gmail.com> wrote:

On Thu, Feb 1, 2018 at 1:00 AM, Pavan Deolasee <pavan.deolasee@gmail.com> wrote:

IMHO we're missing a point here. When xl_prev is changed to a 2-byte value
(as the patch suggests), the risk only comes when an old WAL file is
recycled for some future WAL file and the old and the future WAL file's
segment numbers share the same low order 16-bits. Now as the patch stands,
we take precaution to never reuse a WAL file with conflicting low order
bits.

You and Simon seem to be assuming that the only case we need to worry
about is when the old segment had an xl_prev value at the same offset,
and you may be right, but if that is guaranteed, I don't understand
why it's guaranteed. Why couldn't that offset in the old WAL file
been in the middle of a WAL record and thus subject to containing any
random garbage?

Yes, it would be about 99% of the time.

But you have it backwards - we are not assuming that case. That is the
only case that has risk - the one where an old WAL record starts at
exactly the place the latest one stops. Otherwise the rest of the WAL
record will certainly fail the CRC check, since it will effectively
have random data in it, as you say.

I didn't even include that aspect in the calculation of the risk.

If we know that, at the same offset in the previous WAL file, there
was definitely an xl_prev pointer, then it seems like some trick like
what you're proposing might work, although I'm not sure of the
details. But if that could've been something else -- like the middle
of a WAL record -- then that doesn't really help. Our chance of a
false match is pretty much just 2^-nbits.

The full 8 bytes of the xl_prev pointer aren't working for a living.
More isn't better, always.

If we really can't persuade you of that, it doesn't sink the patch. We
can have the WAL pointer itself - it wouldn't save space but it would
at least alleviate the spinlock.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Fri, Feb 02, 2018 at 12:21:49AM +0000, Simon Riggs wrote:

Yes, it would be about 99% of the time.

When it comes to recovery, I don't think that 99% is a guarantee
sufficient. (Wondering about the maths behind such a number as well.)

But you have it backwards - we are not assuming that case. That is the
only case that has risk - the one where an old WAL record starts at
exactly the place the latest one stops. Otherwise the rest of the WAL
record will certainly fail the CRC check, since it will effectively
have random data in it, as you say.

Your patch assumes that a single WAL segment recycling is fine to
escape based on the file name, but you need to think beyond that. It
seems to me that your assumption is wrong if the tail of a segment gets
reused after more cycles than a single one, which could happen when
doing recovery from an archive, where segments used could have junk in
them. So you actually *increase* the odds of problems if a segment is
forcibly switched and archived, then reused in recovery after being
fetched from an archive.

Since 9.4, the tail of WAL segments is filled with zeros so this brings
more confidence, but I think that we cannot exchange the existing
reliability with performance. So like others have expressed on
this thread, the approach taken does not sound good to me, because we
increase the risks of junk WAL records being used during recovery, just
for the sake of performance. An approach that could be better is to
replace XLogRecord->xl_prev by a new field in XLogPageHeaderData which
tracks XLogRecPtr for the previous page, say xlp_prevpageaddr, and use
that for all sanity checks that xlogreader.c is doing.

If I can count with my fingers correctly, SizeOfXLogLongPHD is 40 bytes
long, and SizeOfXLogShortPHD is 24 bytes, so even with an increase of 8
bytes for the page header you gain space as one record is usually much
likely less than a full xlog page if you remove xl_prev.
--
Michael

On Thu, Feb 1, 2018 at 7:21 PM, Simon Riggs <simon@2ndquadrant.com> wrote:

Yes, it would be about 99% of the time.

But you have it backwards - we are not assuming that case. That is the
only case that has risk - the one where an old WAL record starts at
exactly the place the latest one stops. Otherwise the rest of the WAL
record will certainly fail the CRC check, since it will effectively
have random data in it, as you say.

OK, I get it now. Thanks for explaining. I think I understand now
why you think this problem can be solved just by controlling the way
we recycle segments, but I'm still not sure if that can really be made
fully reliable. Michael seems concerned about what might happen after
multiple recyclings, and Tom has raised the issue of old data
reappearing after a crash.

I do agree that it would be nice if we could make it work - saving 8
bytes per WAL record would be significant.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Fri, Feb 2, 2018 at 9:07 PM, Robert Haas <robertmhaas@gmail.com> wrote:

On Thu, Feb 1, 2018 at 7:21 PM, Simon Riggs <simon@2ndquadrant.com> wrote:

Yes, it would be about 99% of the time.

But you have it backwards - we are not assuming that case. That is the
only case that has risk - the one where an old WAL record starts at
exactly the place the latest one stops. Otherwise the rest of the WAL
record will certainly fail the CRC check, since it will effectively
have random data in it, as you say.

OK, I get it now. Thanks for explaining. I think I understand now
why you think this problem can be solved just by controlling the way
we recycle segments, but I'm still not sure if that can really be made
fully reliable. Michael seems concerned about what might happen after
multiple recyclings, and Tom has raised the issue of old data
reappearing after a crash.

I'm not sure if Michael has spotted a real problem or was that just a
concern. He himself later rightly pointed out that when a WAL file is
switched, the old file is filled with zeros. So I don't see a problem
there. May be I am missing something and Michael can explain further.

Regarding Tom's concerns, that could be a problem if a file system crash
survives a name change, but not the subsequent data written to the file.
For this to be a problem, WAL file A is renamed to B and then renamed to C.
File A and C share the same low order bits. Further upon file system crash,
the file is correctly named as C, but the data written *before* the rename
operation is lost. Is that a real possibility? Can we delay reusing low
order bits a little further to address this problem? Of course, if the file
system crash can survive many renames and still resurrect old data several
renames before, then we shall have the same problem.

Thanks,
Pavan

--
Pavan Deolasee http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On Mon, Feb 12, 2018 at 04:33:51PM +0530, Pavan Deolasee wrote:

I'm not sure if Michael has spotted a real problem or was that just a
concern. He himself later rightly pointed out that when a WAL file is
switched, the old file is filled with zeros. So I don't see a problem
there. May be I am missing something and Michael can explain further.

Sorry for my late reply here. I have been eyeballing the code for some
time to be sure that I was not missing something. A new segment is
filled with zeros when it is freshly created (see XLogFileInit), or when
doing a forced segment switch, but the checkpointer just renames the old
files which could perfectly contain past data which is reused
afterwards. So after doing one recycling cycle, the old data should be
overwritten when a second recycling cycle happens. One thing that
worries me though is related to timeline switches. The last, partial,
WAL segment may still have garbage data. Since 9.5 the segment is being
renamed with a dedicated suffix, but the file could be renamed if an
operator is willing to finish replay up to the end of the timeline where
this file is the last one, and it could have junk data that your checks
rely on. There may be other things I have not considered, but at least
that's one problem.
--
Michael

On 2/1/18 19:21, Simon Riggs wrote:

If we really can't persuade you of that, it doesn't sink the patch. We
can have the WAL pointer itself - it wouldn't save space but it would
at least alleviate the spinlock.

Do you want to send in an alternative patch that preserves the WAL
pointer and only changes the locking?

--
Peter Eisentraut http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Fri, Mar 9, 2018 at 8:49 PM, Peter Eisentraut <
peter.eisentraut@2ndquadrant.com> wrote:

On 2/1/18 19:21, Simon Riggs wrote:

If we really can't persuade you of that, it doesn't sink the patch. We
can have the WAL pointer itself - it wouldn't save space but it would
at least alleviate the spinlock.

Do you want to send in an alternative patch that preserves the WAL
pointer and only changes the locking?

Sorry for the delay. Here is an updated patch which now replaces xl_prev
with xl_curr, thus providing similar safeguards against corrupted or torn
WAL pages, but still providing benefits of atomic operations.

I repeated the same set of tests and the results are almost similar. These
tests are done on a different AWS instance though and hence not comparable
to previous tests. What we do in these tests is essentially
call ReserveXLogInsertLocation() 1M times to reserve 256 bytes each time,
in a single select statement (the function is exported and a SQL-callable
routine is added for the purpose of the tests)

Patched:
======
#clients #tps
1 34.195311
2 29.001584
4 31.712009
8 35.489272
16 41.950044

Master:
======
#clients #tps
1 24.128004
2 12.326135
4 8.334143
8 16.035699
16 8.502794

So that's pretty good improvement across the spectrum.

Thanks,
Pavan

--
Pavan Deolasee http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 2 February 2018 at 02:17, Michael Paquier <michael.paquier@gmail.com> wrote:

On Fri, Feb 02, 2018 at 12:21:49AM +0000, Simon Riggs wrote:

Yes, it would be about 99% of the time.

When it comes to recovery, I don't think that 99% is a guarantee
sufficient. (Wondering about the maths behind such a number as well.)

But you have it backwards - we are not assuming that case. That is the
only case that has risk - the one where an old WAL record starts at
exactly the place the latest one stops. Otherwise the rest of the WAL
record will certainly fail the CRC check, since it will effectively
have random data in it, as you say.

Your patch assumes that a single WAL segment recycling is fine to
escape based on the file name, but you need to think beyond that. It
seems to me that your assumption is wrong if the tail of a segment gets
reused after more cycles than a single one, which could happen when
doing recovery from an archive, where segments used could have junk in
them. So you actually *increase* the odds of problems if a segment is
forcibly switched and archived, then reused in recovery after being
fetched from an archive.

This seems to be a pivotal point in your argument, yet it is just an assertion.

Please explain for the archive why you think the odds increase in the
way you describe.

Thanks

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 23 March 2018 at 08:35, Pavan Deolasee <pavan.deolasee@gmail.com> wrote:

On Fri, Mar 9, 2018 at 8:49 PM, Peter Eisentraut
<peter.eisentraut@2ndquadrant.com> wrote:

On 2/1/18 19:21, Simon Riggs wrote:

If we really can't persuade you of that, it doesn't sink the patch. We
can have the WAL pointer itself - it wouldn't save space but it would
at least alleviate the spinlock.

Do you want to send in an alternative patch that preserves the WAL
pointer and only changes the locking?

Sorry for the delay. Here is an updated patch which now replaces xl_prev
with xl_curr, thus providing similar safeguards against corrupted or torn
WAL pages, but still providing benefits of atomic operations.

I repeated the same set of tests and the results are almost similar. These
tests are done on a different AWS instance though and hence not comparable
to previous tests. What we do in these tests is essentially call
ReserveXLogInsertLocation() 1M times to reserve 256 bytes each time, in a
single select statement (the function is exported and a SQL-callable routine
is added for the purpose of the tests)

Patched:
======
#clients #tps
1 34.195311
2 29.001584
4 31.712009
8 35.489272
16 41.950044

Master:
======
#clients #tps
1 24.128004
2 12.326135
4 8.334143
8 16.035699
16 8.502794

So that's pretty good improvement across the spectrum.

So it shows clear benefit for both bulk actions and OLTP, with no regressions.

No objection exists to the approach used in the patch, so I'm now
ready to commit this.

Last call for objections?

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Fri, Mar 23, 2018 at 09:04:55AM +0000, Simon Riggs wrote:

So it shows clear benefit for both bulk actions and OLTP, with no regressions.

No objection exists to the approach used in the patch, so I'm now
ready to commit this.

Last call for objections?

Please hold on. It is Friday evening here. First I cannot take the
time to articulate an answer you are requesting on the other thread
part. Second, the latest version of the patch has been sent from Pavan
a couple of hours ago, and you are proposing to commit it in a message
sent 29 minutes after the last version has been sent.

Let's cool down a bit and take some time for reviews, please. You still
have one week until the end of the commit fest anyway.

Thanks,
--
Michael

On 23 March 2018 at 09:22, Michael Paquier <michael@paquier.xyz> wrote:

On Fri, Mar 23, 2018 at 09:04:55AM +0000, Simon Riggs wrote:

So it shows clear benefit for both bulk actions and OLTP, with no regressions.

No objection exists to the approach used in the patch, so I'm now
ready to commit this.

Last call for objections?

Please hold on. It is Friday evening here. First I cannot take the
time to articulate an answer you are requesting on the other thread
part. Second, the latest version of the patch has been sent from Pavan
a couple of hours ago, and you are proposing to commit it in a message
sent 29 minutes after the last version has been sent.

Let's cool down a bit and take some time for reviews, please. You still
have one week until the end of the commit fest anyway.

Your assumption that I would commit a new patch that was 29 mins old
is frankly pretty ridiculous, so yes, lets keep calm.

Enjoy your weekend and I'll be happy to read your review on Monday.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 2018-03-23 11:06:48 +0000, Simon Riggs wrote:

Your assumption that I would commit a new patch that was 29 mins old
is frankly pretty ridiculous, so yes, lets keep calm.

Uh.

On Fri, Mar 23, 2018 at 11:06:48AM +0000, Simon Riggs wrote:

Your assumption that I would commit a new patch that was 29 mins old
is frankly pretty ridiculous, so yes, lets keep calm.

When a committer says that a patch is "ready for commit" and that he
calls for "last objections", I am understanding that you would be ready
to commit the patch from the moment such an email has been sent. Am I
the only one to think so? Now let's look at the numbers:
- The last patch sent is a v2, which implements a completely new
approach compared to v1. This is a non-trivial patch which touches
sensitive parts of the code.
- v2 has been sent exactly two weeks after the last email exchanged on
this thread.
- Per the data publicly available, it took less than 30 minutes to
review the patch, and there are zero comments about its contents.
I do patch review on a more-or-less daily basis, and look at threads on
hackers on a daily basis, but I really rarely see such an "efficient"
review pattern. You and Pavan have likely discussed the patch offline,
but nobody can guess what has been discussed and what have been the
arguments exchanged.

Enjoy your weekend and I'll be happy to read your review on Monday.

Er. So this basically means that I need to do a commitment to look at
this patch in such a short time frame? If you are asking for reviews,
doing such requests by asking a proper question rather than by implying
it in an affirmation would seem more adapted to me, so this email bit is
making me uncomfortable. My apologies if I am not able to catch the
nuance in those words.
--
Michael

I suggest we focus on the engineering. I've not discussed this patch
with Pavan offline.

On 23 March 2018 at 23:32, Michael Paquier <michael@paquier.xyz> wrote:

On Fri, Mar 23, 2018 at 11:06:48AM +0000, Simon Riggs wrote:

Your assumption that I would commit a new patch that was 29 mins old
is frankly pretty ridiculous, so yes, lets keep calm.

When a committer says that a patch is "ready for commit" and that he
calls for "last objections", I am understanding that you would be ready
to commit the patch from the moment such an email has been sent. Am I
the only one to think so? Now let's look at the numbers:
- The last patch sent is a v2, which implements a completely new
approach compared to v1. This is a non-trivial patch which touches
sensitive parts of the code.
- v2 has been sent exactly two weeks after the last email exchanged on
this thread.
- Per the data publicly available, it took less than 30 minutes to
review the patch, and there are zero comments about its contents.
I do patch review on a more-or-less daily basis, and look at threads on
hackers on a daily basis, but I really rarely see such an "efficient"
review pattern. You and Pavan have likely discussed the patch offline,
but nobody can guess what has been discussed and what have been the
arguments exchanged.

Enjoy your weekend and I'll be happy to read your review on Monday.

Er. So this basically means that I need to do a commitment to look at
this patch in such a short time frame? If you are asking for reviews,
doing such requests by asking a proper question rather than by implying
it in an affirmation would seem more adapted to me, so this email bit is
making me uncomfortable. My apologies if I am not able to catch the
nuance in those words.
--
Michael

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Sat, Mar 24, 2018 at 7:42 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

I suggest we focus on the engineering. I've not discussed this patch
with Pavan offline.

Well then proposing to commit moments after it's been posted is
ridiculous. That's exactly the opposite of "focusing on the
engineering".

This is a patch about which multiple people have expressed concerns.
You're trying to jam a heavily redesigned version in at the last
minute without adequate review. Please don't do that.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On 24 March 2018 at 11:58, Robert Haas <robertmhaas@gmail.com> wrote:

On Sat, Mar 24, 2018 at 7:42 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

I suggest we focus on the engineering. I've not discussed this patch
with Pavan offline.

Well then proposing to commit moments after it's been posted is
ridiculous. That's exactly the opposite of "focusing on the
engineering".

This is a patch about which multiple people have expressed concerns.
You're trying to jam a heavily redesigned version in at the last
minute without adequate review. Please don't do that.

All presumption on your part. Don't tell me what I think and then diss
me for that.

If you have engineering comments, please make them.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Sat, Mar 24, 2018 at 8:11 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

On 24 March 2018 at 11:58, Robert Haas <robertmhaas@gmail.com> wrote:

On Sat, Mar 24, 2018 at 7:42 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

I suggest we focus on the engineering. I've not discussed this patch
with Pavan offline.

Well then proposing to commit moments after it's been posted is
ridiculous. That's exactly the opposite of "focusing on the
engineering".

This is a patch about which multiple people have expressed concerns.
You're trying to jam a heavily redesigned version in at the last
minute without adequate review. Please don't do that.

All presumption on your part. Don't tell me what I think and then diss
me for that.

It is of course true that I can't know your internal mental state with
certainty, but I don't think it is presumptuous to suppose that a
person who says they're going to commit a patch that hasn't been
reviewed intends to commit a patch that hasn't been reviewed.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Sat, Mar 24, 2018 at 5:28 PM, Robert Haas <robertmhaas@gmail.com> wrote:

This is a patch about which multiple people have expressed concerns.
You're trying to jam a heavily redesigned version in at the last
minute without adequate review. Please don't do that.

TBH this is not a heavily redesigned version. There were two parts to the
original patch:

1. Replacing 8-byte xl_prev with 2-byte xl_walid in order to reduce the
size of the WAL record header
2. Changing XLogCtlInsert.CurrBytePos to use atomic operations in order to
reduce the spinlock contention.

Most people expressed concerns regarding 1, but there were none regarding
2. Now it's possible that the entire attention got diverted to 1 and nobody
really studied 2 in detail. Or may be 2 is mostly non-contentious, given
the results of micro benchmarks.

So what I've done in v2 is to just deal with part 2 i.e. replace
access to CurrBytePos
with atomic operations, based on the following suggestion by Simon.

On 2/1/18 19:21, Simon Riggs wrote:

If we really can't persuade you of that, it doesn't sink the patch. We
can have the WAL pointer itself - it wouldn't save space but it would
at least alleviate the spinlock.

This gives us the same level of guarantee that xl_prev used to offer, yet
help us use atomic operations. I'll be happy if we can look at that
particular change and see if there are any holes there.

Thanks,
Pavan

--
Pavan Deolasee http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 24 March 2018 at 12:19, Robert Haas <robertmhaas@gmail.com> wrote:

On Sat, Mar 24, 2018 at 8:11 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

On 24 March 2018 at 11:58, Robert Haas <robertmhaas@gmail.com> wrote:

On Sat, Mar 24, 2018 at 7:42 AM, Simon Riggs <simon@2ndquadrant.com> wrote:

I suggest we focus on the engineering. I've not discussed this patch
with Pavan offline.

Well then proposing to commit moments after it's been posted is
ridiculous. That's exactly the opposite of "focusing on the
engineering".

This is a patch about which multiple people have expressed concerns.
You're trying to jam a heavily redesigned version in at the last
minute without adequate review. Please don't do that.

All presumption on your part. Don't tell me what I think and then diss
me for that.

It is of course true that I can't know your internal mental state with
certainty, but I don't think it is presumptuous to suppose that a
person who says they're going to commit a patch that hasn't been
reviewed intends to commit a patch that hasn't been reviewed.

It seems you really are more intent on talking about my actions than
on discussing the patch.

Probably would have been better to read what I've actually said beforehand.

If you have anything further to say, make it a formal complaint
offlist so we can discuss engineering here.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Sat, Mar 24, 2018 at 12:37:21PM +0000, Simon Riggs wrote:

If you have anything further to say, make it a formal complaint
offlist so we can discuss engineering here.

Commit fest operations and patch reviews concern the community. There
is always something to learn for other people following the mailing
lists if a patch is thought to be handled incorrectly, so as the same
kind of errors are less repeated in the future.

End of the digression from my side, let's go back to development work.
--
Michael

On Sat, Mar 24, 2018 at 11:01 PM, Pavan Deolasee
<pavan.deolasee@gmail.com> wrote:

TBH this is not a heavily redesigned version. There were two parts to the
original patch:

1. Replacing 8-byte xl_prev with 2-byte xl_walid in order to reduce the size
of the WAL record header
2. Changing XLogCtlInsert.CurrBytePos to use atomic operations in order to
reduce the spinlock contention.

Most people expressed concerns regarding 1, but there were none regarding 2.
Now it's possible that the entire attention got diverted to 1 and nobody
really studied 2 in detail. Or may be 2 is mostly non-contentious, given the
results of micro benchmarks.

So what I've done in v2 is to just deal with part 2 i.e. replace access to
CurrBytePos with atomic operations, based on the following suggestion by
Simon.

On 2/1/18 19:21, Simon Riggs wrote:

If we really can't persuade you of that, it doesn't sink the patch. We
can have the WAL pointer itself - it wouldn't save space but it would
at least alleviate the spinlock.

This gives us the same level of guarantee that xl_prev used to offer, yet
help us use atomic operations. I'll be happy if we can look at that
particular change and see if there are any holes there.

Leaving aside the arguments about process, the patch is pretty small
and fairly straightforward. Given the claimed performance gains that's
a nice bang for the buck.

I haven't seen any obvious holes, but this is surely a case for as
many eyeballs as possible.

Some of the comments read a little oddly. We should talk about what we
are doing or not doing, but not about what we used to do and don't do
any longer, ISTM. e.g. instead of explaining that we used to have a
spinlock and don't have one any longer, just explain why we don't need
a spinlock.

All the regression and TAP tests pass happily.

cheers

andrew

--
Andrew Dunstan https://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Tue, Mar 27, 2018 at 6:35 AM, Andrew Dunstan
<andrew.dunstan@2ndquadrant.com> wrote:

Leaving aside the arguments about process, the patch is pretty small
and fairly straightforward. Given the claimed performance gains that's
a nice bang for the buck.

I haven't seen any obvious holes, but this is surely a case for as
many eyeballs as possible.

Taking a look at this version, I think the key thing we have to decide
is whether we're comfortable with this:

--- a/src/include/access/xlogrecord.h
+++ b/src/include/access/xlogrecord.h
@@ -42,7 +42,7 @@ typedef struct XLogRecord
 {
     uint32      xl_tot_len;     /* total len of entire record */
     TransactionId xl_xid;       /* xact id */
-    XLogRecPtr  xl_prev;        /* ptr to previous record in log */
+    XLogRecPtr  xl_curr;        /* ptr to this record in log */
     uint8       xl_info;        /* flag bits, see below */
     RmgrId      xl_rmid;        /* resource manager for this record */
     /* 2 bytes of padding here, initialize to zero */

I don't see any comments in the patch explaining why this substitution
is just as safe as what we had before, and I think it has only very
briefly been commented upon by Pavan, who remarked that it provided
similar protection to what we have today. That's fair enough, but I
think a little more analysis of this point would be good. Can we
think of any possible downsides to making this change? I think there
are basically two issues:

1. Does it materially increase the chance of a bogus checksum match in
any plausible situation?

2. Does the new logic in pg_rewind to search backward for a checkpoint
work reliably, and will it be slow?

I don't know of a problem in either regard, but I wonder if anyone
else can think of anything.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Robert Haas <robertmhaas@gmail.com> writes:

Taking a look at this version, I think the key thing we have to decide
is whether we're comfortable with this:

--- a/src/include/access/xlogrecord.h
+++ b/src/include/access/xlogrecord.h
@@ -42,7 +42,7 @@ typedef struct XLogRecord
{
uint32      xl_tot_len;     /* total len of entire record */
TransactionId xl_xid;       /* xact id */
-    XLogRecPtr  xl_prev;        /* ptr to previous record in log */
+    XLogRecPtr  xl_curr;        /* ptr to this record in log */
uint8       xl_info;        /* flag bits, see below */
RmgrId      xl_rmid;        /* resource manager for this record */
/* 2 bytes of padding here, initialize to zero */

I don't see any comments in the patch explaining why this substitution
is just as safe as what we had before, and I think it has only very
briefly been commented upon by Pavan, who remarked that it provided
similar protection to what we have today. That's fair enough, but I
think a little more analysis of this point would be good.

I had not noticed that in the kerfuffle over the more extreme version,
but I think this is a different route to breaking the same guarantees.
The point of the xl_prev links is, essentially, to allow verification
that we are reading a coherent series of WAL records, ie that record B
which appears to follow record A actually is supposed to follow it.
This throws away that cross-check just as effectively as the other patch
did, leaving us reliant solely on the per-record CRCs. CRCs are good,
but they do have a false-positive rate.

An example of a case where xl_prev makes one feel a lot more comfortable
is the WAL-segment-switch option. The fact that the first record of the
next WAL file links back to the XLOG_SWITCH record is evidence that
ignoring multiple megabytes of WAL was indeed the intended thing to do.
An xl_curr field cannot provide any evidence as to whether WAL records
were missed.

2. Does the new logic in pg_rewind to search backward for a checkpoint
work reliably, and will it be slow?

If you have to search backwards, this breaks it. Full stop.

regards, tom lane

On 27 March 2018 at 14:58, Tom Lane <tgl@sss.pgh.pa.us> wrote:

The point of the xl_prev links is, essentially, to allow verification
that we are reading a coherent series of WAL records, ie that record B
which appears to follow record A actually is supposed to follow it.
This throws away that cross-check just as effectively as the other patch
did, leaving us reliant solely on the per-record CRCs. CRCs are good,
but they do have a false-positive rate.

You aren't reliant solely on the CRC.

If you have a false-positive CRC then xl_curr allows you to validate
the record, just as you would with xl_prev. The xl_curr value points
to itself using just as many bits as the xl_prev field, so the
probability of false validation is the same as now.

xl_prev does allow you to verify that the WAL records form an unbroken
chain. The question is whether that has value because it certainly has
a very clear cost in terms of write performance. Is there some danger
that we would skip records? Where does that risk come from? If someone
*wanted* to skip records for whatever reason, they could achieve that
with both xl_prev or xl_curr, so there is no difference there.

An example of a case where xl_prev makes one feel a lot more comfortable
is the WAL-segment-switch option. The fact that the first record of the
next WAL file links back to the XLOG_SWITCH record is evidence that
ignoring multiple megabytes of WAL was indeed the intended thing to do.
An xl_curr field cannot provide any evidence as to whether WAL records
were missed.

That's a good point, though very frequently unused since streaming replication.

We can handle XLOG_SWITCH as a special case. Perhaps we can make each
file header point back to the previous WAL record.

2. Does the new logic in pg_rewind to search backward for a checkpoint
work reliably, and will it be slow?

If you have to search backwards, this breaks it. Full stop.

You don't have to search backwards. We only need to locate the last
checkpoint record.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Tue, Mar 27, 2018 at 7:28 PM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

I had not noticed that in the kerfuffle over the more extreme version,
but I think this is a different route to breaking the same guarantees.
The point of the xl_prev links is, essentially, to allow verification
that we are reading a coherent series of WAL records, ie that record B
which appears to follow record A actually is supposed to follow it.
This throws away that cross-check just as effectively as the other patch
did, leaving us reliant solely on the per-record CRCs. CRCs are good,
but they do have a false-positive rate.

An example of a case where xl_prev makes one feel a lot more comfortable
is the WAL-segment-switch option. The fact that the first record of the
next WAL file links back to the XLOG_SWITCH record is evidence that
ignoring multiple megabytes of WAL was indeed the intended thing to do.
An xl_curr field cannot provide any evidence as to whether WAL records
were missed.

TBH I still don't see why this does not provide the same guarantee that the
current code provides, but given the concerns expressed by others, I am not
gonna pursue beyond a point. But one last time :-)

The current code uses xl_prev to cross-verify the record B, read after
record A, indeed follows A and has a valid back-link to A. This deals with
problems where B might actually be an old WAL record, carried over from a
stale WAL file.

Now if we store xl_curr, we can definitely guarantee that B is ahead of A
because B->xl_curr will be greater than A->xl_curr (otherwise we bail out).
So that deals with the problem of stale WAL records. In addition, we also
know where A ends (we can deduce that even for XLOG_SWITCH records knowing
where the next record will start after the switch) and hence we know where
B should start. So we read at B and also confirm that B->xl_curr matches
B's position. If it does not, we declare end-of-WAL and bail out. So where
is the problem?

2. Does the new logic in pg_rewind to search backward for a checkpoint
work reliably, and will it be slow?

If you have to search backwards, this breaks it. Full stop.

We don't really need to fetch the previous record. We really need to find
the last checkpoint prior to a given LSN. That can be done by reading WAL
segments forward. It can be a little slow, but hopefully not a whole lot.

A <- B <- C <- CHKPT <- D <- E <- F <- G

So today, if we want to find last checkpoint prio to G, we go through the
back-links until we find the first checkpoint record. In the proposed code,
we read forward the current WAL segment, remember the last CHKPT record
seen and once we see G, we know we have found the prior checkpoint. If the
checkpoint does not exist in the current WAL, we read forward the previous
WAL and return the last checkpoint record in that WAL and so on. So in the
worst case, we might read a WAL segment extra before we find the checkpoint
record. That's not ideal but not too bad given that only pg_rewind needs
this and that too only once.

Thanks,
Pavan

--
Pavan Deolasee http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Simon Riggs <simon@2ndquadrant.com> writes:

On 27 March 2018 at 14:58, Tom Lane <tgl@sss.pgh.pa.us> wrote:

The point of the xl_prev links is, essentially, to allow verification
that we are reading a coherent series of WAL records, ie that record B
which appears to follow record A actually is supposed to follow it.
This throws away that cross-check just as effectively as the other patch
did, leaving us reliant solely on the per-record CRCs. CRCs are good,
but they do have a false-positive rate.

You aren't reliant solely on the CRC.

If you have a false-positive CRC then xl_curr allows you to validate
the record, just as you would with xl_prev. The xl_curr value points
to itself using just as many bits as the xl_prev field, so the
probability of false validation is the same as now.

No. xl_curr says that this record is where it thinks it should be.
It fails to provide indication as to which record it should follow,
and that in my opinion is important context-sensitivity that xl_curr
would lack.

The XLOG_SWITCH example speaks to this. Now that we have variable
wal segment size, it is not an ironclad certainty that all onlookers
agree as to where the segment boundaries are. Suppose someone reads
an XLOG_SWITCH, and thinks it means "skip to the next 16MB boundary"
whereas the writer thought it meant "skip to the next 8MB boundary".
With xl_prev, the prev-link mismatch will clue that reader that
something is wrong. With xl_curr, there is no mismatch to detect,
and the reader will go happily on its way having missed 8MB worth
of WAL.

The impression I have, without having really studied the details,
is that all of the patches proposed in this thread are trying to
buy concurrency by removing context-sensitivity of the WAL headers.
I do not think that's a good idea.

regards, tom lane

Pavan Deolasee <pavan.deolasee@gmail.com> writes:

On Tue, Mar 27, 2018 at 7:28 PM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

If you have to search backwards, this breaks it. Full stop.

We don't really need to fetch the previous record. We really need to find
the last checkpoint prior to a given LSN. That can be done by reading WAL
segments forward. It can be a little slow, but hopefully not a whole lot.

This is ignoring the possibility of damaged data in between, ie

A ... B ... CHKPT ... C ... a few zeroed pages ... D ... CHKPT ... E ... F

If A is the start of the WAL segment, and you ask what's the last
checkpoint before F, you will get the wrong answer. Or, if you're
paranoid and verify that you can follow the chain all the way to F,
you'll fail ... needlessly, and in a case where we previously succeeded.

regards, tom lane

On Tue, Mar 27, 2018 at 11:41 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Pavan Deolasee <pavan.deolasee@gmail.com> writes:

On Tue, Mar 27, 2018 at 7:28 PM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

If you have to search backwards, this breaks it. Full stop.

We don't really need to fetch the previous record. We really need to find
the last checkpoint prior to a given LSN. That can be done by reading WAL
segments forward. It can be a little slow, but hopefully not a whole lot.

This is ignoring the possibility of damaged data in between, ie

A ... B ... CHKPT ... C ... a few zeroed pages ... D ... CHKPT ... E ... F

If A is the start of the WAL segment, and you ask what's the last
checkpoint before F, you will get the wrong answer. Or, if you're
paranoid and verify that you can follow the chain all the way to F,
you'll fail ... needlessly, and in a case where we previously succeeded.

It's hard for me to believe that this case matters very much. If
you're trying to run pg_rewind on a system where the WAL segments
contain a few zeroed pages, you're probably going to be hosed anyway,
if not by this particular thing then by something else.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Robert Haas <robertmhaas@gmail.com> writes:

On Tue, Mar 27, 2018 at 11:41 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

This is ignoring the possibility of damaged data in between, ie
A ... B ... CHKPT ... C ... a few zeroed pages ... D ... CHKPT ... E ... F

It's hard for me to believe that this case matters very much. If
you're trying to run pg_rewind on a system where the WAL segments
contain a few zeroed pages, you're probably going to be hosed anyway,
if not by this particular thing then by something else.

Well, the point of checkpoints is that WAL data before the last one
should no longer matter anymore, isn't it?

But really this is just one illustration of the point, which is that
changing the WAL header definition as proposed *does* cost us reliability.
We can argue about whether better concurrency in WAL insertion is
worth that price, but claiming that the price is zero is flat wrong.

For me, the more important issue is that checking xl_prev not only
validates that the record is where it is supposed to be, but that you
arrived at it correctly. Replacing it with xl_curr would keep the
guarantee of the former (in fact likely make it stronger); but we'd
completely lose the latter.

regards, tom lane

On Wed, Mar 28, 2018 at 1:21 AM, Pavan Deolasee
<pavan.deolasee@gmail.com> wrote:

TBH I still don't see why this does not provide the same guarantee that the
current code provides, but given the concerns expressed by others, I am not
gonna pursue beyond a point. But one last time :-)

The current code uses xl_prev to cross-verify the record B, read after
record A, indeed follows A and has a valid back-link to A. This deals with
problems where B might actually be an old WAL record, carried over from a
stale WAL file.

Now if we store xl_curr, we can definitely guarantee that B is ahead of A
because B->xl_curr will be greater than A->xl_curr (otherwise we bail out).
So that deals with the problem of stale WAL records. In addition, we also
know where A ends (we can deduce that even for XLOG_SWITCH records knowing
where the next record will start after the switch) and hence we know where B
should start. So we read at B and also confirm that B->xl_curr matches B's
position. If it does not, we declare end-of-WAL and bail out. So where is
the problem?

This seems to have got a bit lost in subsequent discussion.

2. Does the new logic in pg_rewind to search backward for a checkpoint
work reliably, and will it be slow?

If you have to search backwards, this breaks it. Full stop.

We don't really need to fetch the previous record. We really need to find
the last checkpoint prior to a given LSN. That can be done by reading WAL
segments forward. It can be a little slow, but hopefully not a whole lot.

A <- B <- C <- CHKPT <- D <- E <- F <- G

So today, if we want to find last checkpoint prio to G, we go through the
back-links until we find the first checkpoint record. In the proposed code,
we read forward the current WAL segment, remember the last CHKPT record seen
and once we see G, we know we have found the prior checkpoint. If the
checkpoint does not exist in the current WAL, we read forward the previous
WAL and return the last checkpoint record in that WAL and so on. So in the
worst case, we might read a WAL segment extra before we find the checkpoint
record. That's not ideal but not too bad given that only pg_rewind needs
this and that too only once.

Some degree of slowdown in pg_rewind seems an acceptable price to pay
as long as it doesn't introduce errors.

cheers

andrew

--
Andrew Dunstan https://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Tue, Mar 27, 2018 at 02:02:10PM -0400, Tom Lane wrote:

Robert Haas <robertmhaas@gmail.com> writes:

On Tue, Mar 27, 2018 at 11:41 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

This is ignoring the possibility of damaged data in between, ie
A ... B ... CHKPT ... C ... a few zeroed pages ... D ... CHKPT ... E ... F

It's hard for me to believe that this case matters very much. If
you're trying to run pg_rewind on a system where the WAL segments
contain a few zeroed pages, you're probably going to be hosed anyway,
if not by this particular thing then by something else.

Well, the point of checkpoints is that WAL data before the last one
should no longer matter anymore, isn't it?

I have to agree with Tom here. If you force pg_rewind to replay more
WAL records from a checkpoint older than the checkpoint prior to where
WAL has forked at promotion then you have a risk of losing data.
Remember, this comes close to the recent thread where we discussed that
keeping in pg_wal WAL segments worth more than the last completed
checkpoints could lead to corruption if you try to replay from that,
which led to 4b0d28d.
--
Michael

On Tue, Mar 27, 2018 at 10:06 PM, Michael Paquier <michael@paquier.xyz> wrote:

On Tue, Mar 27, 2018 at 02:02:10PM -0400, Tom Lane wrote:

Robert Haas <robertmhaas@gmail.com> writes:

On Tue, Mar 27, 2018 at 11:41 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

This is ignoring the possibility of damaged data in between, ie
A ... B ... CHKPT ... C ... a few zeroed pages ... D ... CHKPT ... E ... F

It's hard for me to believe that this case matters very much. If
you're trying to run pg_rewind on a system where the WAL segments
contain a few zeroed pages, you're probably going to be hosed anyway,
if not by this particular thing then by something else.

Well, the point of checkpoints is that WAL data before the last one
should no longer matter anymore, isn't it?

I have to agree with Tom here. If you force pg_rewind to replay more
WAL records from a checkpoint older than the checkpoint prior to where
WAL has forked at promotion then you have a risk of losing data.

Oh! I see now. Good point.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Tue, Mar 27, 2018 at 10:09:59PM -0400, Robert Haas wrote:

I have to agree with Tom here. If you force pg_rewind to replay more
WAL records from a checkpoint older than the checkpoint prior to where
WAL has forked at promotion then you have a risk of losing data.

Oh! I see now. Good point.

Something that would address the issue would be to enforce a segment
switch after each checkpoint, but that's a high price to pay on mostly
idle systems with large WAL segments, which is not appealing either, and
this even if the checkpoint skip logic has been fixed in v10 with the
concept of "important" WAL records.
--
Michael

On Wed, Mar 28, 2018 at 12:57 PM, Michael Paquier <michael@paquier.xyz> wrote:

On Tue, Mar 27, 2018 at 10:09:59PM -0400, Robert Haas wrote:

I have to agree with Tom here. If you force pg_rewind to replay more
WAL records from a checkpoint older than the checkpoint prior to where
WAL has forked at promotion then you have a risk of losing data.

Oh! I see now. Good point.

Something that would address the issue would be to enforce a segment
switch after each checkpoint, but that's a high price to pay on mostly
idle systems with large WAL segments, which is not appealing either, and
this even if the checkpoint skip logic has been fixed in v10 with the
concept of "important" WAL records.

If the system is mostly idle would it really matter that much?

cheers

andrew

--
Andrew Dunstan https://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Wed, Mar 28, 2018 at 7:36 AM, Michael Paquier <michael@paquier.xyz>
wrote:

On Tue, Mar 27, 2018 at 02:02:10PM -0400, Tom Lane wrote:

Well, the point of checkpoints is that WAL data before the last one
should no longer matter anymore, isn't it?

I have to agree with Tom here. If you force pg_rewind to replay more
WAL records from a checkpoint older than the checkpoint prior to where
WAL has forked at promotion then you have a risk of losing data.

Yeah, we should not do that. The patch surely does not intend to replay any
more WAL than what we do today. The idea is to just use a different
mechanism to find the prior checkpoint. But we should surely find the
latest prior checkpoint. In the rare scenario that Tom showed, we should
just throw an error and fix the patch if it's not doing that already.

Thanks,
Pavan

--
Pavan Deolasee http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On Wed, Mar 28, 2018 at 02:13:19PM +1030, Andrew Dunstan wrote:

On Wed, Mar 28, 2018 at 12:57 PM, Michael Paquier <michael@paquier.xyz> wrote:

Something that would address the issue would be to enforce a segment
switch after each checkpoint, but that's a high price to pay on mostly
idle systems with large WAL segments, which is not appealing either, and
this even if the checkpoint skip logic has been fixed in v10 with the
concept of "important" WAL records.

If the system is mostly idle would it really matter that much?

We cannot assume that all archive commands support compression, even if
the rest of a forcibly switched segment is filled with zeros, so that
would cause extra I/O effort for such instances. I see quite a lot of
downsides to that.
--
Michael

On Tue, Mar 27, 2018 at 11:53 PM, Pavan Deolasee
<pavan.deolasee@gmail.com> wrote:

Yeah, we should not do that. The patch surely does not intend to replay any
more WAL than what we do today. The idea is to just use a different
mechanism to find the prior checkpoint. But we should surely find the latest
prior checkpoint. In the rare scenario that Tom showed, we should just throw
an error and fix the patch if it's not doing that already.

It's not clear to me that there is any reasonable fix short of giving
up on this approach altogether. But I might be missing something.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On Wed, Mar 28, 2018 at 08:50:21PM -0400, Robert Haas wrote:

On Tue, Mar 27, 2018 at 11:53 PM, Pavan Deolasee <pavan.deolasee@gmail.com> wrote:

Yeah, we should not do that. The patch surely does not intend to replay any
more WAL than what we do today. The idea is to just use a different
mechanism to find the prior checkpoint. But we should surely find the latest
prior checkpoint. In the rare scenario that Tom showed, we should just throw
an error and fix the patch if it's not doing that already.

It's not clear to me that there is any reasonable fix short of giving
up on this approach altogether. But I might be missing something.

One way to get things done right is to scan recursively segments instead
of records. Not impossible but this introduces more code churns in
pg_rewind's findLastCheckpoint which is now dead-simple as it just need
to look at things backwards. This way you can know as well what is the
real last checkpoint as you know as well what's the point where WAL has
forked. So for multiple checkpoints on the same segment, the lookup
just needs to happen up to the point where WAL has forked, while keeping
track of the last checkpoint record found.

If we would want to keep compatibility with backward searches, it may be
nice to keep a mostly-compatible API layer in xlogreader.c. Now I have
honestly not thought about that much. And there may be other tools
which rely on being able to do backward searches. Breaking
compatibility for them could cause wraith because that would mean less
availability when running a rewind-like operation.

This thread makes me wonder as well if we are overlooking other
things...
--
Michael

On 29 March 2018 at 01:50, Robert Haas <robertmhaas@gmail.com> wrote:

On Tue, Mar 27, 2018 at 11:53 PM, Pavan Deolasee
<pavan.deolasee@gmail.com> wrote:

Yeah, we should not do that. The patch surely does not intend to replay any
more WAL than what we do today. The idea is to just use a different
mechanism to find the prior checkpoint. But we should surely find the latest
prior checkpoint. In the rare scenario that Tom showed, we should just throw
an error and fix the patch if it's not doing that already.

It's not clear to me that there is any reasonable fix short of giving
up on this approach altogether. But I might be missing something.

(Sorry to come back to this late)

Yes, a few things have been been missed in this discussion.

Michael's point is invalid. The earlier discussion said that *replay*
of WAL earlier than the last checkpoint could lead to corruption, but
this doesn't mean the records themselves are in some way damaged
structurally, only that their content can lead to inconsistency in the
database. The xl_curr proposal does not replay WAL records it only
searches thru them to locate the last checkpoint.

Tom also said "Well, the point of checkpoints is that WAL data before
the last one should no longer matter anymore, isn't it?". WAL Files
prior to the one containing the last checkpoint can be discarded, but
checkpoints themselves do nothing to invalidate the WAL records before
the checkpoint.

Tom's point that a corruption in the WAL file could prevent pg_rewind
from locating a record is valid, but misses something. If the WAL file
contained corruption AFTER the last checkpoint this would already in
the current code prevent pg_rewind from moving backwards to find the
last checkpoint. So whether you go forwards or backwards it is
possible to be blocked by corrupt WAL records.

Most checkpoints are far enough apart that there is only one
checkpoint record in any WAL file and it could be anywhere in the
file, so the expected number of records to be searched by forwards or
backwards scans is equal. And the probability that corruption occurs
before or after the record is also equal.

Given the above points, I don't see any reason to believe that the
forwards search mechanism proposed is faulty, decreases robustness or
is even slower.

Overall, the loss of links between WAL records is not a loss of
robustness. XLOG_SWITCH is a costly operation and mostly unusable
these days, so shouldn't be a reason to shy away from this patch. We
don't jump around in WAL in any other way, so sequential records are
just fine.

So IMHO the proposed approach is still very much viable.

I know the approach is new and surprising but I thought about it a lot
before proposing it and I couldn't see any holes; still can't. Please
give this some thought so we can get comfortable with this idea and
increase performance as a result. Thanks.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

Simon Riggs <simon@2ndquadrant.com> writes:

I know the approach is new and surprising but I thought about it a lot
before proposing it and I couldn't see any holes; still can't. Please
give this some thought so we can get comfortable with this idea and
increase performance as a result. Thanks.

The long and the short of it is that this is a very dangerous-looking
proposal, we are at the tail end of a development cycle, and there are
~100 other patches remaining in the commitfest that also have claims
on our attention in the short time that's left. If you're expecting
people to spend more time thinking about this now, I feel you're being
unreasonable.

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

regards, tom lane

On 03/29/2018 06:42 PM, Tom Lane wrote:

Simon Riggs <simon@2ndquadrant.com> writes:

I know the approach is new and surprising but I thought about it a lot
before proposing it and I couldn't see any holes; still can't. Please
give this some thought so we can get comfortable with this idea and
increase performance as a result. Thanks.

The long and the short of it is that this is a very dangerous-looking
proposal, we are at the tail end of a development cycle, and there are
~100 other patches remaining in the commitfest that also have claims
on our attention in the short time that's left. If you're expecting
people to spend more time thinking about this now, I feel you're being
unreasonable.

I agree.

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

Not sure.

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other. Which I think is enough to rebuild the
chain of WAL records.

To defeat this, this would need to happen:

a) the WAL record gets written to a different location
b) the xl_curr gets corrupted in sync with (a)
c) the WAL checksum gets corrupted in sync with (b)
d) the record overwrites existing record (same size/boundaries)

That seems very much like xl_prev.

regards
--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On Thu, Mar 29, 2018 at 1:13 PM, Tomas Vondra
<tomas.vondra@2ndquadrant.com> wrote:

On 03/29/2018 06:42 PM, Tom Lane wrote:

The long and the short of it is that this is a very dangerous-looking
proposal, we are at the tail end of a development cycle, and there are
~100 other patches remaining in the commitfest that also have claims
on our attention in the short time that's left. If you're expecting
people to spend more time thinking about this now, I feel you're being
unreasonable.

I agree.

+1.

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

Not sure.

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other. Which I think is enough to rebuild the
chain of WAL records.

To defeat this, this would need to happen:

a) the WAL record gets written to a different location
b) the xl_curr gets corrupted in sync with (a)
c) the WAL checksum gets corrupted in sync with (b)
d) the record overwrites existing record (same size/boundaries)

That seems very much like xl_prev.

I don't think so, because this ignores, for example, timeline
switches, or multiple clusters accidentally sharing an archive
directory.

TBH, I'm not entirely sure how likely corruption would be under this
proposal in practice, but I think Tom's got the right idea on a
theoretical level. As he says, there's a reason why things like
block chains and git commits include something about the previous
record in what gets hashed to create the identifier for the new
record. It ties those things together in a way that doesn't happen
otherwise. If somebody proposed changing git so that the SHA
identifier for a commit didn't hash the commit ID for the previous
commit, that would break the security of the system in all kinds of
ways: for example, an adversary could maliciously edit an old commit
by just changing its SHA identifier and that of its immediate
descendent. No other commit IDs would change and integrity checks
would not fail -- there would be no easy way to notice that something
bad had happened.

Now, in our case, the chances of problems are clearly a lot more
remote because of the way that WAL records are packed into files.
Every WAL record has a place where it's supposed to appear in the WAL
stream, and positions in the WAL stream are never intentionally
recycled (except in PITR scenarios, I guess). Because of that, the
proposed xl_curr check provides a pretty strong cross-check on the
validity of a record even without xl_prev. I think there is an
argument to be made - as Simon is doing - that this check is in fact
strong enough that it's good enough for government work. He might be
right. But he might also be wrong, because I think Tom is
unquestionably correct when he says that this is weakening the check.
What I'm not sure about is whether it's being weakened enough that
it's actually going to cause problems in practice. Given where we are
in the release cycle, I'd prefer to defer that question to next cycle.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

On 29 March 2018 at 18:13, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

On 03/29/2018 06:42 PM, Tom Lane wrote:

Simon Riggs <simon@2ndquadrant.com> writes:

I know the approach is new and surprising but I thought about it a lot
before proposing it and I couldn't see any holes; still can't. Please
give this some thought so we can get comfortable with this idea and
increase performance as a result. Thanks.

The long and the short of it is that this is a very dangerous-looking
proposal, we are at the tail end of a development cycle, and there are
~100 other patches remaining in the commitfest that also have claims
on our attention in the short time that's left. If you're expecting
people to spend more time thinking about this now, I feel you're being
unreasonable.

I agree.

We require consensus on such things for good reason. Risk is an issue
and everyone must be comfortable.

If its a good idea now it will still be a good idea in the next cycle.

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

Not sure.

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other. Which I think is enough to rebuild the
chain of WAL records.

To defeat this, this would need to happen:

a) the WAL record gets written to a different location
b) the xl_curr gets corrupted in sync with (a)
c) the WAL checksum gets corrupted in sync with (b)
d) the record overwrites existing record (same size/boundaries)

That seems very much like xl_prev.

That's how I see it. But I also see that it feels different to what we
had before and that takes time to either come up with a concrete,
quantifiable reason not to, or accept that it is OK.

So given my observation that no technical objection remains, I'm happy
to move this to next CF to give us more time and less risk.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 03/29/2018 08:02 PM, Robert Haas wrote:

On Thu, Mar 29, 2018 at 1:13 PM, Tomas Vondra
<tomas.vondra@2ndquadrant.com> wrote:

On 03/29/2018 06:42 PM, Tom Lane wrote:

The long and the short of it is that this is a very dangerous-looking
proposal, we are at the tail end of a development cycle, and there are
~100 other patches remaining in the commitfest that also have claims
on our attention in the short time that's left. If you're expecting
people to spend more time thinking about this now, I feel you're being
unreasonable.

I agree.

+1.

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

Not sure.

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other. Which I think is enough to rebuild the
chain of WAL records.

To defeat this, this would need to happen:

a) the WAL record gets written to a different location
b) the xl_curr gets corrupted in sync with (a)
c) the WAL checksum gets corrupted in sync with (b)
d) the record overwrites existing record (same size/boundaries)

That seems very much like xl_prev.

I don't think so, because this ignores, for example, timeline
switches, or multiple clusters accidentally sharing an archive
directory.

I'm curious? How does xl_prev prevents either of those issues (in a way
that xl_curr would not)?

TBH, I'm not entirely sure how likely corruption would be under this
proposal in practice, but I think Tom's got the right idea on a
theoretical level. As he says, there's a reason why things like
block chains and git commits include something about the previous
record in what gets hashed to create the identifier for the new
record. It ties those things together in a way that doesn't happen
otherwise. If somebody proposed changing git so that the SHA
identifier for a commit didn't hash the commit ID for the previous
commit, that would break the security of the system in all kinds of
ways: for example, an adversary could maliciously edit an old commit
by just changing its SHA identifier and that of its immediate
descendent. No other commit IDs would change and integrity checks
would not fail -- there would be no easy way to notice that something
bad had happened.

That seems like a rather poor analogy, because we're not protected
against such adversarial modifications with xl_prev either. I can damage
the previous WAL record, update its checksum and you won't notice anything.

My understanding is that xl_curr and xl_prev give us pretty much the
same amount of information, except that xl_prev provides it explicitly
while with xl_curr it's implicit and we need to deduce it.

Now, in our case, the chances of problems are clearly a lot more
remote because of the way that WAL records are packed into files.
Every WAL record has a place where it's supposed to appear in the WAL
stream, and positions in the WAL stream are never intentionally
recycled (except in PITR scenarios, I guess). Because of that, the
proposed xl_curr check provides a pretty strong cross-check on the
validity of a record even without xl_prev. I think there is an
argument to be made - as Simon is doing - that this check is in fact
strong enough that it's good enough for government work. He might be

Is he? I think the claims in this thread were pretty much that xl_curr
and xl_prev provide the same level of protection.

right. But he might also be wrong, because I think Tom is
unquestionably correct when he says that this is weakening the check.
What I'm not sure about is whether it's being weakened enough that
it's actually going to cause problems in practice. Given where we are
in the release cycle, I'd prefer to defer that question to next cycle.

Perhaps. I guess the ultimate argument would be an example where xl_prev
does provides protection that xl_curr does not. There have been a couple
of examples presented in this thread, but I don't think either of them
actually shows the xl_prev superiority (or I missed that).

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 29 March 2018 at 19:02, Robert Haas <robertmhaas@gmail.com> wrote:

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

Not sure.

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other. Which I think is enough to rebuild the
chain of WAL records.

To defeat this, this would need to happen:

a) the WAL record gets written to a different location
b) the xl_curr gets corrupted in sync with (a)
c) the WAL checksum gets corrupted in sync with (b)
d) the record overwrites existing record (same size/boundaries)

That seems very much like xl_prev.

I don't think so, because this ignores, for example, timeline
switches, or multiple clusters accidentally sharing an archive
directory.

I'm not hearing any actual technical problems.

Given where we are
in the release cycle, I'd prefer to defer that question to next cycle.

Accepted, on the basis of risk.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 29 March 2018 at 21:03, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

On 03/29/2018 08:02 PM, Robert Haas wrote:

On Thu, Mar 29, 2018 at 1:13 PM, Tomas Vondra
<tomas.vondra@2ndquadrant.com> wrote:

On 03/29/2018 06:42 PM, Tom Lane wrote:

The long and the short of it is that this is a very dangerous-looking
proposal, we are at the tail end of a development cycle, and there are
~100 other patches remaining in the commitfest that also have claims
on our attention in the short time that's left. If you're expecting
people to spend more time thinking about this now, I feel you're being
unreasonable.

I agree.

+1.

Also, I will say it once more: this change DOES decrease robustness.
It's like blockchain without the chain aspect, or git commits without
a parent pointer. We are not only interested in whether individual
WAL records are valid, but whether they form a consistent series.
Cross-checking xl_prev provides some measure of confidence about that;
xl_curr offers none.

Not sure.

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other. Which I think is enough to rebuild the
chain of WAL records.

To defeat this, this would need to happen:

a) the WAL record gets written to a different location
b) the xl_curr gets corrupted in sync with (a)
c) the WAL checksum gets corrupted in sync with (b)
d) the record overwrites existing record (same size/boundaries)

That seems very much like xl_prev.

I don't think so, because this ignores, for example, timeline
switches, or multiple clusters accidentally sharing an archive
directory.

I'm curious? How does xl_prev prevents either of those issues (in a way
that xl_curr would not)?

TBH, I'm not entirely sure how likely corruption would be under this
proposal in practice, but I think Tom's got the right idea on a
theoretical level. As he says, there's a reason why things like
block chains and git commits include something about the previous
record in what gets hashed to create the identifier for the new
record. It ties those things together in a way that doesn't happen
otherwise. If somebody proposed changing git so that the SHA
identifier for a commit didn't hash the commit ID for the previous
commit, that would break the security of the system in all kinds of
ways: for example, an adversary could maliciously edit an old commit
by just changing its SHA identifier and that of its immediate
descendent. No other commit IDs would change and integrity checks
would not fail -- there would be no easy way to notice that something
bad had happened.

That seems like a rather poor analogy, because we're not protected
against such adversarial modifications with xl_prev either. I can damage
the previous WAL record, update its checksum and you won't notice anything.

My understanding is that xl_curr and xl_prev give us pretty much the
same amount of information, except that xl_prev provides it explicitly
while with xl_curr it's implicit and we need to deduce it.

Now, in our case, the chances of problems are clearly a lot more
remote because of the way that WAL records are packed into files.
Every WAL record has a place where it's supposed to appear in the WAL
stream, and positions in the WAL stream are never intentionally
recycled (except in PITR scenarios, I guess). Because of that, the
proposed xl_curr check provides a pretty strong cross-check on the
validity of a record even without xl_prev. I think there is an
argument to be made - as Simon is doing - that this check is in fact
strong enough that it's good enough for government work. He might be

Is he? I think the claims in this thread were pretty much that xl_curr
and xl_prev provide the same level of protection.

Yes, the blockchain analogy breaks down because we don't include
previous CRC, only xl_prev. The existing WAL format is easy enough to
repair, falsify etc. You've still got to keep your WAL data secure.

So the image of a CSI-style chain-of-evidence thing happening isn't
technical reality.

You could change the existing format to include the previous CRC in
the calculation of the current record's CRC. I'd be happy with that as
an option, just as much as I'd support an option for high performance
as I've proposed here. But bear in mind that including the CRC would
mean that you couldn't repair data damaged by data corruption because
it would mean all WAL after the corrupt page would be effectively
scrambled.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

Tomas Vondra <tomas.vondra@2ndquadrant.com> writes:

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other.

Per my point earlier, XLOG_SWITCH is sufficient to defeat that argument.
Also consider a timeline fork. It's really hard to be sure which record
in the old timeline is the direct ancestor of the first one in the new
if you lack xl_prev:

A1 -> B1 -> C1 -> D1
\
B2 -> C2 -> D2

If you happened to get confused and think that C2 is the first in its
timeline, diverging off the old line after B1 not A1, there would be
nothing about C2 to disabuse you of your error.

Now, those cases could be fixed: you could imagine inserting a
"continuation record" after an XLOG_SWITCH or timeline fork, which would
carry a checkable back-link to where it came from, and then we'd arguably
not need to pay the price of back-links during normal sequential
insertion. Still, this approach only fixes the cases where we think to
apply it in advance.

regards, tom lane

On 03/29/2018 11:18 PM, Tom Lane wrote:

Tomas Vondra <tomas.vondra@2ndquadrant.com> writes:

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other.

Per my point earlier, XLOG_SWITCH is sufficient to defeat that argument.

But the SWITCH record will be the last record in the WAL segment (and if
there happens to be a WAL record after it, it will have invalid xl_curr
pointer). And the next valid record will be the first one in the next
WAL segment. So why wouldn't that be enough information?

Also consider a timeline fork. It's really hard to be sure which record
in the old timeline is the direct ancestor of the first one in the new
if you lack xl_prev:

A1 -> B1 -> C1 -> D1
\
B2 -> C2 -> D2

If you happened to get confused and think that C2 is the first in its
timeline, diverging off the old line after B1 not A1, there would be
nothing about C2 to disabuse you of your error.

Doesn't that mean the B1 and B2 have to be exactly the same size?
Otherwise there would be a gap between B1/C2 or B2/C1, and the xl_curr
would be enough to detect this.

And how could xl_prev detect it? AFAIK XLogRecPtr does not include
TimeLineID, so xl_prev would be the same for both B1 and B2.

I admit WAL internals are not an are I'm particularly familiar with,
though, so I may be missing something utterly obvious.

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 29 March 2018 at 23:16, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

On 03/29/2018 11:18 PM, Tom Lane wrote:

Tomas Vondra <tomas.vondra@2ndquadrant.com> writes:

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other.

Per my point earlier, XLOG_SWITCH is sufficient to defeat that argument.

But the SWITCH record will be the last record in the WAL segment (and if
there happens to be a WAL record after it, it will have invalid xl_curr
pointer). And the next valid record will be the first one in the next
WAL segment. So why wouldn't that be enough information?

Also consider a timeline fork. It's really hard to be sure which record
in the old timeline is the direct ancestor of the first one in the new
if you lack xl_prev:

A1 -> B1 -> C1 -> D1
\
B2 -> C2 -> D2

If you happened to get confused and think that C2 is the first in its
timeline, diverging off the old line after B1 not A1, there would be
nothing about C2 to disabuse you of your error.

Doesn't that mean the B1 and B2 have to be exactly the same size?
Otherwise there would be a gap between B1/C2 or B2/C1, and the xl_curr
would be enough to detect this.

And how could xl_prev detect it? AFAIK XLogRecPtr does not include
TimeLineID, so xl_prev would be the same for both B1 and B2.

I admit WAL internals are not an are I'm particularly familiar with,
though, so I may be missing something utterly obvious.

Timeline history files know the LSN at which they fork. I can imagine
losing the timeline branch point metadata because of corruption or
other disaster, but getting the LSN slightly wrong sounds strange. If
it was slightly wrong and yet still a valid LSN, xl_prev provides no
protection about that.

The timeline branch point is already marked by specific records in
WAL, so if you forgot the LSN completely you would search for those
and then you'd know. xl_prev wouldn't assist you in that search.

Agree with points about XLOG_SWITCH, adding again the observation that
they are no longer used for replication and if they are used as well
as replication, have a bad effect on performance. I think it would be
easily possible to add some more detail to the WAL stream if needed.

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 27/03/18 21:02, Tom Lane wrote:

Robert Haas <robertmhaas@gmail.com> writes:

On Tue, Mar 27, 2018 at 11:41 AM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

This is ignoring the possibility of damaged data in between, ie
A ... B ... CHKPT ... C ... a few zeroed pages ... D ... CHKPT ... E ... F

It's hard for me to believe that this case matters very much. If
you're trying to run pg_rewind on a system where the WAL segments
contain a few zeroed pages, you're probably going to be hosed anyway,
if not by this particular thing then by something else.

Well, the point of checkpoints is that WAL data before the last one
should no longer matter anymore, isn't it?

But really this is just one illustration of the point, which is that
changing the WAL header definition as proposed *does* cost us reliability.
We can argue about whether better concurrency in WAL insertion is
worth that price, but claiming that the price is zero is flat wrong.

For me, the more important issue is that checking xl_prev not only
validates that the record is where it is supposed to be, but that you
arrived at it correctly. Replacing it with xl_curr would keep the
guarantee of the former (in fact likely make it stronger); but we'd
completely lose the latter.

Yeah, removing xl_prev would certainly remove a useful cross-check from
the format. Maybe it would be worth it, I don't think it's that
critical. And adding some extra information in the page or segment
headers might alleviate that.

But let's go back to why we're considering this. The idea was to
optimize this block:

/*
* The duration the spinlock needs to be held is minimized by minimizing
* the calculations that have to be done while holding the lock. The
* current tip of reserved WAL is kept in CurrBytePos, as a byte position
* that only counts "usable" bytes in WAL, that is, it excludes all WAL
* page headers. The mapping between "usable" byte positions and physical
* positions (XLogRecPtrs) can be done outside the locked region, and
* because the usable byte position doesn't include any headers, reserving
* X bytes from WAL is almost as simple as "CurrBytePos += X".
*/
SpinLockAcquire(&Insert->insertpos_lck);

startbytepos = Insert->CurrBytePos;
endbytepos = startbytepos + size;
prevbytepos = Insert->PrevBytePos;
Insert->CurrBytePos = endbytepos;
Insert->PrevBytePos = startbytepos;

SpinLockRelease(&Insert->insertpos_lck);

One trick that we could do is to replace that with a 128-bit atomic
compare-and-swap instruction. Modern 64-bit Intel systems have that,
it's called CMPXCHG16B. Don't know about other architectures. An atomic
fetch-and-add, as envisioned in the comment above, would presumably be
better, but I suspect that a compare-and-swap would be good enough to
move the bottleneck elsewhere again.

- Heikki

On Thu, Mar 29, 2018 at 5:18 PM, Tom Lane <tgl@sss.pgh.pa.us> wrote:

Tomas Vondra <tomas.vondra@2ndquadrant.com> writes:

If each WAL record has xl_curr, then we know to which position the
record belongs (after verifying the checksum). And we do know the size
of each WAL record, so we should be able to deduce if two records are
immediately after each other.

Per my point earlier, XLOG_SWITCH is sufficient to defeat that argument.
Also consider a timeline fork. It's really hard to be sure which record
in the old timeline is the direct ancestor of the first one in the new
if you lack xl_prev:

A1 -> B1 -> C1 -> D1
\
B2 -> C2 -> D2

If you happened to get confused and think that C2 is the first in its
timeline, diverging off the old line after B1 not A1, there would be
nothing about C2 to disabuse you of your error.

But, as Simon correctly points out, if xl_prev is the only thing
that's saving us from disaster, that's rather fragile. All it's
cross-checking is the length of the previous WAL record, and that
could easily match by accident: there aren't *that* many bits of
entropy in the length of a WAL record. As he also points out, I think
also correctly, if we really want a strong check that the chain of WAL
records is continuous and unbroken, we ought to be including the CRC
from the previous WAL record, not just the length.

Another thing that's bothering me is this: surely there could be (if
there isn't already) something *else* that tells us whether we've
switched timelines at the wrong place. I mean, if nothing else, we
could dictate that the first WAL record after a timeline switch must
be XLOG_TIMELINE_SWITCH or something like that, and then if you try to
change timelines and don't find that record (with the correct previous
TLI), you know something's messed up.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

Heikki Linnakangas <hlinnaka@iki.fi> writes:

But let's go back to why we're considering this. The idea was to
optimize this block:
...
One trick that we could do is to replace that with a 128-bit atomic
compare-and-swap instruction. Modern 64-bit Intel systems have that,
it's called CMPXCHG16B. Don't know about other architectures. An atomic
fetch-and-add, as envisioned in the comment above, would presumably be
better, but I suspect that a compare-and-swap would be good enough to
move the bottleneck elsewhere again.

+1 for taking a look at that. A bit of experimentation shows that
recent gcc and clang can generate that instruction using
__sync_bool_compare_and_swap or __sync_val_compare_and_swap
on an __int128 value.

regards, tom lane

On 2018-04-03 09:56:24 -0400, Tom Lane wrote:

Heikki Linnakangas <hlinnaka@iki.fi> writes:

But let's go back to why we're considering this. The idea was to
optimize this block:
...
One trick that we could do is to replace that with a 128-bit atomic
compare-and-swap instruction. Modern 64-bit Intel systems have that,
it's called CMPXCHG16B. Don't know about other architectures. An atomic
fetch-and-add, as envisioned in the comment above, would presumably be
better, but I suspect that a compare-and-swap would be good enough to
move the bottleneck elsewhere again.

+1 for taking a look at that. A bit of experimentation shows that
recent gcc and clang can generate that instruction using
__sync_bool_compare_and_swap or __sync_val_compare_and_swap
on an __int128 value.

The problem will presumably be that early opteron AMD64s lacked that
instruction. I'm not sure which distributions still target them (windows
dropped support a few years ago), but we should make sure that neither
the necessary dispatch code isn't going to add so much overhead it's
eating into our margin, nor that the generated code SIGILLs on such
platforms.

Greetings,

Andres Freund

On 03/04/18 19:20, Andres Freund wrote:

On 2018-04-03 09:56:24 -0400, Tom Lane wrote:

Heikki Linnakangas <hlinnaka@iki.fi> writes:

But let's go back to why we're considering this. The idea was to
optimize this block:
...
One trick that we could do is to replace that with a 128-bit atomic
compare-and-swap instruction. Modern 64-bit Intel systems have that,
it's called CMPXCHG16B. Don't know about other architectures. An atomic
fetch-and-add, as envisioned in the comment above, would presumably be
better, but I suspect that a compare-and-swap would be good enough to
move the bottleneck elsewhere again.

+1 for taking a look at that. A bit of experimentation shows that
recent gcc and clang can generate that instruction using
__sync_bool_compare_and_swap or __sync_val_compare_and_swap
on an __int128 value.

The problem will presumably be that early opteron AMD64s lacked that
instruction. I'm not sure which distributions still target them (windows
dropped support a few years ago), but we should make sure that neither
the necessary dispatch code isn't going to add so much overhead it's
eating into our margin, nor that the generated code SIGILLs on such
platforms.

Yeah.

I'll mark this as "returned with feedback" in the commitfest. The way
forward is to test if we can get the same performance benefit from
switching to CMPXCHG16B, and keep the WAL format unchanged. If not, then
we can continue discussing the WAL format and the tradeoffs with
xl_prev, but let's take the easy way out if we can.

- Heikki

On 9 July 2018 at 14:49, Heikki Linnakangas <hlinnaka@iki.fi> wrote:

On 03/04/18 19:20, Andres Freund wrote:

On 2018-04-03 09:56:24 -0400, Tom Lane wrote:

Heikki Linnakangas <hlinnaka@iki.fi> writes:

But let's go back to why we're considering this. The idea was to
optimize this block:
...
One trick that we could do is to replace that with a 128-bit atomic
compare-and-swap instruction. Modern 64-bit Intel systems have that,
it's called CMPXCHG16B. Don't know about other architectures. An atomic
fetch-and-add, as envisioned in the comment above, would presumably be
better, but I suspect that a compare-and-swap would be good enough to
move the bottleneck elsewhere again.

+1 for taking a look at that. A bit of experimentation shows that
recent gcc and clang can generate that instruction using
__sync_bool_compare_and_swap or __sync_val_compare_and_swap
on an __int128 value.

The problem will presumably be that early opteron AMD64s lacked that
instruction. I'm not sure which distributions still target them (windows
dropped support a few years ago), but we should make sure that neither
the necessary dispatch code isn't going to add so much overhead it's
eating into our margin, nor that the generated code SIGILLs on such
platforms.

Yeah.

I'll mark this as "returned with feedback" in the commitfest. The way
forward is to test if we can get the same performance benefit from switching
to CMPXCHG16B, and keep the WAL format unchanged. If not, then we can
continue discussing the WAL format and the tradeoffs with xl_prev, but let's
take the easy way out if we can.

Agreed. Were you working on this? Or was anybody else?

--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 09/07/18 18:57, Simon Riggs wrote:

On 9 July 2018 at 14:49, Heikki Linnakangas <hlinnaka@iki.fi> wrote:

I'll mark this as "returned with feedback" in the commitfest. The way
forward is to test if we can get the same performance benefit from switching
to CMPXCHG16B, and keep the WAL format unchanged. If not, then we can
continue discussing the WAL format and the tradeoffs with xl_prev, but let's
take the easy way out if we can.

Agreed. Were you working on this? Or was anybody else?

Not me.

- Heikki

On 09.07.18 15:49, Heikki Linnakangas wrote:

The way
forward is to test if we can get the same performance benefit from
switching to CMPXCHG16B, and keep the WAL format unchanged.

I have implemented this. I didn't see any performance benefit using the
benchmark that Alexander Kuzmenkov outlined earlier in the thread. (But
I also didn't see a great benefit for the originally proposed patch, so
maybe I'm not doing this right or this particular hardware doesn't
benefit from it as much.)

I'm attaching the patches and scripts here if someone else wants to do
more testing.

The first patch adds a zoo of 128-bit atomics support. It's consistent
with (a.k.a. copy-and-pasted from) the existing 32- and 64-bit set, but
it's not the complete set, only as much as was necessary for this exercise.

The second patch then makes use of that in the WAL code under discussion.

pgbench invocations were:

pgbench -i -I t bench
pgbench -n -c $N -j $N -M prepared -f pgbench-wal-cas.sql -T 60 bench

for N from 1 to 32.

Note: With gcc (at least versions 7 and 8) you need to use some
non-default -march setting to get 128-bit atomics to work. (Otherwise
the configure test fails and the fallback implementation is used.) I
have found the minimum to be -march=nocona. But different -march
settings actually affect the benchmark performance, so be sure to test
the baseline with the same -march setting. Recommended configure
invocation: ./configure ... CC='gcc -march=whatever'

clang appears to work out of the box.

Also, curiously my gcc installations provide 128-bit
__sync_val_compare_and_swap() but not 128-bit
__atomic_compare_exchange_n() in spite of what the documentation indicates.

So independent of whether this approach actually provides any benefit,
the 128-bit atomics support seems a bit wobbly.

(I'm also wondering why we are using __sync_val_compare_and_swap()
rather than __sync_bool_compare_and_swap(), since all we're doing with
the return value is emulate the bool version anyway.)

--
Peter Eisentraut http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services
