[PATCH] Covering SPGiST index

7 авг. 2020 г., в 16:59, Pavel Borisov <pashkin.elfe@gmail.com> написал(а):

As usual I very much appreciate your feedback

Thanks for the patch! Looks interesting.

On a first glance the whole concept of non-multicolumn index with included attributes seems...well, just difficult to understand.
But I expect for SP-GiST this must be single key with multiple included attributes, right?
I couldn't find a test that checks impossibility of on 2-column SP-GiST, only few asserts about it. Is this checked somewhere else?

Thanks!

Best regards, Andrey Borodin.

On a first glance the whole concept of non-multicolumn index with included
attributes seems...well, just difficult to understand.
But I expect for SP-GiST this must be single key with multiple included
attributes, right?
I couldn't find a test that checks impossibility of on 2-column SP-GiST,
only few asserts about it. Is this checked somewhere else?

Yes, SpGist is by its construction a single-column index, there is no such
thing like 2-column SP-GiST yet. In the same way like original SpGist will
refuse to add a second key column, this remains after modification as well,
with exception of columns attached by INCLUDE directive. They can be
(INDEX_MAX_KEYS -1) pieces and they will not be used to create additional
index trees (as there is only one), they will be just attached to the key
tree leafs tuple.

I also little bit corrected error reporting for the case when user wants to
invoke index build with not one column. Thanks!

--
Best regards,
Pavel Borisov

Postgres Professional: http://postgrespro.com <http://www.postgrespro.com&gt;

Also little bit corrected code formatting.

Same code formatted as a patch.

пн, 10 авг. 2020 г. в 17:45, Pavel Borisov <pashkin.elfe@gmail.com>:

I added changes in documentation into the patch.

--
Best regards,
Pavel Borisov

Postgres Professional: http://postgrespro.com <http://www.postgrespro.com&gt;

вт, 11 авг. 2020 г. в 12:11, Pavel Borisov <pashkin.elfe@gmail.com>:

With a little bugfix

вт, 11 авг. 2020 г. в 22:50, Pavel Borisov <pashkin.elfe@gmail.com>:

Hi!

17 авг. 2020 г., в 21:04, Pavel Borisov <pashkin.elfe@gmail.com> написал(а):

Postgres Professional: http://postgrespro.com
<v6-0001-Covering-SP-GiST-index-support-for-INCLUDE-column.patch>

I'm looking into the patch. I have few notes:

1. I see that in src/backend/access/spgist/README you describe SP-GiST tuple as sequence of {Value, ItemPtr to heap, Included attributes}. Is it different from regular IndexTuple where tid is within TupleHeader?

2. Instead of cluttering tuple->nextOffset with bit flags we could just change Tuple Header for leaf tuples with covering indexes. Interpret tuples for indexes with included attributes differently, iff it makes code cleaner. There are so many changes with SGLT_SET_OFFSET\SGLT_GET_OFFSET that it seems viable to put some effort into research of other ways to represent two bits for null mask and varatts.

3. Comment "* SPGiST dead tuple: declaration for examining non-live tuples" does not precede relevant code. because struct SpGistDeadTupleData was not moved.

Thanks!

Best regards, Andrey Borodin.

I'm looking into the patch. I have few notes:

1. I see that in src/backend/access/spgist/README you describe SP-GiST
tuple as sequence of {Value, ItemPtr to heap, Included attributes}. Is it
different from regular IndexTuple where tid is within TupleHeader?

Yes, the header of SpGist tuple is put down in a little bit different way
than index tuple. It is also intended to connect spgist leaf tuples in
chains on a leaf page so it already have more complex layout and bigger
size that index tuple header.

SpGist tuple header size is 12 bytes which is a maxaligned value for 32 bit
architectures, and key value can start just after it without any gap. This
is of value, as unnecessary index size increase slows down performance and
is evil anyway. The only part of this which is left now is a gap
between SpGist tuple header and first value on 64 bit architecture (as
maxalign value in this case is 16 bytes and 4 bytes per tuple can be
saved). But I was discouraged to change this on the reason of binary
compatibility with indexes built before and complexity of the change also,
as quite many things in the code do depend on this maxaligned header (for
inner and dead tuples also).

Another difference is that SpGist nulls mask is inserted after the key
value before the first included one and apply only to included values. It
is not needed for key values, as null key values in SpGist are stored in
separate tree, and it is not needed to mark it null second time. Also nulls
mask size in Spgist does depend on the number of included values in a
tuple, unlike in IndexTuple which contains redundant nulls mask for all
possible INDEX_MAX_KEYS. In certain cases we can store nulls mask in free
bytes after key value before typealign of first included value. (E.g. if
key value is varchar (radix tree) statistically we have only 1/8 of keys
finishing exactly an maxalign, the others will have a natural gap for nulls
mask.)

2. Instead of cluttering tuple->nextOffset with bit flags we could just

change Tuple Header for leaf tuples with covering indexes. Interpret tuples
for indexes with included attributes differently, iff it makes code
cleaner. There are so many changes with SGLT_SET_OFFSET\SGLT_GET_OFFSET
that it seems viable to put some effort into research of other ways to
represent two bits for null mask and varatts.

Of course SpGist header can be done different for index with and without
included columns. I see two reasons against this:
1. It will be needed to integrate many ifs and in many places keep in mind
whether the index contains included values. It is expected to be much more
code than now and not only in the parts which integrates included values to
leaf tuples. I think this vast changes can puzzle reader much more than
just two small macros evenly copy-pasted in the code.
2. I also see no need to increase SpGist tuple size just for inserting two
bits which are now stored free of charge. I consulted with bit flags
storage in IndexTupleData.t_tid and did it in a similar way. Macros for
GET/SET are basically needed to make bit flags and offset modification
independent and safe in any place of a code.

I added some extra comments and mentions in manual to make all the things
clear (see v7 patch)

3. Comment "* SPGiST dead tuple: declaration for examining non-live
tuples" does not precede relevant code. because struct SpGistDeadTupleData
was not moved.

You are right, thank you! Corrected this and also removed some unnecessary
declarations.

Thank you for your attention to the patch!

On 24.08.2020 16:19, Pavel Borisov wrote:

I added some extra comments and mentions in manual to make all the
things clear (see v7 patch)

The patch implements the proposed functionality, passes tests, and in
general looks good to me.
I don't mind using a macro to differentiate tuples with and without
included attributes. Any approach will require code changes. Though, I
don't have a strong opinion about that.

A bit of nitpicking:

1) You mention backward compatibility in some comments. But, after this
patch will be committed, it will be uneasy to distinct new and old
phrases.  So I suggest to rephrase them.  You can either refer a
specific version or just call it "compatibility with indexes without
included attributes".

2) SpgLeafSize() function name seems misleading, as it actually refers
to a tuple's size, not a leaf page. I suggest to rename it to
SpgLeafTupleSize().

3) I didn't quite get the meaning of the assertion, that is added in a
few places:
     Assert(so->state.includeTupdesc->natts);
Should it be Assert(so->state.includeTupdesc->natts > 1) ?

4) There are a few typos in comments and docs:
s/colums/columns
s/include attribute/included attribute

and so on.

5) This comment in index_including.sql is outdated:
  * 7. Check various AMs. All but btree and gist must fail.

6) New test lacks SET enable_seqscan TO off;
in addition to SET enable_bitmapscan TO off;

I also wonder, why both index_including_spgist.sql and
index_including.sql tests are stable without running 'vacuum analyze'
before the EXPLAIN that shows Index Only Scan plan. Is autovacuum just
always fast enough to fill a visibility map, or I miss something?

--
Anastasia Lubennikova
Postgres Professional: http://www.postgrespro.com
The Russian Postgres Company

3) I didn't quite get the meaning of the assertion, that is added in a few
places:
Assert(so->state.includeTupdesc->natts);
Should it be Assert(so->state.includeTupdesc->natts > 1) ?

It is rather Assert(so->state.includeTupdesc->natts > 0) as INCLUDE tuple
descriptor should not be initialized and filled in case of index without
INCLUDE attributes and doesn't contain any info about key attribute which
is processed by SpGist existing way separately for different SpGist tuple
types i.e. leaf, prefix=inner and label tuples. So only INCLUDE attributes
are counted there. This and similar Asserts are for the case includeTupdesc
becomes mistakenly initialized by some future code change.

I completely agree with all the other suggestions and made corrections (see
v8). Thank you very much for your review!
Also there is a separate patch 0002 to add VACUUM ANALYZE to
index_including test which is not necessary for covering spgist.

One more point to note: in spgist_private.h I needed to shift down whole
block between
*"typedef struct SpGistSearchItem"*
*and *
*"} SpGistCache;"*
to position it below tuples types declarations to insert pointer
"SpGistLeafTuple leafTuple"; into struct SpGistSearchItem. This is the only
change in this block and I apologize for possible inconvenience to review
this change.

--
Best regards,
Pavel Borisov

Postgres Professional: http://postgrespro.com <http://www.postgrespro.com&gt;

27 авг. 2020 г., в 21:03, Pavel Borisov <pashkin.elfe@gmail.com> написал(а):

see v8

For me is the only concerning point is putting nullmask and varatt bits into tuple->nextOffset.
But, probably, we can go with this.

But let's change macro a bit. When I see
SGLT_SET_OFFSET(leafTuple->nextOffset, InvalidOffsetNumber);
I expect that leafTuple->nextOffset is function argument by value and will not be changed.
For example see ItemPointerSetOffsetNumber() - it's not exposing ip_posid.

Also, I'd propose instead of

*(leafChainDatums + i * natts) and leafChainIsnulls + i * natts

using something like

int some_index = i * natts;
leafChainDatumsp[some_index] and &leafChainIsnulls[some_index]

But, probably, it's a matter of taste...

Also I'm not sure would it be helpful to use instead of

isnull[0] and leafDatum[0]

more complex

#define SpgKeyIndex 0
isnull[SpgKeyIndex] and leafDatum[SpgKeyIndex]

There is so many [0] in the patch...

Thanks!

Best regards, Andrey Borodin.

But let's change macro a bit. When I see
SGLT_SET_OFFSET(leafTuple->nextOffset, InvalidOffsetNumber);
I expect that leafTuple->nextOffset is function argument by value and will
not be changed.
For example see ItemPointerSetOffsetNumber() - it's not exposing ip_posid.

Also, I'd propose instead of

*(leafChainDatums + i * natts) and leafChainIsnulls + i * natts

using something like

int some_index = i * natts;
leafChainDatumsp[some_index] and &leafChainIsnulls[some_index]

But, probably, it's a matter of taste...

Also I'm not sure would it be helpful to use instead of

isnull[0] and leafDatum[0]

more complex

#define SpgKeyIndex 0
isnull[SpgKeyIndex] and leafDatum[SpgKeyIndex]

There is so many [0] in the patch...

I agree with all of your proposals and integrated them into v9.
Thank you very much!

--
Best regards,
Pavel Borisov

Postgres Professional: http://postgrespro.com <http://www.postgrespro.com&gt;

31 авг. 2020 г., в 16:57, Pavel Borisov <pashkin.elfe@gmail.com> написал(а):

I agree with all of your proposals and integrated them into v9.

I have a wild idea of renaming nextOffset in SpGistLeafTupleData.
Or at least documenting in comments that this field is more than just an offset.

This looks like assert rather than real runtime check in spgLeafTupleSize()

+		if (state->includeTupdesc->natts + 1 >= INDEX_MAX_KEYS)
+			ereport(ERROR,
+					(errcode(ERRCODE_TOO_MANY_COLUMNS),
+					 errmsg("number of index columns (%d) exceeds limit (%d)",
+							state->includeTupdesc->natts, INDEX_MAX_KEYS)));
Even if you go with check, number of columns is state->includeTupdesc->natts  + 1.

Also I'd refactor this
+	/* Form descriptor for INCLUDE columns if any */
+	if (IndexRelationGetNumberOfAttributes(index) > 1)
+	{
+		int			i;
+
+		cache->includeTupdesc = CreateTemplateTupleDesc(
+														IndexRelationGetNumberOfAttributes(index) - 1);

+		for (i = 0; i < IndexRelationGetNumberOfAttributes(index) - 1; i++)
+		{
+			TupleDescInitEntry(cache->includeTupdesc, i + 1, NULL,
+							   TupleDescAttr(index->rd_att, i + 1)->atttypid,
+							   -1, 0);
+		}
+	}
+	else
+		cache->includeTupdesc = NULL;
into something like
cache->includeTupdesc = NULL;
for (i = 0; i < IndexRelationGetNumberOfAttributes(index) - 1; i++)
{
    if (cache->includeTupdesc == NULL)
	// init tuple description
    // init entry
}
But, probably it's only a matter of taste.

Beside this, I think patch is ready for committer. If Anastasia has no objections, let's flip CF entry state.

Thanks!

Best regards, Andrey Borodin.

I have a wild idea of renaming nextOffset in SpGistLeafTupleData.
Or at least documenting in comments that this field is more than just an
offset.

Seems reasonable as previous changes localized mentions of nextOffset only
to leaf tuple definition and access macros. So I've done this renaming.

This looks like assert rather than real runtime check in spgLeafTupleSize()

+               if (state->includeTupdesc->natts + 1 >= INDEX_MAX_KEYS)
+                       ereport(ERROR,
+                                       (errcode(ERRCODE_TOO_MANY_COLUMNS),
+                                        errmsg("number of index columns
(%d) exceeds limit (%d)",
+
state->includeTupdesc->natts, INDEX_MAX_KEYS)));
Even if you go with check, number of columns is
state->includeTupdesc->natts  + 1.

I placed this check only once on SpGist state creation and replaced the
other checks to asserts.

Also I'd refactor this
+ /* Form descriptor for INCLUDE columns if any */

Also done. Thanks a lot!
See v10.

--
Best regards,
Pavel Borisov

Postgres Professional: http://postgrespro.com <http://www.postgrespro.com&gt;

Pavel Borisov <pashkin.elfe@gmail.com> writes:

[ v10-0001-Covering-SP-GiST-index-support-for-INCLUDE-colum.patch ]

I've started to review this, and I've got to say that I really disagree
with this choice:

+ * If there are INCLUDE columns, they are stored after a key value, each
+ * starting from its own typalign boundary. Unlike IndexTuple, first INCLUDE
+ * value does not need to start from MAXALIGN boundary, so SPGiST uses private
+ * routines to access them.

This seems to require far more new code than it could possibly be worth,
because most of the time anything you could save here is just going
to disappear into end-of-tuple alignment space anyway -- recall that
the overall index tuple length is going to be MAXALIGN'd no matter what.
I think you should yank this out and try to rely on standard tuple
construction/deconstruction code instead.

I also find it unacceptable that you stuck a tuple descriptor pointer into
the rd_amcache structure. The relcache only supports that being a flat
blob of memory. I see that you tried to hack around that by having
spgGetCache reconstruct a new tupdesc every time through, but (a) that's
actually worse than having no cache at all, and (b) spgGetCache doesn't
really know much about the longevity of the memory context it's called in.
This could easily lead to dangling tuple pointers, serious memory bloat
from repeated tupdesc construction, or quite possibly both. Safer would
be to build the tupdesc during initSpGistState(), or maybe just make it
on-demand. In view of the previous point, I'm also wondering if there's
any way to get the relcache's regular rd_att tupdesc to be useful here,
so we don't have to build one during scans at all.

(I wondered for a bit about whether you could keep a long-lived private
tupdesc in the relcache's rd_indexcxt context. But it looks like
relcache.c sometimes resets rd_amcache without also clearing the
rd_indexcxt, so that would probably lead to leakage.)

regards, tom lane

I've started to review this, and I've got to say that I really disagree
with this choice:

+ * If there are INCLUDE columns, they are stored after a key value, each
+ * starting from its own typalign boundary. Unlike IndexTuple, first
INCLUDE
+ * value does not need to start from MAXALIGN boundary, so SPGiST uses
private
+ * routines to access them.

This seems to require far more new code than it could possibly be worth,
because most of the time anything you could save here is just going
to disappear into end-of-tuple alignment space anyway -- recall that
the overall index tuple length is going to be MAXALIGN'd no matter what.
I think you should yank this out and try to rely on standard tuple
construction/deconstruction code instead.

I'd say that much of the SELECT performance gain of SP-GiST over GiST is
due to its lightweight pages, each containing more tuples so we can have
less page fetches. And this is the main goal of having lightweight tuples.

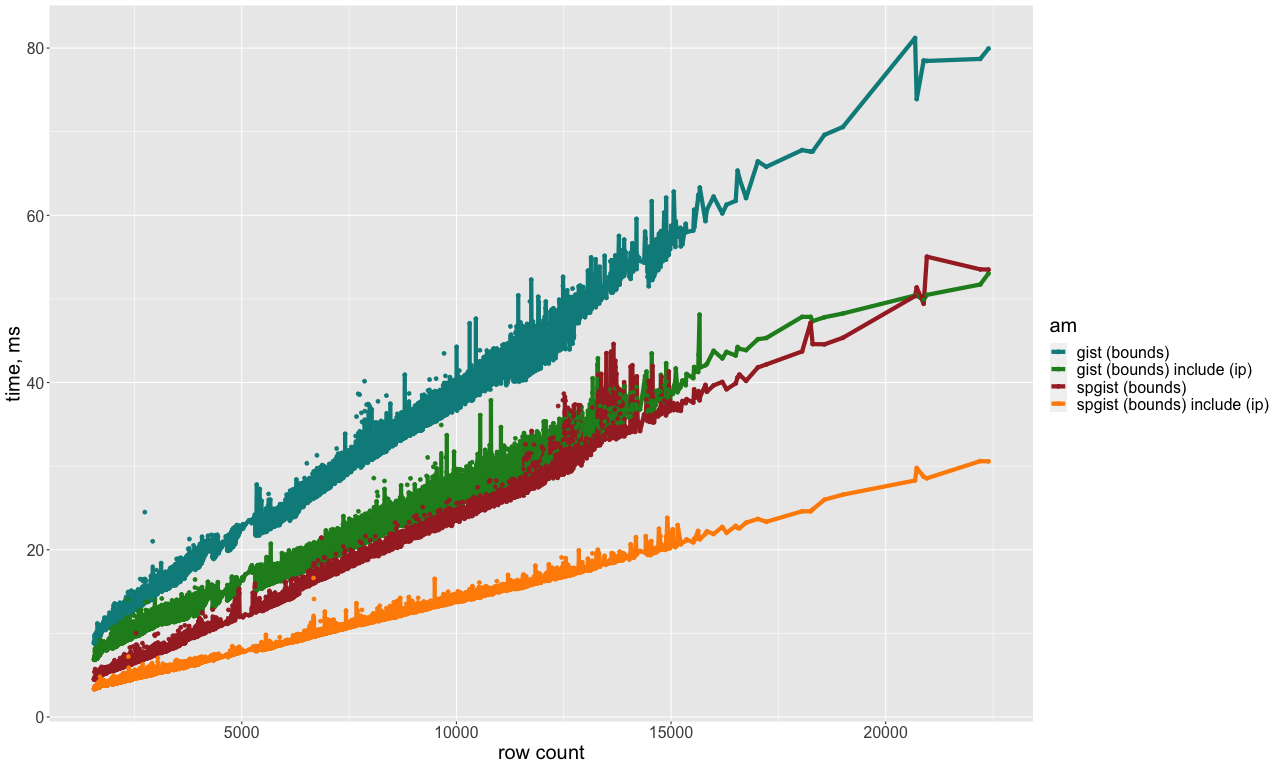

PFA my performance measurements for box+cidr selects, with gist and spgist
indexes built on box key-column and cidr (optionally) include column.

The way that seems acceptable to me is to add (optional) nulls mask into
the end of existing style SpGistLeafTuple header and use indextuple
routines to attach attributes after it. In this case, we can reduce the
amount of code at the cost of adding one extra MAXALIGN size to the overall
tuple size on 32-bit arch as now tuple header size of 12 bit already fits 3
MAXALIGNS (on 64 bit the header now is shorter than 2 maxaligns (12 bytes
of 16) and nulls mask will be free of cost). If you mean this I try to make
changes soon. What do you think of it?

I also find it unacceptable that you stuck a tuple descriptor pointer into

the rd_amcache structure. The relcache only supports that being a flat
blob of memory. I see that you tried to hack around that by having
spgGetCache reconstruct a new tupdesc every time through, but (a) that's
actually worse than having no cache at all, and (b) spgGetCache doesn't
really know much about the longevity of the memory context it's called in.
This could easily lead to dangling tuple pointers, serious memory bloat
from repeated tupdesc construction, or quite possibly both. Safer would
be to build the tupdesc during initSpGistState(), or maybe just make it
on-demand. In view of the previous point, I'm also wondering if there's
any way to get the relcache's regular rd_att tupdesc to be useful here,
so we don't have to build one during scans at all.

(I wondered for a bit about whether you could keep a long-lived private
tupdesc in the relcache's rd_indexcxt context. But it looks like
relcache.c sometimes resets rd_amcache without also clearing the
rd_indexcxt, so that would probably lead to leakage.)

I will consider this for sure, thanks.

вт, 17 нояб. 2020 г. в 11:36, Pavel Borisov <pashkin.elfe@gmail.com>:

I've started to review this, and I've got to say that I really disagree

with this choice:

+ * If there are INCLUDE columns, they are stored after a key value, each
+ * starting from its own typalign boundary. Unlike IndexTuple, first
INCLUDE
+ * value does not need to start from MAXALIGN boundary, so SPGiST uses
private
+ * routines to access them.

Tom, I took a stab at making the code for tuple creation/decomposition

more optimal. Now I see several options for this:
1. Included values can be added after key value as a whole index tuple. Pro
of this: it reuses existing code perfectly. Con is that it will introduce
extra (empty) index tuple header.
2. Existing state: pro is that in my opinion, it has the least possible
gaps. The con is the need to duplicate much of the existing code with some
modification. Frankly I don't like this duplication very much even if it is
only a private spgist code.
2A. Existing state can be shifted into fewer changes in index_form_tuple
and index_deform_tuple if I shift the null mask after the tuple header and
before the key value (SpGistTupleHeader+nullmask chunk will be maxaligned).
This is what I proposed in the previous answer. I tried to work on this
variant but it will need to duplicate index_form_tuple and
index_deform_tuple code into private version. The reason is that spgist
tuple has its own header of different size and in my understanding, it can
not be incorporated using index_form_tuple.
3. I can split index_form_tuple into two parts: a) header adding and size
calculation, b) filling attributes. External (a), which could be
constructed differently for SpGist, and internal (b) being universal.
3A. I can make index_form_tuple accept pointer as an argument to create
tuple in already palloced memory area (with the shift to its start). So
external caller will be able to incorporate headers after calling
index_form_tuple routine.

Maybe there is some other way I don't imagine yet. Which way do you think
for me better to follow? What is your advice?

I also find it unacceptable that you stuck a tuple descriptor pointer into

the rd_amcache structure. The relcache only supports that being a flat
blob of memory. I see that you tried to hack around that by having
spgGetCache reconstruct a new tupdesc every time through, but (a) that's
actually worse than having no cache at all, and (b) spgGetCache doesn't
really know much about the longevity of the memory context it's called in.
This could easily lead to dangling tuple pointers, serious memory bloat
from repeated tupdesc construction, or quite possibly both. Safer would
be to build the tupdesc during initSpGistState(), or maybe just make it
on-demand. In view of the previous point, I'm also wondering if there's
any way to get the relcache's regular rd_att tupdesc to be useful here,
so we don't have to build one during scans at all.

I see that FormData_pg_attribute's inside TupleDescData are situated in a

single memory chunk. If I add it at the ending of allocated SpGistCache as
a copy of this chunk (using memcpy), not a pointer to it as it is now, will
it be safe for use?
Or maybe it would still bel better to initialize tuple descriptor any
time initSpGistState called without trying to cache it?

What will you advise?

--
Best regards,
Pavel Borisov

Postgres Professional: http://postgrespro.com <http://www.postgrespro.com&gt;

Pavel Borisov <pashkin.elfe@gmail.com> writes:

The way that seems acceptable to me is to add (optional) nulls mask into
the end of existing style SpGistLeafTuple header and use indextuple
routines to attach attributes after it. In this case, we can reduce the
amount of code at the cost of adding one extra MAXALIGN size to the overall
tuple size on 32-bit arch as now tuple header size of 12 bit already fits 3
MAXALIGNS (on 64 bit the header now is shorter than 2 maxaligns (12 bytes
of 16) and nulls mask will be free of cost). If you mean this I try to make
changes soon. What do you think of it?

Yeah, that was pretty much the same conclusion I came to. For
INDEX_MAX_KEYS values up to 32, the nulls bitmap will fit into what's
now padding space on 64-bit machines. For backwards compatibility,
we'd have to be careful that the code knows there's no nulls bitmap in
an index without included columns, so I'm not sure how messy that will
be. But it's worth trying that way to see how it comes out.

regards, tom lane
