Improving the heapgetpage function improves performance in common scenarios

Started by Quan Zongliangabout 3 years ago8 messageshackers
Jump to latest
#1Quan Zongliang
quanzongliang@yeah.net

Hi

In the function heapgetpage. If a table is not updated very frequently.
Many actions in tuple loops are superfluous. For all_visible pages,
loctup does not need to be assigned, nor does the "valid" variable.
CheckForSerializableConflictOutNeeded from
HeapCheckForSerializableConflictOut function, it only need to inspect at

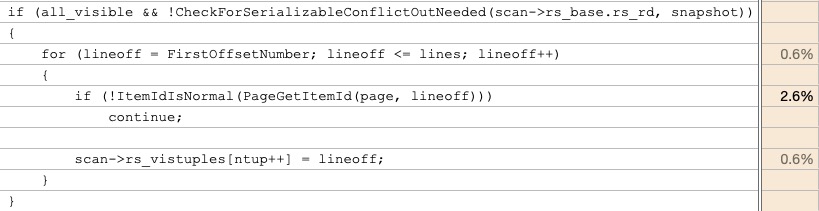

the beginning of the cycle only once. Using vtune you can clearly see
the result (attached heapgetpage.jpg).

So by splitting the loop logic into two parts, the vtune results show
significant improvement (attached heapgetpage-allvis.jpg).

The test data uses TPC-H's table "orders" with a scale=20, 30 million rows.

Quan Zongliang

Attachments:

heapgetpage-allvis.jpgimage/jpeg; name=heapgetpage-allvis.jpgDownload
heapgetpage.jpgimage/jpeg; name=heapgetpage.jpgDownload+1-0
heapgetpage.patchtext/plain; charset=UTF-8; name=heapgetpage.patchDownload+31-18
#2John Naylor
john.naylor@enterprisedb.com
In reply to: Quan Zongliang (#1)
Re: Improving the heapgetpage function improves performance in common scenarios

On Thu, Aug 24, 2023 at 5:55 PM Quan Zongliang <quanzongliang@yeah.net>
wrote:

In the function heapgetpage. If a table is not updated very frequently.
Many actions in tuple loops are superfluous. For all_visible pages,
loctup does not need to be assigned, nor does the "valid" variable.
CheckForSerializableConflictOutNeeded from
HeapCheckForSerializableConflictOut function, it only need to inspect at

Thanks for submitting! A few weeks before this, there was another proposal,
which specializes code for all paths, not just one. That patch also does so
without duplicating the loop:

/messages/by-id/20230716015656.xjvemfbp5fysjiea@awork3.anarazel.de

the beginning of the cycle only once. Using vtune you can clearly see
the result (attached heapgetpage.jpg).

So by splitting the loop logic into two parts, the vtune results show
significant improvement (attached heapgetpage-allvis.jpg).

For future reference, it's not clear at all from the screenshots what the
improvement will be for the user. In the above thread, the author shares
testing methodology as well as timing measurements. This is useful for
reproducibilty, as well as convincing others that the change is important.

--
John Naylor
EDB: http://www.enterprisedb.com

#3Quan Zongliang
quanzongliang@yeah.net
In reply to: John Naylor (#2)
Re: Improving the heapgetpage function improves performance in common scenarios

On 2023/9/5 16:15, John Naylor wrote:

On Thu, Aug 24, 2023 at 5:55 PM Quan Zongliang <quanzongliang@yeah.net
<mailto:quanzongliang@yeah.net>> wrote:

In the function heapgetpage. If a table is not updated very frequently.
Many actions in tuple loops are superfluous. For all_visible pages,
loctup does not need to be assigned, nor does the "valid" variable.
CheckForSerializableConflictOutNeeded from
HeapCheckForSerializableConflictOut function, it only need to inspect at

Thanks for submitting! A few weeks before this, there was another
proposal, which specializes code for all paths, not just one. That patch
also does so without duplicating the loop:

/messages/by-id/20230716015656.xjvemfbp5fysjiea@awork3.anarazel.de </messages/by-id/20230716015656.xjvemfbp5fysjiea@awork3.anarazel.de>

Nice patch. I'm sorry I didn't notice it before.

the beginning of the cycle only once. Using vtune you can clearly see
the result (attached heapgetpage.jpg).

So by splitting the loop logic into two parts, the vtune results show
significant improvement (attached heapgetpage-allvis.jpg).

For future reference, it's not clear at all from the screenshots what
the improvement will be for the user. In the above thread, the author
shares testing methodology as well as timing measurements. This is
useful for reproducibilty, as well as convincing others that the change
is important.

Here's how I test it
EXPLAIN ANALYZE SELECT * FROM orders;
Maybe the test wasn't good enough. Although the modified optimal result
looks good. Because it fluctuates a lot. It's hard to compare. The
results of vtune are therefore used.

My patch is mainly to eliminate:
1, Assignment of "loctup" struct variable (in vtune you can see that
these 4 lines have a significant overhead: 0.4 1.0 0.2 0.4).
2. Assignment of the "valid" variable.(overhead 0.6)
3. HeapCheckForSerializableConflictOut function call.(overhead 0.6)

Although these are not the same overhead from test to test. But all are
too obvious to ignore. The screenshots are mainly to show the three
improvements mentioned above.

I'll also try Andres Freund's test method next.

Show quoted text

--
John Naylor
EDB: http://www.enterprisedb.com <http://www.enterprisedb.com>

#4John Naylor
john.naylor@enterprisedb.com
In reply to: Quan Zongliang (#3)
Re: Improving the heapgetpage function improves performance in common scenarios

On Tue, Sep 5, 2023 at 4:27 PM Quan Zongliang <quanzongliang@yeah.net>
wrote:

Here's how I test it
EXPLAIN ANALYZE SELECT * FROM orders;

Note that EXPLAIN ANALYZE has quite a bit of overhead, so it's not good for
these kinds of tests.

I'll also try Andres Freund's test method next.

Commit f691f5b80a85 from today removes another source of overhead in this
function, so I suggest testing against that, if you wish to test again.

--
John Naylor
EDB: http://www.enterprisedb.com

#5Quan Zongliang
quanzongliang@yeah.net
In reply to: John Naylor (#4)
Re: Improving the heapgetpage function improves performance in common scenarios

On 2023/9/5 18:46, John Naylor wrote:

On Tue, Sep 5, 2023 at 4:27 PM Quan Zongliang <quanzongliang@yeah.net
<mailto:quanzongliang@yeah.net>> wrote:

Here's how I test it
    EXPLAIN ANALYZE SELECT * FROM orders;

Note that EXPLAIN ANALYZE has quite a bit of overhead, so it's not good
for these kinds of tests.

I'll also try Andres Freund's test method next.

Commit f691f5b80a85 from today removes another source of overhead in
this function, so I suggest testing against that, if you wish to test again.

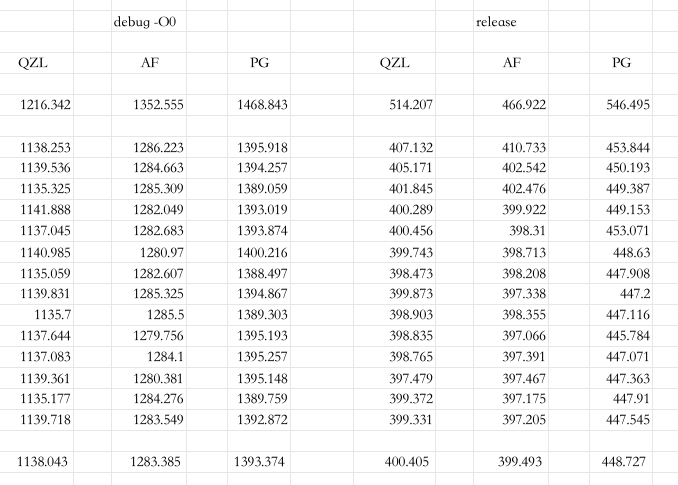

Test with the latest code of the master branch, see the attached results.

If not optimized(--enable-debug CFLAGS='-O0'), there is a clear
difference. When the compiler does the optimization, the performance is
similar. I think the compiler does a good enough optimization with
"pg_attribute_always_inline" and the last two constant parameters when
calling heapgetpage_collect.

Show quoted text

--
John Naylor
EDB: http://www.enterprisedb.com <http://www.enterprisedb.com>

Attachments:

heapgetpage-0906.pngimage/png; name=heapgetpage-0906.pngDownload
#6Quan Zongliang
quanzongliang@yeah.net
In reply to: Quan Zongliang (#5)
Re: Improving the heapgetpage function improves performance in common scenarios

On 2023/9/6 15:50, Quan Zongliang wrote:

On 2023/9/5 18:46, John Naylor wrote:

On Tue, Sep 5, 2023 at 4:27 PM Quan Zongliang <quanzongliang@yeah.net
<mailto:quanzongliang@yeah.net>> wrote:

 > Here's how I test it
 >     EXPLAIN ANALYZE SELECT * FROM orders;

Note that EXPLAIN ANALYZE has quite a bit of overhead, so it's not
good for these kinds of tests.

 > I'll also try Andres Freund's test method next.

Commit f691f5b80a85 from today removes another source of overhead in
this function, so I suggest testing against that, if you wish to test
again.

Test with the latest code of the master branch, see the attached results.

If not optimized(--enable-debug CFLAGS='-O0'), there is a clear
difference. When the compiler does the optimization, the performance is
similar. I think the compiler does a good enough optimization with
"pg_attribute_always_inline" and the last two constant parameters when
calling heapgetpage_collect.

Add a note. The first execution time of an attachment is not calculated
in the average.

Show quoted text

--
John Naylor
EDB: http://www.enterprisedb.com <http://www.enterprisedb.com>

#7John Naylor
john.naylor@enterprisedb.com
In reply to: Quan Zongliang (#5)
Re: Improving the heapgetpage function improves performance in common scenarios

On Wed, Sep 6, 2023 at 2:50 PM Quan Zongliang <quanzongliang@yeah.net>
wrote:

If not optimized(--enable-debug CFLAGS='-O0'), there is a clear
difference. When the compiler does the optimization, the performance is
similar. I think the compiler does a good enough optimization with
"pg_attribute_always_inline" and the last two constant parameters when
calling heapgetpage_collect.

So as we might expect, more specialization (Andres' patch) has no apparent
downsides in this workload. (While I'm not sure of the point of testing at
-O0, I think we can conclude that less-bright compilers will show some
improvement with either patch.)

If you agree, do you want to withdraw your patch from the commit fest?

--
John Naylor
EDB: http://www.enterprisedb.com

#8Quan Zongliang
quanzongliang@yeah.net
In reply to: John Naylor (#7)
Re: Improving the heapgetpage function improves performance in common scenarios

On 2023/9/6 17:07, John Naylor wrote:

On Wed, Sep 6, 2023 at 2:50 PM Quan Zongliang <quanzongliang@yeah.net
<mailto:quanzongliang@yeah.net>> wrote:

If not optimized(--enable-debug CFLAGS='-O0'), there is a clear
difference. When the compiler does the optimization, the performance is
similar. I think the compiler does a good enough optimization with
"pg_attribute_always_inline" and the last two constant parameters when
calling heapgetpage_collect.

So as we might expect, more specialization (Andres' patch) has no
apparent downsides in this workload. (While I'm not sure of the point of
testing at -O0, I think we can conclude that less-bright compilers will
show some improvement with either patch.)

If you agree, do you want to withdraw your patch from the commit fest?

Ok.

Show quoted text

--
John Naylor
EDB: http://www.enterprisedb.com <http://www.enterprisedb.com>
