circle @> box, polygon points access
Hi
Looking through the archives, around 20 years ago someone asked about
getting a list of points from a polygon [15 AUG 2004] and the reply was
this was not available but something like point(polygon, n) could be
added relatively easily as a new feature to extract points.
I'm hitting an issue trying to check if a box is entirely contained
within a circle and I had thought since that comparison is not directly
supported to cast the box to a polygon and then check each of the points
in the polygon since that is what the circle containing a box is
essentially going to do.
However, there does not seem to be an easy way to access the polygon
elements either (unnest failed, indexing doesn't work and the
point(poly,n) is not there).
Can anyone point me to an approach to do what I need or is this going to
be best by adding the box comparison in the mainline code? I'm happy to
take a go if someone points [no pun intended] me to where in the code to go.
Thanks
Tom
On 2024-11-21 19:18 +0100, Thomas Simpson wrote:
Looking through the archives, around 20 years ago someone asked about
getting a list of points from a polygon [15 AUG 2004] and the reply was this
was not available but something like point(polygon, n) could be added
relatively easily as a new feature to extract points.I'm hitting an issue trying to check if a box is entirely contained within a
circle and I had thought since that comparison is not directly supported to
cast the box to a polygon and then check each of the points in the polygon
since that is what the circle containing a box is essentially going to do.However, there does not seem to be an easy way to access the polygon
elements either (unnest failed, indexing doesn't work and the point(poly,n)
is not there).Can anyone point me to an approach to do what I need or is this going to be
best by adding the box comparison in the mainline code? I'm happy to take a
go if someone points [no pun intended] me to where in the code to go.
You can treat point and box as arrays to access their components. See
the very last paragraph on [1]https://www.postgresql.org/docs/current/functions-geometry.html. That requires extra parenthesis,
though:
regress=# select ((box '(1,2),(3,4)')[0])[0];
box
-----
3
(1 row)
But you'd have to calculate the remaining two points.
I think your specific use case (Is box in a circle?) can be also be
answered by considering the smallest enclosing circle of that box and
test if that circle is contained in your input circle. For example:
regress=# select circle(box '(1,2),(3,4)') <@ circle '(0,0),10';
?column?
----------
t
(1 row)
PostGIS may also be worth looking at.
[1]: https://www.postgresql.org/docs/current/functions-geometry.html
On Fri, Nov 22, 2024 at 12:05 AM Erik Wienhold <ewie@ewie.name> wrote:
On 2024-11-21 19:18 +0100, Thomas Simpson wrote:
Looking through the archives, around 20 years ago someone asked about
getting a list of points from a polygon [15 AUG 2004] and the reply was this
was not available but something like point(polygon, n) could be added
relatively easily as a new feature to extract points.I'm hitting an issue trying to check if a box is entirely contained within a
circle and I had thought since that comparison is not directly supported to
cast the box to a polygon and then check each of the points in the polygon
since that is what the circle containing a box is essentially going to do.However, there does not seem to be an easy way to access the polygon
elements either (unnest failed, indexing doesn't work and the point(poly,n)
is not there).Can anyone point me to an approach to do what I need or is this going to be
best by adding the box comparison in the mainline code? I'm happy to take a
go if someone points [no pun intended] me to where in the code to go.You can treat point and box as arrays to access their components. See
the very last paragraph on [1]. That requires extra parenthesis,
though:regress=# select ((box '(1,2),(3,4)')[0])[0];
box
-----
3
(1 row)But you'd have to calculate the remaining two points.
And the circle can be transformed to the box. Then all parameters of
the circle could be calculated. Awkward, but could work.
I think your specific use case (Is box in a circle?) can be also be
answered by considering the smallest enclosing circle of that box and
test if that circle is contained in your input circle. For example:regress=# select circle(box '(1,2),(3,4)') <@ circle '(0,0),10';
?column?
----------
t
(1 row)

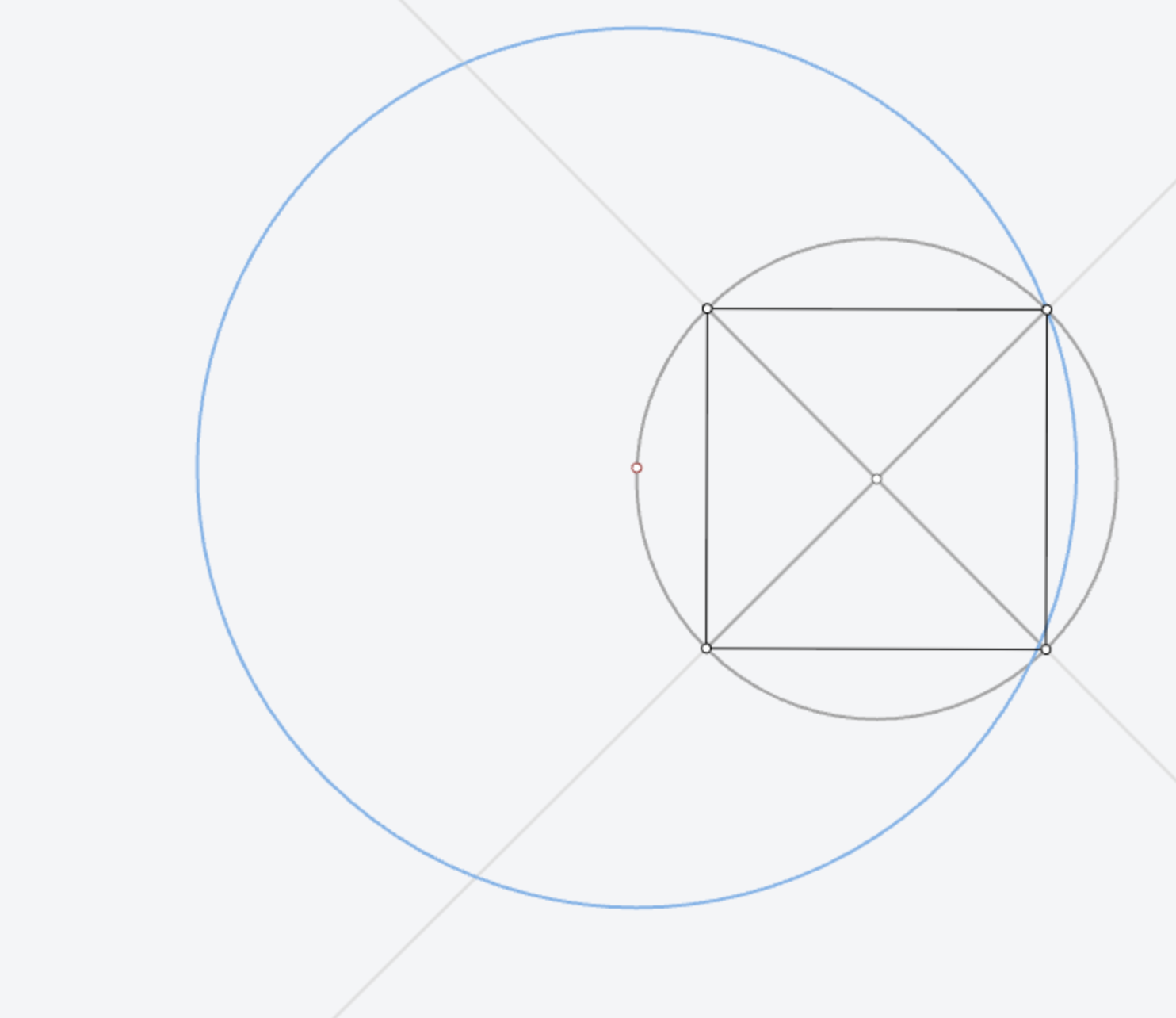

Oh, that's not true. Check the picture attached.
------
Regards,
Alexander Korotkov
Supabase
