Questions about btree_gin vs btree_gist for low cardinality columns

On Fri, May 24, 2019 at 10:25 AM Jeremy Finzel <finzelj@gmail.com> wrote:

I have been hoping for clearer direction from the community about
specifically btree_gin indexes for low cardinality columns (as well as low
cardinality multi-column indexes). In general there is very little
discussion about this both online and in the docs. Rather, the emphasis
for GIN indexes discussed is always on full text search of JSON indexing,
not btree_gin indexes.

However, I have never been happy with the options open to me for indexing
low cardinality columns and was hoping this could be a big win. Often I
use partial indexes as a solution, but I really want to know how many use
cases btree_gin could solve better than either a normal btree or a partial
index.

Here are my main questions:

1.

"The docs say regarding *index only scans*: The index type must support
index-only scans. B-tree indexes always do. GiST and SP-GiST indexes
support index-only scans for some operator classes but not others. Other
index types have no support. The underlying requirement is that the index
must physically store, or else be able to reconstruct, the original data
value for each index entry. As a counterexample, GIN indexes cannot support
index-only scans because each index entry typically holds only part of the
original data value."

This is confusing to say "B-tree indexes always do" and "GIN indexes
cannot support index-only scans", when we have a btree_gin index type.
Explanation please ???

Is it true that for a btree_gin index on a regular column, "each index
entry typically holds only part of the original data value"? Do these
still not support index only scans? Could they? I can't see why they
shouldn't be able to for a single indexed non-expression field?

2.

Lack of index only scans is definitely a downside. However, I see
basically identical performance, but way less memory and space usage, for
gin indexes. In terms of read-only performance, if index only scans are
not a factor, why not always recommend btree_gin indexes instead of regular
btree for low cardinality fields, which will yield similar performance but
use far, far less space and resources?

3.

This relates to 2. I understand the write overhead can be much greater
for GIN indexes, which is why the fastupdate feature exists. But again, in
those discussions in the docs, it appears to me they are emphasizing that
penalty more for full text or json GIN indexes. Does the same overhead
apply to a btree_gin index on a regular column with no expressions?

Those are my questions.

FYI, I can see an earlier thread about this topic (
/messages/by-id/E260AEE7-95B3-4142-9A4B-A4416F1701F0@aol.com
but a few questions were left unanswered and unclear there.

I first started seriously considering using btree_gin indexes for low
cardinality columns, for example some text field with 30 unique values
across 100 million rows, after reading a summary of index types from
Bruce's article: https://momjian.us/main/writings/pgsql/indexing.pdf

This article was also helpful but yet again I wonder it's broader
viability:
http://hlinnaka.iki.fi/2014/03/28/gin-as-a-substitute-for-bitmap-indexes/

Thank you!
Jeremy

Could anyone shed any light on these questions? I appreciate it.

Thanks,
Jeremy

On May 29, 2019, at 10:59 AM, Jeremy Finzel <finzelj@gmail.com> wrote:

On Fri, May 24, 2019 at 10:25 AM Jeremy Finzel <finzelj@gmail.com <mailto:finzelj@gmail.com>> wrote:
I have been hoping for clearer direction from the community about specifically btree_gin indexes for low cardinality columns (as well as low cardinality multi-column indexes). In general there is very little discussion about this both online and in the docs. Rather, the emphasis for GIN indexes discussed is always on full text search of JSON indexing, not btree_gin indexes.

However, I have never been happy with the options open to me for indexing low cardinality columns and was hoping this could be a big win. Often I use partial indexes as a solution, but I really want to know how many use cases btree_gin could solve better than either a normal btree or a partial index.

Here are my main questions:

1.

"The docs say regarding *index only scans*: The index type must support index-only scans. B-tree indexes always do. GiST and SP-GiST indexes support index-only scans for some operator classes but not others. Other index types have no support. The underlying requirement is that the index must physically store, or else be able to reconstruct, the original data value for each index entry. As a counterexample, GIN indexes cannot support index-only scans because each index entry typically holds only part of the original data value."

This is confusing to say "B-tree indexes always do" and "GIN indexes cannot support index-only scans", when we have a btree_gin index type. Explanation please ???

Is it true that for a btree_gin index on a regular column, "each index entry typically holds only part of the original data value"? Do these still not support index only scans? Could they? I can't see why they shouldn't be able to for a single indexed non-expression field?

Well part of the problem is that “B-tree” is a pretty generic term. Pretty much every index is either some form of hash, or some form of tree. We use the term B-tree, even though pretty much no major index is actually a binary tree. They almost always have multiple branches per node.

It’s also important to note that over time, while we may use the term B-Tree generically, there are many specialized trees used today.

Historically, the conventional B+Tree is popular for database indexes. A B+Tree rather than relying on “nodes” per se, really is based on pages. Nodes alone tend to be too fine grained, so it’s a game of mapping the nodes to pages on disk. The page size can impact the structure of the tree.

In a typical B+Tree the values of the index are stored in leaves of the tree, those leaves are then linked together in order. An index scan works because the data in the leaves matches the data in the database record.

Say you’re doing something like “SELECT ID FROM TABLE WHERE ID LIKE ‘&X&’”. A basic index won’t work for a query like that, so the DB will need to scan every row. But since ID (in this case) is indexed, we have all of the ID’s in the table stored both in the table rows themselves, but also in the ID index. Since there are more ID’s per page in the ID index, and the ID index has all of the data we need (i.e. the IDs), there’s not reason to table scan the table itself. Rather, you can just scan the index. Load every page from the index, walk the nodes, and match the values for &X&. Much less I/O.

Now, things like the GIN indexes, while still trees, store the data differently. Where a B+Tree stores the indexes in the leaf nodes of the tree, the GIN indexes break the values down and store parts of the keys in to the individual nodes of the tree. To reconstruct the index value, you walk all of the nodes to the end of the branch. A B+Tree, each node represents the range of nodes along the branch. So, if you have 1-2-3-4-5-6 in a tree, the root of the tree may say 1-3 are on the left branch, 4-6 are on the right branch. Looking for 2, you go left. There the node says “1-2 are on the left branch, 3 is on the right branch”. You go left again, find the node that says “1 is to the left, 2 is to the right”. Go right, and you find 2. Tada!

In a GIN index, if you index “ABCDEF”, there will be a A node, B node, C node, D node, etc. (And, please, appreciate I am talking in broad brush generalities here for the sake of exposition, not specific details of implementation or algorithms). So, simply, by the time you get to the bottom of an index, all you find is the pointer to the data, not the actual key that got you there. The Key is the path through the tree.

The reasons for this, especially for things like full text search, is a lot of words have a lot in common (notably prefixes) so it makes sense for specialized indexes to basically compact themselves by removing the prefixes. Basically each node says “all the words that start with ‘the’ (the, them, their, there, thespian) are this way". So, you’ll see a node “the” beneath that you might find the node “spian” (thespian with the ‘the’ removed). These indexes are more compact and better suited for text (vs, say, random GUIDs). Because text has notable properties of information density and such.

For just numbers (especially random numbers), there’s no real value.

This is why “scanning the index” doesn’t work well on these kinds of structures compared to a classic B-Tree. Nor does a HASH index. Since, hash indexes store the hash — not the key value. Nothing there to scan of value.

2.

Lack of index only scans is definitely a downside. However, I see basically identical performance, but way less memory and space usage, for gin indexes. In terms of read-only performance, if index only scans are not a factor, why not always recommend btree_gin indexes instead of regular btree for low cardinality fields, which will yield similar performance but use far, far less space and resources?

I simply can’t speak to the applicability of index to low cardinality columns as those relate to different issues not directly related to searching the index.

If you have 10M rows with a “STATUS” column of 1 or 2, and an index on that column, then you have a 2 node index with a bazillion row pointers. Some systems (I can’t speak to PG in this regard) degenerate in this kind of use case since the index is more or less designed to work great in unique identifiers than low cardinality values. The representation of large record pointer lists may just not be handled well as edge cases.

Historically, I try to avoid low cardinality indexes, simply because I’ve had problems in the past (yes, decades ago, but lessons learned). In those case I force high cardinality (in this case, maybe create a combined index of STATUS and ID, which makes an ostensibly low value index in to a unique one). This is very important for heavily weight indexes (like where most of the statues are 1, but you mostly just want to look for the 2’s). But then its a matter of convincing the optimizer that the index isn’t utterly worthless no matter what you query for and table scans anyway.

Regards,

Will Hartung

On 2019-05-30 10:11:36 -0700, Will Hartung wrote:

Well part of the problem is that “B-tree” is a pretty generic term. Pretty much
every index is either some form of hash, or some form of tree. We use the term
B-tree, even though pretty much no major index is actually a binary tree.

There seems to be no consensus on what the "B" stands for ("balanced"?
"Bayer"?), but it definitely isn't "binary". A B-tree is not a binary
tree.

They almost always have multiple branches per node.

Yup. A B-tree is optimized for disk I/O and uses large (one or more disk
blocks) nodes with many children (and often a variable number to keep
the size of the block constant).

It’s also important to note that over time, while we may use the term B-Tree
generically, there are many specialized trees used today.

There are several variants of B-trees (B+, B*, ...), but B-tree is not a
generic term for any tree. A B-tree has specific characteristics.
https://en.wikipedia.org/wiki/B-tree#Definition follows Knuth's
definition.

Historically, the conventional B+Tree is popular for database indexes. A B+Tree
rather than relying on “nodes” per se, really is based on pages. Nodes alone
tend to be too fine grained, so it’s a game of mapping the nodes to pages on
disk.

In the case of a B-tree a node *is* a page (or block or whatever you
want to call it). A B-tree uses large nodes with many children, it
doesn't cluster small nodes together.

[...]

In a GIN index, if you index “ABCDEF”, there will be a A node, B node, C node,
D node, etc. (And, please, appreciate I am talking in broad brush generalities
here for the sake of exposition, not specific details of implementation or
algorithms). So, simply, by the time you get to the bottom of an index, all you
find is the pointer to the data, not the actual key that got you there. The Key
is the path through the tree.

You probably have generalized too much to answer Jeremy's question.

Firstly, the GIN index doesn't generally index single characters. It
uses some rule to split the field into tokens. For example, for a text
field, it might split the field into words (possibly with some
normalization like case-folding and stemming) for an int array it might
use the values in the array, etc.

Jeremy asked specifically about btree_gin. The docs don't state that
this index support ordered comparisons. This doesn't work if you split
the field, so my guess is that it doesn't. For a single column it's
basically a btree index with a more compact tid list. Dumping the
contents of the index if hd seems to confirm this. For a btree_gin index
spanning multiple columns I'm not sure. I would have expected each
field to be a token, but it looks like both are stored together. So
unless somebody more knowledgeable speaks up, I guess Jeremy will have
to read the source.

hp

--
_ | Peter J. Holzer | we build much bigger, better disasters now
|_|_) | | because we have much more sophisticated
| | | hjp@hjp.at | management tools.
__/ | http://www.hjp.at/ | -- Ross Anderson <https://www.edge.org/&gt;

On 2019-05-30 21:00:57 +0200, Peter J. Holzer wrote:

Firstly, the GIN index doesn't generally index single characters. It
uses some rule to split the field into tokens. For example, for a text
field, it might split the field into words (possibly with some
normalization like case-folding and stemming) for an int array it might
use the values in the array, etc.

That was misleading: For a full text index you don't actually index the
column. You index ts_vector(columne). It is ts_vector which does the
tokenization, not the access method itself.

hp

--
_ | Peter J. Holzer | we build much bigger, better disasters now
|_|_) | | because we have much more sophisticated
| | | hjp@hjp.at | management tools.
__/ | http://www.hjp.at/ | -- Ross Anderson <https://www.edge.org/&gt;

Will Hartung schrieb am 31.05.2019 um 00:11:

If you have 10M rows with a “STATUS” column of 1 or 2, and an index
on that column, then you have a 2 node index with a bazillion row
pointers. Some systems (I can’t speak to PG in this regard)
degenerate in this kind of use case since the index is more or less
designed to work great in unique identifiers than low cardinality
values. The representation of large record pointer lists may just not
be handled well as edge cases.

What I very often do in theses cases is to create two partial indexes:

One with "WHERE status = 1" and another with "WHERE STATUS = 2" including
_another_ column in the index that I usually use together with the status
column in the queries.

Jeremy's question is *great*, and really well presented. I can't answer his
questions, but I am keenly interested in this subject as well. The links he
provides lead to some really interesting and well-though-out pieces, well
worth reading.

I'm going to try restating things in my own way in hopes of getting some
good feedback and a basic question:

*What are the best ways to index low cardinality values in Postgres?*

For an example, imagine an address table with 100M US street addresses with
two character state abbreviations. So, say there are around 60 values in
there (the USPS is the mail system for a variety of US territories,
possessions and friends in the Pacific.) Okay, so what's the best index
type for state abbreviation? For the sake of argument, assume a normal
distribution so something like FM (Federated States of Micronesia) is on a
tail end and CA or NY are a whole lot more common.

A *B-tree* is obviously a pretty *bad match* for this sort of situation. It
works, but B-trees are ideal for *unique* values, and super large for
repeated values. Not getting into the details or Postgres specifics of
various kinds of traditional B-trees. (I think B*?) Doesn't matter. You
have a huge index because the index size is closely related to the number
of *rows*, not the number of *distinct values*.

Alternatively, you could set up *partial indexes* for the distinct values,
like so:

Running 10 Million PostgreSQL Indexes In Production (And Counting)
https://heap.io/blog/engineering/running-10-million-postgresql-indexes-in-production

Like Jeremy, I've wondered about *GIN indexes* for low-cardinality columns.
Has anyone tried this out in PG 10 or 11? It sounds like a good idea. As I
understand it, GIN indexes are something like a B-tree of unique values
that link to another data structure, like a tree, bitmap, etc. So, in my
imaginary example, there are 60 nodes for the state codes [internally there
would be more for padding free nodes, evenly sized pages, etc....just
pretend there are 60] and then linked to that, 60 data structures with the
actual row references. Somehow.

It can imagine things going quite well with a GIN or btree_gin. I can also
imagine that the secondary data structure could get bloaty, slow, and
horrible. I've worked with a system which uses bitmaps as the secondary
structure (at least some of the time), and it can work quite well...not
sure how it's implemented in Postgres.

So, does anyone have any links or results about efficiently (space and/or
time) indexing Boolean and other low-cardinality columns in Postgres? I'm
on PG 11, but figure many are on 9.x or 10.x.

References and results much appreciated.

Thanks!

Since I've been wondering about this subject, I figured I'd take a bit of
time and try to do some tests. I'm not new to databases or coding, but have
been using Postgres for less than two years. I haven't tried to generate
large blocks of test data directly in Postgres before, so I'm *sure* that
there are better ways to do what I've done here. No worries, this gave me a
chance to work through at least some of the questions/problems in setting
up and running tests.

Anyway, I populated a table with 1M rows of data with very little in them,
just a two-character state abbreviation. There are only 59 values, and the
distribution is fairly even as I used random() without any tricks to shape
the distribution. So, each value is roughly 1/60th of the total row count.
Not realistic, but what I've got.

For this table, I built four different kind of index and tried each one out
with a count(*) query on a single exact match. I also checked out the size
of each index.

Headline results:

Partial index: Smaller (as expeced), fast.
B-tree index: Big, fast.
GIN: Small, slow.
Hash: Large, slow. ("Large" may be exaggerated in comparison with a B-tree
because of my test data.)

I'm wondering how much impact it had that I used such very small strings,
and how much difference it made that the data was so evenly distributed.

If anyone has any insights, I'd be grateful to hear them. I'm posting the
various bits of code involved below for anyone following along at home.

First, my version string as that can make a difference (we deploy on RDS, I
develop on macOS):

PostgreSQL 11.3 on x86_64-apple-darwin16.7.0, compiled by Apple LLVM
version 8.1.0 (clang-802.0.42), 64-bit

There's a simple lookup table with the 59 abbreviations
(AL,AR,AS,AZ,CA,CO,CT,DC,DE,FL,FM,GA,GU,HI,IA,ID,IL,IN,KS,KY,LA,MA,MD,ME,MH,MI,MN,MO,MP,MS,MT,NC,ND,NE,NH,NJ,NM,NV,NY,OH,OK,OR,PA,PR,PW,RI,SC,SD,TN,TX,UT,VA,VI,VT,WA,WI,WV,WY)

BEGIN;
CREATE TABLE IF NOT EXISTS api.state (
abbr text
);
COMMIT;

And here's the test data table definition:

BEGIN;
CREATE TABLE IF NOT EXISTS ascendco.state_test (
abbr text,
num integer -- I didn't end up using this.
);
COMMIT;

I wanted to create 1M rows and bashed around with generate_series,
recursive CTEs...and didn't get it working. So I wrote a tiny function
instead:

/* random() produces are pretty consistent distribution of numbers.
For ideas on generating other distributions, this piece looks good:
https://chartio.com/learn/sql/random-sequences/
*/

CREATE OR REPLACE FUNCTION api.generate_state_test_rows (loop_max int)
RETURNS int AS $$

DECLARE
counter integer := 0;

BEGIN
IF (loop_max < 1) THEN
RETURN 0 ;
END IF;

WHILE counter <= loop_max LOOP
counter := counter + 1 ;

insert into state_test (num,abbr)

values (
random() * 1000000, -- Get a random number between
0-1,000,000.
(select abbr -- Get a random state abbreviation out of our
tiny related table.
from state
order by random()
limit 1)
);

END LOOP ;

RETURN 1;
END;

$$ LANGUAGE plpgsql

The horror. The horror. But it works:

select * from generate_state_test_rows(1000000);

Okay, so that's the data set up. Next, the indexes and their sizes:

DROP INDEX IF EXISTS abbr_partial_ma;
DROP INDEX IF EXISTS abbr_btree;
DROP INDEX IF EXISTS abbr_gin;
DROP INDEX IF EXISTS abbr_hash;

CREATE INDEX abbr_partial_ma ON state_test(abbr) WHERE abbr = 'MA';
CREATE INDEX abbr_btree ON state_test USING btree (abbr);
CREATE INDEX abbr_gin ON state_test USING gin (abbr);
CREATE INDEX abbr_hash ON state_test USING hash (abbr);

select 'Partial' as method, pg_table_size('abbr_partial_ma'),
pg_table_size('abbr_partial_ma') / 1024 || ' Kb' as "kb" union all
select 'B tree' as method, pg_table_size('abbr_btree'),
pg_table_size('abbr_btree') / 1024 || ' Kb' as "kb" union all
select 'GIN' as method, pg_table_size('abbr_gin'),
pg_table_size('abbr_gin') / 1024 || ' Kb' as "kb" union all
select 'Hash' as method, pg_table_size('abbr_hash'),
pg_table_size('abbr_hash') / 1024 || ' Kb' as "kb"

method pg_table_size kb
Partial 401408 392 Kb
B tree 22487040 21960 Kb
GIN 1916928 1872 Kb
Hash 49250304 48096 Kb

Okay, so the partial index is smaller, basically proportional to the
fraction of the file it's indexing. So that makes sense, and is good to
know. The hash index size is...harder to explain...very big. Maybe my tiny
strings? Not sure what size Postgres hashes to. A hash of a two character
string is likely about worst-case. The B-tree is pretty big.

Okay, timing tests. I was hoping that the GIN would do well, but it didn't.
Here are some explain dumps.

B-tree (partial, just on this one value)
Aggregate (cost=389.43..389.44 rows=1 width=8)
-> Index Only Scan using abbr_btree on state_test (cost=0.42..346.68
rows=17100 width=0)
Index Cond: (abbr = 'MA'::text)

B-tree on whole table
Aggregate (cost=389.43..389.44 rows=1 width=8)
-> Index Only Scan using abbr_btree on state_test (cost=0.42..346.68
rows=17100 width=0)
Index Cond: (abbr = 'MA'::text)

GIN (btree_gin, hopefully - I created the extension)
Aggregate (cost=4867.03..4867.04 rows=1 width=8)
-> Bitmap Heap Scan on state_test (cost=140.53..4824.28 rows=17100
width=0)
Recheck Cond: (abbr = 'MA'::text)
-> Bitmap Index Scan on abbr_gin (cost=0.00..136.25 rows=17100
width=0)
Index Cond: (abbr = 'MA'::text)

Hash index
Aggregate (cost=4915.00..4915.01 rows=1 width=8)
-> Index Scan using abbr_hash on state_test (cost=0.00..4872.25
rows=17100 width=0)
Index Cond: (abbr = 'MA'::text)

No index
Finalize Aggregate (cost=10696.37..10696.38 rows=1 width=8)
-> Gather (cost=10696.15..10696.36 rows=2 width=8)
Workers Planned: 2
-> Partial Aggregate (cost=9696.15..9696.16 rows=1 width=8)
-> Parallel Seq Scan on state_test (cost=0.00..9678.34
rows=7125 width=0)
Filter: (abbr = 'MA'::text)

On Sat, Jun 1, 2019 at 12:52 PM Morris de Oryx <morrisdeoryx@gmail.com>
wrote:

On 01/06/2019 14:52, Morris de Oryx wrote:
[...]

For an example, imagine an address table with 100M US street addresses
with two character state abbreviations. So, say there are around 60
values in there (the USPS is the mail system for a variety of US
territories, possessions and friends in the Pacific.) Okay, so what's
the best index type for state abbreviation? For the sake of argument,
assume a normal distribution so something like FM (Federated States of
Micronesia) is on a tail end and CA or NY are a whole lot more common.

[...]

I'd expect the distribution of values to be closer to a power law than
the Normal distribution -- at very least a few states would have the
most lookups.  But this is my gut feel, not based on any scientific
analysis!

Cheers,
Gavin

On Sat, Jun 1, 2019 at 6:24 PM Gavin Flower <GavinFlower@archidevsys.co.nz>
wrote:

On 01/06/2019 14:52, Morris de Oryx wrote:

I'd expect the distribution of values to be closer to a power law than
the Normal distribution -- at very least a few states would have the
most lookups. But this is my gut feel, not based on any scientific
analysis!

G'day and thanks! (I'm in the country to the left of you....) Yeah, and my
mocked data divides things up fairly evenly :(

I meant to mention that when I did my tests that I only had one index on at
a time to prevent confusion. I also ran the speed tests several times so
each was on a warm cache.

On 2019-06-01 17:44:00 +1000, Morris de Oryx wrote:

Since I've been wondering about this subject, I figured I'd take a bit of time
and try to do some tests. I'm not new to databases or coding, but have been
using Postgres for less than two years. I haven't tried to generate large
blocks of test data directly in Postgres before, so I'm sure that there are
better ways to do what I've done here. No worries, this gave me a chance to
work through at least some of the questions/problems in setting up and running
tests.

Anyway, I populated a table with 1M rows of data with very little in them, just
a two-character state abbreviation. There are only 59 values, and the
distribution is fairly even as I used random() without any tricks to shape the
distribution. So, each value is roughly 1/60th of the total row count. Not
realistic, but what I've got.

For this table, I built four different kind of index and tried each one out
with a count(*) query on a single exact match. I also checked out the size of
each index.

Headline results:

Partial index: Smaller (as expeced), fast.
B-tree index: Big, fast.
GIN: Small, slow.
Hash: Large, slow. ("Large" may be exaggerated in comparison with a B-tree
because of my test data.)

You didn't post any times (or the queries you timed), so I don't know
what "fast" and "slow" mean.

I used your setup to time
select sum(num) from state_test where abbr = 'MA';
on my laptop (i5-7Y54, 16GB RAM, SSD, Pgsql 10.8) and here are the
results:

hjp=> select method, count(*),
min(time_ms),
avg(time_ms),
percentile_cont(0.5) within group (order by time_ms) as median,
max(time_ms)
from state_test_times
group by method
order by 5;

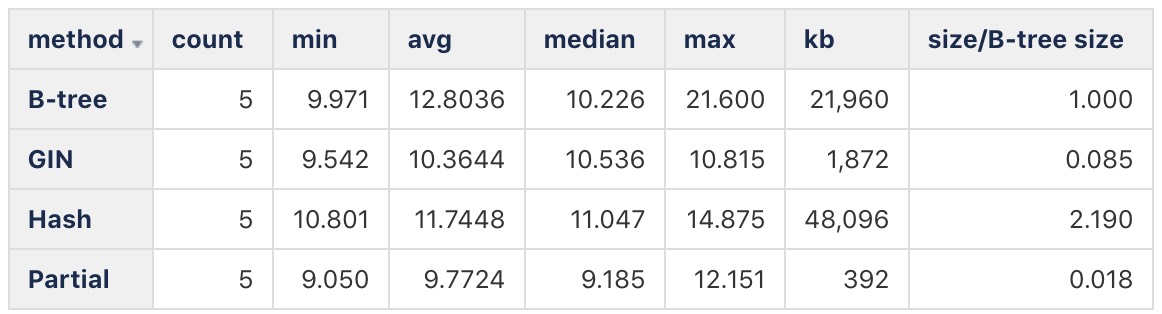

method | count | min | avg | median | max
---------+-------+--------+---------+--------+--------
Partial | 5 | 9.05 | 9.7724 | 9.185 | 12.151
B tree | 5 | 9.971 | 12.8036 | 10.226 | 21.6
GIN | 5 | 9.542 | 10.3644 | 10.536 | 10.815
Hash | 5 | 10.801 | 11.7448 | 11.047 | 14.875

All the times are pretty much the same. GIN is third by median, but the
difference is tiny, and it is secondy by minium and average and even
first by maximum.

In this case all the queries do a bitmap scan, so the times are probably
dominated by reading the heap, not the index.

method    pg_table_size    kb
Partial   401408    392 Kb
B tree    22487040    21960 Kb
GIN       1916928    1872 Kb
Hash      49250304    48096 Kb

I get the same sizes.

Okay, so the partial index is smaller, basically proportional to the fraction
of the file it's indexing. So that makes sense, and is good to know.

Yeah. But to cover all values you would need 59 partial indexes, which
gets you back to the size of the full btree index. My test shows that it
might be faster, though, which might make the hassle of having to
maintain a large number of indexes worthwhile.

The hash index size is...harder to explain...very big. Maybe my tiny
strings? Not sure what size Postgres hashes to. A hash of a two
character string is likely about worst-case.

I think that a hash index is generally a poor fit for low cardinality
indexes: You get a lot of equal values, which are basically hash
collisions. Unless the index is specifically designed to handle this
(e.g. by storing the key only once and then a tuple list per key, like a
GIN index does) it will balloon out trying to reduce the number of
collisions.

hp

--
_ | Peter J. Holzer | we build much bigger, better disasters now
|_|_) | | because we have much more sophisticated
| | | hjp@hjp.at | management tools.
__/ | http://www.hjp.at/ | -- Ross Anderson <https://www.edge.org/&gt;

Peter, thanks a lot for picking up on what I started, improving it, and
reporting back. I *thought *I was providing timing estimates from the
EXPLAIN cost dumps. Seems not. Well, there's another thing that I've
learned.

Your explanation of why the hash index bloats out makes complete sense, I
ought to have thought that.

Can you tell me how you get timing results into state_test_times? I know
how to turn on time display in psql, but I much prefer to use straight SQL.
The reason for that is my production code is always run through a SQL
session, not typing things into psql.

On Sat, Jun 1, 2019 at 11:53 PM Peter J. Holzer <hjp-pgsql@hjp.at> wrote:

From what Peter showed, the answer to (part of) the original questions
seems to be that *yes*, a B-tree GIN can be quite appealing. The test times
aren't too worrisome, and the index size is about 1/12th of a B-tree. I
added on the sizes, and divided each index size by a full B-tree:

Method Count Min Avg Median Max KB
KB/B-Tree
Partial 5 9.050 9.7724 9.185 12.151 392 0.018
B-tree 5 9.971 12.8036 10.226 21.600 21,960 1.000
GIN 5 9.542 10.3644 10.536 10.815 1,872 0.085
Hash 5 10.801 11.7448 11.047 14.875 48,096 2.190

I'm not great at ASCII tables, I'm attaching a picture...don't know if that
works here.

[image: results_table.jpeg]

I guess I'd say at this point:

* The test case I set up is kind of silly and definitely not representative
of a variety of data distributions.

* Hash index is not well-matched to low-cardinality (=== "high collision")
values.

* Partial B-trees aren't going to save space if you need one for each
distinct value. And there's an overhead to index maintenance, so there's
that. (But partial indexes in Postgres are fantastic in the right
situations....this probably isn't one.)

* A B-tree GIN index performs well and is space-efficient.

Might be overriding a bit here from an artificial/toy test, but I find the
results Peter offered pretty encouraging. It *really *feels wrong to use a
standard B-tree for low-cardinality columns. It's just a badly matched data
structure. Hash too....there you see the results quite dramatically, but
it's a closely related problem. A GIN index *seems* like it's well-matched
to low-cardinality indexing.

Now that this is all in my head a bit, I'm hoping for more feedback and
real-world observations. Any commentary appreciated.

On Sun, Jun 2, 2019 at 9:10 AM Morris de Oryx <morrisdeoryx@gmail.com>
wrote:

On 2019-06-02 09:10:25 +1000, Morris de Oryx wrote:

Peter, thanks a lot for picking up on what I started, improving it, and
reporting back. I thought I was providing timing estimates from the EXPLAIN
cost dumps. Seems not. Well, there's another thing that I've learned.

The cost is how long the optimizer thinks it will take (in arbitrary
units). But it's just an estimate, and estimates can be off - sometimes
quite dramatically.

To get the real timings with explain, use explain (analyze). I often
combine this with buffers to get I/O stats as well:

wdsah=> explain (analyze, buffers) select min(date) from facttable_stat_fta4 where partnerregion = 'USA' and sitcr4 = '7522';
╔══════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╗
║ QUERY PLAN ║
╟──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╢
║ Aggregate (cost=694.23..694.24 rows=1 width=4) (actual time=7.568..7.568 rows=1 loops=1) ║
║ Buffers: shared hit=3 read=148 dirtied=114 ║
║ -> Index Scan using facttable_stat_fta4_sitcr4_partnerregion_idx on facttable_stat_fta4 (cost=0.57..693.09 rows=455 width=4) (actual time=0.515..7.493 rows=624 loops=1) ║
║ Index Cond: (((sitcr4)::text = '7522'::text) AND ((partnerregion)::text = 'USA'::text)) ║
║ Buffers: shared hit=3 read=148 dirtied=114 ║
║ Planning time: 0.744 ms ║
║ Execution time: 7.613 ms ║
╚══════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╝
(7 rows)

And when you don't need the costs, you can turn them off:

wdsah=> explain (analyze, buffers, costs off) select min(date) from facttable_stat_fta4 where partnerregion = 'USA' and sitcr4 = '7522';
╔════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╗
║ QUERY PLAN ║
╟────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╢
║ Aggregate (actual time=0.598..0.598 rows=1 loops=1) ║
║ Buffers: shared hit=140 ║
║ -> Index Scan using facttable_stat_fta4_sitcr4_partnerregion_idx on facttable_stat_fta4 (actual time=0.054..0.444 rows=624 loops=1) ║
║ Index Cond: (((sitcr4)::text = '7522'::text) AND ((partnerregion)::text = 'USA'::text)) ║
║ Buffers: shared hit=140 ║
║ Planning time: 0.749 ms ║
║ Execution time: 0.647 ms ║
╚════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════╝
(7 rows)

See https://www.postgresql.org/docs/current/sql-explain.html for details.

Can you tell me how you get timing results into state_test_times?

In this case I just entered them manually (cut and paste from psql
\timing output). If I wanted to repeat that test on another database, I
would write a Python script (I'm sure you can do that in pgsql, too, but
I feel more comfortable in Python). I don't think there is a way to get
time timings in plain SQL.

hp

--
_ | Peter J. Holzer | we build much bigger, better disasters now
|_|_) | | because we have much more sophisticated
| | | hjp@hjp.at | management tools.
__/ | http://www.hjp.at/ | -- Ross Anderson <https://www.edge.org/&gt;

Peter,

Thanks a lot for the remedial help on EXPLAIN and timing results.

On Fri, May 24, 2019 at 11:26 AM Jeremy Finzel <finzelj@gmail.com> wrote:

I have been hoping for clearer direction from the community about
specifically btree_gin indexes for low cardinality columns (as well as low
cardinality multi-column indexes). In general there is very little
discussion about this both online and in the docs. Rather, the emphasis
for GIN indexes discussed is always on full text search of JSON indexing,
not btree_gin indexes.

However, I have never been happy with the options open to me for indexing
low cardinality columns and was hoping this could be a big win. Often I
use partial indexes as a solution, but I really want to know how many use
cases btree_gin could solve better than either a normal btree or a partial
index.

What does "low cardinality" mean here? For example, I have a million
different items with an item_id, but on average about 30 copies of each
item. The inventory table has a row for each copy (copies are not fully
interchangeable, so can't be just be a count in some other table). A
million is not usually considered a low number, but I find a gin index
(over btree_gin on the item_id) useful here as it produces a much smaller
index due to not repeating the item_id each time and due to compressing the
tid list, even though there are only about 30 tids to compress.

(You mention basically the reciprocal of this, 30 distinct values with
3,000,000 copies each, but I don't if that was your actual use case, or
just the case you were reading about in the documents you were reading)

Here are my main questions:

1.

"The docs say regarding *index only scans*: The index type must support
index-only scans. B-tree indexes always do. GiST and SP-GiST indexes
support index-only scans for some operator classes but not others. Other
index types have no support. The underlying requirement is that the index
must physically store, or else be able to reconstruct, the original data
value for each index entry. As a counterexample, GIN indexes cannot support
index-only scans because each index entry typically holds only part of the
original data value."

This is confusing to say "B-tree indexes always do" and "GIN indexes
cannot support index-only scans", when we have a btree_gin index type.
Explanation please ???

B-tree is the name of a specific index implementation in PostgreSQL. That
is what is referred to here. btree_gin offers operators to be used in a
GIN index to mimic/implement b-tree data structures/algorithms, but that
doesn't make it the same thing. It is just a GIN index doing btree things.
Perhaps PostgreSQL should use a "brand name" for their specific
implementation of the default index type, to distinguish it from the
generic algorithm description.

Is it true that for a btree_gin index on a regular column, "each index
entry typically holds only part of the original data value"? Do these
still not support index only scans? Could they? I can't see why they
shouldn't be able to for a single indexed non-expression field?

For single column using a btree_gin operator, each index entry holds the
entire data value. But the system doesn't know about that in any useful
way, so it doesn't implement index only scans, other than in the special
case where the value does not matter, like a 'count(*)'. Conceptually
perhaps this could be fixed, but I don't see it happening. Since an
index-only scan is usually not much good with only a single-column index, I
don't see much excitement to improve things here. If if there is more than
one column in the index, then for GIN the entire value from both columns
would not be stored in the same index entry, so in this case it can't use
an index-only scan even conceptually to efficiently fetch the value of one
column based on the supplied value of another one.

2.

Lack of index only scans is definitely a downside. However, I see
basically identical performance, but way less memory and space usage, for
gin indexes. In terms of read-only performance, if index only scans are
not a factor, why not always recommend btree_gin indexes instead of regular
btree for low cardinality fields, which will yield similar performance but
use far, far less space and resources?

GIN indexes over btree_gin operators do not support inequality or BETWEEN
queries efficiently. True read-onlyness is often talked about but rarely
achieved, I would be reluctant to design a system around management
promises that something won't ever change. Btree indexes are way more
thoroughly tested than GIN. When I became interested in using them in
more-or-less the way you describe, I started torture testing on them and
quickly found some bugs (hopefully all fixed now, but I wouldn't bet my
life on it). btree_gin covers the most frequently used data types, but far
from all of them. And as described above, multi-column GIN indexes are
just entirely different from multi-column B-Tree indexes, and generally not
very useful. And in the case of very low cardinality, I think indexing
those at all will often only be useful as a component in a regular
multi-column index, where the selectivity gets multiplied in with other
columns in an efficient way.

With those caveats in mind, I would and do recommend them. But where would
such a recommendation be stored, other than email archives or blog posts?
Is there a part of the documentation you would propose amending?

3.

This relates to 2. I understand the write overhead can be much greater
for GIN indexes, which is why the fastupdate feature exists. But again, in
those discussions in the docs, it appears to me they are emphasizing that
penalty more for full text or json GIN indexes. Does the same overhead
apply to a btree_gin index on a regular column with no expressions?

It is not the same overhead. With FTS, inserting a row (or non-HOT
updating a row) without fastupdate means you would need to change a lot of
individual index leaf pages, one for each token in the document. With
btree_gin, that particular thing should not be a problem. If you have 30
values each with 1,000,000 rows, updating the gin index might cause more
WAL traffic than a similar B-Tree index, because more of the leaf page may
need to get modified in each update as you are recompressing a large list,
but the difference is not that large, maybe a factor of 2 in my tests, and
it might depend on many factors like fastupdate setting. I do recall that
the replay of GIN WAL onto a standby was annoying slow, but I haven't
tested it with your particular set up and not in the most recent versions.

Cheers,

Jeff

Jeff Janes <jeff.janes@gmail.com> writes:

On Fri, May 24, 2019 at 11:26 AM Jeremy Finzel <finzelj@gmail.com> wrote:

I have been hoping for clearer direction from the community about
specifically btree_gin indexes for low cardinality columns (as well as low
cardinality multi-column indexes). In general there is very little
discussion about this both online and in the docs. Rather, the emphasis
for GIN indexes discussed is always on full text search of JSON indexing,
not btree_gin indexes.

I just wanted to mention that Jeremy and I had a bit of hallway-track
discussion about this at PGCon. The core thing to note is that the GIN
index type was designed to deal with data types that are subdividable
and you want to search for individual component values (array elements,
lexemes in a text document, etc). The btree_gin extension abuses this
by just storing the whole values as if they were components. AFAIR,
the original idea for writing both btree_gin and btree_gist was to allow
creating a single multicolumn index that covers both subdividable and
non-subdividable columns. The idea that btree_gin might be used on its
own wasn't really on the radar, I don't think.

However, now that GIN can compress multiple index entries for the same
component value (which has only been true since 9.4, whereas btree_gin
is very much older than that) it seems like it does make sense to use
btree_gin on its own for low-cardinality non-subdividable columns.
And that means that we ought to consider non-subdividable columns as
fully legitimate, not just a weird corner usage. So in particular
I wonder whether it would be worth adding the scaffolding necessary
to support index-only scan when the GIN opclass is one that doesn't
subdivide the data values.

That leaves me quibbling with some points in Jeff's otherwise excellent
reply:

For single column using a btree_gin operator, each index entry holds the
entire data value. But the system doesn't know about that in any useful
way, so it doesn't implement index only scans, other than in the special
case where the value does not matter, like a 'count(*)'. Conceptually
perhaps this could be fixed, but I don't see it happening. Since an
index-only scan is usually not much good with only a single-column index, I
don't see much excitement to improve things here.

I'm confused by this; surely IOS is useful even with a single-column
index? Avoiding trips to the heap is always helpful.

If if there is more than
one column in the index, then for GIN the entire value from both columns
would not be stored in the same index entry, so in this case it can't use
an index-only scan even conceptually to efficiently fetch the value of one
column based on the supplied value of another one.

Yeah, that is a nasty issue. You could do it, I think, by treating the
additional column as being queried even though there is no WHERE
constraint on it --- but that would lead to scanning all the index entries
which would be very slow. Maybe still faster than a seqscan though?
But I suspect we'd end up wanting to extend the notion of "IOS" to say
that GIN can only return columns that have an indexable constraint,
which is a little weird. At the very least we'd have to teach
gincostestimate about this, or we could make very bad plan choices.

Anyway, I said to Jeremy in the hallway that it might not be that
hard to bolt IOS support onto GIN for cases where the opclass is
a non-subdividing one, but after looking at the code I'm less sure
about that. GIN hasn't even got an "amgettuple" code path, just
"amgetbitmap", and a big part of the reason why is the need to merge
results from the fastupdate pending list with results from the main
index area. Not sure how we could deal with that.

GIN indexes over btree_gin operators do not support inequality or BETWEEN
queries efficiently.

Are you sure about that? It's set up to use the "partial match" logic,
which is certainly pretty weird, but it does have the potential for
handling inequalities efficiently. [ pokes at it ... ] Hm, looks like
it does handle individual inequality conditions reasonably well, but
it's not smart about the combination of a greater-than and a less-than
constraint on the same column. It ends up scanning all the entries
satisfying the one condition, plus all the entries satisfying the other,
then intersecting those sets --- which of course comprise the whole table
:-(. I think maybe this could be made better without a huge amount of
work though.

... I do recall that
the replay of GIN WAL onto a standby was annoying slow, but I haven't
tested it with your particular set up and not in the most recent versions.

A quick look at the commit log says that some work was done in this area
for 9.4, and more in v12, but I've not tried to measure the results.

Anyway, the larger point here is that right now btree_gin is just a quick
hack, and it seems like it might be worth putting some more effort into
it, because the addition of duplicate-compression changes the calculus
for whether it's useful.

regards, tom lane

Thanks to Tom Lane and Jeff Janes for chiming in with the level of detail
they're able to provide.

As an outsider-who-now-loves-Postgres, I don't know the history or deep
details of all of the various index types. (Obviously.) As a long-time
database programmer, I can say that low-cardinality fields are *very*
common cases. So whatever Postgres can offer to make for optimal searches
and aggregates on such columns would be of immediate, ongoing, and
widespread value.

As an example, we're dealing with millions of rows where we often want to
find or summarize by a category value. So, maybe 6-10 categories that are
used in various queries. It's not realistic for us to anticipate every
field combination the category field is going to be involved in to lay down
multi-column indexes everywhere.

I've used a system that handled this situation with a B-tree for the
distinct values, and a subordinate data structure for the associated key
(TIDs in PG, I guess.) They either stored a packed list of addresses, or a
compressed bitmap on the whole table, depending on the number of associated
entries. Seemed to work pretty well for queries. That also sounds very
like a btree_gin index in Postgres. (Without the compressed, on-disk bitmap
option.)

Getting back to the day-to-day, what would you recommend using for a
single-column index on a low-cardinality column (really low)? And, yes,
we'll happily use blocking queries up front to reduce the number of rows
under inspection, but that's 1) not always possible and 2) definitely not
always predictable in advance. So I'm looking for the best case for stupid
searches ;-)

As an example, we're dealing with millions of rows where we often want to find or summarize by a category value. So, maybe 6-10 categories that are used in various queries. It's not realistic for us to anticipate every field combination the category field is going to be involved in to lay down multi-column indexes everywhere.

Apologies if I’ve missed this somewhere else in the thread, but I’ve not seen anyone suggest that bloom indexes[1]https://www.postgresql.org/docs/11/bloom.html be thrown into the mix.
Depending on your use case, you might be able to replace many multi-column btree indexes with a single bloom index, optimizing its size vs. performance using the “length” parameter. You could even reduce the number of bits generated for low cardinality columns to 1, which should reduce the number of false positives that are later removed by a condition recheck.
Maybe there’s a good reason for their omission, but I’d like to learn this I’m completely off the mark!

Steve.

[1]: https://www.postgresql.org/docs/11/bloom.html

I didn't notice Bloom filters in the conversation so far, and have been
waiting for *years* for a good excuse to use a Bloom filter. I ran into
them years back in Splunk, which is a distributed log store. There's an
obvious benefit to a probabalistic tool like a Bloom filter there since
remote lookup (and/or retrieval from cold storage) is quite expensive,
relative to a local, hashed lookup. I haven't tried them in Postgres.

In the case of a single column with a small set of distinct values over a
large set of rows, how would a Bloom filter be preferable to, say, a GIN
index on an integer value?

I have to say, this is actually a good reminder in my case. We've got a lot
of small-distinct-values-big-rows columns. For example, "server_id",
"company_id", "facility_id", and so on. Only a handful of parent keys with
many millions of related rows. Perhaps it would be conceivable to use a
Bloom index to do quick lookups on combinations of such values within the
same table. I haven't tried Bloom indexes in Postgres, this might be worth
some experimenting.

Is there any thought in the Postgres world of adding something like
Oracle's bitmap indexes?
