ARC Memory Usage analysis
I've been using the ARC debug options to analyse memory usage on the
PostgreSQL 8.0 server. This is a precursor to more complex performance
analysis work on the OSDL test suite.
I've simplified some of the ARC reporting into a single log line, which
is enclosed here as a patch on freelist.c. This includes reporting of:
- the total memory in use, which wasn't previously reported
- the cache hit ratio, which was slightly incorrectly calculated
- a useful-ish value for looking at the "B" lists in ARC
(This is a patch against cvstip, but I'm not sure whether this has
potential for inclusion in 8.0...)
The total memory in use is useful because it allows you to tell whether
shared_buffers is set too high. If it is set too high, then memory usage
will continue to grow slowly up to the max, without any corresponding
increase in cache hit ratio. If shared_buffers is too small, then memory
usage will climb quickly and linearly to its maximum.
The last one I've called "turbulence" in an attempt to ascribe some
useful meaning to B1/B2 hits - I've tried a few other measures though
without much success. Turbulence is the hit ratio of B1+B2 lists added
together. By observation, this is zero when ARC gives smooth operation,
and goes above zero otherwise. Typically, turbulence occurs when
shared_buffers is too small for the working set of the database/workload
combination and ARC repeatedly re-balances the lengths of T1/T2 as a
result of "near-misses" on the B1/B2 lists. Turbulence doesn't usually
cut in until the cache is fully utilized, so there is usually some delay
after startup.
We also recently discussed that I would add some further memory analysis
features for 8.1, so I've been trying to figure out how.
The idea that B1, B2 represent something really useful doesn't seem to
have been borne out - though I'm open to persuasion there.
I originally envisaged a "shadow list" operating in extension of the
main ARC list. This will require some re-coding, since the variables and
macros are all hard-coded to a single set of lists. No complaints, just
it will take a little longer than we all thought (for me, that is...)
My proposal is to alter the code to allow an array of memory linked
lists. The actual list would be [0] - other additional lists would be
created dynamically as required i.e. not using IFDEFs, since I want this
to be controlled by a SIGHUP GUC to allow on-site tuning, not just lab
work. This will then allow reporting against the additional lists, so
that cache hit ratios can be seen with various other "prototype"
shared_buffer settings.
Any thoughts?
--
Best Regards, Simon Riggs
Attachments:
freelist.patchtext/x-patch; charset=UTF-8; name=freelist.patchDownload+16-14
On 10/22/2004 2:50 PM, Simon Riggs wrote:
I've been using the ARC debug options to analyse memory usage on the
PostgreSQL 8.0 server. This is a precursor to more complex performance
analysis work on the OSDL test suite.I've simplified some of the ARC reporting into a single log line, which
is enclosed here as a patch on freelist.c. This includes reporting of:
- the total memory in use, which wasn't previously reported
- the cache hit ratio, which was slightly incorrectly calculated
- a useful-ish value for looking at the "B" lists in ARC
(This is a patch against cvstip, but I'm not sure whether this has
potential for inclusion in 8.0...)The total memory in use is useful because it allows you to tell whether
shared_buffers is set too high. If it is set too high, then memory usage
will continue to grow slowly up to the max, without any corresponding
increase in cache hit ratio. If shared_buffers is too small, then memory
usage will climb quickly and linearly to its maximum.The last one I've called "turbulence" in an attempt to ascribe some
useful meaning to B1/B2 hits - I've tried a few other measures though
without much success. Turbulence is the hit ratio of B1+B2 lists added
together. By observation, this is zero when ARC gives smooth operation,
and goes above zero otherwise. Typically, turbulence occurs when
shared_buffers is too small for the working set of the database/workload
combination and ARC repeatedly re-balances the lengths of T1/T2 as a
result of "near-misses" on the B1/B2 lists. Turbulence doesn't usually
cut in until the cache is fully utilized, so there is usually some delay
after startup.We also recently discussed that I would add some further memory analysis
features for 8.1, so I've been trying to figure out how.The idea that B1, B2 represent something really useful doesn't seem to
have been borne out - though I'm open to persuasion there.I originally envisaged a "shadow list" operating in extension of the
main ARC list. This will require some re-coding, since the variables and
macros are all hard-coded to a single set of lists. No complaints, just
it will take a little longer than we all thought (for me, that is...)My proposal is to alter the code to allow an array of memory linked
lists. The actual list would be [0] - other additional lists would be
created dynamically as required i.e. not using IFDEFs, since I want this
to be controlled by a SIGHUP GUC to allow on-site tuning, not just lab
work. This will then allow reporting against the additional lists, so
that cache hit ratios can be seen with various other "prototype"
shared_buffer settings.
All the existing lists live in shared memory, so that dynamic approach
suffers from the fact that the memory has to be allocated during ipc_init.
What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?
Jan
Any thoughts?
------------------------------------------------------------------------
Index: freelist.c =================================================================== RCS file: /projects/cvsroot/pgsql/src/backend/storage/buffer/freelist.c,v retrieving revision 1.48 diff -d -c -r1.48 freelist.c *** freelist.c 16 Sep 2004 16:58:31 -0000 1.48 --- freelist.c 22 Oct 2004 18:15:38 -0000 *************** *** 126,131 **** --- 126,133 ---- if (StrategyControl->stat_report + DebugSharedBuffers < now) { long all_hit, + buf_used, + b_hit, b1_hit, t1_hit, t2_hit, *************** *** 155,161 **** }if (StrategyControl->num_lookup == 0) ! all_hit = b1_hit = t1_hit = t2_hit = b2_hit = 0; else { b1_hit = (StrategyControl->num_hit[STRAT_LIST_B1] * 100 / --- 157,163 ---- }if (StrategyControl->num_lookup == 0)
! all_hit = buf_used = b_hit = b1_hit = t1_hit = t2_hit = b2_hit = 0;
else
{
b1_hit = (StrategyControl->num_hit[STRAT_LIST_B1] * 100 /
***************
*** 166,181 ****
StrategyControl->num_lookup);
b2_hit = (StrategyControl->num_hit[STRAT_LIST_B2] * 100 /
StrategyControl->num_lookup);
! all_hit = b1_hit + t1_hit + t2_hit + b2_hit;
}errcxtold = error_context_stack;
error_context_stack = NULL;
! elog(DEBUG1, "ARC T1target=%5d B1len=%5d T1len=%5d T2len=%5d B2len=%5d",
T1_TARGET, B1_LENGTH, T1_LENGTH, T2_LENGTH, B2_LENGTH);
! elog(DEBUG1, "ARC total =%4ld%% B1hit=%4ld%% T1hit=%4ld%% T2hit=%4ld%% B2hit=%4ld%%",
all_hit, b1_hit, t1_hit, t2_hit, b2_hit);
! elog(DEBUG1, "ARC clean buffers at LRU T1= %5d T2= %5d",
t1_clean, t2_clean);
error_context_stack = errcxtold;--- 168,187 ---- StrategyControl->num_lookup); b2_hit = (StrategyControl->num_hit[STRAT_LIST_B2] * 100 / StrategyControl->num_lookup); ! all_hit = t1_hit + t2_hit; ! b_hit = b1_hit + b2_hit; ! buf_used = T1_LENGTH + T2_LENGTH; }errcxtold = error_context_stack;
error_context_stack = NULL;
! elog(DEBUG1, "shared_buffers used=%8ld cache hits=%4ld%% turbulence=%4ld%%",
! buf_used, all_hit, b_hit);
! elog(DEBUG2, "ARC T1target=%5d B1len=%5d T1len=%5d T2len=%5d B2len=%5d",
T1_TARGET, B1_LENGTH, T1_LENGTH, T2_LENGTH, B2_LENGTH);
! elog(DEBUG2, "ARC total =%4ld%% B1hit=%4ld%% T1hit=%4ld%% T2hit=%4ld%% B2hit=%4ld%%",
all_hit, b1_hit, t1_hit, t2_hit, b2_hit);
! elog(DEBUG2, "ARC clean buffers at LRU T1= %5d T2= %5d",
t1_clean, t2_clean);
error_context_stack = errcxtold;------------------------------------------------------------------------
---------------------------(end of broadcast)---------------------------
TIP 1: subscribe and unsubscribe commands go to majordomo@postgresql.org
--
#======================================================================#
# It's easier to get forgiveness for being wrong than for being right. #
# Let's break this rule - forgive me. #
#================================================== JanWieck@Yahoo.com #
On Fri, Oct 22, 2004 at 03:35:49PM -0400, Jan Wieck wrote:
On 10/22/2004 2:50 PM, Simon Riggs wrote:
I've been using the ARC debug options to analyse memory usage on the
PostgreSQL 8.0 server. This is a precursor to more complex performance
analysis work on the OSDL test suite.I've simplified some of the ARC reporting into a single log line, which
is enclosed here as a patch on freelist.c. This includes reporting of:
- the total memory in use, which wasn't previously reported
- the cache hit ratio, which was slightly incorrectly calculated
- a useful-ish value for looking at the "B" lists in ARC
(This is a patch against cvstip, but I'm not sure whether this has
potential for inclusion in 8.0...)The total memory in use is useful because it allows you to tell whether
shared_buffers is set too high. If it is set too high, then memory usage
will continue to grow slowly up to the max, without any corresponding
increase in cache hit ratio. If shared_buffers is too small, then memory
usage will climb quickly and linearly to its maximum.The last one I've called "turbulence" in an attempt to ascribe some
useful meaning to B1/B2 hits - I've tried a few other measures though
without much success. Turbulence is the hit ratio of B1+B2 lists added
together. By observation, this is zero when ARC gives smooth operation,
and goes above zero otherwise. Typically, turbulence occurs when
shared_buffers is too small for the working set of the database/workload
combination and ARC repeatedly re-balances the lengths of T1/T2 as a
result of "near-misses" on the B1/B2 lists. Turbulence doesn't usually
cut in until the cache is fully utilized, so there is usually some delay
after startup.We also recently discussed that I would add some further memory analysis
features for 8.1, so I've been trying to figure out how.The idea that B1, B2 represent something really useful doesn't seem to
have been borne out - though I'm open to persuasion there.I originally envisaged a "shadow list" operating in extension of the
main ARC list. This will require some re-coding, since the variables and
macros are all hard-coded to a single set of lists. No complaints, just
it will take a little longer than we all thought (for me, that is...)My proposal is to alter the code to allow an array of memory linked
lists. The actual list would be [0] - other additional lists would be
created dynamically as required i.e. not using IFDEFs, since I want this
to be controlled by a SIGHUP GUC to allow on-site tuning, not just lab
work. This will then allow reporting against the additional lists, so
that cache hit ratios can be seen with various other "prototype"
shared_buffer settings.All the existing lists live in shared memory, so that dynamic approach
suffers from the fact that the memory has to be allocated during ipc_init.What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?Jan
Jan,
From the articles that I have seen on the ARC algorithm, I do not think
that using the effective cache size to set C would be a win. The design
of the ARC process is to allow the cache to optimize its use in response
to the actual workload. It may be the best use of the cache in some cases
to have the entire cache allocated to T1 and similarly for T2. If fact,
the ability to alter the behavior as needed is one of the key advantages.
--Ken
On Fri, 2004-10-22 at 20:35, Jan Wieck wrote:
On 10/22/2004 2:50 PM, Simon Riggs wrote:
My proposal is to alter the code to allow an array of memory linked
lists. The actual list would be [0] - other additional lists would be
created dynamically as required i.e. not using IFDEFs, since I want this
to be controlled by a SIGHUP GUC to allow on-site tuning, not just lab
work. This will then allow reporting against the additional lists, so
that cache hit ratios can be seen with various other "prototype"
shared_buffer settings.All the existing lists live in shared memory, so that dynamic approach
suffers from the fact that the memory has to be allocated during ipc_init.
[doh] - dreaming again. Yes of course, server startup it is then. [That
way, we can include the memory for it at server startup, then allow the
GUC to be turned off after a while to avoid another restart?]
What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?
Summarised like that, I understand it.
My observation is that performance varies significantly between startups
of the database, which does indicate that the OS cache is working well.
So, yes it does seem as if we have a 3 tier cache. I understand you to
be effectively suggesting that we go back to having just a 2-tier cache.
I guess we've got two options:
1. Keep ARC as it is, but just allocate much of the available physical
memory to shared_buffers, so you know that effective_cache_size is low
and that its either in T1 or its on disk.
2. Alter ARC so that we experiment with the view that T1 is in the OS
and T2 is in shared_buffers, we don't bother keeping T1. (as you say)
Hmmm...I think I'll pass on trying to judge its effectiveness -
simplifying things is likely to make it easier to understand and predict
behaviour. It's well worth trying, and it seems simple enough to make a
patch that keeps T1target at zero.
i.e. Scientific method: conjecture + experimental validation = theory
If you make up a patch, probably against BETA4, Josh and I can include it in the performance testing that I'm hoping we can do over the next few weeks.
Whatever makes 8.0 a high performance release is well worth it.
Best Regards,
Simon Riggs
On 10/22/2004 4:21 PM, Simon Riggs wrote:
On Fri, 2004-10-22 at 20:35, Jan Wieck wrote:
On 10/22/2004 2:50 PM, Simon Riggs wrote:
My proposal is to alter the code to allow an array of memory linked
lists. The actual list would be [0] - other additional lists would be
created dynamically as required i.e. not using IFDEFs, since I want this
to be controlled by a SIGHUP GUC to allow on-site tuning, not just lab
work. This will then allow reporting against the additional lists, so
that cache hit ratios can be seen with various other "prototype"
shared_buffer settings.All the existing lists live in shared memory, so that dynamic approach
suffers from the fact that the memory has to be allocated during ipc_init.[doh] - dreaming again. Yes of course, server startup it is then. [That
way, we can include the memory for it at server startup, then allow the
GUC to be turned off after a while to avoid another restart?]What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?Summarised like that, I understand it.
My observation is that performance varies significantly between startups
of the database, which does indicate that the OS cache is working well.
So, yes it does seem as if we have a 3 tier cache. I understand you to
be effectively suggesting that we go back to having just a 2-tier cache.
Effectively yes, just with the difference that we keep a pseudo T1 list
and hope that what we are tracking there is what the OS is caching. As
said before, if the effective cache size is set properly, that is what
should happen.
I guess we've got two options:
1. Keep ARC as it is, but just allocate much of the available physical
memory to shared_buffers, so you know that effective_cache_size is low
and that its either in T1 or its on disk.
2. Alter ARC so that we experiment with the view that T1 is in the OS
and T2 is in shared_buffers, we don't bother keeping T1. (as you say)Hmmm...I think I'll pass on trying to judge its effectiveness -
simplifying things is likely to make it easier to understand and predict
behaviour. It's well worth trying, and it seems simple enough to make a
patch that keeps T1target at zero.
Not keeping T1target at zero, because that would keep T2 at the size of
shared_buffers. What I suspect is that in the current calculation the
T1target is underestimated. It is incremented on B1 hits, but B1 is only
of T2 size. What it currently tells is what got pushed from T1 into the
OS cache. It could well be that it would work much more effective if it
would fuzzily tell what got pushed out of the OS cache to disk.
Jan
i.e. Scientific method: conjecture + experimental validation = theory
If you make up a patch, probably against BETA4, Josh and I can include it in the performance testing that I'm hoping we can do over the next few weeks.
Whatever makes 8.0 a high performance release is well worth it.
Best Regards,
Simon Riggs
--
#======================================================================#
# It's easier to get forgiveness for being wrong than for being right. #
# Let's break this rule - forgive me. #
#================================================== JanWieck@Yahoo.com #
Jan Wieck <JanWieck@Yahoo.com> writes:
What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?
What will you do when initially fetching a page? It's not supposed to
go directly into T2 on first use, but we're going to have some
difficulty accessing a page that's not in shared buffers. I don't think
you can equate the T1/T2 dichotomy to "is in shared buffers or not".
You could maybe have a T3 list of "pages that aren't in shared buffers
anymore but we think are still in OS buffer cache", but what would be
the point? It'd be a sufficiently bad model of reality as to be pretty
much useless for stats gathering, I'd think.
regards, tom lane
On Fri, 2004-10-22 at 21:45, Tom Lane wrote:
Jan Wieck <JanWieck@Yahoo.com> writes:
What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?What will you do when initially fetching a page? It's not supposed to
go directly into T2 on first use, but we're going to have some
difficulty accessing a page that's not in shared buffers. I don't think
you can equate the T1/T2 dichotomy to "is in shared buffers or not".
Yes, there are issues there. I want Jan to follow his thoughts through.
This is important enough that its worth it - there's only a few even
attempting this.
You could maybe have a T3 list of "pages that aren't in shared buffers
anymore but we think are still in OS buffer cache", but what would be
the point? It'd be a sufficiently bad model of reality as to be pretty
much useless for stats gathering, I'd think.
The OS cache is in many ways a wild horse, I agree. Jan is trying to
think of ways to harness it, whereas I had mostly ignored it - but its
there. Raw disk usage never allowed this opportunity.
For high performance systems, we can assume that the OS cache is ours to
play with - what will we do with it? We need to use it for some
purposes, yet would like to ignore it for others.
--
Best Regards, Simon Riggs
On 10/22/2004 4:09 PM, Kenneth Marshall wrote:
On Fri, Oct 22, 2004 at 03:35:49PM -0400, Jan Wieck wrote:
On 10/22/2004 2:50 PM, Simon Riggs wrote:
I've been using the ARC debug options to analyse memory usage on the
PostgreSQL 8.0 server. This is a precursor to more complex performance
analysis work on the OSDL test suite.I've simplified some of the ARC reporting into a single log line, which
is enclosed here as a patch on freelist.c. This includes reporting of:
- the total memory in use, which wasn't previously reported
- the cache hit ratio, which was slightly incorrectly calculated
- a useful-ish value for looking at the "B" lists in ARC
(This is a patch against cvstip, but I'm not sure whether this has
potential for inclusion in 8.0...)The total memory in use is useful because it allows you to tell whether
shared_buffers is set too high. If it is set too high, then memory usage
will continue to grow slowly up to the max, without any corresponding
increase in cache hit ratio. If shared_buffers is too small, then memory
usage will climb quickly and linearly to its maximum.The last one I've called "turbulence" in an attempt to ascribe some
useful meaning to B1/B2 hits - I've tried a few other measures though
without much success. Turbulence is the hit ratio of B1+B2 lists added
together. By observation, this is zero when ARC gives smooth operation,
and goes above zero otherwise. Typically, turbulence occurs when
shared_buffers is too small for the working set of the database/workload
combination and ARC repeatedly re-balances the lengths of T1/T2 as a
result of "near-misses" on the B1/B2 lists. Turbulence doesn't usually
cut in until the cache is fully utilized, so there is usually some delay
after startup.We also recently discussed that I would add some further memory analysis
features for 8.1, so I've been trying to figure out how.The idea that B1, B2 represent something really useful doesn't seem to
have been borne out - though I'm open to persuasion there.I originally envisaged a "shadow list" operating in extension of the
main ARC list. This will require some re-coding, since the variables and
macros are all hard-coded to a single set of lists. No complaints, just
it will take a little longer than we all thought (for me, that is...)My proposal is to alter the code to allow an array of memory linked
lists. The actual list would be [0] - other additional lists would be
created dynamically as required i.e. not using IFDEFs, since I want this
to be controlled by a SIGHUP GUC to allow on-site tuning, not just lab
work. This will then allow reporting against the additional lists, so
that cache hit ratios can be seen with various other "prototype"
shared_buffer settings.All the existing lists live in shared memory, so that dynamic approach
suffers from the fact that the memory has to be allocated during ipc_init.What do you think about my other theory to make C actually 2x effective
cache size and NOT to keep T1 in shared buffers but to assume T1 lives
in the OS buffer cache?Jan
Jan,
From the articles that I have seen on the ARC algorithm, I do not think
that using the effective cache size to set C would be a win. The design
of the ARC process is to allow the cache to optimize its use in response
to the actual workload. It may be the best use of the cache in some cases
to have the entire cache allocated to T1 and similarly for T2. If fact,
the ability to alter the behavior as needed is one of the key advantages.
Only the "working set" of the database, that is the pages that are very
frequently used, are worth holding in shared memory at all. The rest
should be copied in and out of the OS disc buffers.
The problem is, with a too small directory ARC cannot guesstimate what
might be in the kernel buffers. Nor can it guesstimate what recently was
in the kernel buffers and got pushed out from there. That results in a
way too small B1 list, and therefore we don't get B1 hits when in fact
the data was found in memory. B1 hits is what increases the T1target,
and since we are missing them with a too small directory size, our
implementation of ARC is propably using a T2 size larger than the
working set. That is not optimal.
If we would replace the dynamic T1 buffers with a max_backends*2 area of
shared buffers, use a C value representing the effective cache size and
limit the T1target on the lower bound to effective cache size - shared
buffers, then we basically moved the T1 cache into the OS buffers.
This all only holds water, if the OS is allowed to swap out shared
memory. And that was my initial question, how likely is it to find this
to be true these days?
Jan
--
#======================================================================#
# It's easier to get forgiveness for being wrong than for being right. #
# Let's break this rule - forgive me. #
#================================================== JanWieck@Yahoo.com #
Jan Wieck <JanWieck@Yahoo.com> writes:
This all only holds water, if the OS is allowed to swap out shared
memory. And that was my initial question, how likely is it to find this
to be true these days?
I think it's more likely that not that the OS will consider shared
memory to be potentially swappable. On some platforms there is a shmctl
call you can make to lock your shmem in memory, but (a) we don't use it
and (b) it may well require privileges we haven't got anyway.
This has always been one of the arguments against making shared_buffers
really large, of course --- if the buffers aren't all heavily used, and
the OS decides to swap them to disk, you are worse off than you would
have been with a smaller shared_buffers setting.
However, I'm still really nervous about the idea of using
effective_cache_size to control the ARC algorithm. That number is
usually entirely bogus. Right now it is only a second-order influence
on certain planner estimates, and I am afraid to rely on it any more
heavily than that.
regards, tom lane
Tom Lane <tgl@sss.pgh.pa.us> writes:
However, I'm still really nervous about the idea of using
effective_cache_size to control the ARC algorithm. That number is
usually entirely bogus.
It wouldn't be too hard to have a port-specific function that tries to guess
the total amount of memory. That isn't always right but it's at least a better
ballpark default than a fixed arbitrary value.
However I wonder about another approach entirely. If postgres timed how long
reads took it shouldn't find it very hard to distinguish between a cached
buffer being copied and an actual i/o operation. It should be able to track
the percentage of time that buffers requested are in the kernel's cache and
use that directly instead of the estimated cache size.
Adding two gettimeofdays to every read call would be annoyingly expensive. But
a port-specific function to check the cpu instruction counter could be useful.
It doesn't have to be an accurate measurement of time (such as on some
multi-processor machines) as long as it's possible to distinguish when a slow
disk operation has occurred from when no disk operation has occurred.
--
greg
Greg Stark <gsstark@MIT.EDU> writes:
However I wonder about another approach entirely. If postgres timed how long
reads took it shouldn't find it very hard to distinguish between a cached
buffer being copied and an actual i/o operation. It should be able to track
the percentage of time that buffers requested are in the kernel's cache and
use that directly instead of the estimated cache size.
I tested this with a program that times seeking to random locations in a file.
It's pretty easy to spot the break point. There are very few fetches that take
between 50us and 1700us, probably they come from the drive's onboard cache.
The 1700us bound probably would be lower for high end server equipment with
10k RPM drives and RAID arrays. But I doubt it will ever come close to the
100us edge, not without features like cache ram that Postgres would be better
off considering to be part of "effective_cache" anyways.
So I would suggest using something like 100us as the threshold for determining
whether a buffer fetch came from cache.

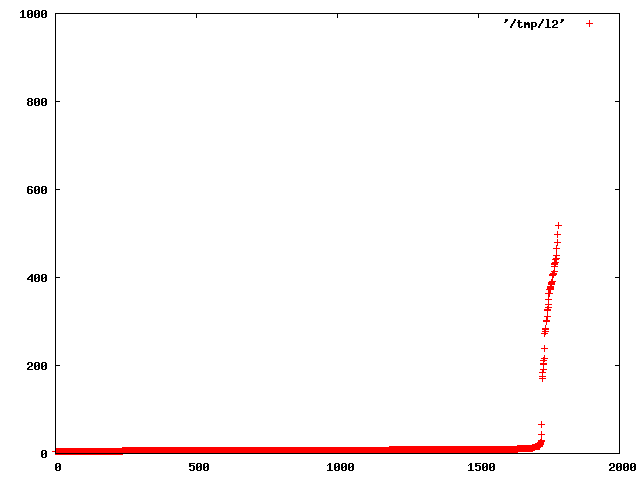

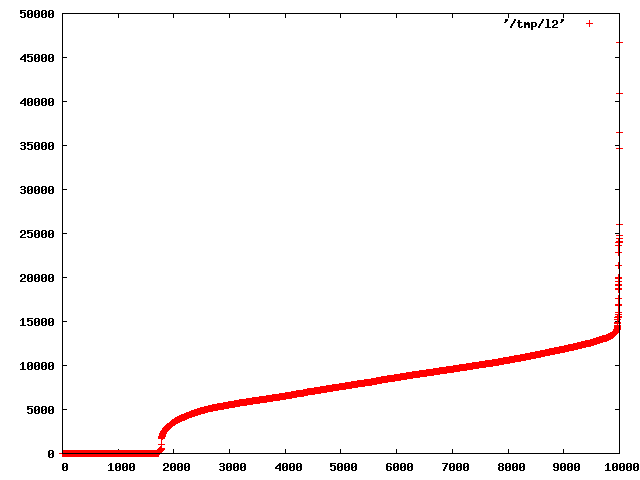

Here are two graphs, one showing a nice curve showing how disk seek times are
distributed. It's neat to look at for that alone:
Greg Stark <gsstark@MIT.EDU> writes:
So I would suggest using something like 100us as the threshold for
determining whether a buffer fetch came from cache.
I see no reason to hardwire such a number. On any hardware, the
distribution is going to be double-humped, and it will be pretty easy to
determine a cutoff after minimal accumulation of data. The real question
is whether we can afford a pair of gettimeofday() calls per read().
This isn't a big issue if the read actually results in I/O, but if it
doesn't, the percentage overhead could be significant.
If we assume that the effective_cache_size value isn't changing very
fast, maybe it would be good enough to instrument only every N'th read
(I'm imagining N on the order of 100) for this purpose. Or maybe we
need only instrument reads that are of blocks that are close to where
the ARC algorithm thinks the cache edge is.
One small problem is that the time measurement gives you only a lower
bound on the time the read() actually took. In a heavily loaded system
you might not get the CPU back for long enough to fool you about whether
the block came from cache or not.
Another issue is what we do with the effective_cache_size value once we
have a number we trust. We can't readily change the size of the ARC
lists on the fly.
regards, tom lane
On Mon, Oct 25, 2004 at 05:53:25PM -0400, Tom Lane wrote:
Greg Stark <gsstark@MIT.EDU> writes:
So I would suggest using something like 100us as the threshold for
determining whether a buffer fetch came from cache.I see no reason to hardwire such a number. On any hardware, the
distribution is going to be double-humped, and it will be pretty easy to
determine a cutoff after minimal accumulation of data. The real question
is whether we can afford a pair of gettimeofday() calls per read().
This isn't a big issue if the read actually results in I/O, but if it
doesn't, the percentage overhead could be significant.
How invasive would reading the "CPU counter" be, if it is available?
A read operation should avoid flushing a cache line and we can throw
out the obvious outliers since we only need an estimate and not the
actual value.
--Ken
Kenneth Marshall <ktm@is.rice.edu> writes:
How invasive would reading the "CPU counter" be, if it is available?
Invasive or not, this is out of the question; too unportable.
regards, tom lane
Tom Lane <tgl@sss.pgh.pa.us> writes:
I see no reason to hardwire such a number. On any hardware, the
distribution is going to be double-humped, and it will be pretty easy to
determine a cutoff after minimal accumulation of data.
Well my stats-fu isn't up to the task. My hunch is that the wide range that
the disk reads are spread out over will throw off more sophisticated
algorithms. Eliminating hardwired numbers is great, but practically speaking
it's not like any hardware is ever going to be able to fetch the data within
100us. If it does it's because it's really a solid state drive or pulling the
data from disk cache and therefore really ought to be considered part of
effective_cache_size anyways.
The real question is whether we can afford a pair of gettimeofday() calls
per read(). This isn't a big issue if the read actually results in I/O, but
if it doesn't, the percentage overhead could be significant.
My thinking was to use gettimeofday by default but allow individual ports to
provide a replacement function that uses the cpu TSC counter (via rdtsc) or
equivalent. Most processors provide such a feature. If it's not there then we
just fall back to gettimeofday.
Your idea to sample only 1% of the reads is a fine idea too.
My real question is different. Is it worth heading down this alley at all? Or
will postgres eventually opt to use O_DIRECT and boost the size of its buffer
cache? If it goes the latter route, and I suspect it will one day, then all of
this is a waste of effort.
I see mmap or O_DIRECT being the only viable long-term stable states. My
natural inclination was the former but after the latest thread on the subject
I suspect it'll be forever out of reach. That makes O_DIRECT And a Postgres
managed cache the only real choice. Having both caches is just a waste of
memory and a waste of cpu cycles.
Another issue is what we do with the effective_cache_size value once we
have a number we trust. We can't readily change the size of the ARC
lists on the fly.
Huh? I thought effective_cache_size was just used as an factor the cost
estimation equation. My general impression was that a higher
effective_cache_size effectively lowered your random page cost by making the
system think that fewer nonsequential block reads would really incur the cost.
Is that wrong? Is it used for anything else?
--
greg
Is something broken with the list software? I'm receiving other emails from
the list but I haven't received any of the mails in this thread. I'm only able
to follow the thread based on the emails people are cc'ing to me directly.
I think I've caught this behaviour in the past as well. Is it a misguided list
software feature trying to avoid duplicates or something like that? It makes
it really hard to follow threads in MUAs with good filtering since they're
fragmented between two mailboxes.
--
greg
Greg Stark <gsstark@mit.edu> writes:
Tom Lane <tgl@sss.pgh.pa.us> writes:
Another issue is what we do with the effective_cache_size value once we
have a number we trust. We can't readily change the size of the ARC
lists on the fly.
Huh? I thought effective_cache_size was just used as an factor the cost
estimation equation.
Today, that is true. Jan is speculating about using it as a parameter
of the ARC cache management algorithm ... and that worries me.
regards, tom lane
On Tue, 26 Oct 2004, Greg Stark wrote:
I see mmap or O_DIRECT being the only viable long-term stable states. My
natural inclination was the former but after the latest thread on the subject
I suspect it'll be forever out of reach. That makes O_DIRECT And a Postgres
managed cache the only real choice. Having both caches is just a waste of
memory and a waste of cpu cycles.
I don't see why mmap is any more out of reach than O_DIRECT; it's not
all that much harder to implement, and mmap (and madvise!) is more
widely available.
But if using two caches is only costing us 1% in performance, there's
not really much point....
cjs
--
Curt Sampson <cjs@cynic.net> +81 90 7737 2974 http://www.NetBSD.org
Make up enjoying your city life...produced by BIC CAMERA
On Mon, 2004-10-25 at 16:34, Jan Wieck wrote:
The problem is, with a too small directory ARC cannot guesstimate what
might be in the kernel buffers. Nor can it guesstimate what recently was
in the kernel buffers and got pushed out from there. That results in a
way too small B1 list, and therefore we don't get B1 hits when in fact
the data was found in memory. B1 hits is what increases the T1target,
and since we are missing them with a too small directory size, our
implementation of ARC is propably using a T2 size larger than the
working set. That is not optimal.
I think I have seen that the T1 list shrinks "too much", but need more
tests...with some good test results
The effectiveness of ARC relies upon the balance between the often
conflicting requirements of "recency" and "frequency". It seems
possible, even likely, that pgsql's version of ARC may need some subtle
changes to rebalance it - if we are unlikely enough to find cases where
it genuinely is out of balance. Many performance tests are required,
together with a few ideas on extra parameters to include....hence my
support of Jan's ideas.
That's also why I called the B1+B2 hit ratio "turbulence" because it
relates to how much oscillation is happening between T1 and T2. In
physical systems, we expect the oscillations to be damped, but there is
no guarantee that we have a nearly critically damped oscillator. (Note
that the absence of turbulence doesn't imply that T1+T2 is optimally
sized, just that is balanced).
[...and all though the discussion has wandered away from my original
patch...would anybody like to commit, or decline the patch?]
If we would replace the dynamic T1 buffers with a max_backends*2 area of
shared buffers, use a C value representing the effective cache size and
limit the T1target on the lower bound to effective cache size - shared
buffers, then we basically moved the T1 cache into the OS buffers.
Limiting the minimum size of T1len to be 2* maxbackends sounds like an
easy way to prevent overbalancing of T2, but I would like to follow up
on ways to have T1 naturally stay larger. I'll do a patch with this idea
in, for testing. I'll call this "T1 minimum size" so we can discuss it.
Any other patches are welcome...
It could be that B1 is too small and so we could use a larger value of C
to keep track of more blocks. I think what is being suggested is two
GUCs: shared_buffers (as is), plus another one, larger, which would
allow us to track what is in shared_buffers and what is in OS cache.
I have comments on "effective cache size" below....
On Mon, 2004-10-25 at 17:03, Tom Lane wrote:
Jan Wieck <JanWieck@Yahoo.com> writes:
This all only holds water, if the OS is allowed to swap out shared
memory. And that was my initial question, how likely is it to find this
to be true these days?I think it's more likely that not that the OS will consider shared
memory to be potentially swappable. On some platforms there is a shmctl
call you can make to lock your shmem in memory, but (a) we don't use it
and (b) it may well require privileges we haven't got anyway.
Are you saying we shouldn't, or we don't yet? I simply assumed that we
did use that function - surely it must be at least an option? RHEL
supports this at least....
It may well be that we don't have those privileges, in which case we
turn off the option. Often, we (or I?) will want to install a dedicated
server, so we should have all the permissions we need, in which case...
This has always been one of the arguments against making shared_buffers
really large, of course --- if the buffers aren't all heavily used, and
the OS decides to swap them to disk, you are worse off than you would
have been with a smaller shared_buffers setting.
Not really, just an argument against making them *too* large. Large
*and* utilised is OK, so we need ways of judging optimal sizing.
However, I'm still really nervous about the idea of using
effective_cache_size to control the ARC algorithm. That number is
usually entirely bogus. Right now it is only a second-order influence
on certain planner estimates, and I am afraid to rely on it any more
heavily than that.
...ah yes, effective_cache_size.
The manual describes effective_cache_size as if it had something to do
with the OS, and some of this discussion has picked up on that.
effective_cache_size is used in only two places in the code (both in the
planner), as an estimate for calculating the cost of a) nonsequential
access and b) index access, mainly as a way of avoiding overestimates of
access costs for small tables.
There is absolutely no implication in the code that effective_cache_size
measures anything in the OS; what it gives is an estimate of the number
of blocks that will be available from *somewhere* in memory (i.e. in
shared_buffers OR OS cache) for one particular table (the one currently
being considered by the planner).
Crucially, the "size" referred to is the size of the *estimate*, not the
size of the OS cache (nor the size of the OS cache + shared_buffers). So
setting effective_cache_size = total memory available or setting
effective_cache_size = total memory - shared_buffers are both wildly
irrelevant things to do, or any assumption that directly links memory
size to that parameter. So talking about "effective_cache_size" as if it
were the OS cache isn't the right thing to do.
...It could be that we use a very high % of physical memory as
shared_buffers - in which case the effective_cache_size would represent
the contents of shared_buffers.
Note also that the planner assumes that all tables are equally likely to
be in cache. Increasing effective_cache_size in postgresql.conf seems
destined to give the wrong answer in planning unless you absolutely
understand what it does.
I will submit a patch to correct the description in the manual.
Further comments:
The two estimates appear to use effective_cache_size differently:
a) assumes that a table of size effective_cache_size will be 50% in
cache
b) assumes that effective_cache_size blocks are available, so for a
table of size == effective_cache_size, then it will be 100% available
IMHO the GUC should be renamed "estimated_cached_blocks", with the old
name deprecated to force people to re-read the manual description of
what effective_cache_size means and then set accordingly.....all of that
in 8.0....
--
Best Regards, Simon Riggs
On Tue, 2004-10-26 at 06:53, Tom Lane wrote:
Greg Stark <gsstark@mit.edu> writes:
Tom Lane <tgl@sss.pgh.pa.us> writes:
Another issue is what we do with the effective_cache_size value once we
have a number we trust. We can't readily change the size of the ARC
lists on the fly.Huh? I thought effective_cache_size was just used as an factor the cost
estimation equation.Today, that is true. Jan is speculating about using it as a parameter
of the ARC cache management algorithm ... and that worries me.
ISTM that we should be optimizing the use of shared_buffers, not whats
outside. Didn't you (Tom) already say that?
BTW, very good ideas on how to proceed, but why bother?
For me, if the sysadmin didn't give shared_buffers to PostgreSQL, its
because the memory is intended for use by something else and so not
available at all. At least not dependably. The argument against large
shared_buffers because of swapping applies to that assumption also...the
OS cache is too volatile to attempt to gauge sensibly.
There's an argument for improving performance for people that haven't
set their parameters correctly, but thats got to be a secondary
consideration anyhow.
--
Best Regards, Simon Riggs
