XLogInsert scaling, revisited
I've been slowly continuing to work that I started last winder to make
XLogInsert scale better. I have tried quite a few different approaches
since then, and have settled on the attached. This is similar but not
exactly the same as what I did in the patches I posted earlier.
The basic idea, like before, is to split WAL insertion into two phases:
1. Reserve the right amount of WAL. This is done while holding just a
spinlock. Thanks to the changes I made earlier to the WAL format, the
space calculations are now much simpler and the critical section boils
down to almost just "CurBytePos += size_of_wal_record". See
ReserveXLogInsertLocation() function.
2. Copy the WAL record to the right location in the WAL buffers. This
slower part can be done mostly in parallel.
The difficult part is tracking which insertions are currently in
progress, and being able to wait for an insertion to finish copying the
record data in place. I'm using a small number (7 at the moment) of WAL
insertion slots for that. The first thing that XLogInsert does is to
grab one of the slots. Each slot is protected by a LWLock, and
XLogInsert reserves a slot by acquiring its lock. It holds the lock
until it has completely finished copying the WAL record in place. In
each slot, there's an XLogRecPtr that indicates how far the current
inserter has progressed with its insertion. Typically, for a short
record that fits on a single page, it is updated after the insertion is
finished, but if the insertion needs to wait for a WAL buffer to become
available, it updates the XLogRecPtr before sleeping.
To wait for all insertions up to a point to finish, you scan all the
insertion slots, and observe that the XLogRecPtrs in them are >= the
point you're interested in. The number of slots is a tradeoff: more
slots allow more concurrency in inserting records, but makes it slower
to determine how far it can be safely flushed.

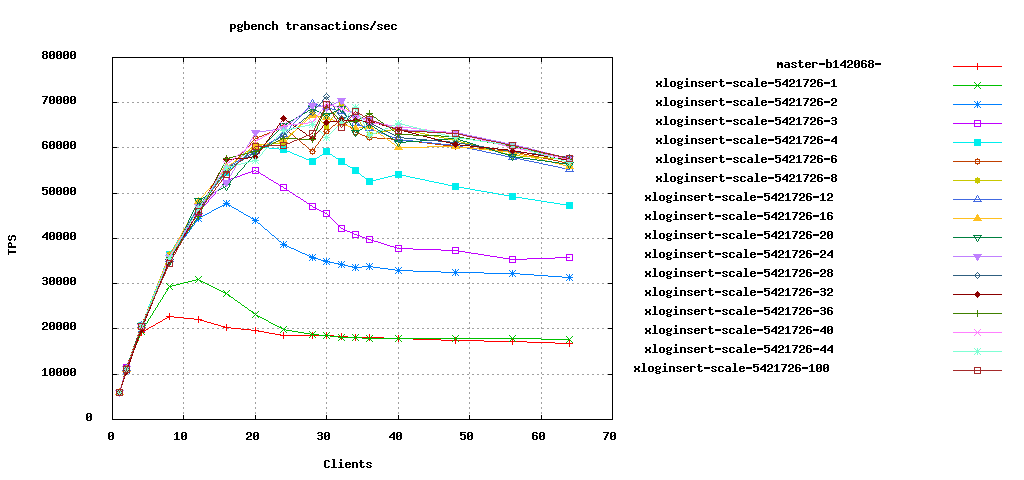

I did some performance tests with this, on an 8-core HP Proliant server,
in a VM running under VMware vSphere 5.1. The tests were performed with
Greg Smith's pgbench-tools kit, with one of two custom workload scripts:
1. Insert 1000 rows in each transaction. This is exactly the sort of
workload where WALInsertLock currently becomes a bottleneck. Without the
the patch, the test scales very badly, with about 420 TPS with a single
client, peaking only at 520 TPS with two clients. With the patch, it
scales up to about 1200 TPS, with 7 clients. I believe the test becomes
I/O limited at that point; looking at iostat output while the test is
running shows about 200MB/s of writes, and that is roughly what the I/O
subsystem of this machine can do, according to a simple test with 'dd
...; sync". Or perhaps having more "insertion slots" would allow it to
go higher - the patch uses exactly 7 slots at the moment.
http://hlinnaka.iki.fi/xloginsert-scaling/results-1k/
2. Insert only 10 rows in each transaction. This simulates an OLTP
workload with fairly small transactions. The patch doesn't make a huge
difference with that workload. It performs somewhat worse with 4-16
clients, but then somewhat better with > 16 clients. The patch adds some
overhead to flushing the WAL, I believe that's what's causing the
slowdown with 4-16 clients. But with more clients, the WALInsertLock
bottleneck becomes more significant, and you start to see a benefit again.
http://hlinnaka.iki.fi/xloginsert-scaling/results-10/
Overall, the results look pretty good. I'm going to take a closer look
at the slowdown in the second test. I think it might be fixable with
some changes to how WaitInsertionsToFinish() and WALWriteLock work
together, although I'm not sure how exactly it ought to work.
Comments, ideas?
- Heikki
Attachments:
xloginsert-scale-20.patch.gzapplication/x-gzip; name=xloginsert-scale-20.patch.gzDownload+1-1
Heikki Linnakangas <hlinnakangas@vmware.com> writes:
I've been slowly continuing to work that I started last winder to make
XLogInsert scale better. I have tried quite a few different approaches
since then, and have settled on the attached. This is similar but not
exactly the same as what I did in the patches I posted earlier.
This sounds pretty good. I'm a bit bothered by the fact that you've
settled on 7 parallel-insertion slots after testing on an 8-core
machine. I suspect that it's not a coincidence that you're seeing
a sweet spot for #slots ~= #CPUs. If that is what's happening, we're
going to want to be able to configure the #slots at postmaster start.
Not sure how we'd go about it exactly - is there any reasonably portable
way to find out how many CPUs the machine has? Or do we have to use a
GUC for that?
regards, tom lane
On Thursday, September 20, 2012 05:37:42 PM Tom Lane wrote:
Heikki Linnakangas <hlinnakangas@vmware.com> writes:
I've been slowly continuing to work that I started last winder to make
XLogInsert scale better. I have tried quite a few different approaches
since then, and have settled on the attached. This is similar but not
exactly the same as what I did in the patches I posted earlier.
Sounds pretty cool from a quick read.
This sounds pretty good. I'm a bit bothered by the fact that you've
settled on 7 parallel-insertion slots after testing on an 8-core
machine. I suspect that it's not a coincidence that you're seeing
a sweet spot for #slots ~= #CPUs. If that is what's happening, we're
going to want to be able to configure the #slots at postmaster start.
Not sure how we'd go about it exactly - is there any reasonably portable
way to find out how many CPUs the machine has? Or do we have to use a
GUC for that?
Several platforms support sysconf(_SC_NPROCESSORS_CONF) although after a quick
look it doesn't seem to be standardized. A guc initialized to that or falling
back to 4 or so?
Andres
--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services
On 20 September 2012 16:29, Heikki Linnakangas <hlinnakangas@vmware.com> wrote:
1. Insert 1000 rows in each transaction. This is exactly the sort of
workload where WALInsertLock currently becomes a bottleneck. Without the the
patch, the test scales very badly, with about 420 TPS with a single client,
peaking only at 520 TPS with two clients. With the patch, it scales up to
about 1200 TPS, with 7 clients. I believe the test becomes I/O limited at
that point; looking at iostat output while the test is running shows about
200MB/s of writes, and that is roughly what the I/O subsystem of this
machine can do, according to a simple test with 'dd ...; sync". Or perhaps
having more "insertion slots" would allow it to go higher - the patch uses
exactly 7 slots at the moment.http://hlinnaka.iki.fi/xloginsert-scaling/results-1k/
2. Insert only 10 rows in each transaction. This simulates an OLTP workload
with fairly small transactions. The patch doesn't make a huge difference
with that workload. It performs somewhat worse with 4-16 clients, but then
somewhat better with > 16 clients. The patch adds some overhead to flushing
the WAL, I believe that's what's causing the slowdown with 4-16 clients. But
with more clients, the WALInsertLock bottleneck becomes more significant,
and you start to see a benefit again.http://hlinnaka.iki.fi/xloginsert-scaling/results-10/
Overall, the results look pretty good.
Yes, excellent work.
The results seem sensitive to the use case, so my thoughts immediately
switch to auto-tuning or at least appropriate usage.
I'm a bit worried that its a narrow use case, since the problem
quickly moves from lock contention to I/O limiting.
It sounds like the use case where this is a win would be parallel data
loading into a high I/O bandwidth server. Could we do some more
tests/discuss to see how wide the use case is?
I'm also wondering about this from a different perspective. I was
looking to rate-limit WAL inserts from certain operations - would
rate-limiting remove the contention problem, or is that just a
different feature.
--
Simon Riggs http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services
On 20.09.2012 18:37, Tom Lane wrote:
I suspect that it's not a coincidence that you're seeing
a sweet spot for #slots ~= #CPUs.
Yeah, quite possible. I did not test with any different number of slots,
so I don't know if that's the sweet spot, but I wouldn't be surprised if
it is.
If that is what's happening, we're going to want to be able to
configure the #slots at postmaster start. Not sure how we'd go about
it exactly - is there any reasonably portable way to find out how
many CPUs the machine has? Or do we have to use a GUC for that?
Detecting the number of CPUs and using that might not be optimal. Even
with a machine with a lot of CPUs, a workload might not be limited by
WAL insertion speed. Perhaps we could have a counter of how often you
have to wait for a slot, and adjust the number of slots on the fly based
on that. Similar to the way the spinlock delay is adjusted.
At the moment, I'm grabbing the lock on a slot before determining which
blocks need to be backed up because of full_page_writes, and before
calculating the CRCs. I can try to move that so that the lock is grabbed
later, more like the WALInsertLock currently works. That would make the
duration the slot locks are held much shorter, which probably would make
the number of slots less important.
- Heikki
On Fri, Sep 21, 2012 at 12:29 AM, Heikki Linnakangas
<hlinnakangas@vmware.com> wrote:
I've been slowly continuing to work that I started last winder to make
XLogInsert scale better. I have tried quite a few different approaches since
then, and have settled on the attached. This is similar but not exactly the
same as what I did in the patches I posted earlier.The basic idea, like before, is to split WAL insertion into two phases:
1. Reserve the right amount of WAL. This is done while holding just a
spinlock. Thanks to the changes I made earlier to the WAL format, the space
calculations are now much simpler and the critical section boils down to
almost just "CurBytePos += size_of_wal_record". See
ReserveXLogInsertLocation() function.2. Copy the WAL record to the right location in the WAL buffers. This slower
part can be done mostly in parallel.The difficult part is tracking which insertions are currently in progress,
and being able to wait for an insertion to finish copying the record data in
place. I'm using a small number (7 at the moment) of WAL insertion slots for
that. The first thing that XLogInsert does is to grab one of the slots. Each
slot is protected by a LWLock, and XLogInsert reserves a slot by acquiring
its lock. It holds the lock until it has completely finished copying the WAL
record in place. In each slot, there's an XLogRecPtr that indicates how far
the current inserter has progressed with its insertion. Typically, for a
short record that fits on a single page, it is updated after the insertion
is finished, but if the insertion needs to wait for a WAL buffer to become
available, it updates the XLogRecPtr before sleeping.To wait for all insertions up to a point to finish, you scan all the
insertion slots, and observe that the XLogRecPtrs in them are >= the point
you're interested in. The number of slots is a tradeoff: more slots allow
more concurrency in inserting records, but makes it slower to determine how
far it can be safely flushed.I did some performance tests with this, on an 8-core HP Proliant server, in
a VM running under VMware vSphere 5.1. The tests were performed with Greg
Smith's pgbench-tools kit, with one of two custom workload scripts:1. Insert 1000 rows in each transaction. This is exactly the sort of
workload where WALInsertLock currently becomes a bottleneck. Without the the
patch, the test scales very badly, with about 420 TPS with a single client,
peaking only at 520 TPS with two clients. With the patch, it scales up to
about 1200 TPS, with 7 clients. I believe the test becomes I/O limited at
that point; looking at iostat output while the test is running shows about
200MB/s of writes, and that is roughly what the I/O subsystem of this
machine can do, according to a simple test with 'dd ...; sync". Or perhaps
having more "insertion slots" would allow it to go higher - the patch uses
exactly 7 slots at the moment.http://hlinnaka.iki.fi/xloginsert-scaling/results-1k/
2. Insert only 10 rows in each transaction. This simulates an OLTP workload
with fairly small transactions. The patch doesn't make a huge difference
with that workload. It performs somewhat worse with 4-16 clients, but then
somewhat better with > 16 clients. The patch adds some overhead to flushing
the WAL, I believe that's what's causing the slowdown with 4-16 clients. But
with more clients, the WALInsertLock bottleneck becomes more significant,
and you start to see a benefit again.http://hlinnaka.iki.fi/xloginsert-scaling/results-10/
Overall, the results look pretty good. I'm going to take a closer look at
the slowdown in the second test. I think it might be fixable with some
changes to how WaitInsertionsToFinish() and WALWriteLock work together,
although I'm not sure how exactly it ought to work.Comments, ideas?
Sounds good.
The patch could be applied cleanly and the compile could be successfully done.
But when I ran initdb, I got the following assertion error:
------------------------------------------
$ initdb -D data --locale=C --encoding=UTF-8
The files belonging to this database system will be owned by user "postgres".
This user must also own the server process.
The database cluster will be initialized with locale "C".
The default text search configuration will be set to "english".
creating directory data ... ok
creating subdirectories ... ok
selecting default max_connections ... 100
selecting default shared_buffers ... 128MB
creating configuration files ... ok
creating template1 database in data/base/1 ... ok
initializing pg_authid ... ok
initializing dependencies ... TRAP: FailedAssertion("!(((uint64)
currpos) % 8192 >= (((intptr_t) ((sizeof(XLogPageHeaderData))) + ((8)
- 1)) & ~((intptr_t) ((8) - 1))) || rdata_len == 0)", File: "xlog.c",
Line: 1363)
sh: line 1: 29537 Abort trap: 6 "/dav/hoge/bin/postgres"
--single -F -O -c search_path=pg_catalog -c exit_on_error=true
template1 > /dev/null
child process exited with exit code 134
initdb: removing data directory "data"
------------------------------------------
I got the above problem on MacOS:
$ uname -a
Darwin hrk.local 11.4.0 Darwin Kernel Version 11.4.0: Mon Apr 9
19:32:15 PDT 2012; root:xnu-1699.26.8~1/RELEASE_X86_64 x86_64
Regards,
--
Fujii Masao
On 24.09.2012 21:06, Fujii Masao wrote:
The patch could be applied cleanly and the compile could be successfully done.
Thanks for the testing!
But when I ran initdb, I got the following assertion error:
------------------------------------------
$ initdb -D data --locale=C --encoding=UTF-8
The files belonging to this database system will be owned by user "postgres".
This user must also own the server process.The database cluster will be initialized with locale "C".
The default text search configuration will be set to "english".creating directory data ... ok
creating subdirectories ... ok
selecting default max_connections ... 100
selecting default shared_buffers ... 128MB
creating configuration files ... ok
creating template1 database in data/base/1 ... ok
initializing pg_authid ... ok
initializing dependencies ... TRAP: FailedAssertion("!(((uint64)
currpos) % 8192>= (((intptr_t) ((sizeof(XLogPageHeaderData))) + ((8)
- 1))& ~((intptr_t) ((8) - 1))) || rdata_len == 0)", File: "xlog.c",
Line: 1363)
sh: line 1: 29537 Abort trap: 6 "/dav/hoge/bin/postgres"
--single -F -O -c search_path=pg_catalog -c exit_on_error=true
template1> /dev/null
child process exited with exit code 134
initdb: removing data directory "data"
------------------------------------------I got the above problem on MacOS:
Hmm, I cannot reproduce this on my Linux laptop. However, I think I see
what the problem is: the assertion should assert that (*CurrPos* %
XLOG_BLCKZ >= SizeOfXLogShortPHD), not currpos. The former is an
XLogRecPtr, the latter is a pointer. If the WAL buffers are aligned at
8k boundaries, the effect is the same, but otherwise the assertion is
just wrong. And as it happens, if O_DIRECT is defined, we align WAL
buffers at XLOG_BLCKSZ. I think that's why I don't see this on my
laptop. Does Mac OS X not define O_DIRECT?
Anyway, attached is a patch with that fixed.
- Heikki
Attachments:
On Fri, Sep 28, 2012 at 12:58 AM, Heikki Linnakangas
<hlinnakangas@vmware.com> wrote:
Hmm, I cannot reproduce this on my Linux laptop. However, I think I see what
the problem is: the assertion should assert that (*CurrPos* % XLOG_BLCKZ >=
SizeOfXLogShortPHD), not currpos. The former is an XLogRecPtr, the latter is
a pointer. If the WAL buffers are aligned at 8k boundaries, the effect is
the same, but otherwise the assertion is just wrong. And as it happens, if
O_DIRECT is defined, we align WAL buffers at XLOG_BLCKSZ. I think that's why
I don't see this on my laptop. Does Mac OS X not define O_DIRECT?
Yes, AFAIK Mac OS doesn't support O_DIRECT.
Anyway, attached is a patch with that fixed.
Thanks! In new patch, initdb was successfully completed.
I encountered another strange issue: When I called pg_switch_xlog() while
pgbench -j 1 -c 1 -T 600 is running, both pg_switch_xlog() and all connections
of pgbench got stuck.
Here is the backtrace of stuck pg_switch_xlog():
(gdb) bt
#0 0x00007fff8fe13c46 in semop ()
#1 0x0000000106b97d34 in PGSemaphoreLock ()
#2 0x0000000106a2e8cf in WaitXLogInsertionsToFinish ()
#3 0x0000000106a2fe8b in XLogInsert ()
#4 0x0000000106a30576 in RequestXLogSwitch ()
#5 0x0000000106a37950 in pg_switch_xlog ()
#6 0x0000000106b19bd3 in ExecMakeFunctionResult ()
#7 0x0000000106b14be1 in ExecProject ()
#8 0x0000000106b2b83d in ExecResult ()
#9 0x0000000106b14000 in ExecProcNode ()
#10 0x0000000106b13080 in standard_ExecutorRun ()
#11 0x0000000106be919f in PortalRunSelect ()
#12 0x0000000106bea5c9 in PortalRun ()
#13 0x0000000106be8519 in PostgresMain ()
#14 0x0000000106ba4ef9 in PostmasterMain ()
#15 0x0000000106b418f1 in main ()
Here is the backtrace of stuck pgbench connection:
(gdb) bt
#0 0x00007fff8fe13c46 in semop ()
#1 0x0000000106b97d34 in PGSemaphoreLock ()
#2 0x0000000106bda95e in LWLockAcquireWithCondVal ()
#3 0x0000000106a25556 in WALInsertLockAcquire ()
#4 0x0000000106a2fa8a in XLogInsert ()
#5 0x0000000106a0386d in heap_update ()
#6 0x0000000106b2a03e in ExecModifyTable ()
#7 0x0000000106b14010 in ExecProcNode ()
#8 0x0000000106b13080 in standard_ExecutorRun ()
#9 0x0000000106be9ceb in ProcessQuery ()
#10 0x0000000106be9eec in PortalRunMulti ()
#11 0x0000000106bea71e in PortalRun ()
#12 0x0000000106be8519 in PostgresMain ()
#13 0x0000000106ba4ef9 in PostmasterMain ()
#14 0x0000000106b418f1 in main ()
Though I've not read the patch yet, probably lock mechanism
in XLogInsert would have a bug which causes the above problem.
Regards,
--
Fujii Masao
Heikki Linnakangas wrote:
I've been slowly continuing to work that I started last winder to
make XLogInsert scale better. I have tried quite a few different
approaches since then, and have settled on the attached. This is
similar but not exactly the same as what I did in the patches I
posted earlier.
Did this go anywhere?
--
�lvaro Herrera http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On 28.05.2013 20:48, Alvaro Herrera wrote:
Heikki Linnakangas wrote:
I've been slowly continuing to work that I started last winder to
make XLogInsert scale better. I have tried quite a few different
approaches since then, and have settled on the attached. This is
similar but not exactly the same as what I did in the patches I
posted earlier.Did this go anywhere?
Thanks for asking :-). I've been fixing bitrot throughout the winter. I
just started cleaning it up again last week, and also continued with
performance testing.
Unfortunately I lost the 8-core box I used earlier to test this, to disk
failure, so I can't repeat the tests I ran earlier. However, I have
access to a new 32-core box, the attached results are from that.
I've ran a whole bunch of tests with this in various configurations, and
have no longer been able to find a case where the patch would perform
worse than what we have now. In cases where WALInsertLock is not a
bottleneck, it's a wash, but in general, write-heavy workloads benefit.
Here, I've attached the results from one test case. The test case is
inserting 10 rows in a transaction: "insert into foo select
generate_series(1,10)". I used pgbench-tools to run the tests. The data
directory was put on a RAM drive (tmpfs), to eliminate disk as the
bottleneck. The test runs were very small, only 30s each, but I don't
see much jitter in the resulting plots, so I think that's ok.
I should mention that I also had the attached spinlock patch applied in
all the runs, baseline and patched. I'm not sure how much difference it
made in this particular case, but it made a big difference in some
tests, see /messages/by-id/519A938A.1070903@vmware.com.
See attached image, insert10-clients-sets.png. The red line,
"master-b142068-" is the baseline run with a 9.3 checkout of that
commitid. The other lines are with the attached patch (*), with
different numbers of "slots". Back in September, Tom was worried that I
only ran the tests with 7 slots, which happened to be almost the same as
the number of cores; this test shows the effect of the number of slots.
It's now controlled by a GUC, num_xloginsert_slots.
To my surpise, the patch seems to be beneficial in this test even with
num_xloginsert_slots=1. The green line, "xloginsert-scale-5421726-1" is
higher than the baseline between 8 - 24 clients. I did not expect that;
num_xloginsert_slots=1 doesn't allow any more concurrency than the
single WALInsertLock we have without the patch. I'm not sure what's
going on there - maybe the fact that WAL pages are now initialized by
WAL writer in the background helps - but can't complain I guess. In some
other test scenarios, I saw num_xloginsert_slots=1 to perform worse than
unpatched code, but num_xloginsert_slots=2 already shows a benefit in
all the scenarios I've tried.
The optimal setting on this box seems to be num_xloginsert_slots >= 8.
Smaller values perform worse, but raising it higher makes little difference.
Overall, I'm really pleased with the performance of this now. But I'd
appreciate it if others would run this on different hardware and
different workloads, to verify that I haven't missed something.
One little thing that's broken at the moment is commit_delay. The code
is safe as it stands, but you won't see any performance benefit from
commit_delay because it doesn't try to flush any more WAL after the
delay than before it. That shouldn't be hard to fix, just haven't gotten
around to it.
(*) actually, an older version of the patch, but I haven't changed
anything substantial since, at least not on purpose, just moved code
around and fixed comments.
- Heikki
On Wed, May 29, 2013 at 8:40 PM, Heikki Linnakangas
<hlinnakangas@vmware.com> wrote:
Thanks for asking :-). I've been fixing bitrot throughout the winter. I just
started cleaning it up again last week, and also continued with performance
testing.Unfortunately I lost the 8-core box I used earlier to test this, to disk
failure, so I can't repeat the tests I ran earlier. However, I have access
to a new 32-core box, the attached results are from that.
The results look great!
Is this 32 physical cores or with hyperthreading? If the former, then
did you profile what is behind the sublinear scaling at concurrency
8?
Shouldn't the pg_write_barrier in AdvanceXLInsertBuffer be
complemented with pg_read_barrier after reading the value of xlblocks
in GetXLogBuffer? It might not be needed if some other action is
providing the barrier, but in that case I think it deserves a comment
why it's not needed so future refactorings don't create a data race.
Regards,
Ants Aasma
--
Cybertec Schönig & Schönig GmbH
Gröhrmühlgasse 26
A-2700 Wiener Neustadt
Web: http://www.postgresql-support.de
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
Hi Heikki,
I am getting conflicts applying version 22 of this patch to 9.4dev. Could
you rebase?
Does anyone know of an easy way to apply an external patch through git, so
I can get git-style merge conflict markers, rather than getting patch's
reject file?
Cheers,
Jeff
On 18.06.2013 21:17, Jeff Janes wrote:
Hi Heikki,
I am getting conflicts applying version 22 of this patch to 9.4dev. Could
you rebase?
Here you go.
Does anyone know of an easy way to apply an external patch through git, so
I can get git-style merge conflict markers, rather than getting patch's
reject file?
I've been wishing for that too. You can check out an older version of
the branch, one that the patch applies cleanly to, and then merge
forward. But that's cumbersome.
- Heikki
Attachments:
On Tue, Jun 18, 2013 at 11:28 PM, Heikki Linnakangas <
hlinnakangas@vmware.com> wrote:
On 18.06.2013 21:17, Jeff Janes wrote:
Hi Heikki,
I am getting conflicts applying version 22 of this patch to 9.4dev. Could
you rebase?Here you go.
I think I'm getting an undetected deadlock between the checkpointer and a
user process running a TRUNCATE command.
This is the checkpointer:
#0 0x0000003a73eeaf37 in semop () from /lib64/libc.so.6
#1 0x00000000005ff847 in PGSemaphoreLock (sema=0x7f8c0a4eb730,
interruptOK=0 '\000') at pg_sema.c:415
#2 0x00000000004b0abf in WaitOnSlot (upto=416178159648) at xlog.c:1775
#3 WaitXLogInsertionsToFinish (upto=416178159648) at xlog.c:2086
#4 0x00000000004b657a in CopyXLogRecordToWAL (write_len=32, isLogSwitch=1
'\001', rdata=0x0, StartPos=<value optimized out>, EndPos=416192397312)
at xlog.c:1389
#5 0x00000000004b6fb2 in XLogInsert (rmid=0 '\000', info=<value optimized
out>, rdata=0x7fff00000020) at xlog.c:1209
#6 0x00000000004b7644 in RequestXLogSwitch () at xlog.c:8748
#7 0x0000000000611be3 in CheckArchiveTimeout () at checkpointer.c:622
#8 0x0000000000611d97 in CheckpointWriteDelay (flags=<value optimized
out>, progress=<value optimized out>) at checkpointer.c:705
#9 0x000000000062ec5a in BufferSync (flags=64) at bufmgr.c:1322
#10 CheckPointBuffers (flags=64) at bufmgr.c:1828
#11 0x00000000004b1393 in CheckPointGuts (checkPointRedo=416178159592,
flags=64) at xlog.c:8365
#12 0x00000000004b8ff3 in CreateCheckPoint (flags=64) at xlog.c:8148
#13 0x00000000006121c3 in CheckpointerMain () at checkpointer.c:502
#14 0x00000000004c4c4a in AuxiliaryProcessMain (argc=2,
argv=0x7fff21c4a5d0) at bootstrap.c:439
#15 0x000000000060a68c in StartChildProcess (type=CheckpointerProcess) at
postmaster.c:4954
#16 0x000000000060d1ea in reaper (postgres_signal_arg=<value optimized
out>) at postmaster.c:2571
#17 <signal handler called>
#18 0x0000003a73ee14d3 in __select_nocancel () from /lib64/libc.so.6
#19 0x000000000060efee in ServerLoop (argc=<value optimized out>,
argv=<value optimized out>) at postmaster.c:1537
#20 PostmasterMain (argc=<value optimized out>, argv=<value optimized out>)
at postmaster.c:1246
#21 0x00000000005ad4e0 in main (argc=3, argv=0x179fd00) at main.c:196
And this is the TRUNCATE command.
#0 0x0000003a73eeaf37 in semop () from /lib64/libc.so.6
#1 0x00000000005ff847 in PGSemaphoreLock (sema=0x7f8c0a4ea8d0,
interruptOK=0 '\000') at pg_sema.c:415
#2 0x00000000004b002d in WALInsertSlotAcquireOne (slotno=-1) at xlog.c:1667
#3 0x00000000004b6d5d in XLogInsert (rmid=0 '\000', info=<value optimized
out>, rdata=0x7fff21c4a5e0) at xlog.c:1115
#4 0x00000000004b8abc in XLogPutNextOid (nextOid=67198981) at xlog.c:8704
#5 0x00000000004a3bc2 in GetNewObjectId () at varsup.c:495
#6 0x00000000004c5195 in GetNewRelFileNode (reltablespace=<value optimized
out>, pg_class=0x0, relpersistence=<value optimized out>) at catalog.c:437
#7 0x000000000070f52d in RelationSetNewRelfilenode
(relation=0x7f8c019cb2a0, freezeXid=2144367079, minmulti=1) at
relcache.c:2758
#8 0x000000000055de61 in ExecuteTruncate (stmt=<value optimized out>) at
tablecmds.c:1163
#9 0x0000000000656080 in standard_ProcessUtility (parsetree=0x2058900,
queryString=<value optimized out>, context=<value optimized out>,
params=0x0,
dest=<value optimized out>, completionTag=<value optimized out>) at
utility.c:552
#10 0x0000000000652a87 in PortalRunUtility (portal=0x17bf510,
utilityStmt=0x2058900, isTopLevel=1 '\001', dest=0x2058c40,
completionTag=0x7fff21c4a9a0 "")
at pquery.c:1187
#11 0x00000000006539fd in PortalRunMulti (portal=0x17bf510, isTopLevel=1
'\001', dest=0x2058c40, altdest=0x2058c40, completionTag=0x7fff21c4a9a0 "")
at pquery.c:1318
#12 0x00000000006540b3 in PortalRun (portal=0x17bf510,
count=9223372036854775807, isTopLevel=1 '\001', dest=0x2058c40,
altdest=0x2058c40,
completionTag=0x7fff21c4a9a0 "") at pquery.c:816
#13 0x0000000000650944 in exec_simple_query (query_string=0x2057e90
"truncate foo") at postgres.c:1048
#14 0x0000000000651fe9 in PostgresMain (argc=<value optimized out>,
argv=<value optimized out>, dbname=0x1fc9e98 "jjanes", username=<value
optimized out>)
at postgres.c:3985
#15 0x000000000060f80b in BackendRun (argc=<value optimized out>,
argv=<value optimized out>) at postmaster.c:3987
#16 BackendStartup (argc=<value optimized out>, argv=<value optimized out>)
at postmaster.c:3676
#17 ServerLoop (argc=<value optimized out>, argv=<value optimized out>) at
postmaster.c:1577
#18 PostmasterMain (argc=<value optimized out>, argv=<value optimized out>)
at postmaster.c:1246
#19 0x00000000005ad4e0 in main (argc=3, argv=0x179fd00) at main.c:196
This is using the same testing harness as in the last round of this patch.
Is there a way for me to dump the list of held/waiting lwlocks from gdb?
Cheers,
Jeff
On 21.06.2013 21:55, Jeff Janes wrote:
I think I'm getting an undetected deadlock between the checkpointer and a
user process running a TRUNCATE command.This is the checkpointer:
#0 0x0000003a73eeaf37 in semop () from /lib64/libc.so.6
#1 0x00000000005ff847 in PGSemaphoreLock (sema=0x7f8c0a4eb730,
interruptOK=0 '\000') at pg_sema.c:415
#2 0x00000000004b0abf in WaitOnSlot (upto=416178159648) at xlog.c:1775
#3 WaitXLogInsertionsToFinish (upto=416178159648) at xlog.c:2086
#4 0x00000000004b657a in CopyXLogRecordToWAL (write_len=32, isLogSwitch=1
'\001', rdata=0x0, StartPos=<value optimized out>, EndPos=416192397312)
at xlog.c:1389
#5 0x00000000004b6fb2 in XLogInsert (rmid=0 '\000', info=<value optimized
out>, rdata=0x7fff00000020) at xlog.c:1209
#6 0x00000000004b7644 in RequestXLogSwitch () at xlog.c:8748
Hmm, it looks like the xlog-switch is trying to wait for itself to
finish. The concurrent TRUNCATE is just being blocked behind the
xlog-switch, which is stuck on itself.
I wasn't able to reproduce exactly that, but I got a PANIC by running
pgbench and concurrently doing "select pg_switch_xlog()" many times in psql.
Attached is a new version that fixes at least the problem I saw. Not
sure if it fixes what you saw, but it's worth a try. How easily can you
reproduce that?
This is using the same testing harness as in the last round of this patch.
This one?
/messages/by-id/CAMkU=1xoA6Fdyoj_4fMLqpicZR1V9GP7cLnXJdHU+iGgqb6WUw@mail.gmail.com
Is there a way for me to dump the list of held/waiting lwlocks from gdb?
You can print out the held_lwlocks array. Or to make it more friendly,
write a function that prints it out and call that from gdb. There's no
easy way to print out who's waiting for what that I know of.
Thanks for the testing!
- Heikki
Attachments:
xloginsert-scale-24.patch.gzapplication/x-gzip; name=xloginsert-scale-24.patch.gzDownload
On 2013-06-22 14:32:46 +0300, Heikki Linnakangas wrote:
Attached is a new version that fixes at least the problem I saw. Not sure if
it fixes what you saw, but it's worth a try. How easily can you reproduce
that?
Ok, I started to look at this:
* Could you document the way slots prevent checkpoints from occurring
when XLogInsert rechecks for full page writes? I think it's correct -
but not very obvious on a glance.
* The read of Insert->RedoRecPtr while rechecking whether it's out of
date now is unlocked, is that correct? And why?
* Have you measured whether it works to just keep as many slots as
max_backends requires around and not bothering with dynamically
allocating them to inserters?
That seems to require to keep actually waiting slots in a separate
list which very well might make that too expensive.
Correctness wise the biggest problem for that probably is exlusive
acquiration of all slots CreateCheckpoint() does...
* What about using some sort of linked list of unused slots for
WALInsertSlotAcquireOne? Everytime we're done we put it to the *end*
of the list so it's less likely to have been grabbed by somebody else
so we can reuse it.
a) To grab a new one go to the head of the linked list spinlock it and
recheck whether it's still free. If not, restart. Otherwise, remove
from list.
b) To reuse a previously used slot
That way we only have to do the PGSemaphoreLock() dance if there
really aren't any free slots.
* The queuing logic around slots seems to lack documentation. It's
complex enough to warrant that imo.
* Not a big fan of the "holdingAll" variable name, for a file-global one
that seems a bit too generic.
* Could you add a #define or comment for the 64 used in
XLogInsertSlotPadded? Not everyone might recognize that immediately as
the most common cacheline size.
Commenting on the reason we pad in general would be a good idea as
well.
* Is it correct that WALInsertSlotAcquireOne() resets xlogInsertingAt of
all slots *before* it has acquired locks in all of them? If yes, why
haven't we already reset it to something invalid?
* Is GetXLogBuffer()'s unlocked read correct without a read barrier?
* XLogBytePosToEndRecPtr() seems to have a confusing name to me. At
least the comment needs to better explain that it's named that way
because of the way it's used.
Also, doesn't
seg_offset += fullpages * XLOG_BLCKSZ + bytesleft + SizeOfXLogShortPHD;
potentially point into the middle of a page?
* I wish we could get rid of the bytepos notion, it - while rather
clever - complicates things. But that's probably not going to happen
unless we get rid of short/long page headers :/
Cool stuff!
Greetings,
Andres Freund
PS: Btw, git diff|... -w might be more helpful than not indenting a
block.
--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On Sat, Jun 22, 2013 at 4:32 AM, Heikki Linnakangas <hlinnakangas@vmware.com
wrote:
On 21.06.2013 21:55, Jeff Janes wrote:
Hmm, it looks like the xlog-switch is trying to wait for itself to
finish. The concurrent TRUNCATE is just being blocked behind the
xlog-switch, which is stuck on itself.I wasn't able to reproduce exactly that, but I got a PANIC by running
pgbench and concurrently doing "select pg_switch_xlog()" many times in psql.Attached is a new version that fixes at least the problem I saw. Not sure
if it fixes what you saw, but it's worth a try. How easily can you
reproduce that?
With v23, it got stuck both times I tried it, once after 4 hours and once
after 6 hours.
With v24, it has been running for 30 hours so far with no problems. So
there is a pretty good chance that it is fixed.
This is using the same testing harness as in the last round of this patch.
This one? http://www.postgresql.org/**message-id/CAMkU=1xoA6Fdyoj_**
4fMLqpicZR1V9GP7cLnXJdHU+**iGgqb6WUw@mail.gmail.com</messages/by-id/CAMkU=1xoA6Fdyoj_4fMLqpicZR1V9GP7cLnXJdHU+iGgqb6WUw@mail.gmail.com>
Yes. I have cleaned it up some and added use of checksum, I don't know if
any of those things are needed to invoke the problem.
Cheers,
Jeff
On 24.06.2013 21:01, Andres Freund wrote:
Ok, I started to look at this:
Thanks!
* Could you document the way slots prevent checkpoints from occurring
when XLogInsert rechecks for full page writes? I think it's correct -
but not very obvious on a glance.
There's this in the comment near the top of the file:
* To update RedoRecPtr or fullPageWrites, one has to make sure that all
* subsequent inserters see the new value. This is done by reserving
all the
* insertion slots before changing the value. XLogInsert reads
RedoRecPtr and
* fullPageWrites after grabbing a slot, so by holding all the slots
* simultaneously, you can ensure that all subsequent inserts see the new
* value. Those fields change very seldom, so we prefer to be fast and
* non-contended when they need to be read, and slow when they're changed.
Does that explain it well enough? XLogInsert holds onto a slot while it
rechecks for full page writes.
* The read of Insert->RedoRecPtr while rechecking whether it's out of
date now is unlocked, is that correct? And why?
Same here, XLogInsert holds the slot while rechecking Insert->RedoRecptr.
* Have you measured whether it works to just keep as many slots as
max_backends requires around and not bothering with dynamically
allocating them to inserters?
That seems to require to keep actually waiting slots in a separate
list which very well might make that too expensive.Correctness wise the biggest problem for that probably is exlusive
acquiration of all slots CreateCheckpoint() does...
Hmm. It wouldn't be much different, each backend would still need to
reserve its own dedicated slot, because it might be held by the a
backend that grabbed all the slots. Also, bgwriter and checkpointer need
to flush the WAL, so they'd need slots too.
More slots make WaitXLogInsertionsToFinish() more expensive, as it has
to loop through all of them. IIRC some earlier pgbench tests I ran
didn't show much difference in performance, whether there were 40 slots
or 100, as long as there was enough of them. I can run some more tests
with even more slots to see how it behaves.
* What about using some sort of linked list of unused slots for
WALInsertSlotAcquireOne? Everytime we're done we put it to the *end*
of the list so it's less likely to have been grabbed by somebody else
so we can reuse it.
a) To grab a new one go to the head of the linked list spinlock it and
recheck whether it's still free. If not, restart. Otherwise, remove
from list.
b) To reuse a previously used slotThat way we only have to do the PGSemaphoreLock() dance if there
really aren't any free slots.
That adds a spinlock acquisition / release into the critical path, to
protect the linked list. I'm trying very hard to avoid serialization
points like that.
While profiling the tests I've done, finding a free slot hasn't shown up
much. So I don't think it's a problem performance-wise as it is, and I
don't think it would make the code simpler.
* The queuing logic around slots seems to lack documentation. It's
complex enough to warrant that imo.
Yeah, it's complex. I expanded the comments above XLogInsertSlot, to
explain how xlogInsertingAt works. Did that help, or was it some other
part of that that needs more docs?
* Not a big fan of the "holdingAll" variable name, for a file-global one
that seems a bit too generic.
Renamed to holdingAllSlots.
* Could you add a #define or comment for the 64 used in
XLogInsertSlotPadded? Not everyone might recognize that immediately as
the most common cacheline size.
Commenting on the reason we pad in general would be a good idea as
well.
Copy-pasted and edited the explanation from LWLockPadded for that. I
also changed the way it's allocated so that it's aligned at 64-byte
boundary, like we do for lwlocks.
* Is it correct that WALInsertSlotAcquireOne() resets xlogInsertingAt of
all slots *before* it has acquired locks in all of them? If yes, why
haven't we already reset it to something invalid?
I didn't understand this part. Can you elaborate?
* Is GetXLogBuffer()'s unlocked read correct without a read barrier?
Hmm. I thought that it was safe because GetXLogBuffer() handles the case
that you get a "torn read" of the 64-bit XLogRecPtr value. But now that
I think of it, I wonder if it's possible for reads/writes to be
reordered so that AdvanceXLInsertBuffer() overwrites WAL data that
another backend has copied onto a page. Something like this:
1. Backend B zeroes a new WAL page, and sets its address in xlblocks
2. Backend A calls GetXLogBuffer(), and gets a pointer to that page
3. Backend A copies the WAL data to the page.
There is no lock acquisition in backend A during those steps, so I think
in theory the writes from step 3 might be reordered to happen before
step 1, so that that step 1 overwrites the WAL data written in step 3.
It sounds crazy, but after reading README.barrier, I don't see anything
that guarantees it won't happen in the weaker memory models.
To be safe, I'll add a full memory barrier to GetXLogBuffer(), and rerun
the benchmarks.
* XLogBytePosToEndRecPtr() seems to have a confusing name to me. At
least the comment needs to better explain that it's named that way
because of the way it's used.
Ok, added a sentence on that. Let me know if that helped or if you have
better suggestions.
Also, doesn't
seg_offset += fullpages * XLOG_BLCKSZ + bytesleft + SizeOfXLogShortPHD;
potentially point into the middle of a page?
Yes. seg_offset is the byte offset from the beginning of the segment,
it's supposed to point in the middle of the page.
* I wish we could get rid of the bytepos notion, it - while rather
clever - complicates things. But that's probably not going to happen
unless we get rid of short/long page headers :/
Yeah. Fortunately its use is quite isolated.
I've attached a new version of the patch, with some additional comments
as mentioned in the above paragraphs. And the memory barrier.
- Heikki
Attachments:
Hi,
On 2013-06-26 18:52:30 +0300, Heikki Linnakangas wrote:
* Could you document the way slots prevent checkpoints from occurring
when XLogInsert rechecks for full page writes? I think it's correct -
but not very obvious on a glance.There's this in the comment near the top of the file:
* To update RedoRecPtr or fullPageWrites, one has to make sure that all
* subsequent inserters see the new value. This is done by reserving all the
* insertion slots before changing the value. XLogInsert reads RedoRecPtr
and
* fullPageWrites after grabbing a slot, so by holding all the slots
* simultaneously, you can ensure that all subsequent inserts see the new
* value. Those fields change very seldom, so we prefer to be fast and
* non-contended when they need to be read, and slow when they're changed.Does that explain it well enough? XLogInsert holds onto a slot while it
rechecks for full page writes.
Yes. Earlieron that was explained in XLogInsert() - maybe point to the
documentation ontop of the file? The file is too big to expect everyone
to reread the whole file in a new release...
* The read of Insert->RedoRecPtr while rechecking whether it's out of
date now is unlocked, is that correct? And why?
Same here, XLogInsert holds the slot while rechecking Insert->RedoRecptr.
I was wondering whether its guaranteed that we don't read a cached
value, but I didn't think of the memory barriers due to the spinlock in
Release/AcquireSlot. I think I thought that release wouldn't acquire the
spinlock at all.
* Have you measured whether it works to just keep as many slots as
max_backends requires around and not bothering with dynamically
allocating them to inserters?
That seems to require to keep actually waiting slots in a separate
list which very well might make that too expensive.Correctness wise the biggest problem for that probably is exlusive
acquiration of all slots CreateCheckpoint() does...Hmm. It wouldn't be much different, each backend would still need to reserve
its own dedicated slot, because it might be held by the a backend that
grabbed all the slots. Also, bgwriter and checkpointer need to flush the
WAL, so they'd need slots too.More slots make WaitXLogInsertionsToFinish() more expensive, as it has to
loop through all of them. IIRC some earlier pgbench tests I ran didn't show
much difference in performance, whether there were 40 slots or 100, as long
as there was enough of them. I can run some more tests with even more slots
to see how it behaves.
In a very quick test I ran previously I did see the slot acquiration in
the profile when using short connections that all did some quick inserts
- which isn't surprising since they tend to all start with the same
slot so they will all fight for the first slots.
Maybe we could ammeliorate that by initializing MySlotNo to
(MyProc->pgprocno % num_xloginsert_slots) when uninitialized? That won't
be completely fair since the number of procs won't usually be a multiple
of num_insert_slots, but I doubt that will be problematic.
* What about using some sort of linked list of unused slots for
WALInsertSlotAcquireOne? Everytime we're done we put it to the *end*
of the list so it's less likely to have been grabbed by somebody else
so we can reuse it.
a) To grab a new one go to the head of the linked list spinlock it and
recheck whether it's still free. If not, restart. Otherwise, remove
from list.
b) To reuse a previously used slotThat way we only have to do the PGSemaphoreLock() dance if there
really aren't any free slots.That adds a spinlock acquisition / release into the critical path, to
protect the linked list. I'm trying very hard to avoid serialization points
like that.
Hm. We already have at least one spinlock in that path? Or are you
thinking of a global one protecting the linked list? If so, I think we
should be able to get away with locking individual slots.
IIRC if you never need to delete list elements you can even get away
with a lockless implementation.
While profiling the tests I've done, finding a free slot hasn't shown up
much. So I don't think it's a problem performance-wise as it is, and I don't
think it would make the code simpler.
It sure wouldn't make it simpler. As I said above, I saw the slot
acquiration in a profile when using -C and a short pgbench script (that
just inserts 10 rows).
* The queuing logic around slots seems to lack documentation. It's
complex enough to warrant that imo.Yeah, it's complex. I expanded the comments above XLogInsertSlot, to explain
how xlogInsertingAt works. Did that help, or was it some other part of that
that needs more docs?
What I don't understand so far is why we don't reset xlogInsertingAt
during SlotReleaseOne. There are places documenting that we don't do so,
but not why unless I missed it.
Do we do this only to have some plausible value for a backend that been
acquired but hasn't copied data yet? If so, why isn't it sufficient to
initialize it in ReserveXLogInsertLocation?
* Is it correct that WALInsertSlotAcquireOne() resets xlogInsertingAt of
all slots *before* it has acquired locks in all of them? If yes, why
haven't we already reset it to something invalid?
I didn't understand this part. Can you elaborate?
It has to do with my lack of understanding of the above. If there's a
reason not to reset xlogInsertingAt during ReleaseOne() we might have a
problem.
Consider a scenario with num_xloginsert_slots = 2. Slot 0 has been
released but still has xlogInsertingAt = 0/ff00100. Slot 1 is unused.
1) checkpointer: WALInsertSlotAcquire(exclusive)
2) checkpointer: WALInsertSlotAcquireOne(0), clears xlogInsertingAt
3) WaitXLogInsertionsToFinish() checks slot 0's xlogInsertingAt: InvalidXLogRecPtr
4) WaitXLogInsertionsToFinish() checks slot 1's xlogInsertingAt: InvalidXLogRecPtr
2) checkpointer: WALInsertSlotAcquireOne(1), sets xlogInsertingAt = 1
In this case we WaitXLogInsertionsToFinish() could run without getting
blocked and report that everything up to Insert->CurrBytePos has been
finished since all slots have xlogInsertingAt = InvalidXLogRecPtr.
* Is GetXLogBuffer()'s unlocked read correct without a read barrier?
Hmm. I thought that it was safe because GetXLogBuffer() handles the case
that you get a "torn read" of the 64-bit XLogRecPtr value. But now that I
think of it, I wonder if it's possible for reads/writes to be reordered so
that AdvanceXLInsertBuffer() overwrites WAL data that another backend has
copied onto a page. Something like this:
Yea, I am not so much worried about a torn value, but about an out of
date one that looks valid. A barrier sounds good.
* XLogBytePosToEndRecPtr() seems to have a confusing name to me. At
least the comment needs to better explain that it's named that way
because of the way it's used.Ok, added a sentence on that. Let me know if that helped or if you have
better suggestions.
Yes, that's better.
Also, doesn't
seg_offset += fullpages * XLOG_BLCKSZ + bytesleft + SizeOfXLogShortPHD;
potentially point into the middle of a page?Yes. seg_offset is the byte offset from the beginning of the segment, it's
supposed to point in the middle of the page.
Misunderstood something...
Greetings,
Andres Freund
--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On 2013-06-26 18:52:30 +0300, Heikki Linnakangas wrote:
There's this in the comment near the top of the file:
Btw, I find the 'you' used in the comment somewhat irritating. Not badly
so, but reading something like:
* When you are about to write
* out WAL, it is important to call WaitXLogInsertionsToFinish() *before*
* acquiring WALWriteLock, to avoid deadlocks. Otherwise you might get stuck
* waiting for an insertion to finish (or at least advance to next
* uninitialized page), while you're holding WALWriteLock.
just seems strange to me. If this directed at plugin authors, maybe, but
it really isn't...
But that's probably a question for a native speaker...
Greetings,
Andres Freund
--
Andres Freund http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
