tweaking NTUP_PER_BUCKET
Hi,
while hacking on the 'dynamic nbucket' patch, scheduled for the next CF
(https://commitfest.postgresql.org/action/patch_view?id=1494) I was
repeatedly stumbling over NTUP_PER_BUCKET. I'd like to propose a change
in how we handle it.
TL;DR; version
--------------
I propose dynamic increase of the nbuckets (up to NTUP_PER_BUCKET=1)
once the table is built and there's free space in work_mem. The patch
mentioned above makes implementing this possible / rather simple.
Long version
------------
I've seen discussions in the list in the past, but I don't recall any
numbers comparing impact of different values. So I did a simple test,
measuring the duration of a simple hashjoin with different hashtable
sizes and NTUP_PER_BUCKET values. In short, something like this:
CREATE TABLE outer_table (id INT);
CREATE TABLE inner_table (id INT, val_int INT, val_txt TEXT);
INSERT INTO outer_table SELECT i
FROM generate_series(1,50000000) s(i);
INSERT INTO inner_table SELECT i, mod(i,10000), md5(i::text)
FROM generate_series(1,10000000) s(i);
ANALYZE outer_table;
ANALYZE inner_table;
-- force hash join with a single batch
set work_mem = '1GB';
set enable_sort = off;
set enable_indexscan = off;
set enable_bitmapscan = off;
set enable_mergejoin = off;
set enable_nestloop = off;
-- query with various values in the WHERE condition, determining
-- the size of the hash table (single batch, thanks to work_mem)
SELECT COUNT(i.val_txt)
FROM outer_table o LEFT JOIN inner_table i ON (i.id = o.id)
WHERE val_int < 1000;
which leads to plans like this: http://explain.depesz.com/s/i7W
I've repeated this with with NTUP_PER_BUCKET between 1 and 10, and
various values in the WHERE condition, and I got this table,
illustrating impact of various NTUP_PER_BUCKET values for various
hashtable sizes:
kB NTUP=1 NTUP=2 NTUP=4 NTUP=5 NTUP=9 NTUP=10
1407 6753 7218 7890 9324 9488 12574
7032 9417 11586 17417 15820 25732 25402
35157 13179 17101 27225 24763 43323 43175
70313 14203 18475 29354 26690 46840 46676
175782 14319 17458 25325 34542 37342 60949
351563 16297 19928 29124 43364 43232 70014
703125 19027 23125 33610 50283 50165 81398
(I've skipped columns for NTUP values that are almost exactly the same
as the adjacent columns due to the fact bucket count grows by doubling).

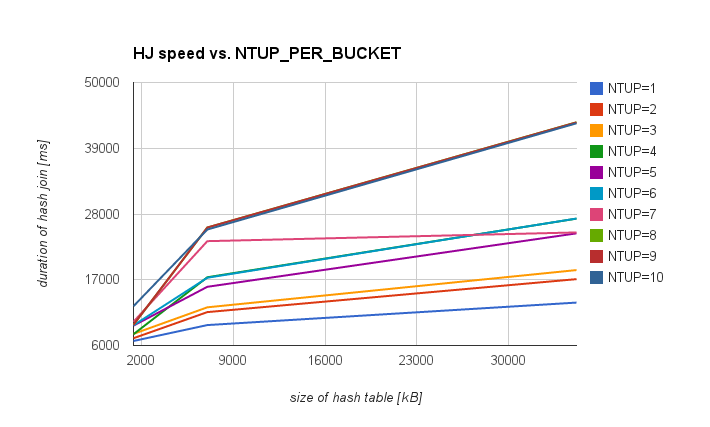

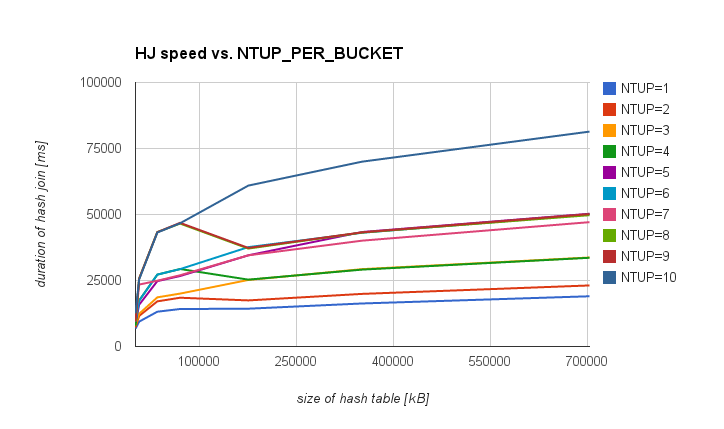

If you prefer charts to tables, attached are two showing the same data
(complete and "small hashtables"). Also, attached is a CSV with the
results, tracking number of buckets and durations for each hashtable
size / NTUP_PER_BUCKET combination.
I'm aware that the numbers and exact behaviour depends on the hardware
(e.g. L1/L2 cache, RAM etc.), and the query used to get these values is
somewhat simple (at least compared to some real-world values). But I
believe the general behaviour won't vary too much.
The first observation is that for large hashtables the difference
between NTUP=1 and NTUP=10 is much larger than for small ones. Not
really surprising - probably due to better hit ratios for CPU caches.
For the large hashtable the difference is significant, easily beating
price for the rebuild of the hashtable (increasing the nbuckets).
Therefore I'd like to propose dynamic increase of bucket count. The
patch mentioned at the beginning does pretty much exactly this for plans
with significantly underestimated cardinality of the hashtable (thus
causing inappropriately low bucket count and poor performance of the
join). However it allows dynamic approach to NTUP_PER_BUCKET too, so I
propose a change along these lines:
1) consider lowering the NTUP_PER_BUCKET (see measurements below)
2) do the initial nbucket/nbatch estimation as today (with whatever
NTUP_PER_BUCKET value we end up using) and build the hashtable
3) while building the hashtable, include space for buckets into
spaceUsed while deciding whether to increase number of batches
(the fact it's not already included seems wrong), but instead of
using initial bucket count, do this:
if (hashtable->spaceUsed + BUCKET_SPACE(hashtable)
hashtable->spaceAllowed)
ExecHashIncreaseNumBatches(hashtable);
where BUCKET_SPACE is 'how many buckets would be appropriate, given
current tuples per batch'.
4) consider what is the "appropriate" number of buckets and rebuild
the table if appropriate
This is where the patch fixes the underestimated nbuckets value, but
what we can do is look at how much free space remains in work_mem
and use as many buckets as fit into work_mem (capped with tuples
per batch, of course) if there's free space. Even if the initial
cardinality estimate was correct (so we're below NTUP_PER_BUCKET)
this may be a significant speedup.
Say for example we have 10M tuples in the table - with the default
NTUP_PER_BUCKET this means ~1M buckets. But there's significant
performance difference between hashtable with 1 or 10 tuples per
bucket (see below), and if we have 80MB in work_mem (instead of the
default 8MB) this may be a huge gain.
Any comments / objections welcome.
regards
Tomas
On 3.7.2014 02:13, Tomas Vondra wrote:
Hi,
while hacking on the 'dynamic nbucket' patch, scheduled for the next CF
(https://commitfest.postgresql.org/action/patch_view?id=1494) I was
repeatedly stumbling over NTUP_PER_BUCKET. I'd like to propose a change
in how we handle it.TL;DR; version
--------------I propose dynamic increase of the nbuckets (up to NTUP_PER_BUCKET=1)
once the table is built and there's free space in work_mem. The patch
mentioned above makes implementing this possible / rather simple.
Attached is v1 of this experimental patch. It's supposed to be applied
on top of v7 of this patch
/messages/by-id/53B59498.3000800@fuzzy.cz
as it shared most of the implementation. So apply it like this:
patch -p1 < hashjoin-nbuckets-growth-v7.patch
patch -p1 < hashjoin-dynamic-ntup-v1.patch
It implements the ideas outlined in the previous message, most importantly:
(a) decreases NTUP_PER_BUCKET to 4
(b) checks free work_mem when deciding whether to add batch
(c) after building the batches, increases the number of buckets as
much as possible, i.e. up to the number of batch tuples, but not
exceeding work_mem
The improvements for the queries I tried so far are quite significant
(partially due to the NTUP_PER_BUCKET decrease, partially due to the
additional bucket count increase).
The rebuild is quite fast - the patch measures and reports this as a
WARNING, and the timings I've seen are ~12ms per 7MB (i.e. ~120ms for
70MB and ~1200ms for 700MB). Of course, this only makes sense when
compared to how much time it saved, but for the queries I tested so far
this was a good investment.
However it's likely there are queries where this may not be the case,
i.e. where rebuilding the hash table is not worth it. Let me know if you
can construct such query (I wasn't).
regards
Tomas
Tomas,
* Tomas Vondra (tv@fuzzy.cz) wrote:
However it's likely there are queries where this may not be the case,
i.e. where rebuilding the hash table is not worth it. Let me know if you
can construct such query (I wasn't).
Thanks for working on this! I've been thinking on this for a while and
this seems like it may be a good approach. Have you considered a bloom
filter over the buckets..? Also, I'd suggest you check the archives
from about this time last year for test cases that I was using which
showed cases where hashing the larger table was a better choice- those
same cases may also show regression here (or at least would be something
good to test).
Have you tried to work out what a 'worst case' regression for this
change would look like? Also, how does the planning around this change?
Are we more likely now to hash the smaller table (I'd guess 'yes' just
based on the reduction in NTUP_PER_BUCKET, but did you make any changes
due to the rehashing cost?)?
Thanks,
Stephen
On Thu, Jul 3, 2014 at 11:40 PM, Stephen Frost <sfrost@snowman.net> wrote:
Tomas,
* Tomas Vondra (tv@fuzzy.cz) wrote:
However it's likely there are queries where this may not be the case,
i.e. where rebuilding the hash table is not worth it. Let me know if you
can construct such query (I wasn't).Thanks for working on this! I've been thinking on this for a while and
this seems like it may be a good approach. Have you considered a bloom
filter?
IIRC, last time when we tried doing bloom filters, I was short of some real
world useful hash functions that we could use for building the bloom filter.
If we are restarting experiments on this, I would be glad to assist.
Regards,
Atri
Hi Stephen,
On 3.7.2014 20:10, Stephen Frost wrote:
Tomas,
* Tomas Vondra (tv@fuzzy.cz) wrote:
However it's likely there are queries where this may not be the case,
i.e. where rebuilding the hash table is not worth it. Let me know if you
can construct such query (I wasn't).Thanks for working on this! I've been thinking on this for a while
and this seems like it may be a good approach. Have you considered a
bloom filter over the buckets..? Also, I'd suggest you check the
I know you've experimented with it, but I haven't looked into that yet.
archives from about this time last year for test cases that I was
using which showed cases where hashing the larger table was a better
choice- those same cases may also show regression here (or at least
would be something good to test).
Good idea, I'll look at the test cases - thanks.
Have you tried to work out what a 'worst case' regression for this
change would look like? Also, how does the planning around this
change? Are we more likely now to hash the smaller table (I'd guess
'yes' just based on the reduction in NTUP_PER_BUCKET, but did you
make any changes due to the rehashing cost?)?
The case I was thinking about is underestimated cardinality of the inner
table and a small outer table. That'd lead to a large hash table and
very few lookups (thus making the rehash inefficient). I.e. something
like this:
Hash Join
Seq Scan on small_table (rows=100) (actual rows=100)
Hash
Seq Scan on bad_estimate (rows=100) (actual rows=1000000000)
Filter: ((a < 100) AND (b < 100))
But I wasn't able to reproduce this reasonably, because in practice
that'd lead to a nested loop or something like that (which is a planning
issue, impossible to fix in hashjoin code).
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On Thu, Jul 3, 2014 at 11:40 AM, Atri Sharma <atri.jiit@gmail.com> wrote:
IIRC, last time when we tried doing bloom filters, I was short of some real
world useful hash functions that we could use for building the bloom filter.
Last time was we wanted to use bloom filters in hash joins to filter
out tuples that won't match any of the future hash batches to reduce
the amount of tuples that need to be spilled to disk. However the
problem was that it was unclear for a given amount of memory usage how
to pick the right size bloom filter and how to model how much it would
save versus how much it would cost in reduced hash table size.
I think it just required some good empirical tests and hash join heavy
workloads to come up with some reasonable guesses. We don't need a
perfect model just some reasonable bloom filter size that we're pretty
sure will usually help more than it hurts.
--
greg
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On 3.7.2014 20:50, Tomas Vondra wrote:
Hi Stephen,
On 3.7.2014 20:10, Stephen Frost wrote:
Tomas,
* Tomas Vondra (tv@fuzzy.cz) wrote:
However it's likely there are queries where this may not be the case,
i.e. where rebuilding the hash table is not worth it. Let me know if you
can construct such query (I wasn't).Thanks for working on this! I've been thinking on this for a while
and this seems like it may be a good approach. Have you considered a
bloom filter over the buckets..? Also, I'd suggest you check the
archives from about this time last year for test cases that I was
using which showed cases where hashing the larger table was a better
choice- those same cases may also show regression here (or at least
would be something good to test).Good idea, I'll look at the test cases - thanks.
I can't find the thread / test cases in the archives. I've found this
thread in hackers:
/messages/by-id/CAOeZVif-R-iLF966wEipk5By-KhzVLOqpWqurpaK3p5fYw-Rdw@mail.gmail.com
Can you point me to the right one, please?
regards
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
* Greg Stark (stark@mit.edu) wrote:
On Thu, Jul 3, 2014 at 11:40 AM, Atri Sharma <atri.jiit@gmail.com> wrote:
IIRC, last time when we tried doing bloom filters, I was short of some real
world useful hash functions that we could use for building the bloom filter.Last time was we wanted to use bloom filters in hash joins to filter
out tuples that won't match any of the future hash batches to reduce
the amount of tuples that need to be spilled to disk. However the
problem was that it was unclear for a given amount of memory usage how
to pick the right size bloom filter and how to model how much it would
save versus how much it would cost in reduced hash table size.
Right. There's only one hash function available, really, (we don't
currently support multiple hash functions..), unless we want to try and
re-hash the 32bit hash value that we get back (not against trying that,
but it isn't what I'd start with) and it would hopefully be sufficient
for this.
I think it just required some good empirical tests and hash join heavy
workloads to come up with some reasonable guesses. We don't need a
perfect model just some reasonable bloom filter size that we're pretty
sure will usually help more than it hurts.
This would help out a lot of things, really.. Perhaps what Tomas is
developing regarding test cases would help here also.
Thanks,
Stephen
On 6.7.2014 06:47, Stephen Frost wrote:
* Greg Stark (stark@mit.edu) wrote:
Last time was we wanted to use bloom filters in hash joins to
filter out tuples that won't match any of the future hash batches
to reduce the amount of tuples that need to be spilled to disk.
However the problem was that it was unclear for a given amount of
memory usage how to pick the right size bloom filter and how to
model how much it would save versus how much it would cost in
reduced hash table size.Right. There's only one hash function available, really, (we don't
currently support multiple hash functions..), unless we want to try
and re-hash the 32bit hash value that we get back (not against trying
that, but it isn't what I'd start with) and it would hopefully be
sufficient for this.
I don't really see a need to add more hashing functions. Use the hash
value itself as an input to the bloom filter seems just fine to me.
According to [1]https://www.cs.duke.edu/courses/cps102/spring10/Lectures/L-18.pdf the expected number of collisions is
n - k + k * math.pow((1 - 1/k), n)
where 'k' is the number of possible values (2^32 in our case), and 'n'
is the number of inserts (i.e. values inserted into the table). With a
1GB work_mem and ~50B per row, that's ~20M rows. According to the
formula, that's ~50k collisions. In other words, 0.25% of false
positives. This seems more than sufficient for the bloom filter, and if
0.25% of false positives causes it to be inefficient I'd say the gains
are not that great anyway. (Unless my calculations are somehow flawed,
of course).
[1]: https://www.cs.duke.edu/courses/cps102/spring10/Lectures/L-18.pdf
I think it just required some good empirical tests and hash join
heavy workloads to come up with some reasonable guesses. We don't
need a perfect model just some reasonable bloom filter size that
we're pretty sure will usually help more than it hurts.This would help out a lot of things, really.. Perhaps what Tomas is
developing regarding test cases would help here also.
The test cases might be reused I guess. However I still don't have a
clear idea of how exactly the bloom filter would be implemented. In the
threads I found it was suggested to use per-bucket filtersm, which seems
really strange to me. I see two options:
(a) global filter
- bloom filter sized according to estimates from planner
- ... so we're screwed if the estimates are significantly wrong
- create the filter in ExecHashTableCreate
- insert all tuples in ExecHashTableInsert (all batches)
(b) per-batch filter
- may be built after the batching is completed
- we have reliable numbers at this point (not just estimates)
- per-batch filters may be smaller (only fraction of tuples)
So the per-batch filter seems to be a better approach. The question is
the sizing of the bloom filter. According to [2]http://corte.si/posts/code/bloom-filter-rules-of-thumb/index.html there are three rules
of thumb for sizing bloom filters:
(1) 1B per item, to get 2% error rate
(2) 0.7 * bits of hash functions (~5 when using 1B / item)
(3) number of hashes dominates the performance (more to compute,
more memory accesses)
When working with 20M rows, this means ~20MB and 5 hash functions. Not
that bad, although we don't know how expensive it's to build the filter.
[2]: http://corte.si/posts/code/bloom-filter-rules-of-thumb/index.html
However this is somewhat flawed because this assumes the 20M hashed
values are distinct, so if the inner table contains duplicate keys, we
might use smaller bloom filter. But we don't know that value (ndistinct
estimates are rather unreliable, but we might use hyperloglog counter to
do this).
Also, there are cases when we know there will be no misses (e.g. a join
on a FK), and in that case it's pointless to build the bloom filter.
Would be nice to get some flag from the planner whether to build it, a
threshold when to build it (e.g. if rowcount is > 10k, build the filter).
Doing something similar for the two patches I posted (tweaking the
nbuckets dynamically) might also benefit from such planning information,
although it's not that critical for them.
regards
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
Tomas,
* Tomas Vondra (tv@fuzzy.cz) wrote:
I can't find the thread / test cases in the archives. I've found this
thread in hackers:/messages/by-id/CAOeZVif-R-iLF966wEipk5By-KhzVLOqpWqurpaK3p5fYw-Rdw@mail.gmail.com
Can you point me to the right one, please?
This:
/messages/by-id/20130328235627.GV4361@tamriel.snowman.net
and I think there may have been other test cases on that thread
somewhere... I certainly recall having at least a couple of them that I
was playing with.
I can probably find them around here somewhere too, if necessary.
Thanks,
Stephen
On 6.7.2014 17:57, Stephen Frost wrote:
Tomas,
* Tomas Vondra (tv@fuzzy.cz) wrote:
I can't find the thread / test cases in the archives. I've found this
thread in hackers:/messages/by-id/CAOeZVif-R-iLF966wEipk5By-KhzVLOqpWqurpaK3p5fYw-Rdw@mail.gmail.com
Can you point me to the right one, please?
This:
Sadly, the link to the SQL does not work :-(
http://snowman.net/~sfrost/test_case.sql => 404
and I think there may have been other test cases on that thread
somewhere... I certainly recall having at least a couple of them that I
was playing with.I can probably find them around here somewhere too, if necessary.
If you could look for them, that'd be great.
regards
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On Wed, Jul 2, 2014 at 8:13 PM, Tomas Vondra <tv@fuzzy.cz> wrote:
I propose dynamic increase of the nbuckets (up to NTUP_PER_BUCKET=1)
once the table is built and there's free space in work_mem. The patch
mentioned above makes implementing this possible / rather simple.
Another idea would be to start with NTUP_PER_BUCKET=1 and then, if we
run out of memory, increase NTUP_PER_BUCKET. I'd like to think that
the common case is that work_mem will be large enough that everything
fits; and if you do it that way, then you save yourself the trouble of
rehashing later, which as you point out might lose if there are only a
few probes. If it turns out that you run short of memory, you can
merge pairs of buckets up to three times, effectively doubling
NTUP_PER_BUCKET each time.
Yet another idea is to stick with your scheme, but do the dynamic
bucket splits lazily. Set a flag on each bucket indicating whether or
not it needs a lazy split. When someone actually probes the hash
table, if the flag is set for a particular bucket, move any tuples
that don't belong as we scan the bucket. If we reach the end of the
bucket chain, clear the flag.
Not sure either of these are better (though I kind of like the first
one) but I thought I'd throw them out there...
--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On 8 Červenec 2014, 14:49, Robert Haas wrote:
On Wed, Jul 2, 2014 at 8:13 PM, Tomas Vondra <tv@fuzzy.cz> wrote:
I propose dynamic increase of the nbuckets (up to NTUP_PER_BUCKET=1)
once the table is built and there's free space in work_mem. The patch
mentioned above makes implementing this possible / rather simple.Another idea would be to start with NTUP_PER_BUCKET=1 and then, if we
run out of memory, increase NTUP_PER_BUCKET. I'd like to think that
the common case is that work_mem will be large enough that everything
fits; and if you do it that way, then you save yourself the trouble of
rehashing later, which as you point out might lose if there are only a
few probes. If it turns out that you run short of memory, you can
merge pairs of buckets up to three times, effectively doubling
NTUP_PER_BUCKET each time.
Maybe. I'm not against setting NTUP_PER_BUCKET=1, but with large outer
relations it may be way cheaper to use higher NTUP_PER_BUCKET values
instead of increasing the number of batches (resulting in repeated scans
of the outer table). I think it's important (but difficult) to keep these
things somehow balanced.
With large work_mem values the amount of memory for buckets may be quite
significant. E.g. 800MB work_mem may easily give ~120MB of memory taken by
buckets with NTUP_PER_BUCKET=1. With NTUP_PER_BUCKET=4 it's just ~30MB.
Yet another idea is to stick with your scheme, but do the dynamic
bucket splits lazily. Set a flag on each bucket indicating whether or
not it needs a lazy split. When someone actually probes the hash
table, if the flag is set for a particular bucket, move any tuples
that don't belong as we scan the bucket. If we reach the end of the
bucket chain, clear the flag.
I don't think a lazy scheme makes much sense here. There are two clearly
separated phases - loading the table and search.
Also, it seems to me it can't work as described. Say we build a table and
then find out we need a table 4x the size. If I understand your proposal
correctly, you'd just resize buckets array, copy the existing buckets
(first 1/4 buckets) and set 'needs_split' flags. Correct?
Well, the problem is that while scanning a bucket you already need to know
which tuples belong there. But with the lazy approach, the tuples might
still be in the old (not yet split) buckets. So you'd have to search the
current bucket and all buckets that were not split yet. Or did I miss
something?
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On Tue, Jul 8, 2014 at 9:35 AM, Tomas Vondra <tv@fuzzy.cz> wrote:
On 8 Červenec 2014, 14:49, Robert Haas wrote:
On Wed, Jul 2, 2014 at 8:13 PM, Tomas Vondra <tv@fuzzy.cz> wrote:
I propose dynamic increase of the nbuckets (up to NTUP_PER_BUCKET=1)
once the table is built and there's free space in work_mem. The patch
mentioned above makes implementing this possible / rather simple.Another idea would be to start with NTUP_PER_BUCKET=1 and then, if we
run out of memory, increase NTUP_PER_BUCKET. I'd like to think that
the common case is that work_mem will be large enough that everything
fits; and if you do it that way, then you save yourself the trouble of
rehashing later, which as you point out might lose if there are only a
few probes. If it turns out that you run short of memory, you can
merge pairs of buckets up to three times, effectively doubling
NTUP_PER_BUCKET each time.Maybe. I'm not against setting NTUP_PER_BUCKET=1, but with large outer
relations it may be way cheaper to use higher NTUP_PER_BUCKET values
instead of increasing the number of batches (resulting in repeated scans
of the outer table). I think it's important (but difficult) to keep these
things somehow balanced.
Right, I think that's clear. I'm just pointing out that you get to
decide: you can either start with a larger NTUP_PER_BUCKET and then
reduce it if you enough memory left, or you can start with a smaller
NTUP_PER_BUCKET and then increase it if you run short of memory.
Yet another idea is to stick with your scheme, but do the dynamic
bucket splits lazily. Set a flag on each bucket indicating whether or
not it needs a lazy split. When someone actually probes the hash
table, if the flag is set for a particular bucket, move any tuples
that don't belong as we scan the bucket. If we reach the end of the
bucket chain, clear the flag.I don't think a lazy scheme makes much sense here. There are two clearly
separated phases - loading the table and search.Also, it seems to me it can't work as described. Say we build a table and
then find out we need a table 4x the size. If I understand your proposal
correctly, you'd just resize buckets array, copy the existing buckets
(first 1/4 buckets) and set 'needs_split' flags. Correct?Well, the problem is that while scanning a bucket you already need to know
which tuples belong there. But with the lazy approach, the tuples might
still be in the old (not yet split) buckets. So you'd have to search the
current bucket and all buckets that were not split yet. Or did I miss
something?
If you have, say, bucket 0..63 and you decide to change it to buckets
0..255, then any tuple that isn't in bucket N has to be in bucket N %
64. More generally, any time you expand or contract by a power of two
it's pretty easy to figure out where tuples have to go.
But even if you do something that's not a power of two, like say a 10x
compaction of the buckets, there's still only two buckets that can
contain any particular hash value. If the hash value is H, the old
number of buckets is O, and the new number of buckets is N, then the
tuple has got to be in bucket H % O or bucket H % N. If bucket H % O
doesn't have the needs-split flag set, then it must be in H % N (if it
exists at all).
--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On 8 Červenec 2014, 16:16, Robert Haas wrote:
On Tue, Jul 8, 2014 at 9:35 AM, Tomas Vondra <tv@fuzzy.cz> wrote:
Maybe. I'm not against setting NTUP_PER_BUCKET=1, but with large outer
relations it may be way cheaper to use higher NTUP_PER_BUCKET values
instead of increasing the number of batches (resulting in repeated scans
of the outer table). I think it's important (but difficult) to keep
these
things somehow balanced.Right, I think that's clear. I'm just pointing out that you get to
decide: you can either start with a larger NTUP_PER_BUCKET and then
reduce it if you enough memory left, or you can start with a smaller
NTUP_PER_BUCKET and then increase it if you run short of memory.
I don't think those two approaches are equal.
With the approach I took, I can use a compromise value (NTUP=4) initially,
and only resize the hash table once at the end (while keeping the amount
of memory under work_mem all the time).
With the "NTUP=1 and increase in case of memory pressure" you have to
shrink the table immediately (to fit into work_mem), and if the hash table
gets split into multiple batches you're suddenly in a situation with lower
memory pressure and you may need to increase it again.
Yet another idea is to stick with your scheme, but do the dynamic
bucket splits lazily. Set a flag on each bucket indicating whether or
not it needs a lazy split. When someone actually probes the hash
table, if the flag is set for a particular bucket, move any tuples
that don't belong as we scan the bucket. If we reach the end of the
bucket chain, clear the flag.I don't think a lazy scheme makes much sense here. There are two clearly
separated phases - loading the table and search.Also, it seems to me it can't work as described. Say we build a table
and
then find out we need a table 4x the size. If I understand your proposal
correctly, you'd just resize buckets array, copy the existing buckets
(first 1/4 buckets) and set 'needs_split' flags. Correct?Well, the problem is that while scanning a bucket you already need to
know
which tuples belong there. But with the lazy approach, the tuples might
still be in the old (not yet split) buckets. So you'd have to search the
current bucket and all buckets that were not split yet. Or did I miss
something?If you have, say, bucket 0..63 and you decide to change it to buckets
0..255, then any tuple that isn't in bucket N has to be in bucket N %
64. More generally, any time you expand or contract by a power of two
it's pretty easy to figure out where tuples have to go.
OK.
But even if you do something that's not a power of two, like say a 10x
compaction of the buckets, there's still only two buckets that can
contain any particular hash value. If the hash value is H, the old
number of buckets is O, and the new number of buckets is N, then the
tuple has got to be in bucket H % O or bucket H % N. If bucket H % O
doesn't have the needs-split flag set, then it must be in H % N (if it
exists at all).
I wonder if this is really worth the effort - my guess is it's efficient
only if large portion of buckets is not visited (and thus does not need to
be split) at all. Not sure how common that is (our workloads certainly are
not like that).
regards
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On Tue, Jul 8, 2014 at 12:06 PM, Tomas Vondra <tv@fuzzy.cz> wrote:
On 8 Červenec 2014, 16:16, Robert Haas wrote:
On Tue, Jul 8, 2014 at 9:35 AM, Tomas Vondra <tv@fuzzy.cz> wrote:
Maybe. I'm not against setting NTUP_PER_BUCKET=1, but with large outer
relations it may be way cheaper to use higher NTUP_PER_BUCKET values
instead of increasing the number of batches (resulting in repeated scans
of the outer table). I think it's important (but difficult) to keep
these
things somehow balanced.Right, I think that's clear. I'm just pointing out that you get to
decide: you can either start with a larger NTUP_PER_BUCKET and then
reduce it if you enough memory left, or you can start with a smaller
NTUP_PER_BUCKET and then increase it if you run short of memory.I don't think those two approaches are equal.
With the approach I took, I can use a compromise value (NTUP=4) initially,
and only resize the hash table once at the end (while keeping the amount
of memory under work_mem all the time).With the "NTUP=1 and increase in case of memory pressure" you have to
shrink the table immediately (to fit into work_mem), and if the hash table
gets split into multiple batches you're suddenly in a situation with lower
memory pressure and you may need to increase it again.
True. On the other hand, this really only comes into play when the
estimates are wrong. If you know at the start how many tuples you're
going to need to store and how big they are, you determine whether
NTUP_PER_BUCKET=1 is going to work before you even start building the
hash table. If it isn't, then you use fewer buckets right from the
start. If we start by estimating a small value for NTUP_PER_BUCKET
and then let it float upward if we turn out to have more tuples than
expected, we're optimizing for the case where our statistics are
right. If we start by estimating a larger value for NTUP_PER_BUCKET
than what we think we need to fit within work_mem, we're basically
guessing that our statistics are more likely to be wrong than to be
right. I think.
I wonder if this is really worth the effort - my guess is it's efficient
only if large portion of buckets is not visited (and thus does not need to
be split) at all. Not sure how common that is (our workloads certainly are
not like that).
Yeah. It may be a bad idea. I threw it out there as a possible way
of trying to mitigate the worst case, which is when you trouble to
build the hash table and then make very few probes. But that may not
be worth the complexity that this would introduce.
--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On 8.7.2014 19:00, Robert Haas wrote:
On Tue, Jul 8, 2014 at 12:06 PM, Tomas Vondra <tv@fuzzy.cz> wrote:
On 8 Červenec 2014, 16:16, Robert Haas wrote:
Right, I think that's clear. I'm just pointing out that you get
to decide: you can either start with a larger NTUP_PER_BUCKET and
then reduce it if you enough memory left, or you can start with a
smaller NTUP_PER_BUCKET and then increase it if you run short of
memory.I don't think those two approaches are equal.
With the approach I took, I can use a compromise value (NTUP=4)
initially, and only resize the hash table once at the end (while
keeping the amount of memory under work_mem all the time).With the "NTUP=1 and increase in case of memory pressure" you have
to shrink the table immediately (to fit into work_mem), and if the
hash table gets split into multiple batches you're suddenly in a
situation with lower memory pressure and you may need to increase
it again.True. On the other hand, this really only comes into play when the
estimates are wrong. If you know at the start how many tuples you're
going to need to store and how big they are, you determine whether
NTUP_PER_BUCKET=1 is going to work before you even start building
the hash table. If it isn't, then you use fewer buckets right from
the start. If we start by estimating a small value for
NTUP_PER_BUCKET and then let it float upward if we turn out to have
more tuples than expected, we're optimizing for the case where our
statistics are right. If we start by estimating a larger value for
NTUP_PER_BUCKET than what we think we need to fit within work_mem,
we're basically guessing that our statistics are more likely to be
wrong than to be right. I think.
Good point. The fist patch was targetted exactly at the wrongly
estimated queries. This patch attempts to apply the rehash to all plans,
and maybe there's a better way.
If the estimates are correct / not too off, we can use this information
to do the sizing 'right' at the beginning (without facing rehashes later).
Over-estimates are not a problem, because it won't make the hash table
slower (it'll be sized for more tuples) and we can't change the number
of batches anyway.
With under-estimates we have to decide whether to resize the hash or
increase the number of batches.
In both cases that matter (correct estimates and under-estimates) we
have to decide whether to increase the number of buckets or batches. I'm
not sure how to do that.
I wonder if this is really worth the effort - my guess is it's
efficient only if large portion of buckets is not visited (and
thus does not need to be split) at all. Not sure how common that is
(our workloads certainly are not like that).Yeah. It may be a bad idea. I threw it out there as a possible way of
trying to mitigate the worst case, which is when you trouble to build
the hash table and then make very few probes. But that may not be
worth the complexity that this would introduce.
Let's keep it simple for now. I think the sizing question (explained
above) is more important and needs to be solved first.
regards
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
On Tue, Jul 8, 2014 at 6:35 AM, Tomas Vondra <tv@fuzzy.cz> wrote:
On 8 Červenec 2014, 14:49, Robert Haas wrote:
On Wed, Jul 2, 2014 at 8:13 PM, Tomas Vondra <tv@fuzzy.cz> wrote:
I propose dynamic increase of the nbuckets (up to NTUP_PER_BUCKET=1)
once the table is built and there's free space in work_mem. The patch
mentioned above makes implementing this possible / rather simple.Another idea would be to start with NTUP_PER_BUCKET=1 and then, if we
run out of memory, increase NTUP_PER_BUCKET. I'd like to think that
the common case is that work_mem will be large enough that everything
fits; and if you do it that way, then you save yourself the trouble of
rehashing later, which as you point out might lose if there are only a
few probes. If it turns out that you run short of memory, you can
merge pairs of buckets up to three times, effectively doubling
NTUP_PER_BUCKET each time.Maybe. I'm not against setting NTUP_PER_BUCKET=1, but with large outer
relations it may be way cheaper to use higher NTUP_PER_BUCKET values
instead of increasing the number of batches (resulting in repeated scans
of the outer table). I think it's important (but difficult) to keep these
things somehow balanced.With large work_mem values the amount of memory for buckets may be quite
significant. E.g. 800MB work_mem may easily give ~120MB of memory taken by
buckets with NTUP_PER_BUCKET=1. With NTUP_PER_BUCKET=4 it's just ~30MB.
That extra 90MB is memory well spent, in my book. Versus having to walk a
4-deep linked list which is scattered all over main memory just to find one
entry we care about in it.
It might cause some things that were very close to the edge to tip over
into multi-pass hash joins, but even that is not necessarily a bad thing.
(When I test with work_mem in the 20 to 50 MB range, I often find
batches=2 be ~30% faster than batches=1, I think because partitioning into
main memory using sequential writes is not much of a burden, and building
and walking two hash tables that both fit in L3 cache is much faster than
building 1 hash table in main memory, and more than makes up for the work
of partitioning. Presumably that situation doesn't apply to work_mem
900MB, but isn't NUMA about the same thing as L4 cache, in effect?).
And if someone had a whole bunch of hash joins which were right in that
anti-sweet spot, all they have to do is increase work_mem by (at most) 15%
to get out of it. work_mem is basically impossible to tune, so I doubt
anyone exists who has a reasonable setting for it which can' be increased
by 15% and still be reasonable. And if someone does have it tuned so
tightly, they probably won't be upgrading to new major versions without
expecting to do some re-tuning.
Cheers,
Jeff
On 8.7.2014 21:53, Jeff Janes wrote:
On Tue, Jul 8, 2014 at 6:35 AM, Tomas Vondra <tv@fuzzy.cz> wrote:
Maybe. I'm not against setting NTUP_PER_BUCKET=1, but with large
outer relations it may be way cheaper to use higher NTUP_PER_BUCKET
values instead of increasing the number of batches (resulting in
repeated scans of the outer table). I think it's important (but
difficult) to keep these things somehow balanced.With large work_mem values the amount of memory for buckets may be
quite significant. E.g. 800MB work_mem may easily give ~120MB of
memory taken by buckets with NTUP_PER_BUCKET=1. With
NTUP_PER_BUCKET=4 it's just ~30MB.That extra 90MB is memory well spent, in my book. Versus having to
walk a 4-deep linked list which is scattered all over main memory
just to find one entry we care about in it.
Yes, I share this view, although it really depends on how expensive it's
to rescan the outer relation (due to more batches) vs. lookup in a
"deeper" hash table.
The other thing is that this memory is currently unaccounted for, i.e.
the space for buckets is not counted within the work_mem limit (unless
I'm missing something in the code). I'm not sure why, and I believe it
should be, so I changer this in the patch.
It might cause some things that were very close to the edge to tip
over into multi-pass hash joins, but even that is not necessarily a
bad thing. (When I test with work_mem in the 20 to 50 MB range, I
often find batches=2 be ~30% faster than batches=1, I think because
partitioning into main memory using sequential writes is not much of
a burden, and building and walking two hash tables that both fit in
L3 cache is much faster than building 1 hash table in main memory,
and more than makes up for the work of partitioning. Presumably that
situation doesn't apply to work_mem 900MB, but isn't NUMA about the
same thing as L4 cache, in effect?).
Yes, I've seen cases where plans with (nbatch>1) were faster than a plan
with (nbatch=1). I'm not entirely sure why :-( but I have two hypotheses
so far:
(a) Caching within CPU (current CPUs have multiple MBs of L2 cache),
which may make a difference, especially in the size range you've
mentioned.
(b) Lower tuple/bucket ratio - this may easily happen for example if
the estimates are slighly lower than reality (either row count or
row width) and narrowly exceed work_mem, thus forcing batching.
The resulting hash table has ~50% tuple/bucket on average, and
thus is faster.
And if someone had a whole bunch of hash joins which were right in
that anti-sweet spot, all they have to do is increase work_mem by (at
most) 15% to get out of it. work_mem is basically impossible to tune,
so I doubt anyone exists who has a reasonable setting for it which
can' be increased by 15% and still be reasonable. And if someone does
have it tuned so tightly, they probably won't be upgrading to new
major versions without expecting to do some re-tuning.
Right. Still, it's not really nice to get slower hash joins after
upgrading to a new version - I somehow expect to get the same or better
performance, if possible. So I'd like to make it as efficient as
possible, within the given memory limit.
Sadly, the increase may be needed anyway because of counting the bucket
memory into work_mem, as mentioned above. If committed, this should be
probably mentioned in release notes or something.
regards
Tomas
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
Hi,
Thinking about this a bit more, do we really need to build the hash
table on the first pass? Why not to do this:
(1) batching
- read the tuples, stuff them into a simple list
- don't build the hash table yet
(2) building the hash table
- we have all the tuples in a simple list, batching is done
- we know exact row count, can size the table properly
- build the table
Also, maybe we could use a regular linear hash table [1]http://en.wikipedia.org/wiki/Linear_probing, instead of
using the current implementation with NTUP_PER_BUCKET=1. (Although,
that'd be absolutely awful with duplicates.)
regards
Tomas
[1]: http://en.wikipedia.org/wiki/Linear_probing
--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
