POC, WIP: OR-clause support for indexes

Hi, Teodor,

This is great. I got a question, is it possible make btree index to
support OR as well? Is btree supports more invasive, in the sense that we
need to do enhance ScanKey to supports an array of values?

Thanks,
Feng

On Sat, Dec 26, 2015 at 10:04 AM, Teodor Sigaev <teodor@sigaev.ru> wrote:

This is great. I got a question, is it possible make btree index to support OR
as well? Is btree supports more invasive, in the sense that we need to do
enhance ScanKey to supports an array of values?

Btree now works by follow: find the max/min tuple which satisfies condtions and
then executes forward/backward scan over leaf pages. For complicated clauses
it's not obvious how to find min/max tuple. Scanning whole index isn't an option
from preformance point of view.

--
Teodor Sigaev E-mail: teodor@sigaev.ru
WWW: http://www.sigaev.ru/

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On 27 December 2015 at 07:04, Teodor Sigaev <teodor@sigaev.ru> wrote:

I'd like to present OR-clause support for indexes. Although OR-clauses
could be supported by bitmapOR index scan it isn't very effective and such
scan lost any order existing in index. We (with Alexander Korotkov)
presented results on Vienna's conference this year. In short, it provides
performance improvement:

EXPLAIN ANALYZE
SELECT count(*) FROM tst WHERE id = 5 OR id = 500 OR id = 5000;
me=0.080..0.267 rows=173 loops=1)
Recheck Cond: ((id = 5) OR (id = 500) OR (id = 5000))
Heap Blocks: exact=172
-> Bitmap Index Scan on idx_gin (cost=0.00..57.50 rows=15000
width=0) (actual time=0.059..0.059 rows=147 loops=1)
Index Cond: ((id = 5) OR (id = 500) OR (id = 5000))
Planning time: 0.077 ms
Execution time: 0.308 ms <-------
QUERY PLAN

-----------------------------------------------------------------------------------------------------------------------------------
Aggregate (cost=51180.53..51180.54 rows=1 width=0) (actual
time=796.766..796.766 rows=1 loops=1)
-> Index Only Scan using idx_btree on tst (cost=0.42..51180.40
rows=55 width=0) (actual time=0.444..796.736 rows=173 loops=1)
Filter: ((id = 5) OR (id = 500) OR (id = 5000))
Rows Removed by Filter: 999829
Heap Fetches: 1000002
Planning time: 0.087 ms
Execution time: 796.798 ms <------
QUERY PLAN

-------------------------------------------------------------------------------------------------------------
Aggregate (cost=21925.63..21925.64 rows=1 width=0) (actual
time=160.412..160.412 rows=1 loops=1)
-> Seq Scan on tst (cost=0.00..21925.03 rows=237 width=0) (actual
time=0.535..160.362 rows=175 loops=1)
Filter: ((id = 5) OR (id = 500) OR (id = 5000))
Rows Removed by Filter: 999827
Planning time: 0.459 ms
Execution time: 160.451 ms

It also could work together with KNN feature of GiST and in this case
performance improvement could be up to several orders of magnitude, in
artificial example it was 37000 times faster.

Not all indexes can support oR-clause, patch adds support to GIN, GiST
and BRIN indexes. pg_am table is extended for adding amcanorclause column
which indicates possibility of executing of OR-clause by index.

indexqual and indexqualorig doesn't contain implicitly-ANDed list of
index qual expressions, now that lists could contain OR RestrictionInfo.
Actually, the patch just tries to convert BitmapOr node to IndexScan or
IndexOnlyScan. Thats significantly simplifies logic to find possible
clause's list for index.
Index always gets a array of ScanKey but for indexes which support
OR-clauses
array of ScanKey is actually exection tree in reversed polish notation
form. Transformation is done in ExecInitIndexScan().

The problems on the way which I see for now:
1 Calculating cost. Right now it's just a simple transformation of costs
computed for BitmapOr path. I'd like to hope that's possible and so index's
estimation function could be non-touched. So, they could believe that all
clauses are implicitly-ANDed
2 I'd like to add such support to btree but it seems that it should be a
separated patch. Btree search algorithm doesn't use any kind of stack of
pages and algorithm to walk over btree doesn't clear for me for now.
3 I could miss some places which still assumes implicitly-ANDed list of
clauses although regression tests passes fine.

Hope, hackers will not have an strong objections to do that. But obviously
patch
requires further work and I'd like to see comments, suggestions and
recommendations. Thank you.

Hi,

I'd like to see comments too! but more so in the code. :) I've had a look
over this, and it seems like a great area in which we could improve on, and
your reported performance improvements are certainly very interesting too.
However I'm finding the code rather hard to follow, which might be a
combination of my lack of familiarity with the index code, but more likely
it's the lack of comments to explain what's going on. Let's just take 1
function as an example:

Here there's not a single comment, so I'm just going to try to work out
what's going on based on the code.

+static void
+compileScanKeys(IndexScanDesc scan)
+{
+ GISTScanOpaque so = (GISTScanOpaque) scan->opaque;
+ int *stack,
+ stackPos = -1,
+ i;
+
+ if (scan->numberOfKeys <= 1 || so->useExec == false)
+ return;
+
+ Assert(scan->numberOfKeys >=3);

Why can numberOfKeys never be 2? I looked at what calls this and I can't
really work it out. I'm really also not sure what useExec means as there's
no comment in that struct member, and what if numberOfKeys == 1 and useExec
== false, won't this Assert() fail? If that's not a possible situation then
why not?

+
+ if (so->leftArgs != NULL)
+ return;
+
+ so->leftArgs = MemoryContextAlloc(so->giststate->scanCxt,
+  sizeof(*so->leftArgs) * scan->numberOfKeys);
+ so->rightArgs = MemoryContextAlloc(so->giststate->scanCxt,
+   sizeof(*so->rightArgs) * scan->numberOfKeys);
+
+ stack = palloc(sizeof(*stack) * scan->numberOfKeys);
+
+ for(i=0; i<scan->numberOfKeys; i++)
+ {
+ ScanKey     key = scan->keyData + i;

Is there a reason not to use keyData[i]; ?

+
+ if (stackPos >= 0 && (key->sk_flags & (SK_OR | SK_AND)))
+ {
+ Assert(stackPos >= 1 && stackPos < scan->numberOfKeys);

stackPos >= 1? This seems unnecessary and confusing as the if test surely
makes that impossible.
+
+ so->leftArgs[i] = stack[stackPos - 1];

Something is broken here as stackPos can be 0 (going by the if() not the
Assert()), therefore that's stack[-1].

+ so->rightArgs[i] = stack[stackPos];
+ stackPos--;
+ }
+ else
+ {
+ stackPos++;
+ }
+

stackPos is initialised to -1, so this appears to always skip the first
element of the keyData array. If that's really the intention, then wouldn't
it be better to just make the initial condition of the for() look i = 1 ?

+ stack[stackPos] = i;
+ }
+
+ Assert(stackPos == 0);
+ pfree(stack);
+}

I'd like to review more, but it feels like a job that's more difficult than
it needs to be due to lack of comments.

Would it be possible to update the patch to try and explain things a little
better?

Many thanks

David

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

I think this is very exciting stuff, but since you didn't submit an
updated patch after David's review, I'm closing it for now as
returned-with-feedback. Please submit a new version once you have it.

--
�lvaro Herrera http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

Thank you for review!

I'd like to see comments too! but more so in the code. :) I've had a look over
this, and it seems like a great area in which we could improve on, and your
reported performance improvements are certainly very interesting too. However
I'm finding the code rather hard to follow, which might be a combination of my
lack of familiarity with the index code, but more likely it's the lack of

I've added comments, fixed a found bugs.

comments to explain what's going on. Let's just take 1 function as an example:

Here there's not a single comment, so I'm just going to try to work out what's
going on based on the code.

+static void
+compileScanKeys(IndexScanDesc scan)
+{
+GISTScanOpaqueso = (GISTScanOpaque) scan->opaque;
+int*stack,
+stackPos = -1,
+i;
+
+if (scan->numberOfKeys <= 1 || so->useExec == false)
+return;
+
+Assert(scan->numberOfKeys >=3);

Why can numberOfKeys never be 2? I looked at what calls this and I can't really

Because here they are actually an expression, expression could contain 1 or tree
or more nodes but could not two (operation AND/OR plus two arguments)

work it out. I'm really also not sure what useExec means as there's no comment

fixed. If useExec == false then SkanKeys are implicitly ANDed and stored in just
array.

in that struct member, and what if numberOfKeys == 1 and useExec == false, won't
this Assert() fail? If that's not a possible situation then why not?

fixed

+ScanKey key = scan->keyData + i;
Is there a reason not to use keyData[i]; ?

That's the same ScanKey key = &scan->keyData[i];
I prefer first form as more clear but I could be wrong - but there are other
places in code where pointer arithmetic is used.

+if (stackPos >= 0 && (key->sk_flags & (SK_OR | SK_AND)))
+{
+Assert(stackPos >= 1 && stackPos < scan->numberOfKeys);
stackPos >= 1? This seems unnecessary and confusing as the if test surely makes
that impossible.

+
+so->leftArgs[i] = stack[stackPos - 1];
Something is broken here as stackPos can be 0 (going by the if() not the
Assert()), therefore that's stack[-1].

fixed

stackPos is initialised to -1, so this appears to always skip the first element
of the keyData array. If that's really the intention, then wouldn't it be better
to just make the initial condition of the for() look i = 1 ?

done

I'd like to review more, but it feels like a job that's more difficult than it
needs to be due to lack of comments.

Would it be possible to update the patch to try and explain things a little better?

Hope, I made cleaner..

--
Teodor Sigaev E-mail: teodor@sigaev.ru
WWW: http://www.sigaev.ru/

Hi Teodor,

I've looked into v2 of the patch you sent a few days ago. Firstly, I
definitely agree that being able to use OR conditions with an index is
definitely a cool idea.

I do however agree with David that the patch would definitely benefit
from comments documenting various bits that are less obvious to mere
mortals like me, with limited knowledge of the index internals.

I also wonder whether the patch should add explanation of OR-clauses
handling into the READMEs in src/backend/access/*

The patch would probably benefit from transforming it into a patch
series - one patch for the infrastructure shared by all the indexes,
then one patch per index type. That should make it easier to review, and
I seriously doubt we'd want to commit this in one huge chunk anyway.

Now, some review comments from eyeballing the patch. Some of those are
nitpicking, but well ...

1) fields in BrinOpaque are not following the naming convention (all the
existing fields start with bo_)

2) there's plenty of places violating the usual code style (e.g. for
single-command if branches) - not a big deal for WIP patch, but needs to
get fixed eventually

3) I wonder whether we really need both SK_OR and SK_AND, considering
they are mutually exclusive. Why not to assume SK_AND by default, and
only use SK_OR? If we really need them, perhaps an assert making sure
they are not set at the same time would be appropriate.

4) scanGetItem is a prime example of the "badly needs comments" issue,
particularly because the previous version of the function actually had
quite a lot of them while the new function has none.

5) scanGetItem() may end up using uninitialized 'cmp' - it only gets
initialized when (!leftFinished && !rightFinished), but then gets used
when either part of the condition evaluates to true. Probably should be

if (!leftFinished || !rightFinished)
cmp = ...

6) the code in nodeIndexscan.c should not include call to abort()

{
abort();
elog(ERROR, "unsupported indexqual type: %d",
(int) nodeTag(clause));
}

7) I find it rather ugly that the paths are built by converting BitmapOr
paths. Firstly, it means indexes without amgetbitmap can't benefit from
this change. Maybe that's reasonable limitation, though?

But more importantly, this design already has a bunch of unintended
consequences. For example, the current code completely ignores
enable_indexscan setting, because it merely copies the costs from the
bitmap path.

SET enable_indexscan = off;
EXPLAIN SELECT * FROM t WHERE (c && ARRAY[1] OR c && ARRAY[2]);

QUERY PLAN
-------------------------------------------------------------------
Index Scan using t_c_idx on t (cost=0.00..4.29 rows=0 width=33)
Index Cond: ((c && '{1}'::integer[]) OR (c && '{2}'::integer[]))
(2 rows)

That's pretty dubious, I guess. So this code probably needs to be made
aware of enable_indexscan - right now it entirely ignores startup_cost
in convert_bitmap_path_to_index_clause(). But of course if there are
multiple IndexPaths, the enable_indexscan=off will be included multiple
times.

9) This already breaks estimation for some reason. Consider this
example, using a table with int[] column, with gist index built using
intarray:

EXPLAIN SELECT * FROM t WHERE (c && ARRAY[1,2,3,4,5,6,7]);

QUERY PLAN
--------------------------------------------------------------------
Index Scan using t_c_idx on t (cost=0.28..52.48 rows=12 width=33)
Index Cond: (c && '{1,2,3,4,5,6,7}'::integer[])
(2 rows)

EXPLAIN SELECT * FROM t WHERE (c && ARRAY[8,9,10,11,12,13,14]);

QUERY PLAN
--------------------------------------------------------------------
Index Scan using t_c_idx on t (cost=0.28..44.45 rows=10 width=33)
Index Cond: (c && '{8,9,10,11,12,13,14}'::integer[])
(2 rows)

EXPLAIN SELECT * FROM t WHERE (c && ARRAY[1,2,3,4,5,6,7])
OR (c && ARRAY[8,9,10,11,12,13,14]);

QUERY PLAN
--------------------------------------------------------------------
Index Scan using t_c_idx on t (cost=0.00..4.37 rows=0 width=33)
Index Cond: ((c && '{1,2,3,4,5,6,7}'::integer[])
OR (c && '{8,9,10,11,12,13,14}'::integer[]))
(2 rows)

So the OR-clause is estimated to match 0 rows, less than each of the
clauses independently. Needless to say that without the patch this works
just fine.

10) Also, this already breaks some regression tests, apparently because
it changes how 'width' is computed.

So I think this way of building the index path from a BitmapOr path is
pretty much a dead-end.

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

I also wonder whether the patch should add explanation of OR-clauses
handling into the READMEs in src/backend/access/*

Oops, will add shortly.

The patch would probably benefit from transforming it into a patch
series - one patch for the infrastructure shared by all the indexes,
then one patch per index type. That should make it easier to review, and
I seriously doubt we'd want to commit this in one huge chunk anyway.

Ok, will do it.

1) fields in BrinOpaque are not following the naming convention (all the
existing fields start with bo_)

fixed

2) there's plenty of places violating the usual code style (e.g. for
single-command if branches) - not a big deal for WIP patch, but needs to
get fixed eventually

hope, fixed

3) I wonder whether we really need both SK_OR and SK_AND, considering
they are mutually exclusive. Why not to assume SK_AND by default, and
only use SK_OR? If we really need them, perhaps an assert making sure
they are not set at the same time would be appropriate.

In short: possible ambiguity and increasing stack machine complexity.
Let we have follow expression in reversed polish notation (letters represent a
condtion, | - OR, & - AND logical operation, ANDs are omitted):
a b c |

Is it ((a & b)| c) or (a & (b | c)) ?

Also, using both SK_ makes code more readable.

4) scanGetItem is a prime example of the "badly needs comments" issue,
particularly because the previous version of the function actually had
quite a lot of them while the new function has none.

Will add soon

5) scanGetItem() may end up using uninitialized 'cmp' - it only gets
initialized when (!leftFinished && !rightFinished), but then gets used
when either part of the condition evaluates to true. Probably should be

if (!leftFinished || !rightFinished)
cmp = ...

fixed

6) the code in nodeIndexscan.c should not include call to abort()

{
abort();
elog(ERROR, "unsupported indexqual type: %d",
(int) nodeTag(clause));
}

fixed, just forgot to remove

7) I find it rather ugly that the paths are built by converting BitmapOr
paths. Firstly, it means indexes without amgetbitmap can't benefit from
this change. Maybe that's reasonable limitation, though?

I based on following thoughts:
1 code which tries to find OR-index path will be very similar to existing
generate_or_bitmap code. Obviously, it should not be duplicated.
2 all existsing indexes have amgetbitmap method, only a few don't. amgetbitmap
interface is simpler. Anyway, I can add an option for generate_or_bitmap
to use any index, but, in current state it will just repeat all work.

But more importantly, this design already has a bunch of unintended
consequences. For example, the current code completely ignores
enable_indexscan setting, because it merely copies the costs from the
bitmap path.

I'd like to add separate enable_indexorscan

That's pretty dubious, I guess. So this code probably needs to be made
aware of enable_indexscan - right now it entirely ignores startup_cost
in convert_bitmap_path_to_index_clause(). But of course if there are
multiple IndexPaths, the enable_indexscan=off will be included multiple
times.

9) This already breaks estimation for some reason. Consider this

...

So the OR-clause is estimated to match 0 rows, less than each of the
clauses independently. Needless to say that without the patch this works
just fine.

fixed

10) Also, this already breaks some regression tests, apparently because
it changes how 'width' is computed.

fixed too

So I think this way of building the index path from a BitmapOr path is
pretty much a dead-end.

I don't think so because separate code path to support OR-clause in index will
significanlty duplicate BitmapOr generator.

Will send next version as soon as possible. Thank you for your attention!

--
Teodor Sigaev E-mail: teodor@sigaev.ru
WWW: http://www.sigaev.ru/

I also wonder whether the patch should add explanation of OR-clauses
handling into the READMEs in src/backend/access/*

Not yet, but will

The patch would probably benefit from transforming it into a patch
series - one patch for the infrastructure shared by all the indexes,
then one patch per index type. That should make it easier to review, and
I seriously doubt we'd want to commit this in one huge chunk anyway.

I splitted to two:
1 0001-idx_or_core - only planner and executor changes
2 0002-idx_or_indexes - BRIN/GIN/GiST changes with tests

I don't think that splitting of second patch adds readability but increase
management diffculties, but if your insist I will split.

4) scanGetItem is a prime example of the "badly needs comments" issue,
particularly because the previous version of the function actually had
quite a lot of them while the new function has none.

added

--
Teodor Sigaev E-mail: teodor@sigaev.ru
WWW: http://www.sigaev.ru/

I gave this patch a quick spin and noticed a strange query plan.

CREATE TABLE test (a int, b int, c int);
CREATE INDEX ON test USING gin (a, b, c);
INSERT INTO test SELECT i % 7, i % 9, i % 11 FROM generate_series(1,
1000000) i;
EXPLAIN ANALYZE SELECT * FROM test WHERE (a = 3 OR b = 5) AND c = 2;

QUERY PLAN

----------------------------------------------------------------------------------------------------------------------------------
Bitmap Heap Scan on test (cost=829.45..4892.10 rows=21819 width=12)
(actual time=66.494..76.234 rows=21645 loops=1)
Recheck Cond: ((((a = 3) AND (c = 2)) OR ((b = 5) AND (c = 2))) AND
(c = 2))
Heap Blocks: exact=5406
-> Bitmap Index Scan on test_a_b_c_idx (cost=0.00..824.00
rows=2100 width=0) (actual time=65.272..65.272 rows=21645 loops=1)
Index Cond: ((((a = 3) AND (c = 2)) OR ((b = 5) AND (c = 2)))
AND (c = 2))
Planning time: 0.200 ms
Execution time: 77.206 ms
(7 rows)

Shouldn't the index condition just be "((a = 3) AND (c = 2)) OR ((b = 5)
AND (c = 2))"?

Also when applying and reading the patch I noticed some minor
issues/nitpick.

- I get whitespace warnings from git apply when I apply the patches.
- You have any insconstent style for casts: I think "(Node*)clause"
should be "(Node *) clause".
- Same with pointers. "List* quals" should be "List *quals"
- I am personally not a fan of seeing the "isorderby == false &&
index->rd_amroutine->amcanorclause" clause twice. Feels like a risk for
diverging code paths. But it could be that there is no clean alternative.

Andreas

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

Hi Teodor,

Sadly the v4 does not work for me - I do get assertion failures. For
example with the example Andreas Karlsson posted in this thread:

CREATE EXTENSION btree_gin;
CREATE TABLE test (a int, b int, c int);
CREATE INDEX ON test USING gin (a, b, c);
INSERT INTO test SELECT i % 7, i % 9, i % 11 FROM generate_series(1,
1000000) i;
EXPLAIN ANALYZE SELECT * FROM test WHERE (a = 3 OR b = 5) AND c = 2;

It seems working, but only until I run ANALYZE on the table. Once I do
that, I start getting crashes at this line

*qualcols = list_concat(*qualcols,
list_copy(idx_path->indexqualcols));

in convert_bitmap_path_to_index_clause. Apparently one of the lists is
T_List while the other one is T_IntList, so list_concat() errors out.

My guess is that the T_BitmapOrPath branch should do

oredqualcols = list_concat(oredqualcols, li_qualcols);
...
*qualcols = list_concat(qualcols, oredqualcols);

instead of

oredqualcols = lappend(oredqualcols, li_qualcols);
...
*qualcols = lappend(*qualcols, oredqualcols);

but once I fixed that I got some other assert failures further down,
that I haven't tried to fix.

So the patch seems to be broken, and I suspect this might be related to
the broken index condition reported by Andreas (although I don't see
that - I either see correct condition or assertion failures).

On 03/17/2016 06:19 PM, Teodor Sigaev wrote:
...

7) I find it rather ugly that the paths are built by converting BitmapOr
paths. Firstly, it means indexes without amgetbitmap can't benefit from
this change. Maybe that's reasonable limitation, though?

I based on following thoughts:
1 code which tries to find OR-index path will be very similar to existing
generate_or_bitmap code. Obviously, it should not be duplicated.
2 all existsing indexes have amgetbitmap method, only a few don't.
amgetbitmap
interface is simpler. Anyway, I can add an option for generate_or_bitmap
to use any index, but, in current state it will just repeat all work.

I agree that the code should not be duplicated, but is this really a
good solution. Perhaps a refactoring that'd allow sharing most of the
code would be more appropriate.

But more importantly, this design already has a bunch of unintended
consequences. For example, the current code completely ignores
enable_indexscan setting, because it merely copies the costs from the
bitmap path.

I'd like to add separate enable_indexorscan

That may be useful, but why shouldn't enable_indexscan=off also disable
indexorscan? I would find it rather surprising if after setting
enable_indexscan=off I'd still get index scans for OR-clauses.

That's pretty dubious, I guess. So this code probably needs to be made
aware of enable_indexscan - right now it entirely ignores startup_cost
in convert_bitmap_path_to_index_clause(). But of course if there are
multiple IndexPaths, the enable_indexscan=off will be included multiple
times.

... and it does not address this at all.

I really doubt a costing derived from the bitmap index scan nodes will
make much sense - you essentially need to revert unknown parts of the
costing to only include building the bitmap once, etc.

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

Hi Teador,

On 3/19/16 8:44 PM, Tomas Vondra wrote:

Sadly the v4 does not work for me - I do get assertion failures.

Time is growing short and there seem to be some serious concerns with
this patch. Can you provide a new patch soon? If not, I think it might
be be time to mark this "returned with feedback".

Thanks,
--
-David
david@pgmasters.net

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On 3/25/16 11:13 AM, David Steele wrote:

Time is growing short and there seem to be some serious concerns with
this patch. Can you provide a new patch soon? If not, I think it might
be be time to mark this "returned with feedback".

I have marked this patch "returned with feedback". Please feel free to
resubmit for 9.7!

Thanks,
--
-David
david@pgmasters.net

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

On 12/26/15 23:04, Teodor Sigaev wrote:

I'd like to present OR-clause support for indexes. Although OR-clauses
could be supported by bitmapOR index scan it isn't very effective and
such scan lost any order existing in index. We (with Alexander Korotkov)
presented results on Vienna's conference this year. In short, it
provides performance improvement:

EXPLAIN ANALYZE
SELECT count(*) FROM tst WHERE id = 5 OR id = 500 OR id = 5000;
...
The problems on the way which I see for now:
1 Calculating cost. Right now it's just a simple transformation of costs
computed for BitmapOr path. I'd like to hope that's possible and so
index's estimation function could be non-touched. So, they could believe
that all clauses are implicitly-ANDed
2 I'd like to add such support to btree but it seems that it should be a
separated patch. Btree search algorithm doesn't use any kind of stack of
pages and algorithm to walk over btree doesn't clear for me for now.
3 I could miss some places which still assumes  implicitly-ANDed list of
clauses although regression tests passes fine.

I support such a cunning approach. But this specific case, you
demonstrated above, could be optimized independently at an earlier
stage. If to convert:

(F(A) = ConstStableExpr_1) OR (F(A) = ConstStableExpr_2)
to
F(A) IN (ConstStableExpr_1, ConstStableExpr_2)

it can be seen significant execution speedup. For example, using the
demo.sql to estimate maximum positive effect we see about 40% of
execution and 100% of planning speedup.

To avoid unnecessary overhead, induced by the optimization, such
transformation may be made at the stage of planning (we have cardinality
estimations and have pruned partitions) but before creation of a
relation scan paths. So, we can avoid planning overhead and non-optimal
BitmapOr in the case of many OR's possibly aggravated by many indexes on
the relation.
For example, such operation can be executed in create_index_paths()
before passing rel->indexlist.

--
Regards
Andrey Lepikhov
Postgres Professional

I agree with your idea and try to implement it and will soon attach a
patch with a solution.

I also have a really practical example confirming that such optimization
can be useful.

A query was written that consisted of 50000 conditions due to the fact
that the ORM framework couldn't work with a query having an ANY
operator. In summary, we got a better plan that contained 50000 Bitmap

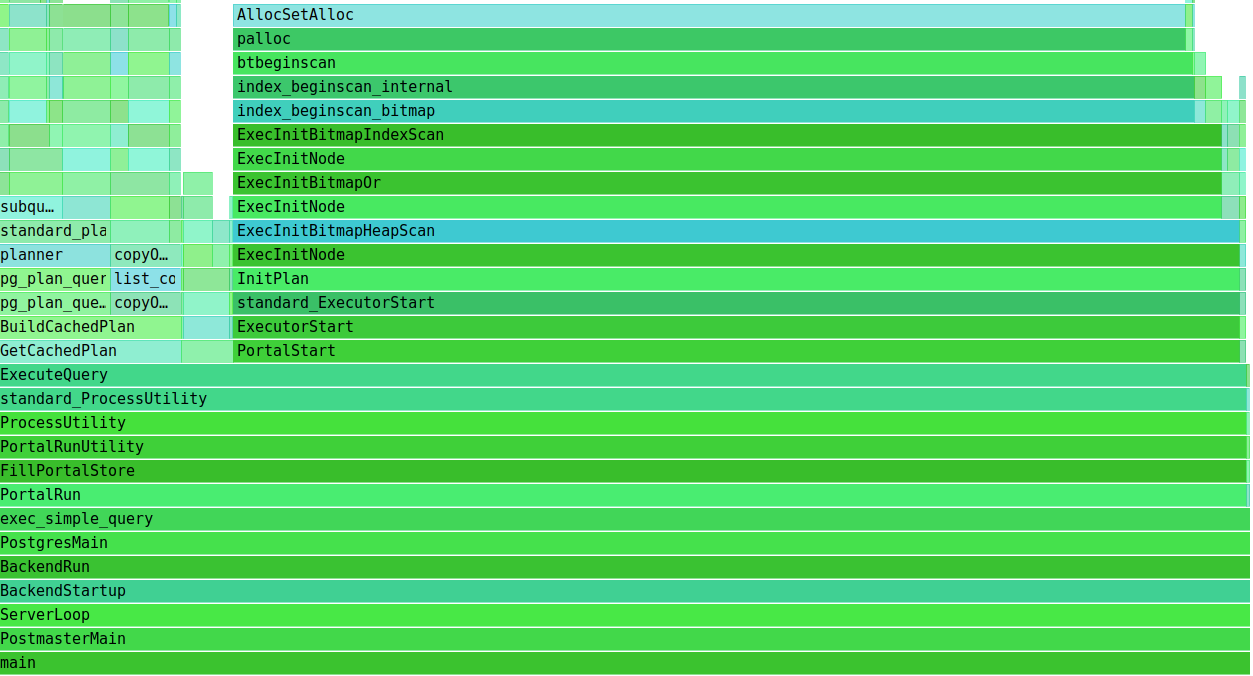

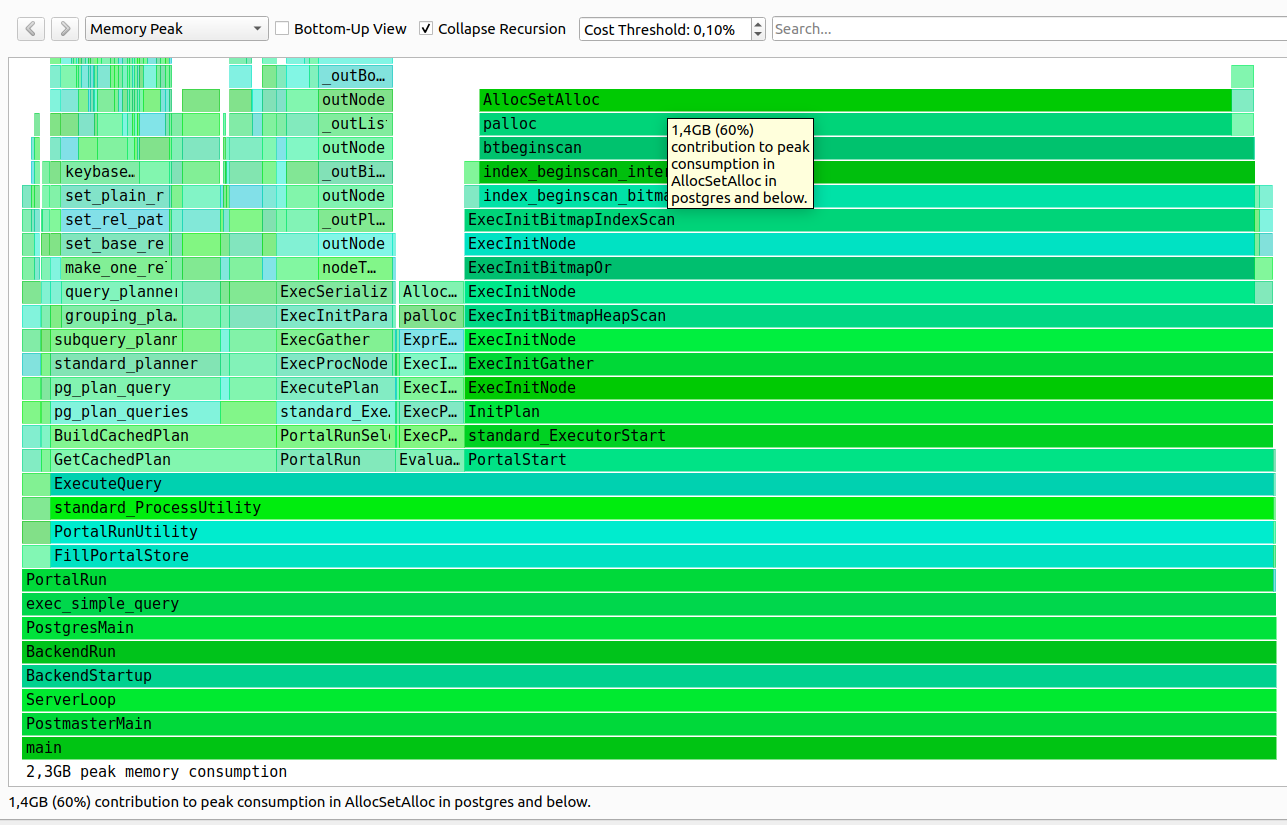

Index Scan nodes with 50000 different conditions. Since approximately
27336 Bite of memory were required to initialize one BitmapOr Index Scan
node, therefore, about 1.27 GB of memory was spent at the initialization
step of the plan execution and query execution time was about 55756,053
ms (00:55,756).

|psql -U postgres -c "CREATE DATABASE test_db" pgbench -U postgres -d
test_db -i -s 10 ||SELECT FORMAT('prepare x %s AS SELECT * FROM pgbench_accounts a WHERE
%s', '(' || string_agg('int', ',') || ')', string_agg(FORMAT('aid =
$%s', g.id), ' or ') ) AS cmd FROM generate_series(1, 50000) AS g(id)
\gexec ||SELECT FORMAT('execute x %s;', '(' || string_agg(g.id::text, ',') ||
')') AS cmd FROM generate_series(1, 50000) AS g(id) \gexec |||||

||

I got the plan of this query:

|QUERY PLAN

---------------------------------------------------------------------------------------------------------------------------------------------------
 Bitmap Heap Scan on pgbench_accounts a  (cost=44.35..83.96 rows=10
width=97)
   Recheck Cond: ((aid = 1) OR (aid = 2) OR (aid = 3) OR (aid = 4) OR
(aid = 5) OR (aid = 6) OR (aid = 7) OR (aid = 8) OR (aid = 9) OR (aid = 10))
   ->  BitmapOr  (cost=44.35..44.35 rows=10 width=0)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 1)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 2)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 3)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 4)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 5)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 6)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 7)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 8)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 9)
         ->  Bitmap Index Scan on pgbench_accounts_pkey
(cost=0.00..4.43 rows=1 width=0)
               Index Cond: (aid = 10)|

If I rewrite this query using ANY operator,

SELECT FORMAT('prepare x %s AS SELECT * FROM pgbench_accounts a WHERE aid = ANY(SELECT
g.id FROM generate_series(1, 50000) AS g(id))',
'(' || string_agg('int',',') ||')'
) AS cmd FROM generate_series(1, 50000) AS g(id)
\gexec

I will get a plan where the array comparison operator is used through
ANY operator at the index scan stage. It's execution time is
significantly lower as  339,764 ms.

QUERY PLAN
---------------------------------------------------------------------------------------------------
Index Scan using pgbench_accounts_pkey on pgbench_accounts a (cost=0.42..48.43 rows=10 width=97)
Index Cond: (aid = ANY ('{1,2,3,4,5,6,7,8,9,10}'::integer[]))
(2 rows)

IN operator is also converted to ANY operator, and if I rewrite this
query as:

SELECT FORMAT('prepare x %s AS SELECT * FROM pgbench_accounts a WHERE aid IN(%s)',
'(' || string_agg('int',',') ||')',
string_agg(FORMAT('%s', g.id),', ')
) AS cmd
FROM generate_series(1, 50000) AS g(id)
\gexec

I will get the same plan as the previous one using ANY operator and his
execution time will be about the same.

QUERY PLAN
---------------------------------------------------------------------------------------------------
Index Scan using pgbench_accounts_pkey on pgbench_accounts a (cost=0.42..48.43 rows=10 width=97)
Index Cond: (aid = ANY ('{1,2,3,4,5,6,7,8,9,10}'::integer[]))
(2 rows)

On 28.12.2022 07:19, Andrey Lepikhov wrote:

On 12/26/15 23:04, Teodor Sigaev wrote:

I'd like to present OR-clause support for indexes. Although
OR-clauses could be supported by bitmapOR index scan it isn't very
effective and such scan lost any order existing in index. We (with
Alexander Korotkov) presented results on Vienna's conference this
year. In short, it provides performance improvement:

EXPLAIN ANALYZE
SELECT count(*) FROM tst WHERE id = 5 OR id = 500 OR id = 5000;
...
The problems on the way which I see for now:
1 Calculating cost. Right now it's just a simple transformation of
costs computed for BitmapOr path. I'd like to hope that's possible
and so index's estimation function could be non-touched. So, they
could believe that all clauses are implicitly-ANDed
2 I'd like to add such support to btree but it seems that it should
be a separated patch. Btree search algorithm doesn't use any kind of
stack of pages and algorithm to walk over btree doesn't clear for me
for now.
3 I could miss some places which still assumes  implicitly-ANDed list
of clauses although regression tests passes fine.

I support such a cunning approach. But this specific case, you
demonstrated above, could be optimized independently at an earlier
stage. If to convert:

(F(A) = ConstStableExpr_1) OR (F(A) = ConstStableExpr_2)
to
F(A) IN (ConstStableExpr_1, ConstStableExpr_2)

it can be seen significant execution speedup. For example, using the
demo.sql to estimate maximum positive effect we see about 40% of
execution and 100% of planning speedup.

To avoid unnecessary overhead, induced by the optimization, such
transformation may be made at the stage of planning (we have
cardinality estimations and have pruned partitions) but before
creation of a relation scan paths. So, we can avoid planning overhead
and non-optimal BitmapOr in the case of many OR's possibly aggravated
by many indexes on the relation.
For example, such operation can be executed in create_index_paths()
before passing rel->indexlist.

--
Alena Rybakina
Postgres Professional

I agree with your idea and try to implement it and will soon attach a
patch with a solution.

Additionally, if those OR constants repeat you'll see ...
If all constants are the same value, fine
explain select * from x where ((ID = 1) OR (ID = 1) OR (ID = 1));
Index Only Scan using x_id on x (cost=0.42..4.44 rows=1 width=4)
Index Cond: (id = 1)

if all values are almost the same, ops
explain select * from x where ((ID = 1) OR (ID = 1) OR (ID = 1) OR (ID =
2));
Bitmap Heap Scan on x (cost=17.73..33.45 rows=4 width=4)
Recheck Cond: ((id = 1) OR (id = 1) OR (id = 1) OR (id = 2))
-> BitmapOr (cost=17.73..17.73 rows=4 width=0)
-> Bitmap Index Scan on x_id (cost=0.00..4.43 rows=1 width=0)
Index Cond: (id = 1)
-> Bitmap Index Scan on x_id (cost=0.00..4.43 rows=1 width=0)
Index Cond: (id = 1)
-> Bitmap Index Scan on x_id (cost=0.00..4.43 rows=1 width=0)
Index Cond: (id = 1)
-> Bitmap Index Scan on x_id (cost=0.00..4.43 rows=1 width=0)
Index Cond: (id = 2)

thanks
Marcos

Hi, all! Sorry I haven't written for a long time.

I finished writing the code patch for transformation "Or" expressions to
"Any" expressions. I didn't see any problems in regression tests, even
when I changed the constant at which the minimum or expression is
replaced by any at 0. I ran my patch on sqlancer and so far the code has
never fallen.

On 14.01.2023 18:45, Marcos Pegoraro wrote:

I agree with your idea and try to implement it and will soon
attach a patch with a solution.

Additionally, if those OR constants repeat you'll see ...
If all constants are the same value, fine
explain select * from x where ((ID = 1) OR (ID = 1) OR (ID = 1));
Index Only Scan using x_id on x  (cost=0.42..4.44 rows=1 width=4)
  Index Cond: (id = 1)

if all values are almost the same, ops
explain select * from x where ((ID = 1) OR (ID = 1) OR (ID = 1) OR (ID
= 2));
Bitmap Heap Scan on x  (cost=17.73..33.45 rows=4 width=4)
  Recheck Cond: ((id = 1) OR (id = 1) OR (id = 1) OR (id = 2))
  ->  BitmapOr  (cost=17.73..17.73 rows=4 width=0)
        ->  Bitmap Index Scan on x_id  (cost=0.00..4.43 rows=1 width=0)
              Index Cond: (id = 1)
        ->  Bitmap Index Scan on x_id  (cost=0.00..4.43 rows=1 width=0)
              Index Cond: (id = 1)
        ->  Bitmap Index Scan on x_id  (cost=0.00..4.43 rows=1 width=0)
              Index Cond: (id = 1)
        ->  Bitmap Index Scan on x_id  (cost=0.00..4.43 rows=1 width=0)
              Index Cond: (id = 2)

thanks
Marcos

--

Regards,

Alena Rybakina

Sorry,  I wrote the last sentence in a confusing way, I meant that I
formed transformations for any number of "or" expressions
(const_transform_or_limit=1). in regression tests, I noticed only diff
changes of transformations of "or" expressions to "any". I attach a file
with diff.

On Sun, Jun 25, 2023 at 6:48 PM Alena Rybakina <lena.ribackina@yandex.ru> wrote:

I finished writing the code patch for transformation "Or" expressions to "Any" expressions.

This seems interesting to me. I'm currently working on improving
nbtree's "native execution of ScalarArrayOpExpr quals" (see commit
9e8da0f7 for background information). That is relevant to what you're
trying to do here.

Right now nbtree's handling of ScalarArrayOpExpr is rather
inefficient. The executor does pass the index scan an array of
constants, so the whole structure already allows the nbtree code to
execute the ScalarArrayOpExpr in whatever way would be most efficient.
There is only one problem: it doesn't really try to do so. It more or
less just breaks down the large ScalarArrayOpExpr into "mini" queries
-- one per constant. Internally, query execution isn't significantly
different to executing many of these "mini" queries independently. We
just sort and deduplicate the arrays. We don't intelligently decide
which pages dynamically. This is related to skip scan.

Attached is an example query that shows the problem. Right now the
query needs to access a buffer containing an index page a total of 24
times. It's actually accessing the same 2 pages 12 times. My draft
patch only requires 2 buffer accesses -- because it "coalesces the
array constants together" dynamically at run time. That is a little
extreme, but it's certainly possible.

BTW, this project is related to skip scan. It's part of the same
family of techniques -- MDAM techniques. (I suppose that that's
already true for ScalarArrayOpExpr execution by nbtree, but without
dynamic behavior it's not nearly as valuable as it could be.)

If executing ScalarArrayOpExprs was less inefficient in these cases
then the planner could be a lot more aggressive about using them.
Seems like these executor improvements might go well together with
what you're doing in the planner. Note that I have to "set
random_page_cost=0.1" to get the planner to use all of the quals from
the query as index quals. It thinks (correctly) that the query plan is
very inefficient. That happens to match reality right now, but the
underlying reality could change significantly. Something to think
about.

--
Peter Geoghegan

On 26.06.2023 06:18, Peter Geoghegan wrote:

On Sun, Jun 25, 2023 at 6:48 PM Alena Rybakina<lena.ribackina@yandex.ru> wrote:

I finished writing the code patch for transformation "Or" expressions to "Any" expressions.

This seems interesting to me. I'm currently working on improving
nbtree's "native execution of ScalarArrayOpExpr quals" (see commit
9e8da0f7 for background information). That is relevant to what you're
trying to do here.

Right now nbtree's handling of ScalarArrayOpExpr is rather
inefficient. The executor does pass the index scan an array of
constants, so the whole structure already allows the nbtree code to
execute the ScalarArrayOpExpr in whatever way would be most efficient.
There is only one problem: it doesn't really try to do so. It more or
less just breaks down the large ScalarArrayOpExpr into "mini" queries
-- one per constant. Internally, query execution isn't significantly
different to executing many of these "mini" queries independently. We
just sort and deduplicate the arrays. We don't intelligently decide
which pages dynamically. This is related to skip scan.

Attached is an example query that shows the problem. Right now the
query needs to access a buffer containing an index page a total of 24
times. It's actually accessing the same 2 pages 12 times. My draft
patch only requires 2 buffer accesses -- because it "coalesces the
array constants together" dynamically at run time. That is a little
extreme, but it's certainly possible.

BTW, this project is related to skip scan. It's part of the same
family of techniques -- MDAM techniques. (I suppose that that's
already true for ScalarArrayOpExpr execution by nbtree, but without
dynamic behavior it's not nearly as valuable as it could be.)

If executing ScalarArrayOpExprs was less inefficient in these cases
then the planner could be a lot more aggressive about using them.
Seems like these executor improvements might go well together with
what you're doing in the planner. Note that I have to "set
random_page_cost=0.1" to get the planner to use all of the quals from
the query as index quals. It thinks (correctly) that the query plan is
very inefficient. That happens to match reality right now, but the
underlying reality could change significantly. Something to think
about.

--
Peter Geoghegan

Thank you for your feedback, your work is also very interesting and
important, and I will be happy to review it. I learned something new
from your letter, thank you very much for that!

I analyzed the buffer consumption when I ran control regression tests
using my patch. diff shows me that there is no difference between the
number of buffer block scans without and using my patch, as far as I
have seen. (regression.diffs)

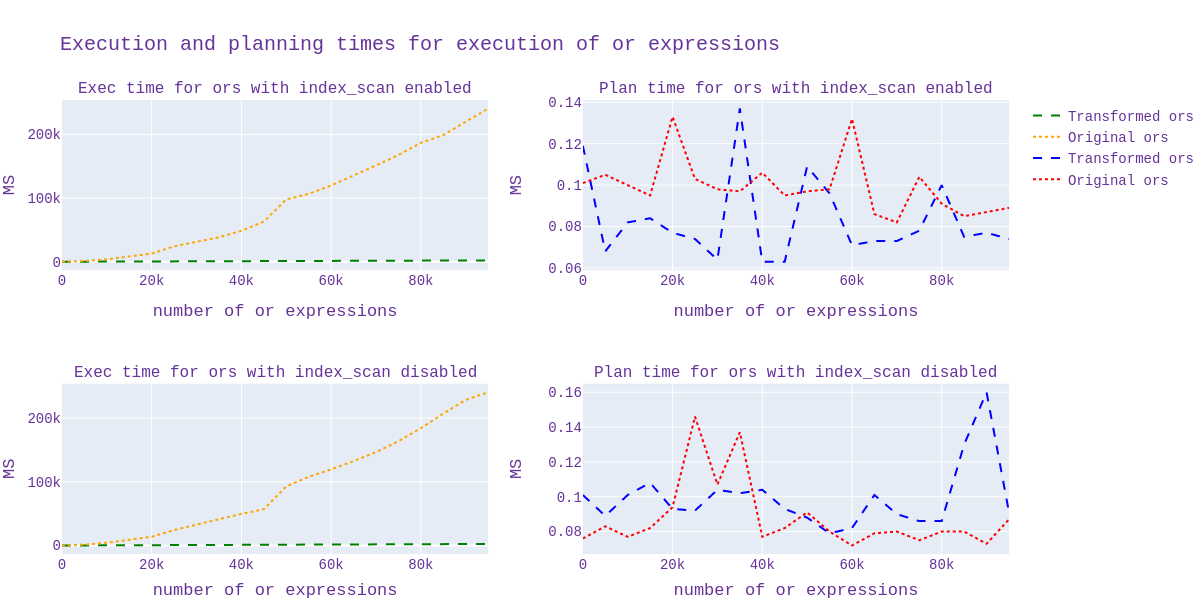

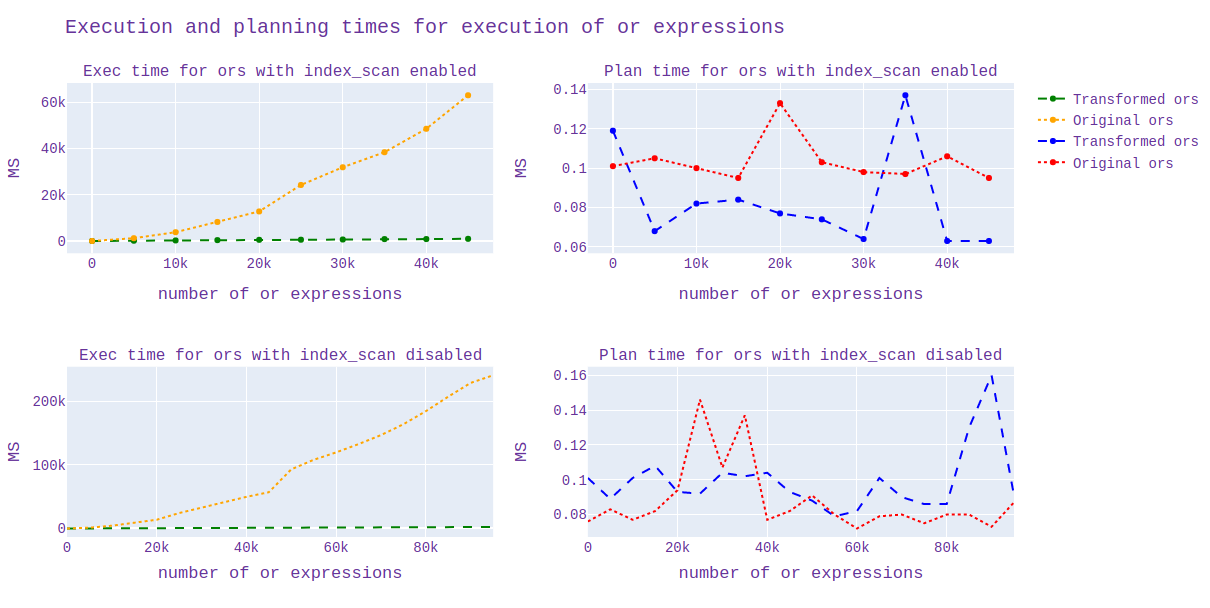

In addition, I analyzed the scheduling and duration of the execution
time of the source code and with my applied patch. I generated 20
billion data from pgbench and plotted the scheduling and execution time
depending on the number of "or" expressions.

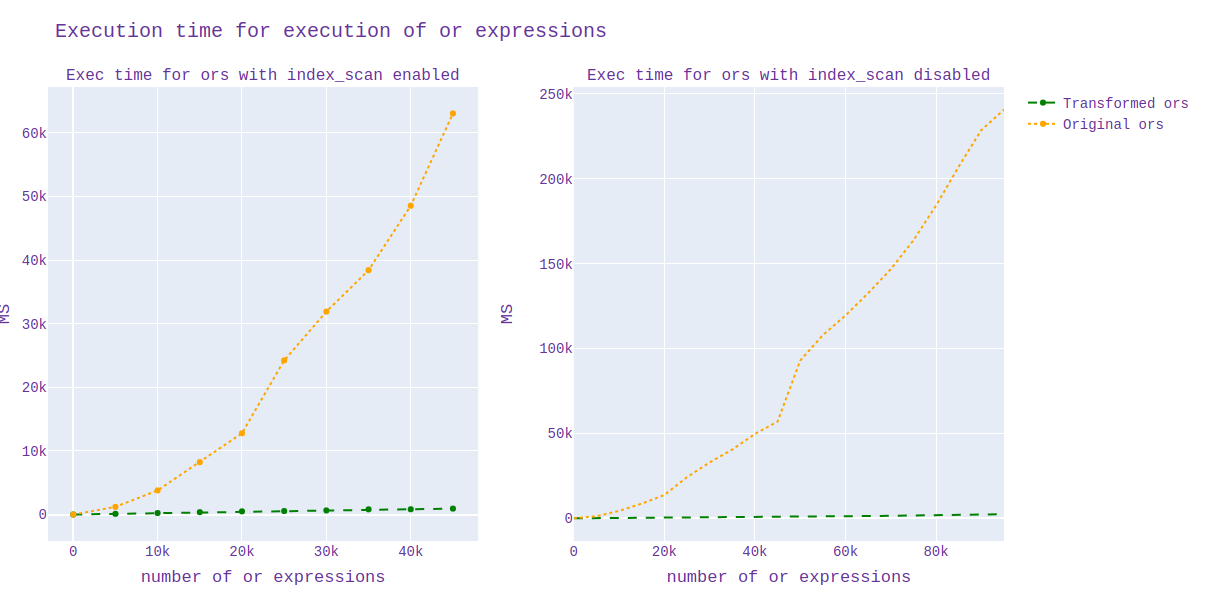

By runtime, I noticed a clear acceleration for queries when using the
index, but I can't say the same when the index is disabled.
At first I turned it off in this way:
1)enable_seqscan='off'
2)enable_indexonlyscan='off'
enable_indexscan='off'

Unfortunately, it is not yet clear which constant needs to be set when
the transformation needs to be done, I will still study in detail. (the
graph for all this is presented in graph1.svg)
\\

--
Regards,
Alena Rybakina
