Aggregate Push Down - Performing aggregation on foreign server

Hi

2016-08-30 15:02 GMT+02:00 Jeevan Chalke <jeevan.chalke@enterprisedb.com>:

Hi all,

Attached is the patch which adds support to push down aggregation and
grouping
to the foreign server for postgres_fdw. Performing aggregation on foreign
server results into fetching fewer rows from foreign side as compared to
fetching all the rows and aggregating/grouping locally. Performing
grouping on
foreign server may use indexes if available. So pushing down aggregates/
grouping on foreign server performs better than doing that locally.
(Attached
EXPLAIN output for few simple grouping queries, with and without push
down).

is it work without FDW too?. It can be pretty interesting too.

Regards

Pavel

On Tue, Aug 30, 2016 at 6:51 PM, Pavel Stehule <pavel.stehule@gmail.com>
wrote:

Hi

2016-08-30 15:02 GMT+02:00 Jeevan Chalke <jeevan.chalke@enterprisedb.com>:

Hi all,

Attached is the patch which adds support to push down aggregation and
grouping
to the foreign server for postgres_fdw. Performing aggregation on foreign
server results into fetching fewer rows from foreign side as compared to
fetching all the rows and aggregating/grouping locally. Performing
grouping on
foreign server may use indexes if available. So pushing down aggregates/
grouping on foreign server performs better than doing that locally.
(Attached
EXPLAIN output for few simple grouping queries, with and without push
down).

is it work without FDW too?. It can be pretty interesting too.

No. Aggrgate push down is supported through the GetForeignUpperPaths() hook
added for postgres_fdw. Thus it works only with postgres_fdw.

Do you mean whether this works with any extensions via implementing
create_upper_paths_hook() function?
The answer is No. This patch does not touch this hook.

Regards

Pavel

Thanks
--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

2016-08-31 8:17 GMT+02:00 Jeevan Chalke <jeevan.chalke@enterprisedb.com>:

On Tue, Aug 30, 2016 at 6:51 PM, Pavel Stehule <pavel.stehule@gmail.com>
wrote:

Hi

2016-08-30 15:02 GMT+02:00 Jeevan Chalke <jeevan.chalke@enterprisedb.com>
:

Hi all,

Attached is the patch which adds support to push down aggregation and
grouping
to the foreign server for postgres_fdw. Performing aggregation on foreign
server results into fetching fewer rows from foreign side as compared to
fetching all the rows and aggregating/grouping locally. Performing
grouping on
foreign server may use indexes if available. So pushing down aggregates/
grouping on foreign server performs better than doing that locally.
(Attached
EXPLAIN output for few simple grouping queries, with and without push
down).

is it work without FDW too?. It can be pretty interesting too.

No. Aggrgate push down is supported through the GetForeignUpperPaths() hook
added for postgres_fdw. Thus it works only with postgres_fdw.

Do you mean whether this works with any extensions via implementing
create_upper_paths_hook() function?
The answer is No. This patch does not touch this hook.

It is pity - lot of performance issues are related to this missing feature.

Regards

Pavel

On Wed, Aug 31, 2016 at 11:56 AM, Pavel Stehule <pavel.stehule@gmail.com> wrote:

It is pity - lot of performance issues are related to this missing feature.

I don't think you are being very clear about what feature you are
talking about. The feature that Jeevan has implemented is pushing
aggregates to the remote side when postgres_fdw is in use. The
feature you are talking about is evidently something else, but you
haven't really said what it is. Or not in a way that I can
understand.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

2016-08-31 9:00 GMT+02:00 Robert Haas <robertmhaas@gmail.com>:

On Wed, Aug 31, 2016 at 11:56 AM, Pavel Stehule <pavel.stehule@gmail.com>
wrote:

It is pity - lot of performance issues are related to this missing

feature.

I don't think you are being very clear about what feature you are
talking about. The feature that Jeevan has implemented is pushing
aggregates to the remote side when postgres_fdw is in use. The
feature you are talking about is evidently something else, but you
haven't really said what it is. Or not in a way that I can
understand.

yes, It is not clear if FDW aggregate push down can be implemented together
with internal aggregate push down. Aggregate push down ~ try to aggregate
first when it is possible

Regards

Pavel

On 2016/08/31 16:42, Pavel Stehule wrote:

2016-08-31 9:00 GMT+02:00 Robert Haas <robertmhaas@gmail.com>:

On Wed, Aug 31, 2016 at 11:56 AM, Pavel Stehule <pavel.stehule@gmail.com>
wrote:

It is pity - lot of performance issues are related to this missing

feature.

I don't think you are being very clear about what feature you are
talking about. The feature that Jeevan has implemented is pushing
aggregates to the remote side when postgres_fdw is in use. The
feature you are talking about is evidently something else, but you
haven't really said what it is. Or not in a way that I can
understand.

yes, It is not clear if FDW aggregate push down can be implemented together
with internal aggregate push down. Aggregate push down ~ try to aggregate
first when it is possible

What do you mean by "internal aggregate push down"? Partition-wise
aggregation? Aggregate/group by before join (something like [1]/messages/by-id/CAKJS1f9kw95K2pnCKAoPmNw==7fgjSjC-82cy1RB+-x-Jz0QHA@mail.gmail.com)? IIUC,
what Jeevan proposes in this thread is to implement the aggregate push
down API that is specific to FDWs in postgres_fdw. Any other push down
work would need to use different APIs and would need to separately
proposed/discussed.

Thanks,
Amit

[1]: /messages/by-id/CAKJS1f9kw95K2pnCKAoPmNw==7fgjSjC-82cy1RB+-x-Jz0QHA@mail.gmail.com
/messages/by-id/CAKJS1f9kw95K2pnCKAoPmNw==7fgjSjC-82cy1RB+-x-Jz0QHA@mail.gmail.com

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

2016-08-31 10:03 GMT+02:00 Amit Langote <Langote_Amit_f8@lab.ntt.co.jp>:

On 2016/08/31 16:42, Pavel Stehule wrote:

2016-08-31 9:00 GMT+02:00 Robert Haas <robertmhaas@gmail.com>:

On Wed, Aug 31, 2016 at 11:56 AM, Pavel Stehule <

pavel.stehule@gmail.com>

wrote:

It is pity - lot of performance issues are related to this missing

feature.

I don't think you are being very clear about what feature you are
talking about. The feature that Jeevan has implemented is pushing
aggregates to the remote side when postgres_fdw is in use. The
feature you are talking about is evidently something else, but you
haven't really said what it is. Or not in a way that I can
understand.

yes, It is not clear if FDW aggregate push down can be implemented

together

with internal aggregate push down. Aggregate push down ~ try to aggregate
first when it is possible

What do you mean by "internal aggregate push down"? Partition-wise
aggregation? Aggregate/group by before join (something like [1])? IIUC,
what Jeevan proposes in this thread is to implement the aggregate push
down API that is specific to FDWs in postgres_fdw. Any other push down
work would need to use different APIs and would need to separately
proposed/discussed.

ok I understand now.

Regards

Pavel

While checking for shippability, we build the target list which is passed
to
the foreign server as fdw_scan_tlist. The target list contains
a. All the GROUP BY expressions
b. Shippable entries from the target list of upper relation
c. Var and Aggref nodes from non-shippable entries from the target list of
upper relation

The code in the patch doesn't seem to add Var nodes explicitly. It assumes
that
the Var nodes will be part of GROUP BY clause. The code is correct, I think.

d. Var and Aggref nodes from non-shippable HAVING conditions.

This needs to be changed as per the comments below.

Costing:

If use_foreign_estimate is true for input relation, like JOIN case, we use
EXPLAIN output to get the cost of query with aggregation/grouping on the
foreign server. If not we calculate the costs locally. Similar to core, we
use
get_agg_clause_costs() to get costs for aggregation and then using logic
similar to cost_agg() we calculate startup and total cost. Since we have no
idea which aggregation strategy will be used at foreign side, we add all
startup cost (startup cost of input relation, aggregates etc.) into startup
cost for the grouping path and similarly for total cost.

This looks OK to me.

Deparsing the query:

Target list created while checking for shippability is deparsed using
deparseExplicitTargetList(). sortgroupref are adjusted according to this
target list. Most of the logic to deparse an Aggref is inspired from
get_agg_expr(). For an upper relation, FROM and WHERE clauses come from the
underlying scan relation and thus for simplicity, FROM clause deparsing
logic
is moved from deparseSelectSql() to a new function deparseFromClause(). The
same function adds WHERE clause to the remote SQL.

Ok.

Area of future work:

1. Adding path with path-keys to push ORDER BY clause along with
aggregation/
grouping. Should be supported as a separate patch.

2. Grouping Sets/Rollup/Cube is not supported in current version. I have
left
this aside to keep patch smaller. If required I can add that support in the
next version of the patch.

I am fine with these limitations for first cut of this feature.

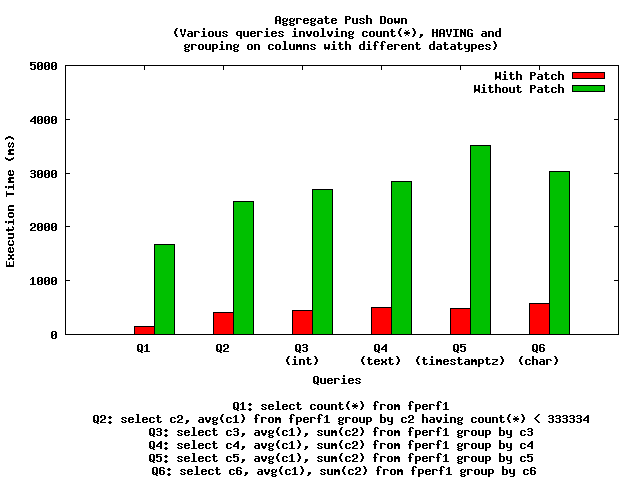

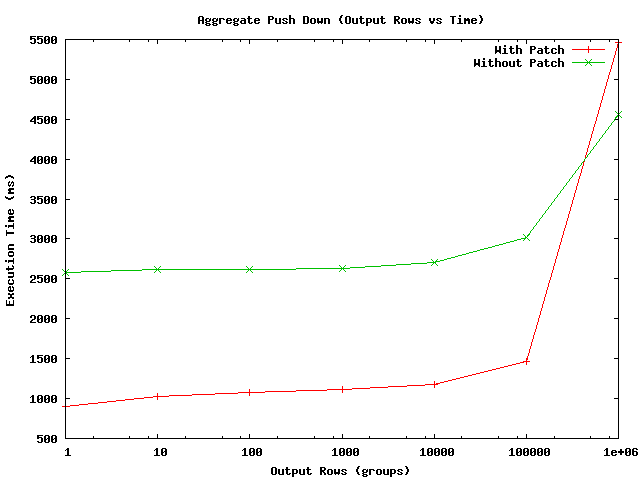

I think we should try to measure performance gain because of aggregate
pushdown. The EXPLAIN
doesn't show actual improvement in the execution times.

Here are the comments on the patch.

Patch compiles without errors/warnings - Yes
make check passes - Yes.
make check in contrib/postgres_fdw passes - Yes

Attached patch (based on your patch) has some typos corrected, some comments
rephrased. It also has some code changes, as explained in various comments
below. Please see if those look good.

1. Usually for any deparseSomething function, Something is the type of node
produced by the parser when the string output by that function is parsed.
deparseColumnRef, for example, produces a string, which when parsed
produces a
columnRef node. There is are nodes of type FromClause and AggOrderBy. I
guess,
you meant FromExpr instead of FromClause. deparseAggOrderBy() may be
renamed as
appendOrderByFromList() or something similar. It may be utilized for window
functions if required.

2. Can we infer the value of foragg flag from the RelOptInfo passed to
is_foreign_expr()? For any upper relation, it is ok to have aggregate in
there. For any other relation aggregate is not expected.

3. In function foreign_grouping_ok(), should we use classifyConditions()?
The
function is written and used for base relations. There's nothing in that
function, which prohibits it being used for other relations. I feel that
foreign_join_ok() should have used the same function to classify the other
clauses.

4. May be the individual criteria in the comment block
+                /*
+                 * Aggregate is safe to pushdown if
+                 * 1. It is a built-in aggregate
+                 * 2. All its arguments are safe to push-down
+                 * 3. The functions involved are immutable.
+                 * 4. Other expressions involved like aggorder,
aggdistinct are
+                 *    safe to be pushed down.
+                 */
should be associated with the code blocks which implement those. As the
criteria change it's difficult to maintain the numbered list in sync with
the
code.

5. The comment
+ /* Aggregates other than simple one are non-pushable. */
should read /* Only non-split aggregates are pushable. */ as AGGSPLIT_SIMPLE
means a complete, non-split aggregation step.

6. An aggregate function has transition, combination and finalization
function
associated with it. Should we check whether all of the functions are
shippable?
But probably it suffices to check whether aggregate function as whole is
shippable or not using is_shippable() since it's the whole aggregate we are
interested in and not the intermediate results. Probably, we should add a
comment explaining why it's sufficient to check the aggregate function as a
whole. I wondered whether we should check shippability of aggregate return
type, but we don't do that for functions as well. So it's fine.

7. It looks like aggdirectargs, aggdistinct, aggorder expressions are all
present in args list. If all the expressions in args are shippable, it means
those lists are also shippable and hence corresponding aggregate subclauses
are
shippable. Are we unnecessarily checking shippability of those other lists?

8. The prologue of build_tlist_to_deparse() mentions that the output
targetlist
contains columns, which is not true with your patch. The targetlist
returned by
this function can have expressions for upper relations. Please update the
prologue to reflect this change.

9. In build_tlist_to_deparse(), we are including aggregates from unshippable
conditions without checking whether they are shippable or not. This can
cause
an unshippable expression to be pushed to the foreign server as seen below

explain verbose select avg(c1) from ft1 having avg(c1 * random()) > 100;
QUERY
PLAN
--------------------------------------------------------------------------------------
Foreign Scan (cost=112.50..133.53 rows=1 width=32)
Output: (avg(c1))
Filter: ((avg(((ft1.c1)::double precision * random()))) > '100'::double
precision)
Relations: Aggregate on (public.ft1)
Remote SQL: SELECT avg(r1."C 1"), avg((r1."C 1" * random())) FROM "S
1"."T 1" r1
(5 rows)

We should check shippability of aggregates in unshippable conditions in
foreign_grouping_ok(). If any of those are not shippable, aggregation can
not
be pushed down. Otherwise, include those in the grouped_tlist.

10. Comment /* Construct FROM clause */ should read "Construct FROM and
WHERE
clauses." to be in sync with the next function call. deparseFromClause()
should
be renamed as deparseFromExpr() inline with the naming convention of
deparse<something> functions. From the function signature of
deparseFromClause(), it doesn't become clear as to what contributes to the
FROM
clause. Should we add a comment in the prologue of that function explaining
the
same. Also it strikes odd that for an upper relation, we pass remote_conds
to
this function, but it doesn't deparse those but deparses the remote
conditions
from the scan relation and later deparses the same remote_conds as HAVING
clause. Although this is correct, the code looks odd. May be the codeblock
in
deparseFuncClause()
1008 /*
1009 * For aggregates the FROM clause will be build from underneath
scan rel.
1010 * WHERE clause conditions too taken from there.
1011 */
1012 if (foreignrel->reloptkind == RELOPT_UPPER_REL)
1013 {
1014 PgFdwRelationInfo *ofpinfo;
1015
1016 ofpinfo = (PgFdwRelationInfo *) fpinfo->outerrel->fdw_private;
1017 scan_rel = fpinfo->outerrel;
1018 context->foreignrel = scan_rel;
1019 remote_conds = ofpinfo->remote_conds;
1020 }
should be moved into deparseSelectStmtForRel() to make the things clear.

11. Whether to qualify a column name by an alias should be based on whether
the
underlying scan relation is a join or base relation scan. That can be
achieved
by setting scanrel in the deparse_context. Attached patch has this
implemented.
Instead of scanrel, we may also have use_alias value as part of the context,
which is used everywhere.

12. The code to print the function name in deparseAggref() seems similar to
that in deparseFuncExpr(). Should we extract it out into a separate function
and call that function in deparseAggref() and deparseFuncExpr() both?

13. While deparsing the direct aggregates, the code is not adding ","
between
two arguments, resulting in error like below.
select rank(c1, c2) within group (order by c1, c2) from ft1 group by c1, c2;
ERROR: syntax error at or near "c2"
CONTEXT: Remote SQL command: SELECT rank("C 1"c2) WITHIN GROUP (ORDER BY "C
1", c2), "C 1", c2 FROM "S 1"."T 1" GROUP BY "C 1", c2
May be we should add support to deparse List expressions by separating list
items by "," similar to get_rule_expr() and use that here.

14. In deparseAggOrderBy() we do not output anything for default cases like
ASC
or NULLS FIRST (for DESC). But like appendOrderByClause() it's better to be
explicit and output even the default specifications. That way, we do not
leave
anything to the interpretation of the foreign server.

15. deparseAggOrderBy supports deparsing USING subclause for ORDER BY for an
aggregate, but there is no corresponding shippability check for ordering
operator. Also, we should try to produce a testcase for the same.

16. The code to deparse a sort/group reference in deparseAggOrderBy() and
appendGroupByClause() looks similar. Should we extract it out into a
function
by itself and call that function in those two places similar to
get_rule_sortgroupclause()?

17. In postgresGetForeignPlan() the code to extract conditions and
targetlist
is duplicated for join and upper relation. Attached patch removes this
duplication. Since DML, FOR SHARE/UPDATE is not allowed with aggregation and
grouping, we should get an outer plan in that code.

18. estimate_path_cost_size() has grown quite long (~400 lines). Half of
that
function deals with estimating costs locally. Should we split this function
into smaller functions, one for estimating size and costs of each kind of
relations locally?

19. Condition below
+        if (sgref && query->groupClause && query->groupingSets == NIL &&
+            get_sortgroupref_clause_noerr(sgref, query->groupClause) !=
NULL)
can be rewritten as
if (sgref && get_sortgroupref_clause_noerr(sgref, query->groupClause))
since we won't come here with non-NULL query->groupingSets and
get_sortgroupref_clause_noerr() will return NULL, if there aren't any
groupClause.

20. Please use word "foreign" instead of "remote" in comments.

21. This code looks dubious
+            /* If not GROUP BY ref, reset it as we are not pushing those */
+            if (sgref)
+                grouping_target->sortgrouprefs[i] = 0;
grouping_target comes from RelOptInfo, which is being modified here. We
shouldn't be modifying anything in the RelOptInfo while checking whether the
aggregate/grouping is shippable. You may want to copy the pathtaget and
modify
the copy.

22. Following comment needs more elaboration.
+                /*
+                 * Add aggregates, if any, into tlist.  Plain Var nodes
pulled
+                 * are already part of GROUP BY and thus no need to add
them
+                 * explicitly.
+                 */
Plain Var nodes will either be same as some GROUP BY expression or should be
part of some GROUP BY expression. In the later case, the query can not refer
those without the surrounding expression. which will be part of the
targetlist
list. Hence we don't need to add plain Var nodes in the targetlist. In fact
adding those in SELECT clause will cause error on the foreign server if they
are not part of GROUP BY clause.

23. Probably you don't need to save this in fpinfo. You may want to
calculate
it whenever it's needed.
+ fpinfo->grouped_exprs = get_sortgrouplist_exprs(query->groupClause,
tlist);

24. Can this ever happen for postgres_fdw? The core sets fdwroutine and
calls
this function when the underlying scan relation has fdwroutine set, which
implies that it called corresponding GetForeignPath hooks, which should have
set fdw_private. Nonetheless, I think, still the condition is useful to
avoid
crashing the server in case the fdw_private is not set. But we need better
comments.
+    /* If input rel is not aware of fdw, simply return */
+    if (!input_rel->fdw_private)
+        return;

25. Although it's desirable to get a switch case in
postgresGetForeignUpperPaths() eventually, for this patch I guess we should
have an if condition there.

26. Attached patch has restructured code in appendGroupByClause() to reduce
indentation and make the code readable. Let me know if this looks good to
you.

27. Prologue of create_foreign_grouping_paths() does not have formatting
similar to the surrounding functions. Please fix it. Since the function
"create"s and "add"s paths, it might be better to rename it as
add_foreign_grouping_paths().

28. Isn't the following true for any upper relation and shouldn't it be
part of
postgresGetForeignUpperPaths(), rather than create_foreign_grouping_paths()?
+    /*
+     * If input rel is not safe to pushdown, we cannot do grouping and/or
+     * aggregation on it.
+     */
+    if (!ifpinfo || !ifpinfo->pushdown_safe)
+        return;

29. We require RelOptInfo::relids since create_foreignscan_plan() copies
them
into ForeignPlan::fs_relids and executor uses them. So, I guess, we have to
set
those in the core somewhere. May be while calling fetch_upper_rel() in
grouping_planner(), we should call it with relids of the underlying scan
relation. I don't see any function calling fetch_upper_rel() with non-NULL
relids. In fact, if we are to create an upper relation with relids in
future,
this code is going to wipe that out, which will be undesirable. Also,
generally, when copying relids, it's better to use bms_copy() to make a copy
of Bitmapset, instead of just assigning the pointer.

30. By the time postgresGetForeignUpperPaths() gets called, the core has
already added its own paths, so it doesn't make much sense to set rows and
width grouped_rel in create_foreign_grouping_paths().

31. fpinfo->server and user fields are being set twice, once in
create_foreign_grouping_paths() then in foreign_grouping_ok(). Do we need
that?

32.
+    /*
+     * Do we want to create paths with pathkeys corresponding for
+     * root->query_pathkeys.
+     */
Yes, it would be desirable to do that. If we are not going to do that in
this
patch, may be remove that line or add a TODO kind of comment.

33. The patch marks build_path_tlist() as non-static but does not use it
anywhere outside creatplan.c. Is this change intentional?

--
Best Wishes,
Ashutosh Bapat
EnterpriseDB Corporation
The Postgres Database Company

Hi,

While testing "Aggregate pushdown", i found the below error:
-- GROUP BY alias showing different behavior after adding patch.

-- Create table "t1", insert few records.
create table t1(c1 int);
insert into t1 values(10), (20);

-- Create foreign table:
create foreign table f_t1 (c1 int) server db1_server options (table_name
't1');

-- with local table:
postgres=# select 2 a, avg(c1) from t1 group by a;
a | avg
---+---------------------
2 | 15.0000000000000000
(1 row)

-- with foreign table:
postgres=# select 2 a, avg(c1) from f_t1 group by a;
ERROR: aggregate functions are not allowed in GROUP BY
CONTEXT: Remote SQL command: EXPLAIN SELECT 2, avg(c1) FROM public.t1
GROUP BY 2

On Thu, Sep 8, 2016 at 10:41 PM, Ashutosh Bapat <
ashutosh.bapat@enterprisedb.com> wrote:

While checking for shippability, we build the target list which is passed
to
the foreign server as fdw_scan_tlist. The target list contains
a. All the GROUP BY expressions
b. Shippable entries from the target list of upper relation
c. Var and Aggref nodes from non-shippable entries from the target list of
upper relation

The code in the patch doesn't seem to add Var nodes explicitly. It assumes
that
the Var nodes will be part of GROUP BY clause. The code is correct, I
think.

d. Var and Aggref nodes from non-shippable HAVING conditions.

This needs to be changed as per the comments below.

Costing:

If use_foreign_estimate is true for input relation, like JOIN case, we use
EXPLAIN output to get the cost of query with aggregation/grouping on the
foreign server. If not we calculate the costs locally. Similar to core,
we use
get_agg_clause_costs() to get costs for aggregation and then using logic
similar to cost_agg() we calculate startup and total cost. Since we have
no
idea which aggregation strategy will be used at foreign side, we add all
startup cost (startup cost of input relation, aggregates etc.) into
startup
cost for the grouping path and similarly for total cost.

This looks OK to me.

Deparsing the query:

Target list created while checking for shippability is deparsed using
deparseExplicitTargetList(). sortgroupref are adjusted according to this
target list. Most of the logic to deparse an Aggref is inspired from
get_agg_expr(). For an upper relation, FROM and WHERE clauses come from
the
underlying scan relation and thus for simplicity, FROM clause deparsing
logic
is moved from deparseSelectSql() to a new function deparseFromClause().
The
same function adds WHERE clause to the remote SQL.

Ok.

Area of future work:

1. Adding path with path-keys to push ORDER BY clause along with
aggregation/
grouping. Should be supported as a separate patch.

2. Grouping Sets/Rollup/Cube is not supported in current version. I have
left
this aside to keep patch smaller. If required I can add that support in
the
next version of the patch.

I am fine with these limitations for first cut of this feature.

I think we should try to measure performance gain because of aggregate
pushdown. The EXPLAIN
doesn't show actual improvement in the execution times.

Here are the comments on the patch.

Patch compiles without errors/warnings - Yes
make check passes - Yes.
make check in contrib/postgres_fdw passes - Yes

Attached patch (based on your patch) has some typos corrected, some
comments
rephrased. It also has some code changes, as explained in various comments
below. Please see if those look good.

1. Usually for any deparseSomething function, Something is the type of node
produced by the parser when the string output by that function is parsed.
deparseColumnRef, for example, produces a string, which when parsed
produces a
columnRef node. There is are nodes of type FromClause and AggOrderBy. I
guess,
you meant FromExpr instead of FromClause. deparseAggOrderBy() may be
renamed as
appendOrderByFromList() or something similar. It may be utilized for window
functions if required.

2. Can we infer the value of foragg flag from the RelOptInfo passed to
is_foreign_expr()? For any upper relation, it is ok to have aggregate in
there. For any other relation aggregate is not expected.

3. In function foreign_grouping_ok(), should we use classifyConditions()?
The
function is written and used for base relations. There's nothing in that
function, which prohibits it being used for other relations. I feel that
foreign_join_ok() should have used the same function to classify the other
clauses.

4. May be the individual criteria in the comment block
+                /*
+                 * Aggregate is safe to pushdown if
+                 * 1. It is a built-in aggregate
+                 * 2. All its arguments are safe to push-down
+                 * 3. The functions involved are immutable.
+                 * 4. Other expressions involved like aggorder,
aggdistinct are
+                 *    safe to be pushed down.
+                 */
should be associated with the code blocks which implement those. As the
criteria change it's difficult to maintain the numbered list in sync with
the
code.

5. The comment
+ /* Aggregates other than simple one are non-pushable. */
should read /* Only non-split aggregates are pushable. */ as
AGGSPLIT_SIMPLE
means a complete, non-split aggregation step.

6. An aggregate function has transition, combination and finalization
function
associated with it. Should we check whether all of the functions are
shippable?
But probably it suffices to check whether aggregate function as whole is
shippable or not using is_shippable() since it's the whole aggregate we are
interested in and not the intermediate results. Probably, we should add a
comment explaining why it's sufficient to check the aggregate function as a
whole. I wondered whether we should check shippability of aggregate return
type, but we don't do that for functions as well. So it's fine.

7. It looks like aggdirectargs, aggdistinct, aggorder expressions are all
present in args list. If all the expressions in args are shippable, it
means
those lists are also shippable and hence corresponding aggregate
subclauses are
shippable. Are we unnecessarily checking shippability of those other lists?

8. The prologue of build_tlist_to_deparse() mentions that the output
targetlist
contains columns, which is not true with your patch. The targetlist
returned by
this function can have expressions for upper relations. Please update the
prologue to reflect this change.

9. In build_tlist_to_deparse(), we are including aggregates from
unshippable
conditions without checking whether they are shippable or not. This can
cause
an unshippable expression to be pushed to the foreign server as seen below

explain verbose select avg(c1) from ft1 having avg(c1 * random()) > 100;
QUERY PLAN

------------------------------------------------------------
--------------------------
Foreign Scan (cost=112.50..133.53 rows=1 width=32)
Output: (avg(c1))
Filter: ((avg(((ft1.c1)::double precision * random()))) > '100'::double
precision)
Relations: Aggregate on (public.ft1)
Remote SQL: SELECT avg(r1."C 1"), avg((r1."C 1" * random())) FROM "S
1"."T 1" r1
(5 rows)

We should check shippability of aggregates in unshippable conditions in
foreign_grouping_ok(). If any of those are not shippable, aggregation can
not
be pushed down. Otherwise, include those in the grouped_tlist.

10. Comment /* Construct FROM clause */ should read "Construct FROM and
WHERE
clauses." to be in sync with the next function call. deparseFromClause()
should
be renamed as deparseFromExpr() inline with the naming convention of
deparse<something> functions. From the function signature of
deparseFromClause(), it doesn't become clear as to what contributes to the
FROM
clause. Should we add a comment in the prologue of that function
explaining the
same. Also it strikes odd that for an upper relation, we pass remote_conds
to
this function, but it doesn't deparse those but deparses the remote
conditions
from the scan relation and later deparses the same remote_conds as HAVING
clause. Although this is correct, the code looks odd. May be the codeblock
in
deparseFuncClause()
1008 /*
1009 * For aggregates the FROM clause will be build from underneath
scan rel.
1010 * WHERE clause conditions too taken from there.
1011 */
1012 if (foreignrel->reloptkind == RELOPT_UPPER_REL)
1013 {
1014 PgFdwRelationInfo *ofpinfo;
1015
1016 ofpinfo = (PgFdwRelationInfo *) fpinfo->outerrel->fdw_private;
1017 scan_rel = fpinfo->outerrel;
1018 context->foreignrel = scan_rel;
1019 remote_conds = ofpinfo->remote_conds;
1020 }
should be moved into deparseSelectStmtForRel() to make the things clear.

11. Whether to qualify a column name by an alias should be based on
whether the
underlying scan relation is a join or base relation scan. That can be
achieved
by setting scanrel in the deparse_context. Attached patch has this
implemented.
Instead of scanrel, we may also have use_alias value as part of the
context,
which is used everywhere.

12. The code to print the function name in deparseAggref() seems similar to
that in deparseFuncExpr(). Should we extract it out into a separate
function
and call that function in deparseAggref() and deparseFuncExpr() both?

13. While deparsing the direct aggregates, the code is not adding ","
between
two arguments, resulting in error like below.
select rank(c1, c2) within group (order by c1, c2) from ft1 group by c1,
c2;
ERROR: syntax error at or near "c2"
CONTEXT: Remote SQL command: SELECT rank("C 1"c2) WITHIN GROUP (ORDER BY
"C
1", c2), "C 1", c2 FROM "S 1"."T 1" GROUP BY "C 1", c2
May be we should add support to deparse List expressions by separating list
items by "," similar to get_rule_expr() and use that here.

14. In deparseAggOrderBy() we do not output anything for default cases
like ASC
or NULLS FIRST (for DESC). But like appendOrderByClause() it's better to be
explicit and output even the default specifications. That way, we do not
leave
anything to the interpretation of the foreign server.

15. deparseAggOrderBy supports deparsing USING subclause for ORDER BY for
an
aggregate, but there is no corresponding shippability check for ordering
operator. Also, we should try to produce a testcase for the same.

16. The code to deparse a sort/group reference in deparseAggOrderBy() and
appendGroupByClause() looks similar. Should we extract it out into a
function
by itself and call that function in those two places similar to
get_rule_sortgroupclause()?

17. In postgresGetForeignPlan() the code to extract conditions and
targetlist
is duplicated for join and upper relation. Attached patch removes this
duplication. Since DML, FOR SHARE/UPDATE is not allowed with aggregation
and
grouping, we should get an outer plan in that code.

18. estimate_path_cost_size() has grown quite long (~400 lines). Half of
that
function deals with estimating costs locally. Should we split this function
into smaller functions, one for estimating size and costs of each kind of
relations locally?

19. Condition below
+        if (sgref && query->groupClause && query->groupingSets == NIL &&
+            get_sortgroupref_clause_noerr(sgref, query->groupClause) !=
NULL)
can be rewritten as
if (sgref && get_sortgroupref_clause_noerr(sgref, query->groupClause))
since we won't come here with non-NULL query->groupingSets and
get_sortgroupref_clause_noerr() will return NULL, if there aren't any
groupClause.

20. Please use word "foreign" instead of "remote" in comments.

21. This code looks dubious
+            /* If not GROUP BY ref, reset it as we are not pushing those
*/
+            if (sgref)
+                grouping_target->sortgrouprefs[i] = 0;
grouping_target comes from RelOptInfo, which is being modified here. We
shouldn't be modifying anything in the RelOptInfo while checking whether
the
aggregate/grouping is shippable. You may want to copy the pathtaget and
modify
the copy.

22. Following comment needs more elaboration.
+                /*
+                 * Add aggregates, if any, into tlist.  Plain Var nodes
pulled
+                 * are already part of GROUP BY and thus no need to add
them
+                 * explicitly.
+                 */
Plain Var nodes will either be same as some GROUP BY expression or should
be
part of some GROUP BY expression. In the later case, the query can not
refer
those without the surrounding expression. which will be part of the
targetlist
list. Hence we don't need to add plain Var nodes in the targetlist. In fact
adding those in SELECT clause will cause error on the foreign server if
they
are not part of GROUP BY clause.

23. Probably you don't need to save this in fpinfo. You may want to
calculate
it whenever it's needed.
+ fpinfo->grouped_exprs = get_sortgrouplist_exprs(query->groupClause,
tlist);

24. Can this ever happen for postgres_fdw? The core sets fdwroutine and
calls
this function when the underlying scan relation has fdwroutine set, which
implies that it called corresponding GetForeignPath hooks, which should
have
set fdw_private. Nonetheless, I think, still the condition is useful to
avoid
crashing the server in case the fdw_private is not set. But we need better
comments.
+    /* If input rel is not aware of fdw, simply return */
+    if (!input_rel->fdw_private)
+        return;

25. Although it's desirable to get a switch case in
postgresGetForeignUpperPaths() eventually, for this patch I guess we should
have an if condition there.

26. Attached patch has restructured code in appendGroupByClause() to reduce
indentation and make the code readable. Let me know if this looks good to
you.

27. Prologue of create_foreign_grouping_paths() does not have formatting
similar to the surrounding functions. Please fix it. Since the function
"create"s and "add"s paths, it might be better to rename it as
add_foreign_grouping_paths().

28. Isn't the following true for any upper relation and shouldn't it be
part of
postgresGetForeignUpperPaths(), rather than create_foreign_grouping_paths(
)?
+    /*
+     * If input rel is not safe to pushdown, we cannot do grouping and/or
+     * aggregation on it.
+     */
+    if (!ifpinfo || !ifpinfo->pushdown_safe)
+        return;

29. We require RelOptInfo::relids since create_foreignscan_plan() copies
them
into ForeignPlan::fs_relids and executor uses them. So, I guess, we have
to set
those in the core somewhere. May be while calling fetch_upper_rel() in
grouping_planner(), we should call it with relids of the underlying scan
relation. I don't see any function calling fetch_upper_rel() with non-NULL
relids. In fact, if we are to create an upper relation with relids in
future,
this code is going to wipe that out, which will be undesirable. Also,
generally, when copying relids, it's better to use bms_copy() to make a
copy
of Bitmapset, instead of just assigning the pointer.

30. By the time postgresGetForeignUpperPaths() gets called, the core has
already added its own paths, so it doesn't make much sense to set rows and
width grouped_rel in create_foreign_grouping_paths().

31. fpinfo->server and user fields are being set twice, once in
create_foreign_grouping_paths() then in foreign_grouping_ok(). Do we need
that?

32.
+    /*
+     * Do we want to create paths with pathkeys corresponding for
+     * root->query_pathkeys.
+     */
Yes, it would be desirable to do that. If we are not going to do that in
this
patch, may be remove that line or add a TODO kind of comment.

33. The patch marks build_path_tlist() as non-static but does not use it
anywhere outside creatplan.c. Is this change intentional?

--
Best Wishes,
Ashutosh Bapat
EnterpriseDB Corporation
The Postgres Database Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

--

*Thanks & Regards,*

*Prabhat Kumar Sahu*

Mob: 7758988455

Skype ID: prabhat.sahu1984

www.enterprisedb.co <http://www.enterprisedb.com/&gt;m
<http://www.enterprisedb.com/&gt;

On Thu, Sep 8, 2016 at 10:41 PM, Ashutosh Bapat <
ashutosh.bapat@enterprisedb.com> wrote:

While checking for shippability, we build the target list which is passed
to
the foreign server as fdw_scan_tlist. The target list contains
a. All the GROUP BY expressions
b. Shippable entries from the target list of upper relation
c. Var and Aggref nodes from non-shippable entries from the target list of
upper relation

The code in the patch doesn't seem to add Var nodes explicitly. It assumes
that
the Var nodes will be part of GROUP BY clause. The code is correct, I
think.

Yes. Code is correct. Var nodes are already part of GROUP BY else we hit
error well before this point.

Thanks Ashutosh for the detailed review comments.

I am working on it and will post updated patch once I fix all your concerns.

Thanks
--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

On Mon, Sep 12, 2016 at 12:20 PM, Prabhat Sahu <
prabhat.sahu@enterprisedb.com> wrote:

Hi,

While testing "Aggregate pushdown", i found the below error:
-- GROUP BY alias showing different behavior after adding patch.

-- Create table "t1", insert few records.
create table t1(c1 int);
insert into t1 values(10), (20);

-- Create foreign table:
create foreign table f_t1 (c1 int) server db1_server options (table_name
't1');

-- with local table:
postgres=# select 2 a, avg(c1) from t1 group by a;
a | avg
---+---------------------
2 | 15.0000000000000000
(1 row)

-- with foreign table:
postgres=# select 2 a, avg(c1) from f_t1 group by a;
ERROR: aggregate functions are not allowed in GROUP BY
CONTEXT: Remote SQL command: EXPLAIN SELECT 2, avg(c1) FROM public.t1
GROUP BY 2

Thanks for reporting this bug in *v1.patch Prabhat.

I will have a look over this issue and will post a fix in next version.

Thanks
--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

Hi,

On Mon, Sep 12, 2016 at 5:17 PM, Jeevan Chalke <
jeevan.chalke@enterprisedb.com> wrote:

Thanks Ashutosh for the detailed review comments.

I am working on it and will post updated patch once I fix all your
concerns.

Attached new patch fixing the review comments.

Here are few comments on the review points:

1. Renamed deparseFromClause() to deparseFromExpr() and
deparseAggOrderBy() to appendAggOrderBy()

2. Done

3. classifyConditions() assumes list expressions of type RestrictInfo. But
HAVING clause expressions (and JOIN conditions) are plain expressions. Do
you mean we should modify the classifyConditions()? If yes, then I think it
should be done as a separate (cleanup) patch.

4, 5. Both done.

6. Per my understanding, I think checking for just aggregate function is
enough as we are interested in whole aggregate result. Meanwhile I will
check whether we need to find and check shippability of transition,
combination and finalization functions or not.

7, 8, 9, 10, 11, 12. All done.

13. Fixed. However instead of adding new function made those changes inline.
Adding support for deparsing List expressions separating list by comma can
be
considered as cleanup patch as it will touch other code area not specific to
aggregate push down.

14, 15, 16, 17. All done.

18. I think re-factoring estimate_path_cost_size() should be done separately
as a cleanup patch too.

19, 20, 21, 22, 23, 24, 25, 26, 27, 28. All done.

29. I have tried passing input rel's relids to fetch_upper_rel() call in
create_grouping_paths(). It solved this patch's issue, but ended up with
few regression failures which is mostly plan changes. I am not sure whether
we get good plan now or not as I have not analyzed them.
So for this patch, I am setting relids in add_foreign_grouping_path()
itself.
However as suggested, used bms_copy(). I still kept the FIXME over there as
I think it should have done by the core itself.

30, 31, 32, 33. All done.

Let me know your views.

Thanks
--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

On Mon, Sep 12, 2016 at 5:19 PM, Jeevan Chalke <
jeevan.chalke@enterprisedb.com> wrote:

On Mon, Sep 12, 2016 at 12:20 PM, Prabhat Sahu <
prabhat.sahu@enterprisedb.com> wrote:

Hi,

While testing "Aggregate pushdown", i found the below error:
-- GROUP BY alias showing different behavior after adding patch.

-- Create table "t1", insert few records.
create table t1(c1 int);
insert into t1 values(10), (20);

-- Create foreign table:
create foreign table f_t1 (c1 int) server db1_server options (table_name
't1');

-- with local table:
postgres=# select 2 a, avg(c1) from t1 group by a;
a | avg
---+---------------------
2 | 15.0000000000000000
(1 row)

-- with foreign table:
postgres=# select 2 a, avg(c1) from f_t1 group by a;
ERROR: aggregate functions are not allowed in GROUP BY
CONTEXT: Remote SQL command: EXPLAIN SELECT 2, avg(c1) FROM public.t1
GROUP BY 2

Thanks for reporting this bug in *v1.patch Prabhat.

I will have a look over this issue and will post a fix in next version.

To fix this issue, we need to make deparseConst() function aware of showtype
flag exactly as that of get_const_expr(). While deparsing Const in GROUP BY
clause, we need to show "::typename" so that it won't treat the constant
value
as a column position in the target list and rather treat it as constant
value.

Fixed this in earlier attached patch and added test-case too.

--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

On Fri, Sep 16, 2016 at 9:45 AM, Jeevan Chalke
<jeevan.chalke@enterprisedb.com> wrote:

6. Per my understanding, I think checking for just aggregate function is
enough as we are interested in whole aggregate result.

+1.

Meanwhile I will
check whether we need to find and check shippability of transition,
combination and finalization functions or not.

I don't think that'd be appropriate. The user is calling the
aggregate, not its constituent functions.

--
Robert Haas
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

Thanks Jeevan for working on the comments.

3. classifyConditions() assumes list expressions of type RestrictInfo. But
HAVING clause expressions (and JOIN conditions) are plain expressions. Do
you mean we should modify the classifyConditions()? If yes, then I think it
should be done as a separate (cleanup) patch.

Ok. Yes, we should also handle bare conditions in
classifyConditions(). I am fine doing it as a separate patch.

6. Per my understanding, I think checking for just aggregate function is
enough as we are interested in whole aggregate result. Meanwhile I will
check whether we need to find and check shippability of transition,
combination and finalization functions or not.

Ok. I agree with this analysis.

13. Fixed. However instead of adding new function made those changes inline.
Adding support for deparsing List expressions separating list by comma can
be
considered as cleanup patch as it will touch other code area not specific to
aggregate push down.

Ok.

18. I think re-factoring estimate_path_cost_size() should be done separately
as a cleanup patch too.

Ok.

29. I have tried passing input rel's relids to fetch_upper_rel() call in
create_grouping_paths(). It solved this patch's issue, but ended up with
few regression failures which is mostly plan changes. I am not sure whether
we get good plan now or not as I have not analyzed them.
So for this patch, I am setting relids in add_foreign_grouping_path()
itself.
However as suggested, used bms_copy(). I still kept the FIXME over there as
I think it should have done by the core itself.

I don't think add_foreign_grouping_path() is the right place to change
a structure managed by the core and esp when we are half-way adding
paths. An FDW should not meddle with an upper RelOptInfo. Since
create_foreignscan_plan() picks those up from RelOptInfo and both of
those are part of core, we need a place in core to set the
RelOptInfo::relids for an upper relation OR we have stop using
fs_relids for upper relation foreign scans.

Here are some more comments on the patch, mostly focused on the tests.
1. If we dig down each usage of deparse_expr_cxt::scanrel, it boils down
checking whether a given Var comes from given scan relation (deparseVar()) or
checking whether a given Var needs relation qualification while deparsing
(again deparseVar()). I think both of those purposes can be served by looking
at scanrel::relids, multiple relids implying relation qualification. So,
instead of having a separate member scan_rel, we should instead fetch the
relids from deparse_expr_cxt::foreignrel. I am assuming that the proposed
change to set relids in upper relations is acceptable. If it's not, we should
pass scanrel->relids through the context instead of scanrel itself.

2. SortGroupClause is a parser node, so we can name appendSortGroupClause() as
deparseSortGroupClause(), to be consistent with the naming convention. If we do
that change, may be it's better to pass SortGroupClause as is and handle other
members of that structure as well.

3. Following block may be reworded
+                /*
+                 * aggorder too present into args so no need to check its
+                 * shippability explicitly.  However, if any expression has
+                 * USING clause with sort operator, we need to make sure the
+                 * shippability of that operator.
+                 */

as "For aggorder elements, check whether the sort operator, if specified, is
shippable or not." and mention aggorder expression along with aggdirectargs in
the comment before this one.

4. Following line is correct as long as there is only one upper relation.
+ context.scanrel = (rel->reloptkind == RELOPT_UPPER_REL) ?
fpinfo->outerrel : rel;
But as we push down more and more of upper operation, there will be a chain of
upper relations on top of scan relation. So, it's better to assert that the
scanrel is a join or a base relation to be future proof.

5. In deparseConst(), showtype is compared with hardcoded values. The
callers of this function pass hardcoded values. Instead, we should
define an enum and use it. I understand that this logic has been borrowed from
get_const_expr(), which also uses hardcoded values. Any reason why not to adopt
a better style here? In fact, it only uses two states for showtype, 0 and ">
0". Why don't we use a boolean then OR why isn't the third state in
get_const_expr() applicable here?

6. "will" or "should" is missing from the following sentence.
"Plain var nodes either be same as some GROUP BY expression or part of some
GROUP BY expression.

7. The changes in block
else
{
/*
* If we have sortgroupref set, then it means that we have an
* ORDER BY entry pointing to this expression. Since we are
* not pushing ORDER BY with GROUP BY, clear it.
*/
if (sgref)
grouping_target->sortgrouprefs[i] = 0;

/* Not matched exactly, pull the var with aggregates then */
aggvars = pull_var_clause((Node *) expr,
PVC_INCLUDE_AGGREGATES);

if (!is_foreign_expr(root, grouped_rel, (Expr *) aggvars))
return false;

/*
* Add aggregates, if any, into the targetlist. Plain var
* nodes either be same as some GROUP BY expression or part of
* some GROUP BY expression. In later case, the query cannot
* refer plain var nodes without the surrounding expression.
* In both the cases, they are already part of the targetlist
* and thus no need to add them again. In fact adding pulled
* plain var nodes in SELECT clause will cause an error on the
* foreign server if they are not same as some GROUP BY
* expression.
*/
foreach(l, aggvars)
{
Expr *expr = (Expr *) lfirst(l);

if (IsA(expr, Aggref))
tlist = add_to_flat_tlist(tlist, list_make1(expr));
}
}

and those in the block
if (fpinfo->local_conds)
{
ListCell *lc;
List *aggvars = pull_var_clause((Node *) fpinfo->local_conds,
PVC_INCLUDE_AGGREGATES);

foreach(lc, aggvars)
{
Expr *expr = (Expr *) lfirst(lc);

/*
* If aggregates within local conditions are not safe to push down,
* then we cannot push down the query. Vars are already part of
* GROUP BY clause which are checked above, so no need to access
* them again here.
*/
if (IsA(expr, Aggref) && !is_foreign_expr(root, grouped_rel, expr))
return false;
}

/* Add Vars and aggregates into the target list. */
tlist = add_to_flat_tlist(tlist, aggvars);
}
should be in sync. The later block adds both aggregates and Vars but the first
one doesn't. Why is this difference?

8. In the comment, "If input rel is not safe to pushdown, then simply return
as we cannot perform any post-join operations remotely on it.", "remotely on
it" may be rephrased as "on the foreign server." to be consistent with the
terminology at in the file.

9. EXPLAIN of foreign scan is adding paranthesis around output expressions,
which is not needed. EXPLAIN output of other plan nodes like Aggregate doesn't
do that. If it's easy to avoid paranthesis, we should do it in this patch. With
this patch, we have started pushing down expressions in the target list, so
makes sense to fix it in this patch.

10. While deparsing the GROUP BY clauses, the code fetches the expressions and
deparses the expressions. We might save some CPU cycles if we deparse the
clauses by their positional indexes in SELECT clause instead of the actual
expressions. This might make the query slightly unreadable. What do you think?

Comments about tests:

1. I don't think the comment below is required. Someone wants to know the
status of that flag might read the corresponding CREATE TABLE command.
+-- Both ft1 and ft2 are used to exercise cost estimates when
+-- use_remote_estimate is false and true respectively.

2. I am assuming that you will remove the SQL statements involving local
tables. They are being used only to test the outputs.

3. The test select count(c6) from ft1; may be clubbed with a previous
testcase? Why is it separate? Some tests like this do not have comments
explaining the purpose behind them. Can you please add comments there.

4. May be bulk of these testcases need to be moved next to Join testcases.
That way their outputs do not change in case the DMLs change in future. In case
you do that, adjust capitalization accordingly.

5. Can we merge following testcase
+select count(*) from ft1 t1 inner join ft2 t2 on (t1.c2 = t2.c2)
where t2.c2 = 6;
with a testcase just before that? I don't see much point in having them
separate.

6. From the comments below, it seems that you want to test the case when the
underlying scan (as a whole) has some local conditions. But the way case has
been written, the underlying join is itself not pushable. Is this intended?
+-- Not pushed down due to local conditions present in underneath input relk
+explain (verbose, costs off)
+select count(*) from ft1 t1 inner join ft1 t2 on (t1.c2 = t2.c2 * random());

7. Instead of separating tests with and without GROUP BY clause into separate
sections, you may want to add them one after the other. Better even if you can
combine them to reduce the number of SQL statements in the file. Do you see any
advantage in having them separate?

8. These two testcases are commented
+--select c1 * random(), sum(c1) * c1 from ft1 group by c1;
+--select "C 1" * random(), sum("C 1") * "C 1" from "S 1"."T 1" group by "C 1";
Either uncomment them and add expected output or remove them altogether. I do
not see any purpose in having them commented.

9. The comment below is too specific.
+-- Aggregate is not pushed down as random() is part of group by expression
It should probably be "Aggregates with unshippable GROUP BY clause are not
shippable" or something general like that.

10. Need some comment about the intention of this and following 3 tests.
+explain (verbose, costs off)
+select count(c2), 5 from ft1 group by 2;

11. About section C, I have a comment similar to comment 7 above. I see that
you have built testcases by gradually adding each clause to a simple SQL
statement. It will become more evident if the improvizations next to the simple
test. Again better if we can merge them into one. Maintaining expected output
of many testcases becomes a pain, if the plans change in future.

12. Following comments
+-- Having clause with random() will be evaluated locally
+-- Having clause with random() will be evaluated locally, and other
having qual is pushed
may be better worded as "Unshippable having clause will be evaluated locally."
to clarify the intention behind the testcase.

13. Wouldn't having random() in the testcase, make them produce different
output in different runs? Also, please see if we can reduce the output rows to
a handful few. Following query produces 21 rows. Is it really important to have
all those rows in the output?
+select c2, sum(c1) from ft2 group by c2 having sum(c1) * random() <
500000 order by c2;

14. For many testcases in section D, one needs to read the testcases carefully
in order to understand the difference between successive testcases. A comment
line clarifying the intention will help.

15. If you have GROUP BY expression in the SELECT clause and apply DISTINCT on
it, DISTINCT is not going to have any effect, will it?
+select distinct sum(c1), c2 from ft2 where c2 < 6 group by c2 order by c2;

16. In the following query, the subquery returns only a single row, so DISTINCT
doesn't have any effects. Please change the subquery to return multiple rows
with some duplicates so that DISTINCT will be propertly tested.
+select distinct (select count(*) filter (where t2.c2 = 6 and t2.c1 <
10) from ft1 t1 where t1.c1 = 6) from ft1 t2 order by 1;
What's the difference between this query and the next one. The comment mentions
INNER and OUTER queries, but I don't see that difference. Am I missing
something?

17. Please mention Why.
+-- Aggregate not pushed down

18. Please club percentile and rank testcases into one to reduce number of SQL
statements.

19. This comment is misleading. VARIADIC is not the reason why the aggregate
was not being pushed down.
+-- Now aggregate with VARIADIC will be pushed

20. Why do we need the last statement ALTERing server extensions? Is it not
already done when the function was added to the extension?
+alter extension postgres_fdw drop function least_accum(anyelement,
variadic anyarray);
+alter extension postgres_fdw drop aggregate least_agg(variadic items anyarray);
+alter server loopback options (set extensions 'postgres_fdw');

21. Following comment is misleading. It will not be pushed down because a user
defined operator is considered unshippable (unless it's part of an extension
known to be shippable.)
+-- This will not be pushed as sort operator is not known to extension.

22. Is following scenario already covered in testcases in section for HAVING?
+-- Clauses with random() will be evaluated locally, and other clauses
are pushed

23. This comment talks about deeper code level internal details. Should have a
better user-visible explanations.
+-- ORDER BY expression is not present as is in target list of remote
query. This needed clearing out sortgrouprefs flag.

24. In the following query, which tests PlaceHolderVars, shouldn't there be an
aggregate on the placeholder column i.e. q.a? Else, I don't see much use of
this case in the context of aggregates. Also, for some reason, the planner
thinks that only avg(ft1.c1) is useful and other two can be nullified. Is that
intentional?
+select count(ft4.c1), sum(q.b) from ft4 left join (select 13,
avg(ft1.c1), sum(ft2.c1) from ft1 right join ft2 on (ft1.c1 = ft2.c1)
where ft1.c1 = 12) q(a, b, c) on (ft4.c1 = q.b) where ft4.c1 between
10 and 15 group by q.b order by 1;

25. Following test looks more appropriate as a join pushdown test, rather than
aggregate pushdown. Nothing in this test gets pushed down.
+select q.a, count(q.a), avg(ft2.c1) from (select 13 from ft1 where c1
= 13) q(a) right join ft2 on (q.a = ft2.c1) where ft2.c1 between 10
and 15 group by q.a order by 1 nulls last;

26. Instead of the testcase below a test which has window aggregates over a
pushed down aggregate makes sense in the context of aggregate pushdown.
+-- WindowAgg
+explain (verbose, costs off)
+select c2, count(c2) over (partition by c2%2) from ft2 where c2 < 10
order by 1 limit 5 offset 95;

postgres_fdw.out has grown by 2000 lines because of testcases in this
patch. We need to compact the testcases so that easier to maintain in
the future.
--
Best Wishes,
Ashutosh Bapat
EnterpriseDB Corporation
The Postgres Database Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

This patch will need some changes to conversion_error_callback(). That
function reports an error in case there was an error converting the
result obtained from the foreign server into an internal datum e.g.
when the string returned by the foreign server is not acceptable by
local input function for the expected datatype. In such cases, the
input function will throw error and conversion_error_callback() will
provide appropriate context for that error. postgres_fdw.sql has tests
to test proper context

-- ===================================================================
-- conversion error
-- ===================================================================
ALTER FOREIGN TABLE ft1 ALTER COLUMN c8 TYPE int;
SELECT * FROM ft1 WHERE c1 = 1; -- ERROR
SELECT ft1.c1, ft2.c2, ft1.c8 FROM ft1, ft2 WHERE ft1.c1 = ft2.c1
AND ft1.c1 = 1; -- ERROR
SELECT ft1.c1, ft2.c2, ft1 FROM ft1, ft2 WHERE ft1.c1 = ft2.c1 AND
ft1.c1 = 1; -- ERROR
ALTER FOREIGN TABLE ft1 ALTER COLUMN c8 TYPE user_enum;

Right now we report the column name in the error context. This needs
to change for aggregate pushdown, which is pushing down expressions.
Right now, in case the aggregate on foreign server produces a string
unacceptable locally, it would crash at
4982 Assert(IsA(var, Var));
4983
4984 rte = rt_fetch(var->varno, estate->es_range_table);

since it's not a Var node as expected.

We need to fix the error context to provide meaningful information or
at least not crash. This has been discussed briefly in [1]/messages/by-id/CAFjFpRdcC7Ykb1SkARBYikx9ubKniBiAgHqMD9e47TxzY2EYFw@mail.gmail.com.

[1]: /messages/by-id/CAFjFpRdcC7Ykb1SkARBYikx9ubKniBiAgHqMD9e47TxzY2EYFw@mail.gmail.com

On Fri, Sep 16, 2016 at 7:15 PM, Jeevan Chalke
<jeevan.chalke@enterprisedb.com> wrote:

Hi,

On Mon, Sep 12, 2016 at 5:17 PM, Jeevan Chalke
<jeevan.chalke@enterprisedb.com> wrote:

Thanks Ashutosh for the detailed review comments.

I am working on it and will post updated patch once I fix all your
concerns.

Attached new patch fixing the review comments.

Here are few comments on the review points:

1. Renamed deparseFromClause() to deparseFromExpr() and
deparseAggOrderBy() to appendAggOrderBy()

2. Done

3. classifyConditions() assumes list expressions of type RestrictInfo. But
HAVING clause expressions (and JOIN conditions) are plain expressions. Do
you mean we should modify the classifyConditions()? If yes, then I think it
should be done as a separate (cleanup) patch.

4, 5. Both done.

6. Per my understanding, I think checking for just aggregate function is
enough as we are interested in whole aggregate result. Meanwhile I will
check whether we need to find and check shippability of transition,
combination and finalization functions or not.

7, 8, 9, 10, 11, 12. All done.

13. Fixed. However instead of adding new function made those changes inline.
Adding support for deparsing List expressions separating list by comma can
be
considered as cleanup patch as it will touch other code area not specific to
aggregate push down.

14, 15, 16, 17. All done.

18. I think re-factoring estimate_path_cost_size() should be done separately
as a cleanup patch too.

19, 20, 21, 22, 23, 24, 25, 26, 27, 28. All done.

29. I have tried passing input rel's relids to fetch_upper_rel() call in
create_grouping_paths(). It solved this patch's issue, but ended up with
few regression failures which is mostly plan changes. I am not sure whether
we get good plan now or not as I have not analyzed them.
So for this patch, I am setting relids in add_foreign_grouping_path()
itself.
However as suggested, used bms_copy(). I still kept the FIXME over there as
I think it should have done by the core itself.

30, 31, 32, 33. All done.

Let me know your views.

Thanks
--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

--
Best Wishes,
Ashutosh Bapat
EnterpriseDB Corporation
The Postgres Database Company

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers

Hi Ashutosh,

On Mon, Sep 26, 2016 at 2:28 PM, Ashutosh Bapat <
ashutosh.bapat@enterprisedb.com> wrote:

Thanks Jeevan for working on the comments.

Ok. Yes, we should also handle bare conditions in
classifyConditions(). I am fine doing it as a separate patch.

Doing that with separate patch would be good.

I don't think add_foreign_grouping_path() is the right place to change
a structure managed by the core and esp when we are half-way adding
paths. An FDW should not meddle with an upper RelOptInfo. Since
create_foreignscan_plan() picks those up from RelOptInfo and both of
those are part of core, we need a place in core to set the
RelOptInfo::relids for an upper relation OR we have stop using
fs_relids for upper relation foreign scans.

Yes, agree that relids must be set by the core rather than a fdw.
However I don't want to touch the core for this patch and also not
exactly sure where we can do that. I think, for this patch, we can
copy relids into grouped_rel in create_grouping_paths() at place
where we assign fdwroutine, userid etc. from the input relation.

Here are some more comments on the patch, mostly focused on the tests.
1. If we dig down each usage of deparse_expr_cxt::scanrel, it boils down
checking whether a given Var comes from given scan relation (deparseVar())
or
checking whether a given Var needs relation qualification while deparsing
(again deparseVar()). I think both of those purposes can be served by
looking
at scanrel::relids, multiple relids implying relation qualification. So,
instead of having a separate member scan_rel, we should instead fetch the
relids from deparse_expr_cxt::foreignrel. I am assuming that the proposed
change to set relids in upper relations is acceptable. If it's not, we
should
pass scanrel->relids through the context instead of scanrel itself.

Yep. Removed scanrel altogether and used relids whenever required.

2. SortGroupClause is a parser node, so we can name
appendSortGroupClause() as
deparseSortGroupClause(), to be consistent with the naming convention. If
we do
that change, may be it's better to pass SortGroupClause as is and handle
other
members of that structure as well.

Renamed appendSortGroupClause() to deparseSortGroupClause().
I have kept this function in sync with get_rule_sortgroupclause() which
takes the Index ref from SortGroupClause(). This function require just
an index and thus passing SortGroupClause as whole is unnecessary. However
we cannot pass entire order by list or group by list, because in case of
order by list we need some extra processing on list elements. So passing
just Index is sufficient and in sync with get_rule_sortgroupclause() too.

4. Following line is correct as long as there is only one upper relation.
+ context.scanrel = (rel->reloptkind == RELOPT_UPPER_REL) ?
fpinfo->outerrel : rel;
But as we push down more and more of upper operation, there will be a
chain of
upper relations on top of scan relation. So, it's better to assert that the
scanrel is a join or a base relation to be future proof.

After making changes reported in (1), this line has removed.
For future proof, as discussed offline, added Assert() in deparseFromExpr().

5. In deparseConst(), showtype is compared with hardcoded values. The
callers of this function pass hardcoded values. Instead, we should
define an enum and use it. I understand that this logic has been borrowed
from
get_const_expr(), which also uses hardcoded values. Any reason why not to
adopt
a better style here? In fact, it only uses two states for showtype, 0 and
">
0". Why don't we use a boolean then OR why isn't the third state in
get_const_expr() applicable here?

We certainly can add an enum here, but for consistency with other related
code I think using hard-coded value is good for now. Also I see this
comment in prologue of deparseConst()
* This function has to be kept in sync with ruleutils.c's get_const_expr.

So better to have handling like it.
Also, currently we use only two values for showtype. But for consistency
let use int instead of bool. In future if we add support for coercion
expr, then we need this third value. At that time we will not need changes
here.
However if required, we can submit a separate patch for adding enum
instead of int for showtype in ruleutils.c.

7. The changes in block ...
should be in sync. The later block adds both aggregates and Vars but the
first
one doesn't. Why is this difference?

add_to_flat_tlist() is taking care of duplicate entries and thus in second
block, I was calling it after the loop to avoid calling it for every list
element. Well, moved that inside loop like first block.

9. EXPLAIN of foreign scan is adding paranthesis around output expressions,
which is not needed. EXPLAIN output of other plan nodes like Aggregate
doesn't
do that. If it's easy to avoid paranthesis, we should do it in this patch.
With
this patch, we have started pushing down expressions in the target list, so
makes sense to fix it in this patch.

ExecInitForeignScan() while determining scan tuple type from passed
fdw_scan_tlist, has target list containing Vars with varno set to
INDEX_VAR. Due to which while deparsing we go through
resolve_special_varno() and get_special_variable() function which
forces parenthesis around the expression.
I can't think of any easy and quick solution here. So keeping this
as is. Input will be welcome or this can be done separately later.

10. While deparsing the GROUP BY clauses, the code fetches the expressions
and
deparses the expressions. We might save some CPU cycles if we deparse the
clauses by their positional indexes in SELECT clause instead of the actual
expressions. This might make the query slightly unreadable. What do you
think?

To me it is better to have expression in the GROUP BY clause as it is
more readable and easy to understand. Also it is in sync with deparsing
logic in ruleutils.c.

Comments about tests:

4. May be bulk of these testcases need to be moved next to Join testcases.
That way their outputs do not change in case the DMLs change in future. In
case
you do that, adjust capitalization accordingly.

Moved testcases after Join testcases.
However I have not made any capitalization changes. I see many tests
like those elsewhere in the file too. Let me know if that's the policy
to have appropriate capitalization in test-case. I don't want violate
the policy if any and will prefer to do the changes as per the policy.

13. Wouldn't having random() in the testcase, make them produce different
output in different runs? Also, please see if we can reduce the output
rows to
a handful few. Following query produces 21 rows. Is it really important to
have
all those rows in the output?
+select c2, sum(c1) from ft2 group by c2 having sum(c1) * random() <
500000 order by c2;

The condition is written in such a way that we will get all rows,
nullifying the random() effect, so I don't think there will be any
issue with the multiple runs.

16. In the following query, the subquery returns only a single row, so
DISTINCT
doesn't have any effects. Please change the subquery to return multiple
rows
with some duplicates so that DISTINCT will be propertly tested.
+select distinct (select count(*) filter (where t2.c2 = 6 and t2.c1 <
10) from ft1 t1 where t1.c1 = 6) from ft1 t2 order by 1;
What's the difference between this query and the next one. The comment
mentions
INNER and OUTER queries, but I don't see that difference. Am I missing
something?

In case of INNER aggregate query, we get multiple rows and thus used
DISTINCT to have small number of output. However in case of OUTER
aggregate query, we get single row. But to keep that query much
identical with INNER query, I have used DISTINCT. It becomes easy to
compare and follow too.
Please see the EXPLAIN output for observing difference between INNER
and OUTER aggregate query. When inner query is aggregate query you
should see that aggregation is performing on t1 and when outer query
is aggregate query, you will see t2.

20. Why do we need the last statement ALTERing server extensions? Is it not
already done when the function was added to the extension?
+alter extension postgres_fdw drop function least_accum(anyelement,
variadic anyarray);
+alter extension postgres_fdw drop aggregate least_agg(variadic items
anyarray);
+alter server loopback options (set extensions 'postgres_fdw');

Whenever we alter extension, we must refresh the server and thus required
last statement ALTERing server. Without that elements added into extension
does not reflect in the server.

23. This comment talks about deeper code level internal details. Should
have a
better user-visible explanations.
+-- ORDER BY expression is not present as is in target list of remote
query. This needed clearing out sortgrouprefs flag.

Not sure how can I put those comments without referring some code level
internal details. I have tried altering those comments but it will be
good if you too try rephrasing it.

postgres_fdw.out has grown by 2000 lines because of testcases in this
patch. We need to compact the testcases so that easier to maintain in
the future.

I have removed many duplicate tests and also combined many of them.
Also removed tests involving local tables. Testcase changes now
become 1/3 of earlier one.

In the attached patch I have fixed all other review comments you have
posted. All the comments were excellent and helped me a lot to improve
in various areas.

Thanks

--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

On Mon, Sep 26, 2016 at 6:15 PM, Ashutosh Bapat <
ashutosh.bapat@enterprisedb.com> wrote:

This patch will need some changes to conversion_error_callback(). That
function reports an error in case there was an error converting the
result obtained from the foreign server into an internal datum e.g.
when the string returned by the foreign server is not acceptable by
local input function for the expected datatype. In such cases, the
input function will throw error and conversion_error_callback() will
provide appropriate context for that error. postgres_fdw.sql has tests
to test proper context
We need to fix the error context to provide meaningful information or
at least not crash. This has been discussed briefly in [1].

Oops. I had that in mind when working on this. Somehow skipped checking
for conversion error context. I have fixed that in v3 patch.
Removed assert and for non Var expressions, printing generic context.
This context is almost in-line with the discussion you referred here.

Thanks

--
Jeevan B Chalke
Principal Software Engineer, Product Development
EnterpriseDB Corporation
The Enterprise PostgreSQL Company

On Fri, Sep 30, 2016 at 8:58 PM, Jeevan Chalke
<jeevan.chalke@enterprisedb.com> wrote:

On Mon, Sep 26, 2016 at 6:15 PM, Ashutosh Bapat
<ashutosh.bapat@enterprisedb.com> wrote:

This patch will need some changes to conversion_error_callback(). That
function reports an error in case there was an error converting the
result obtained from the foreign server into an internal datum e.g.
when the string returned by the foreign server is not acceptable by
local input function for the expected datatype. In such cases, the
input function will throw error and conversion_error_callback() will
provide appropriate context for that error. postgres_fdw.sql has tests
to test proper context
We need to fix the error context to provide meaningful information or
at least not crash. This has been discussed briefly in [1].

Oops. I had that in mind when working on this. Somehow skipped checking
for conversion error context. I have fixed that in v3 patch.
Removed assert and for non Var expressions, printing generic context.
This context is almost in-line with the discussion you referred here.

Moved to next CF.
--
Michael

--
Sent via pgsql-hackers mailing list (pgsql-hackers@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-hackers
