BUG #17974: Walsenders memory usage suddenly spike to 80G+ causing OOM and server reboot

On Wed, Jun 14, 2023 at 12:05:32AM +0000, PG Bug reporting form wrote:

We are running relatively large and busy Postgres database on RDS and using
logical replication extensively. We currently have 7 walsenders and while we
often see replication falls behind due to high transactional volume, we've
never experienced memory issues in 14.6 and below. After recent upgrade to
14.8, we already had several incidents where walsender processes RES memory
would suddenly increase to over 80GB each causing freeable memory on the
instance to go down to zero. Interesting that even after Instance reboot,
the memory used by walsender processes won't get released until we restart
the replication and drop the logical slots. The logical_decoding_work_mem
was set to 512MB in time of the last incident but we recently lowered it to
128MB.

Any known issues in pg 14.8 that would trigger this behaviour?

Yes, there are known issues with memory handling in logical
replication setups. See for example this thread:
/messages/by-id/CAMnUB3oYugXCBLSkih+qNsWQPciEwos6g_AMbnz_peNoxfHwyw@mail.gmail.com

This is not a simple problem, unfortunately :/
--
Michael

Hi,

On 2023-06-14 10:23:32 +0900, Michael Paquier wrote:

On Wed, Jun 14, 2023 at 12:05:32AM +0000, PG Bug reporting form wrote:

We are running relatively large and busy Postgres database on RDS and using
logical replication extensively. We currently have 7 walsenders and while we
often see replication falls behind due to high transactional volume, we've
never experienced memory issues in 14.6 and below. After recent upgrade to
14.8, we already had several incidents where walsender processes RES memory
would suddenly increase to over 80GB each causing freeable memory on the
instance to go down to zero.

When postgres knows it ran out of memory (instead of having gotten killed by
the OOM killer), it'll dump memory context information to the log. Could you
check whether there are related log entries? They should precede an "out of
memory" ERROR.

Interesting that even after Instance reboot,
the memory used by walsender processes won't get released until we restart
the replication and drop the logical slots. The logical_decoding_work_mem
was set to 512MB in time of the last incident but we recently lowered it to
128MB.

That seems very unlikely to be the case. If you restarted postgres or postgres
and the OS, there's nothing to have allocated the memory. What exactly do you
mean by "Instance reboot"?

Any known issues in pg 14.8 that would trigger this behaviour?

Yes, there are known issues with memory handling in logical
replication setups. See for example this thread:
/messages/by-id/CAMnUB3oYugXCBLSkih+qNsWQPciEwos6g_AMbnz_peNoxfHwyw@mail.gmail.com

Why would 14.8 have made that problem worse?

Greetings,

Andres Freund

Thanks Andres, see below

On Wed, Jun 14, 2023 at 6:15 PM Andres Freund <andres@anarazel.de> wrote:

Hi,

On 2023-06-14 10:23:32 +0900, Michael Paquier wrote:

On Wed, Jun 14, 2023 at 12:05:32AM +0000, PG Bug reporting form wrote:

We are running relatively large and busy Postgres database on RDS and

using

logical replication extensively. We currently have 7 walsenders and

while we

often see replication falls behind due to high transactional volume,

we've

never experienced memory issues in 14.6 and below. After recent

upgrade to

14.8, we already had several incidents where walsender processes RES

memory

would suddenly increase to over 80GB each causing freeable memory on

the

instance to go down to zero.

When postgres knows it ran out of memory (instead of having gotten killed
by
the OOM killer), it'll dump memory context information to the log. Could
you
check whether there are related log entries? They should precede an "out
of
memory" ERROR.

There are no "out of memory errors" in the logs, the RDS instance was
restarted by AWS in response to the memory issues on the host (most

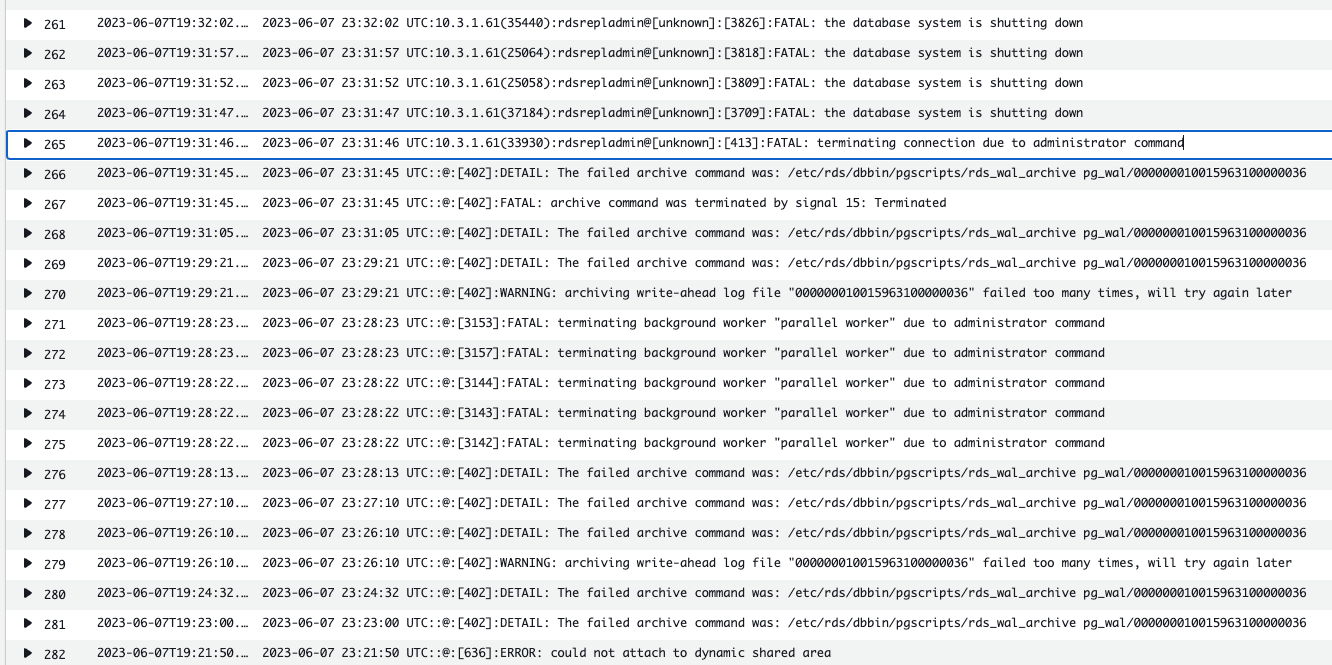

likely). This is all I see in the RDS logs at the time of the failure

[image: image.png]

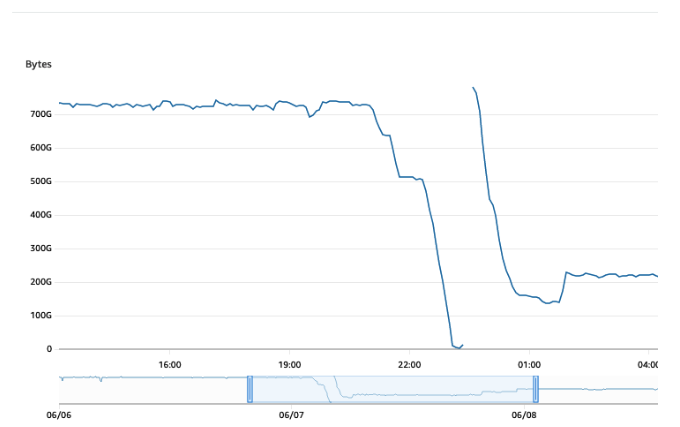

There was sudden freeable memory drop prior to the incident
[image: image.png]
note that after restart, the memory didn't fully recovered even though we
had everything stopped except the logical replication

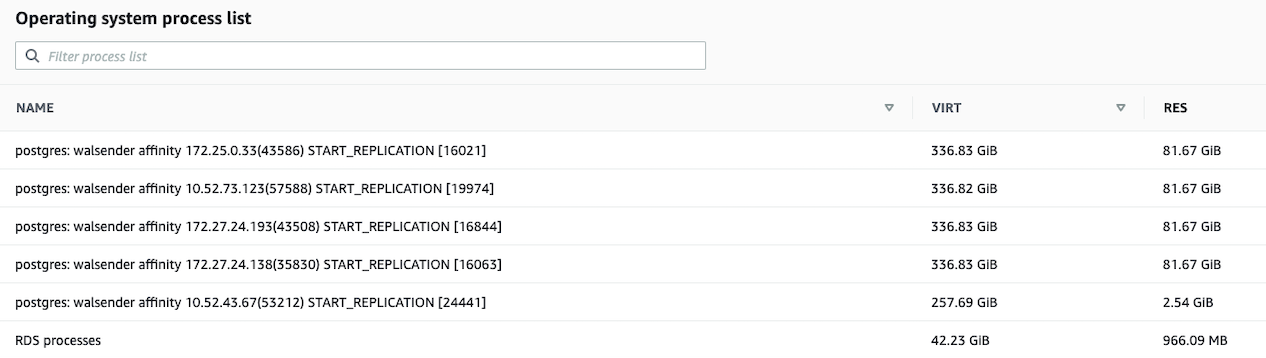

this is a view into processes list after the instance has recovered,
showing that walsenders are still holding to 80GB+ of res memory

[image: image.png]

Interesting that even after Instance reboot,
the memory used by walsender processes won't get released until we

restart

the replication and drop the logical slots. The

logical_decoding_work_mem

was set to 512MB in time of the last incident but we recently lowered

it to

128MB.

That seems very unlikely to be the case. If you restarted postgres or
postgres
and the OS, there's nothing to have allocated the memory. What exactly do
you
mean by "Instance reboot"?

By instance reboot I meant AWS terminating postgres process and restarting

Any known issues in pg 14.8 that would trigger this behaviour?

Yes, there are known issues with memory handling in logical
replication setups. See for example this thread:

/messages/by-id/CAMnUB3oYugXCBLSkih+qNsWQPciEwos6g_AMbnz_peNoxfHwyw@mail.gmail.com

Why would 14.8 have made that problem worse?

This is an assumption obviously, based on the fact that we have been
running this database for several years already and haven't seen similar
memory issues until the recent upgrade to 14.8.

On Wed, Jun 14, 2023 at 08:04:53PM -0400, Michael Guissine wrote:

On Wed, Jun 14, 2023 at 6:15 PM Andres Freund <andres@anarazel.de> wrote:

Any known issues in pg 14.8 that would trigger this behaviour?

Yes, there are known issues with memory handling in logical
replication setups. See for example this thread:

/messages/by-id/CAMnUB3oYugXCBLSkih+qNsWQPciEwos6g_AMbnz_peNoxfHwyw@mail.gmail.com

Why would 14.8 have made that problem worse?

Hmm? I don't necessarily imply that 14.8 made it worse, but that
there are known issues in this area as the other thread mention (which
is mainly about v15, actually, where the situation could be a bit
better).

This is an assumption obviously, based on the fact that we have been
running this database for several years already and haven't seen similar
memory issues until the recent upgrade to 14.8.

Was that all the time with 14 as base? What are the minor versions
you used in the past? Perhaps there is a correlation here that could
help a bit. There have been a few things in this area lately, like
9f2cc1a, 4fbe609, 68dcce2, fd270b7 or 8b9cbd4 (this one made the
decoding cheaper), so it could be possible that a defect has been
introduced. Being able to know the contexts where the memory is
piling up would help a lot, for sure.
--
Michael

Hi Michael, see below

On Wed., Jun. 14, 2023, 21:02 Michael Paquier, <michael@paquier.xyz> wrote:

On Wed, Jun 14, 2023 at 08:04:53PM -0400, Michael Guissine wrote:

On Wed, Jun 14, 2023 at 6:15 PM Andres Freund <andres@anarazel.de>

wrote:

Any known issues in pg 14.8 that would trigger this behaviour?

Yes, there are known issues with memory handling in logical
replication setups. See for example this thread:

/messages/by-id/CAMnUB3oYugXCBLSkih+qNsWQPciEwos6g_AMbnz_peNoxfHwyw@mail.gmail.com

Why would 14.8 have made that problem worse?

Hmm? I don't necessarily imply that 14.8 made it worse, but that
there are known issues in this area as the other thread mention (which
is mainly about v15, actually, where the situation could be a bit
better).

This is an assumption obviously, based on the fact that we have been
running this database for several years already and haven't seen similar
memory issues until the recent upgrade to 14.8.

Was that all the time with 14 as base? What are the minor versions
you used in the past? Perhaps there is a correlation here that could
help a bit. There have been a few things in this area lately, like
9f2cc1a, 4fbe609, 68dcce2, fd270b7 or 8b9cbd4 (this one made the
decoding cheaper), so it could be possible that a defect has been
introduced. Being able to know the contexts where the memory is
piling up would help a lot, for sure.

We started with v 9 or 10 originally I think but the recent upgrade was
from v14.6 to v14.8

--

On Thu, Jun 15, 2023 at 10:02 AM Michael Paquier <michael@paquier.xyz> wrote:

On Wed, Jun 14, 2023 at 08:04:53PM -0400, Michael Guissine wrote:

On Wed, Jun 14, 2023 at 6:15 PM Andres Freund <andres@anarazel.de> wrote:

Any known issues in pg 14.8 that would trigger this behaviour?

Yes, there are known issues with memory handling in logical
replication setups. See for example this thread:

/messages/by-id/CAMnUB3oYugXCBLSkih+qNsWQPciEwos6g_AMbnz_peNoxfHwyw@mail.gmail.com

Why would 14.8 have made that problem worse?

Hmm? I don't necessarily imply that 14.8 made it worse, but that
there are known issues in this area as the other thread mention (which
is mainly about v15, actually, where the situation could be a bit
better).

Yeah, IIUC the logical decoding could use nearly unlimited memory
depending on workloads (see analysis here[1]/messages/by-id/OS3PR01MB6275CAC41E8564D60DC66D229E769@OS3PR01MB6275.jpnprd01.prod.outlook.com).

Regards,

[1]: /messages/by-id/OS3PR01MB6275CAC41E8564D60DC66D229E769@OS3PR01MB6275.jpnprd01.prod.outlook.com

--
Masahiko Sawada
Amazon Web Services: https://aws.amazon.com

I should stand corrected @Andres Freund <andres@anarazel.de> , the memory
DID recover immediately after reboot, but quickly start dropping again
shortly after. It fully recovered only after we dropped and recreated all
replication slots.

On Wed, Jun 14, 2023 at 6:15 PM Andres Freund <andres@anarazel.de> wrote:
