BUG #19006: Assert(BufferIsPinned) in BufferGetBlockNumber() is triggered for forwarded buffer

On Sun, Aug 03, 2025 at 12:00:02PM +0000, PG Bug reporting form wrote:

Reproduced starting from 12ce89fd0.

Added an open item to track this one. Thanks for the report.
--
Michael

Hi,

On Sun, Aug 3, 2025 at 8:58 PM PG Bug reporting form
<noreply@postgresql.org> wrote:

The following bug has been logged on the website:

Bug reference: 19006
Logged by: Alexander Lakhin
Email address: exclusion@gmail.com
PostgreSQL version: 18beta2
Operating system: Ubuntu 24.04
Description:

The following script (based on the regress scripts):
CREATE TABLE public.tenk1 (
unique1 integer,
unique2 integer,
two integer,
four integer,
ten integer,
twenty integer,
hundred integer,
thousand integer,
twothousand integer,
fivethous integer,
tenthous integer,
odd integer,
even integer,
stringu1 name,
stringu2 name,
string4 name
);

COPY tenk1 FROM '.../src/test/regress/data/tenk.data';
COPY tenk1 FROM '.../src/test/regress/data/tenk.data';
DELETE FROM tenk1;
COPY tenk1 FROM '.../src/test/regress/data/tenk.data';

SELECT COUNT(*) FROM tenk1 t1 LEFT JOIN
LATERAL (SELECT t1.twenty, t2.two FROM tenk1 t2) s
ON t1.two = s.two
WHERE s.twenty < 0;

with
shared_buffers = 16MB
triggers:
TRAP: failed Assert("BufferIsPinned(buffer)"), File: "bufmgr.c", Line: 4233,
PID: 2785555

Core was generated by `postgres: law regression [local] SELECT
'.
Program terminated with signal SIGABRT, Aborted.
...
#0 __pthread_kill_implementation (no_tid=0, signo=6, threadid=<optimized
out>) at ./nptl/pthread_kill.c:44
#1 __pthread_kill_internal (signo=6, threadid=<optimized out>) at
./nptl/pthread_kill.c:78
#2 __GI___pthread_kill (threadid=<optimized out>, signo=signo@entry=6) at
./nptl/pthread_kill.c:89
#3 0x000075efce04527e in __GI_raise (sig=sig@entry=6) at
../sysdeps/posix/raise.c:26
#4 0x000075efce0288ff in __GI_abort () at ./stdlib/abort.c:79
#5 0x00006419a43d5e3f in ExceptionalCondition
(conditionName=conditionName@entry=0x6419a445bb56 "BufferIsPinned(buffer)",
fileName=fileName@entry=0x6419a445b9b7 "bufmgr.c",
lineNumber=lineNumber@entry=4233) at assert.c:66
#6 0x00006419a423f028 in BufferGetBlockNumber (buffer=<optimized out>) at
bufmgr.c:4233
#7 0x00006419a42445c5 in StartReadBuffersImpl (allow_forwarding=true,
flags=0, nblocks=0x7fff9765ee74, blockNum=710, buffers=0x6419bc3d127c,
operation=0x6419bc3d1428) at bufmgr.c:1292
#8 StartReadBuffers (operation=0x6419bc3d1428,
buffers=buffers@entry=0x6419bc3d127c, blockNum=710,
nblocks=nblocks@entry=0x7fff9765ee74, flags=flags@entry=0) at bufmgr.c:1500
#9 0x00006419a423afc4 in read_stream_start_pending_read
(stream=stream@entry=0x6419bc3d1218) at read_stream.c:335
#10 0x00006419a423b3df in read_stream_look_ahead
(stream=stream@entry=0x6419bc3d1218) at read_stream.c:493
#11 0x00006419a423b7b3 in read_stream_next_buffer (stream=0x6419bc3d1218,
per_buffer_data=per_buffer_data@entry=0x0) at read_stream.c:971
#12 0x00006419a3efaede in heap_fetch_next_buffer (dir=<optimized out>,
scan=0x6419bc3d0cf8) at heapam.c:675
#13 heapgettup_pagemode (scan=scan@entry=0x6419bc3d0cf8, dir=<optimized
out>, nkeys=<optimized out>, key=<optimized out>) at heapam.c:1037
#14 0x00006419a3efb5d2 in heap_getnextslot (sscan=0x6419bc3d0cf8,
direction=<optimized out>, slot=0x6419bc3c11a8) at heapam.c:1391
#15 0x00006419a40d1503 in table_scan_getnextslot (slot=0x6419bc3c11a8,
direction=ForwardScanDirection, sscan=<optimized out>) at
../../../src/include/access/tableam.h:1031
#16 SeqNext (node=node@entry=0x6419bc3c0f88) at nodeSeqscan.c:81
#17 0x00006419a40d197f in ExecScanFetch (recheckMtd=0x6419a40d1490
<SeqRecheck>, accessMtd=0x6419a40d14a0 <SeqNext>, epqstate=0x0,
node=<optimized out>) at ../../../src/include/executor/execScan.h:126
#18 ExecScanExtended (projInfo=0x0, qual=0x6419bc38a650, epqstate=0x0,
recheckMtd=0x6419a40d1490 <SeqRecheck>, accessMtd=0x6419a40d14a0 <SeqNext>,
node=0x6419bc3c0f88) at ../../../src/include/executor/execScan.h:187
#19 ExecSeqScanWithQual (pstate=0x6419bc3c0f88) at nodeSeqscan.c:138
#20 0x00006419a40cf97b in ExecProcNode (node=0x6419bc3c0f88) at
../../../src/include/executor/executor.h:313
#21 ExecNestLoop (pstate=<optimized out>) at nodeNestloop.c:159
...

Reproduced starting from 12ce89fd0.

Thanks for reporting this. I can reproduce this issue reliably when
shared_buffers is set to 16 MB; raising the value allows the query to
complete normally. However, I don't have the expertise to investigate
and fix it. Perhaps we could CC Thomas on this thread to see whether
he might have time to look into it.

Best,
Xuneng

Thanks. Repro'd here. Looking...

Here's my proposed fix. Great reproducer, Alexander, thanks!

Thomas Munro <thomas.munro@gmail.com> writes:

Here's my proposed fix. Great reproducer, Alexander, thanks!

I've not looked at the issue actually being fixed, but a drive-by
comment: these loops

+	for (int i = 0; i < stream->forwarded_buffers; ++i)
+		Assert(BufferGetBlockNumber(stream->buffers[stream->next_buffer_index + i]) ==
+			   stream->pending_read_blocknum + i);

should be wrapped in "#ifdef USE_ASSERT_CHECKING". Maybe the
compiler is smart enough to throw away the useless looping logic
in a production build, or maybe it isn't.

regards, tom lane

On Tue, Aug 05, 2025 at 12:43:06AM -0400, Tom Lane wrote:

I've not looked at the issue actually being fixed, but a drive-by
comment: these loops

+	for (int i = 0; i < stream->forwarded_buffers; ++i)
+		Assert(BufferGetBlockNumber(stream->buffers[stream->next_buffer_index + i]) ==
+			   stream->pending_read_blocknum + i);

should be wrapped in "#ifdef USE_ASSERT_CHECKING". Maybe the
compiler is smart enough to throw away the useless looping logic
in a production build, or maybe it isn't.

I'd bet it is usually not that smart.. Embedding these in an extra
#ifdef is a sound defense IMO.
--
Michael

Hi,

On Wed, Aug 6, 2025 at 4:40 PM Michael Paquier <michael@paquier.xyz> wrote:

On Tue, Aug 05, 2025 at 12:43:06AM -0400, Tom Lane wrote:

I've not looked at the issue actually being fixed, but a drive-by
comment: these loops

+     for (int i = 0; i < stream->forwarded_buffers; ++i)
+             Assert(BufferGetBlockNumber(stream->buffers[stream->next_buffer_index + i]) ==
+                        stream->pending_read_blocknum + i);

should be wrapped in "#ifdef USE_ASSERT_CHECKING". Maybe the
compiler is smart enough to throw away the useless looping logic
in a production build, or maybe it isn't.

I'd bet it is usually not that smart.. Embedding these in an extra
#ifdef is a sound defense IMO.
--
Michael

+1

Best,
Xuneng

Hi,

On Tue, Aug 5, 2025 at 12:29 PM Thomas Munro <thomas.munro@gmail.com> wrote:

Here's my proposed fix. Great reproducer, Alexander, thanks!

I tested the fix, it works well now. I tried to review the code logic
but found it hard to figure out this line on my own due to the
unfamiliarity with this module currently:

stream->buffers[stream->queue_size + stream->oldest_buffer_index] =

InvalidBuffer;

Could you please elaborate on it a little bit more? Thanks.

Best,
Xuneng

On Fri, Aug 8, 2025 at 3:09 AM Xuneng Zhou <xunengzhou@gmail.com> wrote:

Could you please elaborate on it a little bit more? Thanks.

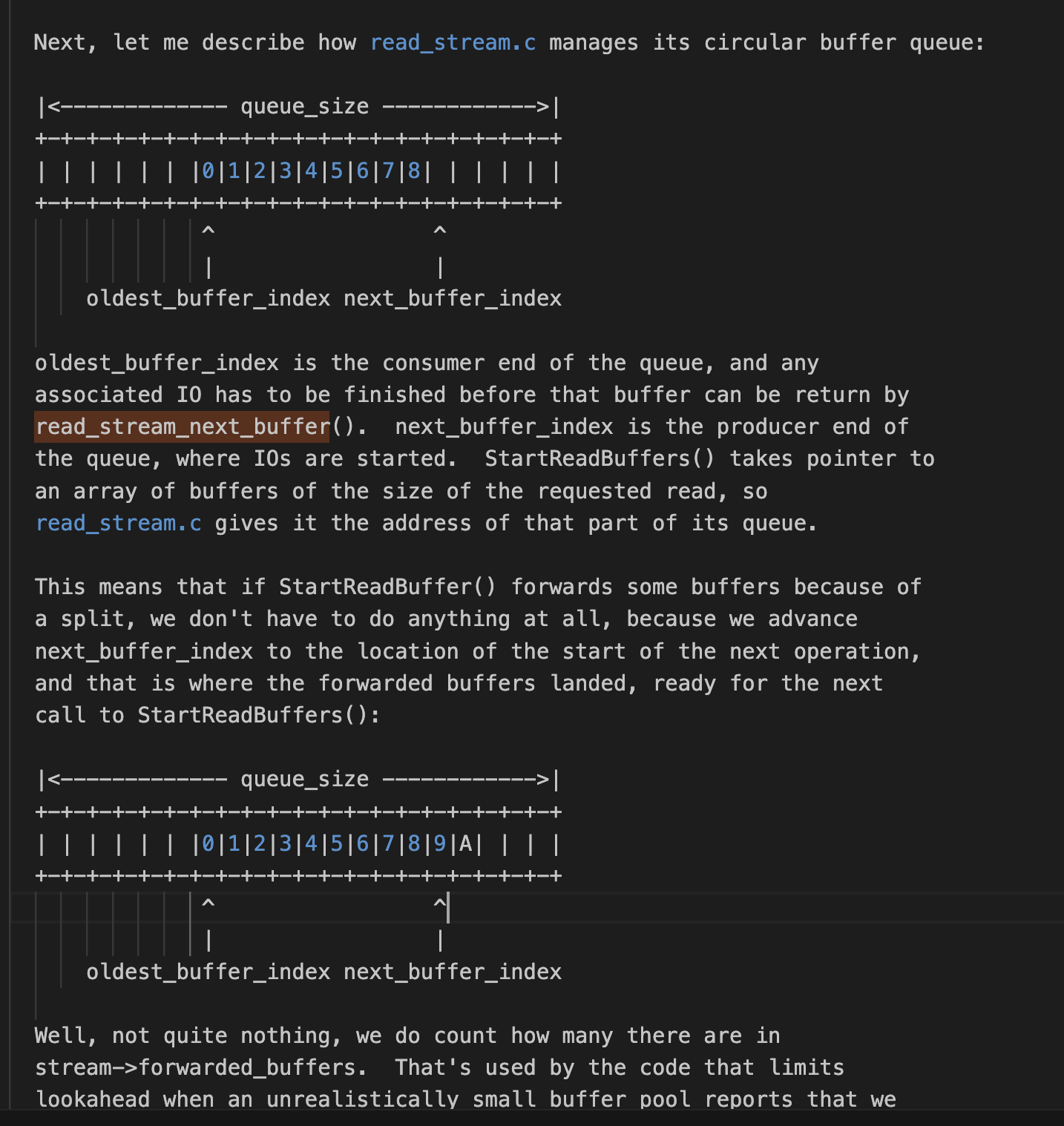

Sure. It's a bit complicated and involves many moving parts, so let
me try to summarise the read_stream.c fast path, forwarded buffers and
the motivation and complexities, and then finally the bug. This email
turned out longer than I feared so sorry for the wall of text, but it
seemed useful to work through it with illustrations to help more
people understand this stuff and contribute improvements, and also
recheck my assumptions at the same time.

New version with #ifdefs. I believe that qualified for trivial dead
code elimination in optimized builds but yeah it's still better this
way, thanks all. This is the version I plan to push if there are no
further comments.

Before digging further, a brief recap of read_stream.c and its fast path:

The goal is to be able to perform the equivalent of a stream of
ReadBuffer() while minimising system calls, IOPS and I/O stalls by
looking a variable distance ahead in the block number stream,
combining consecutive blocks into a wider read operation according to
your io_combine_limit setting, and running some number of I/Os
asynchronously up to your {effective,maintenance}_io_concurrency
setting. It starts off looking just one block into the future, but
adjusts it up and down according to the history of demand and cache
misses, as a prediction of future I/O needs.

If the blocks are all cached, the lookahead distance is minimised and
it becomes very similar to a plain loop of ReadBuffer() calls, since
I/O and thus I/O combining and concurrency aren't predicted to be
useful. It has a special fast path mode to squeeze a bit more
performance out of the extreme case of all-cached blocks that don't
use the facility for streaming optional data along with each block.
It uses specialised code in read_stream.c and bufmgr.c to minimise
bookkeeping, branching and data cache misses through queue maintenance
and movement.

The bug involves multiple fast path transitions and short reads, so
next let me describe the bufmgr.c's interface for combined and
asynchronous I/O and the need for short reads:

read_stream.c works by issuing overlapping pairs of calls to
StartReadBuffers() and WaitReadBuffers(), with stream->ios holding the
queue of IOs with a pending call to WaitReadBuffers(). The interface
of StartReadBuffers() is more complex than ReadBuffer() because it has
to cope with a lot of edge cases. It takes a relation and fork, a
block number, an input/output nblocks count, and an input/output array
of buffers. It returns true if you need to call WaitReadBuffers(),
meaning the operation wasn't completed immediately from cache. The
reason nblocks is input/output is that the operation must sometimes be
"split", also known as a short read.

It splits IOs partly because we want StartReadBuffers() to start
exactly zero or one IOs, and the caller would lose control of the I/O
depth if StartReadBuffers() were capable of starting multiple IOs. We
also want to avoid some avoidable waits. Here are some reasons for
splits:

1. The leading block is BM_VALID, so we choose to give it to you
immediately and not look further (we could look further and return
more than one consecutive BM_VALID block at a time, but this isn't
implemented)
2. An internal block is BM_VALID, so any non-BM_VALID blocks either
side of it can't be combined into one operation
3. An internal block is BM_IO_IN_PROGRESS, meaning that another
backend is reading or writing it
4. An internal or final block is in a different 1GB segment file

(Reason 3 will usually turn in to reason 2 eventually, or the other
backend's IO attempt might in theory fail and then it'll be this
backend's turn to try, and there are some slightly complicated rules
about whether we have to wait for that or split the IO here, for
deadlock avoidance and progress guarantees.)

Forwarded buffers are an artefact of the short reads. Let me
summarize what changed in v18:

In v17, we didn't have real AIO yet, just I/O combining and pseudo-AIO
with POSIX_FADV_WILLNEED, so StartReadBuffers() pinned buffers and
possibly shortened the read for reasons #1 and #2. This meant that it
pinned at most one extra buffer that terminated the operation, and it
used a bit of a kludge do deal with that: for reason #1 you get the
buffer, and for reason #2, it pretended that block was part of the IO,
it just didn't include it in the actual read operation. This was
simple, but not scalable to later work. Then WaitReadBuffers() tried
to acquire the BM_IO_IN_PROGRESS flags for all the blocks, and "hid"
all four split reasons by looping: it skipped buffers that had become
BM_VALID in the meantime (someone else read them) and waited for
BM_IO_IN_PROGRESS to become BM_VALID (or not if another backend's read
failed and this backend could now try), and then md.c internally
looped to handle reason #4. WaitReadBuffers() *had* to acquire
BM_IO_IN_PROGRESS in this second phase when I/O was really synchronous
and StartReadBuffers() was just feeding advice to the kernel: if we
acquired it sooner then other backends might wait for this backend to
reach WaitReadBuffers(), which could deadlock, and we had no
infrastructure to deal with that. In other words, I/Os were already
split for all the same reasons, but #3 and #4 were handled at the
later WaitReadBuffers() stage and in secret.

In v18, the handling of reasons #3 and #4 moved into
StartReadBuffers(). By definition we have to try to acquire
BM_IO_IN_PROGRESS at that earlier stage now, because the IO really is
in progress, and the deadlock risk is gone, because any backend can
drive an IO started by any other backend to completion using the
associated PgAioHandle.

This increased the pin management problem: StartReadBuffers() can
acquire a lot of pins, up to 128 (io_combine_limit=1MB) and then
discover a reason to split the IO. So what do do with all those pins?
A simple answer would be: unpin all the buffers after the split
point.

We didn't want to do that, because read_stream.c is almost certainly
going to call StartReadBuffers() for the rest of the blocks (and
possibly more that it now wants after those ones). So we wanted a way
to transfer them from one StartReadBuffer() call to the following one,
avoiding an unpin-and-repin dance. This was quite a difficult API
design question, and this isn't the only design we considered, but we
settled on making the buffer array that you give to StartReadBuffers()
an input/output array for transporting these extra pinned buffers
between calls, while in v17 it was a output-only array. In v18, you
have to fill it up with InvalidBuffer initially. If it wants to
report that it has pinned buffers but then excluded them from a read
that is now a short read, it writes them into that array, but it
doesn't count them in the *nblocks value that it gives you. The term
I dreamed up for that is "forwarded" buffers. It is the caller's job
to pass them in as input to the next StartReadBuffers() call, or if
for whatever reason it doesn't want to continue, it has to unpin them.

Next, let me describe how read_stream.c manages its circular buffer queue:

|<------------- queue_size ------------>|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| | | | | | |0|1|2|3|4|5|6|7|8| | | | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
             ^                 ^
             |                 |
    oldest_buffer_index next_buffer_index

oldest_buffer_index is the consumer end of the queue, and any
associated IO has to be finished before that buffer can be return by
read_stream_next_buffer(). next_buffer_index is the producer end of
the queue, where IOs are started. StartReadBuffers() takes pointer to
an array of buffers of the size of the requested read, so
read_stream.c gives it the address of that part of its queue.

This means that if StartReadBuffer() forwards some buffers because of
a split, we don't have to do anything at all, because we advance
next_buffer_index to the location of the start of the next operation,
and that is where the forwarded buffers landed, ready for the next
call to StartReadBuffers():

|<------------- queue_size ------------>|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| | | | | | |0|1|2|3|4|5|6|7|8|9|A| | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
             ^                 ^
             |                 |
    oldest_buffer_index next_buffer_index

Well, not quite nothing, we do count how many there are in
stream->forwarded_buffers. That's used by the code that limits
lookahead when an unrealistically small buffer pool reports that we
hold too many pins already. Those are pins that this backend holds,
so they are not counted as extra pins that StartReadBuffer() would
acquire.

That's a nice way for successive StartReadBuffers() calls to
communicate, without having to copy them to and from some other
storage between calls. In exchange for that convenience, we also need
to fill the entries with InvalidBuffer initially so they don't look
like forwarded buffers. We don't want to do that up front: the queue
might be up to {effective,maintenance}_io_concurrency *
io_combine_limit in size (highest possible value: 128,000), and if
this is a small or perfectly cached scan then we will never use most
of the queue. So, we:

* initialize them on the first go around the queue only, tracked in
stream->initialized_buffers
* invalidate entries consumed by read_stream_next_buffer() in
preparation for reuse

The fast path repeatedly uses the same queue entry instead of
advancing oldest_buffer_index and next_buffer_index, so it doesn't
need to invalidate queue entries, saving an instruction and reducing
cache line pollution. Now I am getting pretty close to explaining the
bug, but there is one final complication...

Sometimes a StartReadBuffers() call spans past the physical end of the
queue. It needs to wrap around. We could have chosen to give
StartReadBuffers() an iov, iov_cnt style interface like preadv() so
that we could use iov_cnt = 2 and locate some buffers at the physical
end of the queue and the rest at the physical start of the queue, but
StartReadBuffers()'s interface was complicated enough already. The
solution I went with was to allocate extra array entries after the
queue to allow for the maximum possible overflow if beginning a read
into a buffer located in the final queue entry. The overflowing
buffers are immediately copied to the physical start of the queue,
ready for consumption in regular circular queue position. Note the
twin positions for buffer 2 in this example:

|<------------- queue_size ------------>|<--- overflow_size --->|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|2|3|4|5|6|7| | | | | | | | | | | | |0|1|2|3|4|5|6|7| | | | | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
             ^                       ^
             |                       |
      next_buffer_index      oldest_buffer_index

(Perhaps it would be clearer if overflow_size were a member variable
in ReadStream instead of being open coded as io_combine_limit - 1 in a
few places.)

The non-fast-path invalidates the queue entry holding the buffer it is
returning to the caller of read_stream_next_buffer(), as required to
mark it as "not a forwarded buffer" when reused next time we go around
the circular queue. If it's in the low physical entries that also
might have a twin in the overflow zone, it must also be invalidated.
The reason we keep both copies for a bit longer is that we don't know
whether the following StartReadBuffers() will also be split, so we
don't know whether it will also overflow, so we allow for any number
of following StartReadBuffers() calls to overflow too OR move to the
physical start of the queue.

Now I can finally explain the bug :-)

The fast-path doesn't have to invalidate queue entries, because it
spins on the same queue entry repeatedly as an optimisation.
Unfortunately I forgot to consider that there might be a copy of it in
the overflow zone. If there is a multi-block StartReadBuffers() that
spans into the overflow zone but is split, a continuing
StartReadBuffers(), and then all the requirements for entering fast
path mode are met, the fast path begins to spin on one buffer entry
repeatedly near the physical start of the queue, and it initially
holds a buffer that was copied from the overflow zone. Nothing goes
wrong yet, but then we leave fast path mode because we need to do I/O,
and begin to cycle around the queue again in the regular non-fast path
code. Eventually we have another StartReadBuffers() call that spans
into the overflow zone, and bufmgr.c sees a stale buffer number that
we failed to clear out earlier. It thinks it's a forwarded buffer.
Forwarded buffers must be pinned and map to blocknum + i, and it
asserts that to avoid corrupting the buffer pool by overwriting a
random buffer, which failed due to the bug.

I don't want the fast path to do extra steps. The solution I found
was to clear the overflow entry *before* entering the fast path. We
already know which buffer entry the fast path is going to use, and we
also know that there is no I/O split needing to be continued as part
of the conditions of entry to the fast path, so the solution is simply
to clear any corresponding overflow entry, very slightly ahead of the
usual time.

On Fri, Aug 8, 2025 at 2:43 PM Thomas Munro <thomas.munro@gmail.com> wrote:

We don't want to do that up front: the queue
might be up to {effective,maintenance}_io_concurrency *
io_combine_limit in size (highest possible value: 128,000), and if
this is a small or perfectly cached scan then we will never use most
of the queue.

Correction: it's actually clamped to fit into int16_t arithmetic so it
can't really be 128,000 entries with maximum GUCs, and there are also
a few more entries allocated for overflow and other technical reasons,
but that doesn't change the material point about delaying
initialisation to keep stream initialisation cheap with high GUC
values. I'll probably propose to flip it all to regular int
arithmetic soon anyway as int16_t was only wide enough for v17s GUC
limits that have since been increased, and int16_t turned out to be
all pain and no gain anyway :-)

Hi, Thomas!

Thanks a lot for the exceptionally detailed and insightful
explanation—it’s far more comprehensive than I anticipated. It is
excellent for unpacking the intricate interplay and state transitions
between submodules, which is what makes this topic challenging to
grasp. I’ll need some time to fully digest it, so I’m bookmarking this
email for future reference. I’m also considering turning it into a
blog post after studying—it’s the kind of deep, clear writing that
could benefit more interested audiences.

On Fri, Aug 8, 2025 at 10:44 AM Thomas Munro <thomas.munro@gmail.com> wrote:

On Fri, Aug 8, 2025 at 3:09 AM Xuneng Zhou <xunengzhou@gmail.com> wrote:

Could you please elaborate on it a little bit more? Thanks.

Sure. It's a bit complicated and involves many moving parts, so let
me try to summarise the read_stream.c fast path, forwarded buffers and
the motivation and complexities, and then finally the bug. This email
turned out longer than I feared so sorry for the wall of text, but it
seemed useful to work through it with illustrations to help more
people understand this stuff and contribute improvements, and also
recheck my assumptions at the same time.

New version with #ifdefs. I believe that qualified for trivial dead
code elimination in optimized builds but yeah it's still better this
way, thanks all. This is the version I plan to push if there are no
further comments.

Before digging further, a brief recap of read_stream.c and its fast path:

The goal is to be able to perform the equivalent of a stream of
ReadBuffer() while minimising system calls, IOPS and I/O stalls by
looking a variable distance ahead in the block number stream,
combining consecutive blocks into a wider read operation according to
your io_combine_limit setting, and running some number of I/Os
asynchronously up to your {effective,maintenance}_io_concurrency
setting. It starts off looking just one block into the future, but
adjusts it up and down according to the history of demand and cache
misses, as a prediction of future I/O needs.

If the blocks are all cached, the lookahead distance is minimised and
it becomes very similar to a plain loop of ReadBuffer() calls, since
I/O and thus I/O combining and concurrency aren't predicted to be
useful. It has a special fast path mode to squeeze a bit more
performance out of the extreme case of all-cached blocks that don't
use the facility for streaming optional data along with each block.
It uses specialised code in read_stream.c and bufmgr.c to minimise
bookkeeping, branching and data cache misses through queue maintenance
and movement.

The bug involves multiple fast path transitions and short reads, so
next let me describe the bufmgr.c's interface for combined and
asynchronous I/O and the need for short reads:

read_stream.c works by issuing overlapping pairs of calls to
StartReadBuffers() and WaitReadBuffers(), with stream->ios holding the
queue of IOs with a pending call to WaitReadBuffers(). The interface
of StartReadBuffers() is more complex than ReadBuffer() because it has
to cope with a lot of edge cases. It takes a relation and fork, a
block number, an input/output nblocks count, and an input/output array
of buffers. It returns true if you need to call WaitReadBuffers(),
meaning the operation wasn't completed immediately from cache. The
reason nblocks is input/output is that the operation must sometimes be
"split", also known as a short read.

It splits IOs partly because we want StartReadBuffers() to start
exactly zero or one IOs, and the caller would lose control of the I/O
depth if StartReadBuffers() were capable of starting multiple IOs. We
also want to avoid some avoidable waits. Here are some reasons for
splits:

1. The leading block is BM_VALID, so we choose to give it to you
immediately and not look further (we could look further and return
more than one consecutive BM_VALID block at a time, but this isn't
implemented)
2. An internal block is BM_VALID, so any non-BM_VALID blocks either
side of it can't be combined into one operation
3. An internal block is BM_IO_IN_PROGRESS, meaning that another
backend is reading or writing it
4. An internal or final block is in a different 1GB segment file

(Reason 3 will usually turn in to reason 2 eventually, or the other
backend's IO attempt might in theory fail and then it'll be this
backend's turn to try, and there are some slightly complicated rules
about whether we have to wait for that or split the IO here, for
deadlock avoidance and progress guarantees.)

Forwarded buffers are an artefact of the short reads. Let me
summarize what changed in v18:

In v17, we didn't have real AIO yet, just I/O combining and pseudo-AIO
with POSIX_FADV_WILLNEED, so StartReadBuffers() pinned buffers and
possibly shortened the read for reasons #1 and #2. This meant that it
pinned at most one extra buffer that terminated the operation, and it
used a bit of a kludge do deal with that: for reason #1 you get the
buffer, and for reason #2, it pretended that block was part of the IO,
it just didn't include it in the actual read operation. This was
simple, but not scalable to later work. Then WaitReadBuffers() tried
to acquire the BM_IO_IN_PROGRESS flags for all the blocks, and "hid"
all four split reasons by looping: it skipped buffers that had become
BM_VALID in the meantime (someone else read them) and waited for
BM_IO_IN_PROGRESS to become BM_VALID (or not if another backend's read
failed and this backend could now try), and then md.c internally
looped to handle reason #4. WaitReadBuffers() *had* to acquire
BM_IO_IN_PROGRESS in this second phase when I/O was really synchronous
and StartReadBuffers() was just feeding advice to the kernel: if we
acquired it sooner then other backends might wait for this backend to
reach WaitReadBuffers(), which could deadlock, and we had no
infrastructure to deal with that. In other words, I/Os were already
split for all the same reasons, but #3 and #4 were handled at the
later WaitReadBuffers() stage and in secret.

In v18, the handling of reasons #3 and #4 moved into
StartReadBuffers(). By definition we have to try to acquire
BM_IO_IN_PROGRESS at that earlier stage now, because the IO really is
in progress, and the deadlock risk is gone, because any backend can
drive an IO started by any other backend to completion using the
associated PgAioHandle.

This increased the pin management problem: StartReadBuffers() can
acquire a lot of pins, up to 128 (io_combine_limit=1MB) and then
discover a reason to split the IO. So what do do with all those pins?
A simple answer would be: unpin all the buffers after the split
point.

We didn't want to do that, because read_stream.c is almost certainly
going to call StartReadBuffers() for the rest of the blocks (and
possibly more that it now wants after those ones). So we wanted a way
to transfer them from one StartReadBuffer() call to the following one,
avoiding an unpin-and-repin dance. This was quite a difficult API
design question, and this isn't the only design we considered, but we
settled on making the buffer array that you give to StartReadBuffers()
an input/output array for transporting these extra pinned buffers
between calls, while in v17 it was a output-only array. In v18, you
have to fill it up with InvalidBuffer initially. If it wants to
report that it has pinned buffers but then excluded them from a read
that is now a short read, it writes them into that array, but it
doesn't count them in the *nblocks value that it gives you. The term
I dreamed up for that is "forwarded" buffers. It is the caller's job
to pass them in as input to the next StartReadBuffers() call, or if
for whatever reason it doesn't want to continue, it has to unpin them.

Next, let me describe how read_stream.c manages its circular buffer queue:

|<------------- queue_size ------------>|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| | | | | | |0|1|2|3|4|5|6|7|8| | | | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
^                 ^
|                 |
oldest_buffer_index next_buffer_index

oldest_buffer_index is the consumer end of the queue, and any
associated IO has to be finished before that buffer can be return by
read_stream_next_buffer(). next_buffer_index is the producer end of
the queue, where IOs are started. StartReadBuffers() takes pointer to
an array of buffers of the size of the requested read, so
read_stream.c gives it the address of that part of its queue.

This means that if StartReadBuffer() forwards some buffers because of
a split, we don't have to do anything at all, because we advance
next_buffer_index to the location of the start of the next operation,
and that is where the forwarded buffers landed, ready for the next
call to StartReadBuffers():

|<------------- queue_size ------------>|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| | | | | | |0|1|2|3|4|5|6|7|8|9|A| | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
^                 ^
|                 |
oldest_buffer_index next_buffer_index

Well, not quite nothing, we do count how many there are in
stream->forwarded_buffers. That's used by the code that limits
lookahead when an unrealistically small buffer pool reports that we
hold too many pins already. Those are pins that this backend holds,
so they are not counted as extra pins that StartReadBuffer() would
acquire.

That's a nice way for successive StartReadBuffers() calls to
communicate, without having to copy them to and from some other
storage between calls. In exchange for that convenience, we also need
to fill the entries with InvalidBuffer initially so they don't look
like forwarded buffers. We don't want to do that up front: the queue
might be up to {effective,maintenance}_io_concurrency *
io_combine_limit in size (highest possible value: 128,000), and if
this is a small or perfectly cached scan then we will never use most
of the queue. So, we:

* initialize them on the first go around the queue only, tracked in
stream->initialized_buffers
* invalidate entries consumed by read_stream_next_buffer() in
preparation for reuse

The fast path repeatedly uses the same queue entry instead of
advancing oldest_buffer_index and next_buffer_index, so it doesn't
need to invalidate queue entries, saving an instruction and reducing
cache line pollution. Now I am getting pretty close to explaining the
bug, but there is one final complication...

Sometimes a StartReadBuffers() call spans past the physical end of the
queue. It needs to wrap around. We could have chosen to give
StartReadBuffers() an iov, iov_cnt style interface like preadv() so
that we could use iov_cnt = 2 and locate some buffers at the physical
end of the queue and the rest at the physical start of the queue, but
StartReadBuffers()'s interface was complicated enough already. The
solution I went with was to allocate extra array entries after the
queue to allow for the maximum possible overflow if beginning a read
into a buffer located in the final queue entry. The overflowing
buffers are immediately copied to the physical start of the queue,
ready for consumption in regular circular queue position. Note the
twin positions for buffer 2 in this example:

|<------------- queue_size ------------>|<--- overflow_size --->|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|2|3|4|5|6|7| | | | | | | | | | | | |0|1|2|3|4|5|6|7| | | | | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
^                       ^
|                       |
next_buffer_index      oldest_buffer_index

(Perhaps it would be clearer if overflow_size were a member variable
in ReadStream instead of being open coded as io_combine_limit - 1 in a
few places.)

The non-fast-path invalidates the queue entry holding the buffer it is
returning to the caller of read_stream_next_buffer(), as required to
mark it as "not a forwarded buffer" when reused next time we go around
the circular queue. If it's in the low physical entries that also
might have a twin in the overflow zone, it must also be invalidated.
The reason we keep both copies for a bit longer is that we don't know
whether the following StartReadBuffers() will also be split, so we
don't know whether it will also overflow, so we allow for any number
of following StartReadBuffers() calls to overflow too OR move to the
physical start of the queue.

Now I can finally explain the bug :-)

The fast-path doesn't have to invalidate queue entries, because it
spins on the same queue entry repeatedly as an optimisation.
Unfortunately I forgot to consider that there might be a copy of it in
the overflow zone. If there is a multi-block StartReadBuffers() that
spans into the overflow zone but is split, a continuing
StartReadBuffers(), and then all the requirements for entering fast
path mode are met, the fast path begins to spin on one buffer entry
repeatedly near the physical start of the queue, and it initially
holds a buffer that was copied from the overflow zone. Nothing goes
wrong yet, but then we leave fast path mode because we need to do I/O,
and begin to cycle around the queue again in the regular non-fast path
code. Eventually we have another StartReadBuffers() call that spans
into the overflow zone, and bufmgr.c sees a stale buffer number that
we failed to clear out earlier. It thinks it's a forwarded buffer.
Forwarded buffers must be pinned and map to blocknum + i, and it
asserts that to avoid corrupting the buffer pool by overwriting a
random buffer, which failed due to the bug.

I don't want the fast path to do extra steps. The solution I found
was to clear the overflow entry *before* entering the fast path. We
already know which buffer entry the fast path is going to use, and we
also know that there is no I/O split needing to be continued as part
of the conditions of entry to the fast path, so the solution is simply
to clear any corresponding overflow entry, very slightly ahead of the
usual time.

Best,
Xuneng

On Fri, Aug 8, 2025 at 4:39 PM Xuneng Zhou <xunengzhou@gmail.com> wrote:

Thanks a lot for the exceptionally detailed and insightful
explanation—it’s far more comprehensive than I anticipated. It is
excellent for unpacking the intricate interplay and state transitions
between submodules, which is what makes this topic challenging to
grasp. I’ll need some time to fully digest it, so I’m bookmarking this
email for future reference. I’m also considering turning it into a
blog post after studying—it’s the kind of deep, clear writing that
could benefit more interested audiences.

Well, one benefit of trying to describe a complex system from the top
is that higher level stupidity can sometimes become clear... I
realised that the queue wouldn't even need to be initialised or
cleared if StartReadBuffers() had an explicit in/out npinned argument
to transmit the count between calls along with the buffers, or
examined after each call. This is a draft alternative fix that I am
studying that removes quite a lot of lines and fragility, though time
is not on my side so I might push the one-liner fix ahead of the
upcoming freeze and then see what to do about this.

On Sat, Aug 9, 2025 at 3:06 AM Thomas Munro <thomas.munro@gmail.com> wrote:

Well, one benefit of trying to describe a complex system from the top
is that higher level stupidity can sometimes become clear... I
realised that the queue wouldn't even need to be initialised or
cleared if StartReadBuffers() had an explicit in/out npinned argument
to transmit the count between calls along with the buffers, or
examined after each call. This is a draft alternative fix that I am
studying that removes quite a lot of lines and fragility, though time
is not on my side so I might push the one-liner fix ahead of the
upcoming freeze and then see what to do about this.

One-liner fix pushed.

Here is a new version of the slightly more ambitious fix, for
discussion. I need to figure out if there is any measurable
performance impact, but from an interface sanity and fragility POV it
seems infinitely better like this. I recall being paranoid about
function call width, but it still fits in 6 registers. I think
perhaps the InvalidBuffer-based API might have seemed a shade more
reasonable before I reworked the pin limiting logic, but once I had to
start scanning for forwarded buffers after every StartReadBuffers()
call, I really should have reconsidered that interface. In other
words, maybe a bit of myopic path dependency here...

On Sat, Aug 09, 2025 at 04:03:41PM +1200, Thomas Munro wrote:

Here is a new version of the slightly more ambitious fix, for
discussion. I need to figure out if there is any measurable
performance impact, but from an interface sanity and fragility POV it
seems infinitely better like this. I recall being paranoid about
function call width, but it still fits in 6 registers. I think
perhaps the InvalidBuffer-based API might have seemed a shade more
reasonable before I reworked the pin limiting logic, but once I had to
start scanning for forwarded buffers after every StartReadBuffers()
call, I really should have reconsidered that interface. In other
words, maybe a bit of myopic path dependency here...

XXX does the change have any measurable performance impact?
XXX is the single-buffer specialization unaffected due to dead
code elimination, as expected?
xxx unused queue entries could potentially be electrified with
wipe_mem/VALGRIND_MAKE_MEM_NOACCESS, though existing bufmgr.c assertions
are very likely to reveal any fencepost bugs already
XXX perhaps we don't need quite so many _npinned <= _nblocks assertions

With all these comments and b421223172a2 already applied, are you sure
that it is a good idea to play with the v18 branch more than
necessary? We are in a baked beta2 state, and it looks like all these
could qualify as HEAD-only improvements.

Perhaps the open item can be closed then?
--
Michael

On Sun, Aug 10, 2025 at 12:22 PM Michael Paquier <michael@paquier.xyz> wrote:

With all these comments and b421223172a2 already applied, are you sure
that it is a good idea to play with the v18 branch more than
necessary? We are in a baked beta2 state, and it looks like all these
could qualify as HEAD-only improvements.

Yeah, b421223172a2 closes the known bug and thus the critical path item for 18.

I am happy to propose this patch as an improvement for master, and I
am not aware of remaining bugs in this area in v18. I just wanted to
publish the patch with analysis ASAP once the existing
read_stream.c/bufmgr.c interaction began to seem egregiously
suboptimal to me and I saw what to do about, having addressed the bug
with a low risk patch as a first priority. That keeps the options
open, even if not very wide given the date: on the off-chance that
others think the status quo isn't good enough and perhaps the
fragility of the existing API is actually riskier than the bigger
change, at least there's a patch on the table to discuss. I have no
plans to take any action without such a consensus.

Perhaps the open item can be closed then?

Done.

On Sun, Aug 10, 2025 at 02:01:22PM +1200, Thomas Munro wrote:

On Sun, Aug 10, 2025 at 12:22 PM Michael Paquier <michael@paquier.xyz> wrote:

Perhaps the open item can be closed then?

Done.

This was marked as closed before 18rc1, but it appears to have been
committed in time for 18beta3, so I moved it to the "resolved before
18beta3" section.

--
nathan

Hi,

On Sun, Aug 10, 2025 at 10:01 AM Thomas Munro <thomas.munro@gmail.com> wrote:

On Sun, Aug 10, 2025 at 12:22 PM Michael Paquier <michael@paquier.xyz> wrote:

With all these comments and b421223172a2 already applied, are you sure
that it is a good idea to play with the v18 branch more than
necessary? We are in a baked beta2 state, and it looks like all these
could qualify as HEAD-only improvements.

Yeah, b421223172a2 closes the known bug and thus the critical path item for 18.

I am happy to propose this patch as an improvement for master, and I
am not aware of remaining bugs in this area in v18. I just wanted to
publish the patch with analysis ASAP once the existing
read_stream.c/bufmgr.c interaction began to seem egregiously
suboptimal to me and I saw what to do about, having addressed the bug
with a low risk patch as a first priority. That keeps the options
open, even if not very wide given the date: on the off-chance that
others think the status quo isn't good enough and perhaps the
fragility of the existing API is actually riskier than the bigger
change, at least there's a patch on the table to discuss. I have no
plans to take any action without such a consensus.

Perhaps the open item can be closed then?

Done.

I read the high level explanation in the prior email; it's a pretty
dense reading. I wouldn't claim to have a very good understanding of
it, but the one line clean-up seems to fix the bug well. This overall
idea of the follow-up patch looks sound; however it feels more like
performance improvement enabled by enhanced design. I also did a rough
read on the patch itself and found two minor typos.

"the output value can be used directly (as input as input) to the following
call along with the buffers it counts."

"On entry, *nblocks is the (desire) number of block to read."

Best,
Xuneng

Hi,

1. The leading block is BM_VALID, so we choose to give it to you
immediately and not look further (we could look further and return
more than one consecutive BM_VALID block at a time, but this isn't
implemented)

I am curious about why this isn't implemented. It looks helpful.
Is there any blocking issue or trade-off for not doing so?

Next, let me describe how read_stream.c manages its circular buffer queue:

|<------------- queue_size ------------>|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| | | | | | |0|1|2|3|4|5|6|7|8| | | | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
^                 ^
|                 |
oldest_buffer_index next_buffer_index

oldest_buffer_index is the consumer end of the queue, and any
associated IO has to be finished before that buffer can be return by
read_stream_next_buffer(). next_buffer_index is the producer end of
the queue, where IOs are started. StartReadBuffers() takes pointer to
an array of buffers of the size of the requested read, so
read_stream.c gives it the address of that part of its queue.

This means that if StartReadBuffer() forwards some buffers because of
a split, we don't have to do anything at all, because we advance
next_buffer_index to the location of the start of the next operation,
and that is where the forwarded buffers landed, ready for the next
call to StartReadBuffers():

|<------------- queue_size ------------>|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| | | | | | |0|1|2|3|4|5|6|7|8|9|A| | | |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
^                 ^
|                 |
oldest_buffer_index next_buffer_index

The format of this part is not aligned well in gmail, so I copy it into vs
code.
Is this layout right? I found second illustration somewhat hard to follow,
especially
the "do nothing" trick and the movement of next_buffef_index in the second
queue.
Maybe I need to read the corresponding code.
[image: image.png]

Best,
Xuneng

On Wed, Aug 13, 2025 at 5:29 PM Xuneng Zhou <xunengzhou@gmail.com> wrote:

1. The leading block is BM_VALID, so we choose to give it to you
immediately and not look further (we could look further and return
more than one consecutive BM_VALID block at a time, but this isn't
implemented)

I am curious about why this isn't implemented. It looks helpful.
Is there any blocking issue or trade-off for not doing so?

stream->distance tends to be 1 for well cached data (it grows when IO
is needed and it is worth looking far ahead, and shrinks when data is
found in cache). So we won't currently have a distance > 1 for well
cached data, so we wouldn't benefit much. That may not always be
true: if the buffer mapping table is changed to a tree data structure
(like the way kernels manage virtual memory pages associated with a
file or other VM object), then we might have an incentive to look up
lots of cached blocks at the same time, and then we might want to
change the distance tuning algorithm, and then we might want
StartReadBuffers() to be able to return more than one cached block at
a time. We've focused mainly on I/O so far, and just tried not to
make the well cached cases worse.

The format of this part is not aligned well in gmail, so I copy it into vs code.
Is this layout right?

Yes.

I found second illustration somewhat hard to follow, especially
the "do nothing" trick and the movement of next_buffef_index in the second queue.
Maybe I need to read the corresponding code.

Suppose you have pending_read_blocknum = 100, pending_read_nblock = 5,
next_buffer_index = 200. Now you decide to start that read, because
the next block the caller wants can't be combined, so you call
StartReadBuffers(blocknum = 100, *nblocks = 4, buffers =
&buffers[200]). StartReadBuffers() pins 5 buffers and starts an IO,
but finds a reason to split it at size 2. It sets *nblocks to 2, and
returns. Now read_stream.c adds 2 to pending_read_blocknum, subtracts
2 from pending_read_nblocks, so that it represents the continuation of
the previous read. It also adds 2 to next_buffer_index with modulo
arithmetic (so it wraps around the queue), because that is the
location of the buffers for the next read, and sets forwarded_buffers
to 3, because there are 3 buffers already pinned (in that patch ^ it
is renamed to pending_read_npinned). The three buffers themselves are
already in the queue at the right position for StartReadBuffers() to
receive them and know that it doesn't have to pin them again. What I
was referring to with "doing nothing" is the way that if you keep
sliding StartReadBuffers() call along the queue, the extra buffers it
spits out become its input next time, without having to be copied
anywhere. In that picture there are two forwarded buffers, labeled 9
and A.
