Shrinking SVG (Again)
Our current policy says that we use the two tools Graphviz (drawing
Graphs) and Ditaa (drawing ascii art) to generate SVG. The two tools are
highly specialized and bound to their original purpose. I strongly
believe that we will not be able to visualize more complex situations
like this
http://1.bp.blogspot.com/--CG_kXBFWzw/UgW5JROpbDI/AAAAAAAAAHc/9V8iwO1qluQ/s1600/arch.bmp
or that:
https://severalnines.com/sites/default/files/blog/node_5266/image5.jpg
without using other tools, which are more flexible.
In the past, we had many discussions on this topic and didn't come to a
final decision in favor on one single or a few number of such tools.
However, we came to the important and very helpful conclusion to store
two files per graphic: the original tool-specific (simple to read,
diff-able) and the generated SVG version.
Out in the wild there is the open source tool SVGO
https://github.com/svg/svgo. Its purpose is the generation of a small,
easy to read SVG file out of any other SVG file by removing all the
clutter, tools typically generate. In my opinion it's not perfect, but
it has some strong advantages: the generated files are really small and
nearly free of unnecessary information; it is flexible because a lot of
parameters control the degree of optimization; it is extensible: missing
features may be added by ourselves.
The SVGO tool is a node.js application. At Ubuntu you can install it:
sudo apt install npm nodejs
sudo npm install -g svgo
run it, e.g.:
svgo test1_ink.svg --pretty --indent=2 --precision=2 --multipass
--disable=removeComments \
--output test1_svgo.svg
Please test it with your own examples.
In contrast to our previous policy the generated file is the diff-able,
whereas the original one is hard to read.
Jürgen Purtz
I plan to deliver 3 more graphics, see attachment. When creating their
textual description in the SGML files I faced a problems: The patch of
GSoD
/messages/by-id/CAEkD-mBFQb61gHNWR0cN5K4G4q-i1PRwNn_OKVkKSaaJa5_LbA@mail.gmail.com
is not yet committed. But this chapter is a good place for the graphics.
Will the GSoD patch become part of the documentation?
Furthermore in the last weeks we have seen some initiatives to uniform
the wording of our documentation. I appreciate such activities and will
deliver a glossary of terms which are used in the description of the
graphics. This glossary will focus on PG-specific terms. Well known
terms like SQL key words are left out.
Any comments? Errors in the graphics? Suggestions? What's about the GSoD
patch?
Jürgen Purtz
On Wed, 2020-01-15 at 14:56 +0100, Jürgen Purtz wrote:
I plan to deliver 3 more graphics, see attachment. When creating their
textual description in the SGML files I faced a problems: The patch of
GSoD
/messages/by-id/CAEkD-mBFQb61gHNWR0cN5K4G4q-i1PRwNn_OKVkKSaaJa5_LbA@mail.gmail.com
is not yet committed. But this chapter is a good place for the graphics.
Will the GSoD patch become part of the documentation?
Both Tom and me showed interest, and the feedback was that some things
could be improved. I have not heard back from the author since;
I hope she didn't get discouraged.
There were definitely some things there that shouldn't go to waste.
Any comments? Errors in the graphics? Suggestions? What's about the GSoD
patch?

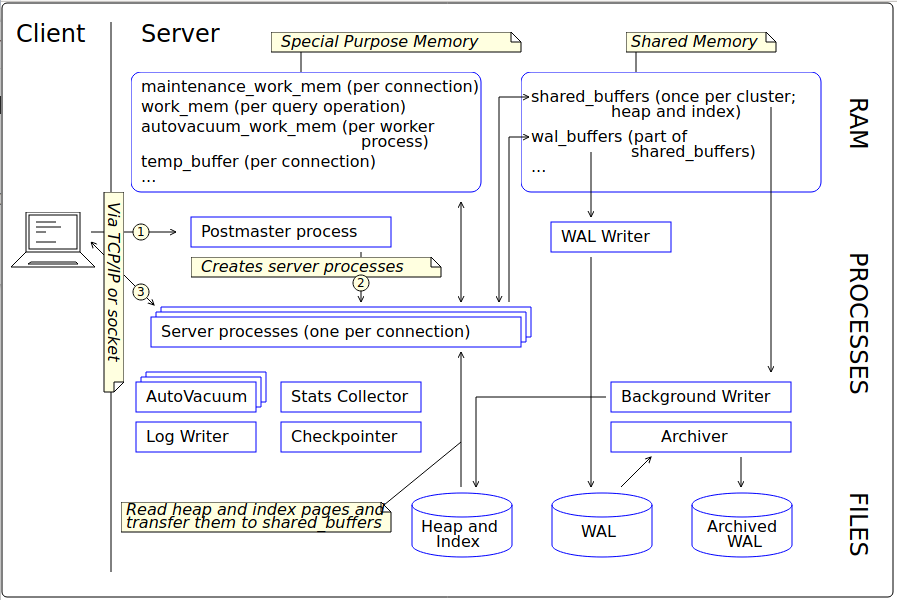

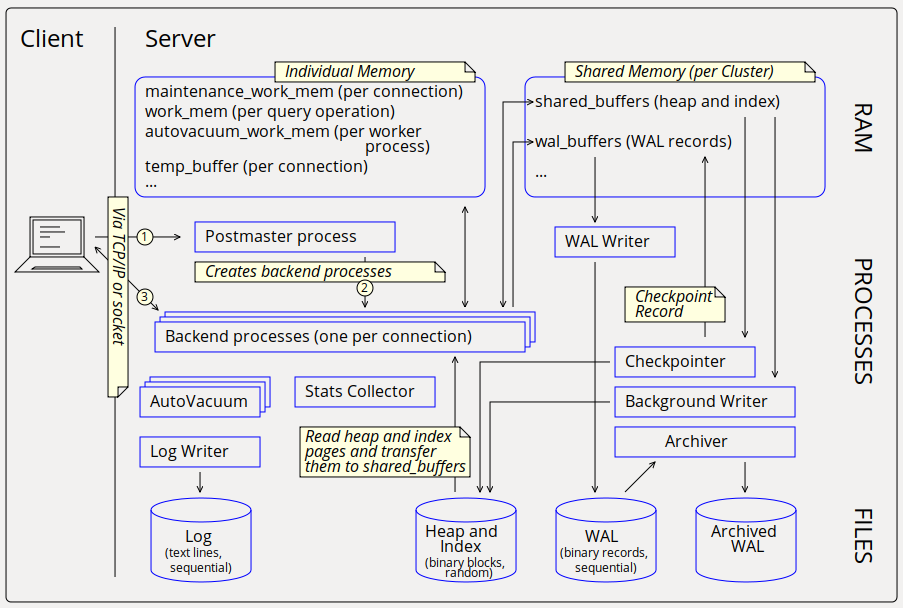

I particularly like the first image with the memory and process architecture.
Some mistakes:
- wal_buffers is shared memory, but it is not a part of shared_buffers
- The process that performs most of the writes to the data files is
the checkpointer. Sometimes backends also have to write to data
files.
Minor quibbles:
- The "server process" is traditionally called "backend process"
- "Special purpose memory" is strange.
I thing "private memory" would be better.
I don't know how it could be depicted that each of the backends
has his own.

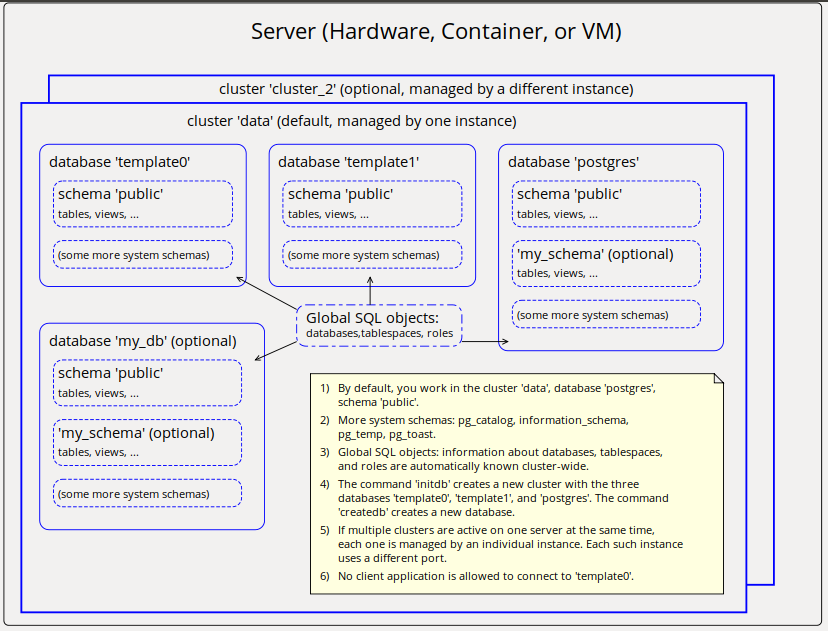

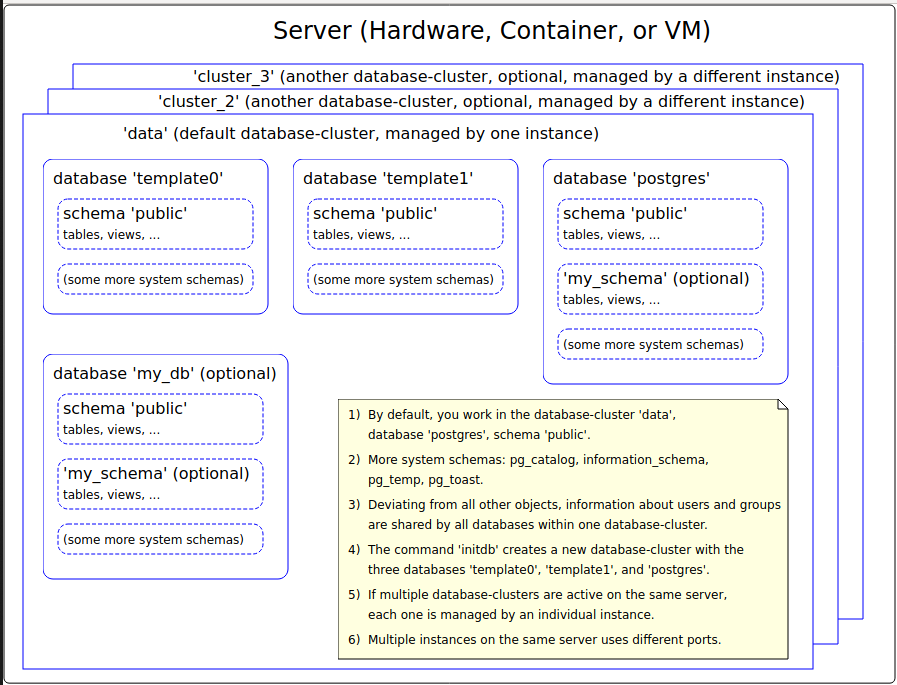

I liked the "cluster / database / schema" image less.
Some problems:
- No user data should be stored in the "postgres" database.
- "template0" has *no* other schemas or tables.
It must be absolutely empty.
- I am missing the global objects like roles and tablespaces
"outside" the databases.

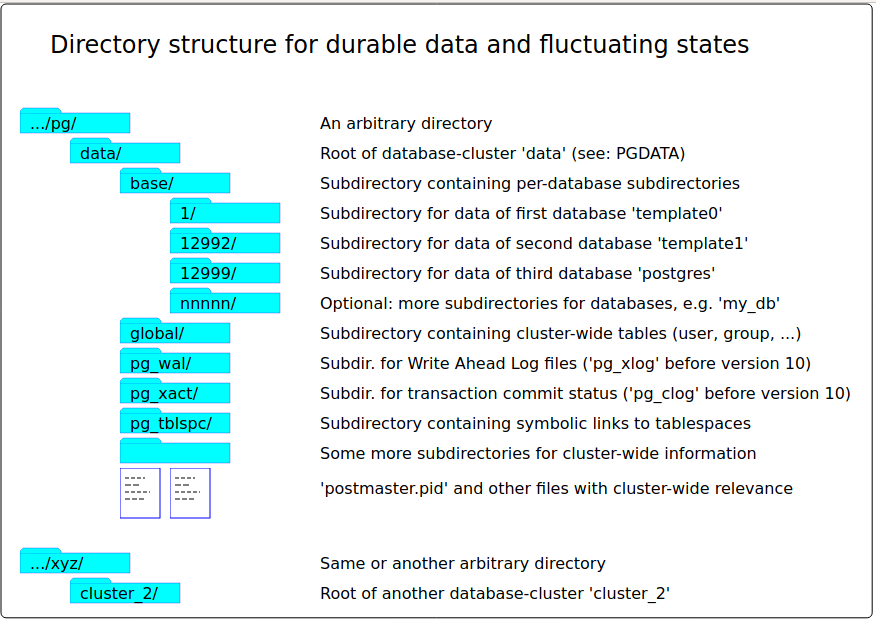

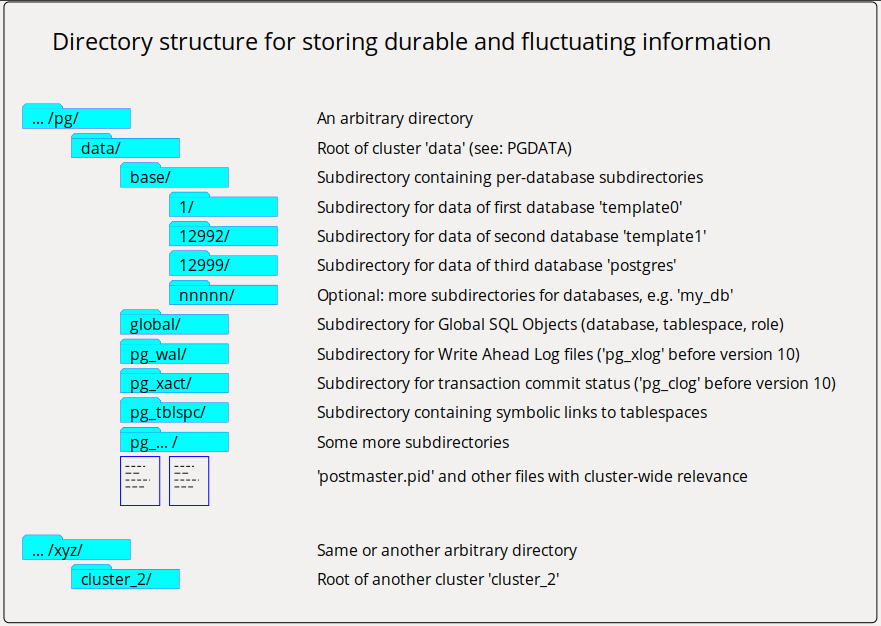

I am fine with the directory layout image, but I wonder what
"fluctuating states" may be.
Yours,
Laurenz Albe
This patch deals with two different topics. First, it creates a glossary
with basic PG-terms and second, it supplies new figures with explanations.
a) In our documentation we name some objects inconsistently (e.g.: WAL,
WAL file, WAL log, log segment file, WAL segment file, segment file -
whereas a 'file segment' is a very different thing) and often without a
definition of its meaning. For experienced users this is not a problem,
but novice users can get confused easily. In the last months we have
seen some more initiatives to clarify the situation. My attempt to
introduce such a glossary is focused on fundamental PG-related terms
such as CLUSTER or POSTMASTER. Terms with a consistent usage in the
database community, such as SELECT, are not part of it.
b) The figures and their explanations are summed up in a new chapter,
which is intended as an introduction to the PG architecture directly
after the 'Getting Started' chapter. The text makes heavy use of the
glossary. Therefore the glossary must be applied before or together with
the figures.
The source of the figures do not completely comply to our guidelines and
the opinion of the community, which says, that we should use tools
(actually ditaa and graphviz) to create SVG files. However, this figures
are too complex for the two tools. I provide each figure in 3 variants
using a certain name convention: xxx-raw.svg (created in a text- or
XML-editor), xxx-ink.svg (created with Inkscape by reading xxx-raw.svg),
and xxx-ink-svgo.svg (created out of xxx-ink.svg with the tool SVGO).
The 3 variants render to the same output. My personal favorite is 'raw'.
If the community prefers 'ink' or 'ink-svgo' it's ok for me. 'ink-svgo'
has the advantage over 'ink' that it does not contain Inkscape specific
namespaces, elements, or attributes; other elements are reduced in their
size (measured in characters). 'ink-svgo' is notable smaller that the
original Inkscape file - especially in such situations, where files are
really created with the use of Inkscape. The size reduction acts very
efficient. Generate the reduced file with:
# disable 'mergePaths' is necessary (bug); 'config' is helpful for readability
svgo xxx-ink.svg --output=xxx-ink-svgo.svg \
--pretty --indent=2 --precision=2 --multipass \
--disable=removeTitle,mergePaths,convertColors,removeViewBox \
--config '{ "plugins": [ { "cleanupIDs": { "force": true, "minify": false} }] }'
The describing sgml files use two different 'role' attributes for
'imageobject' elements. This is necessary in order to keep rendering of
font sizes of HTML-text and text inside SVG in correlation when you
choose different screen resolutions in the browser.
J. Purtz

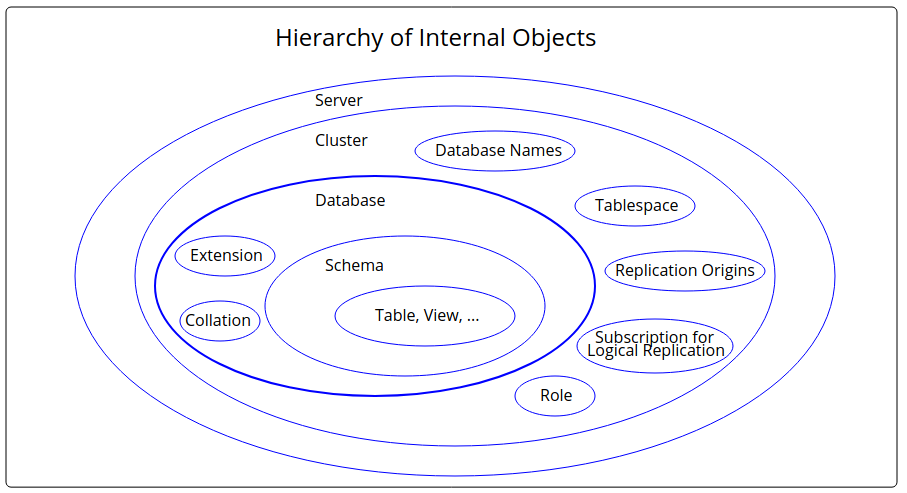

The attached patch extends the previous one by one more figure, a rework
of the old explanations plus additional explanations.
J. Purtz
On 2020-Feb-14, J�rgen Purtz wrote:
The attached patch extends the previous one by one more figure, a rework of
the old explanations plus additional explanations.
So now we have two glossaries being proposed [1]/messages/by-id/d4175e85-61c6-18d5-65c9-a9e19795f3e2@purtz.de [2]/messages/by-id/CADkLM=fx_kNCCz97HSXMBgTSY50Es_czsNZJrdCBtpYiT_VLHA@mail.gmail.com, and they don't
have much in common with each other. What to do now? If we can get the
authors to agree on what patch to submit, we can move forward.
I suggest to make a glossary be 0001, and then the other patches can be
0002 or further.
(I also CC Liudmila, who mentioned the topic of a glossary in [3]/messages/by-id/CAEkD-mBFQb61gHNWR0cN5K4G4q-i1PRwNn_OKVkKSaaJa5_LbA@mail.gmail.com).
[1]: /messages/by-id/d4175e85-61c6-18d5-65c9-a9e19795f3e2@purtz.de
[2]: /messages/by-id/CADkLM=fx_kNCCz97HSXMBgTSY50Es_czsNZJrdCBtpYiT_VLHA@mail.gmail.com
[3]: /messages/by-id/CAEkD-mBFQb61gHNWR0cN5K4G4q-i1PRwNn_OKVkKSaaJa5_LbA@mail.gmail.com
--
�lvaro Herrera https://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services
So now we have two glossaries being proposed [1] [2], and they don't
have much in common with each other. What to do now? If we can get the
authors to agree on what patch to submit, we can move forward.I suggest to make a glossary be 0001, and then the other patches can be
0002 or further.
Yes, we should work on the glossary with priority because other things
depend on it, not only the explanation of figures.
The two proposals differs in their nature: [1] is focused on PG-specific
terms like WAL, Background Writer, Background Worker, ... and such terms
that are broadly used but may differ from the meaning in other DBMS like
Segment or Data Dictionary. It's only a starting point. Currently it
misses the terms of important features like MVCC, Backup, Replication,
... . [2] also contains fundamental terms but is focused on universal
terms of the DBMS community like SELECT, Null, Rollback, ... .
It's important to check, whether the existing documentation starts with
something like "A <glossary-term> is a ...". In my opinion such
redundancies aren't a problem as long as they don't contradict each
other. On the contrary, I support this approach.
J. Purtz
