Rendering pi more nicely in PDF

From the symbolic unit of the department...

Hello Tom,
26.04.2020 22:13, Tom Lane wrote:

In the department of nitpickery ...

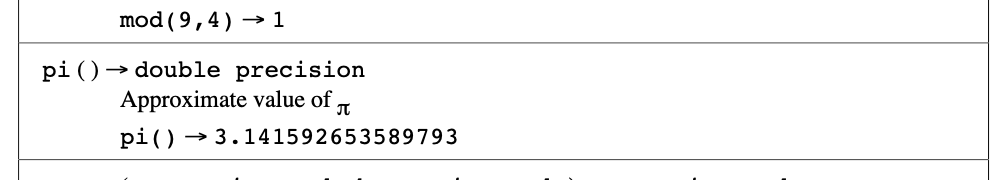

"π" renders poorly in our PDF docs: as shown in the attached
screenshot, it doesn't line up on the baseline. I realized that
this is the same problem I'd run into recently with right-arrow,
and it can be solved in the same way, namely we have to specify
use of the symbol font explicitly. So attached is a proposed
patch to fix it.

Use of a new processing-instruction might not be the most elegant
way to do this ... anyone have a better suggestion?

I would use the phrase tag, which is intended for such uses: [1]http://www.sagehill.net/docbookxsl/CustomInlines.html [2]https://tdg.docbook.org/tdg/4.5/phrase.html.
The "phrase" sounds too generic, but it doesn't require yet another
processing instruction e.g. for ∑ or a similar entity.

[1]: http://www.sagehill.net/docbookxsl/CustomInlines.html
[2]: https://tdg.docbook.org/tdg/4.5/phrase.html

Best regards,
Alexander

Alexander Lakhin <exclusion@gmail.com> writes:

26.04.2020 22:13, Tom Lane wrote:

Use of a new processing-instruction might not be the most elegant
way to do this ... anyone have a better suggestion?

I would use the phrase tag, which is intended for such uses: [1] [2].

Good idea, done that way.

The "phrase" sounds too generic, but it doesn't require yet another
processing instruction e.g. for &sum; or a similar entity.

Yeah, lack of easy applicability to other cases was the main thing
bothering me about the processing-instruction fix.

BTW, I tried to also use this <phrase> markup inside the template for
<returnvalue>, so we'd only need one font-switching special case not two.
Didn't work though --- apparently templates don't get applied recursively?
Oh well.

regards, tom lane

27.04.2020 18:04, Tom Lane wrote:

Alexander Lakhin <exclusion@gmail.com> writes:

26.04.2020 22:13, Tom Lane wrote:
BTW, I tried to also use this <phrase> markup inside the template for
<returnvalue>, so we'd only need one font-switching special case not two.
Didn't work though --- apparently templates don't get applied recursively?
Oh well.

We can have a single template "symbol_font" and reuse it, but it doesn't
seem cleaner to me (for just two cases).
(Placing <phrase ...>  into <xsl:template match="returnvalue"> wouldn't
work as such a content goes into the output, whilst all xsl:templates
apply to the input tree.)

Best regards,
Alexander

Alexander Lakhin <exclusion@gmail.com> writes:

27.04.2020 18:04, Tom Lane wrote:

BTW, I tried to also use this <phrase> markup inside the template for
<returnvalue>, so we'd only need one font-switching special case not two.
Didn't work though --- apparently templates don't get applied recursively?

We can have a single template "symbol_font" and reuse it, but it doesn't
seem cleaner to me (for just two cases).

Yeah, I agree, that's not an improvement. It's invoking the template
two different ways, which seems pretty weird (at least to an XSL novice
like me).

regards, tom lane

On 2020-04-26 21:13, Tom Lane wrote:

"&pi;" renders poorly in our PDF docs: as shown in the attached
screenshot, it doesn't line up on the baseline. I realized that
this is the same problem I'd run into recently with right-arrow,
and it can be solved in the same way, namely we have to specify
use of the symbol font explicitly. So attached is a proposed
patch to fix it.

The real problem here is that the default font (Times or Times New
Roman) embedded in PDF readers doesn't have these off-the-beaten-path
glyphs. I'm surprised you see anything at all. The fix is to use a
different font with more glyphs. I looked into that some time ago
because this also effects the contributors list in the release notes,
which has to be dumbed down because of this.

To use a different font, you have to (a) pick one, and (b) install it
locally when you build the PDFs.

My proposal is to use the DejaVu fonts, which are open source and easily
available for common operating systems. (Arguably, they also give the
documentation a slightly fresher look.)

The attached patch implements this. You just have to install the fonts
somehow. Red Hat and Debian should have packages for this. We should
write instructions for this in any case.

(With this you can undo the other patches discussed here and just write
&pi; and it should look correctly.)

--
Peter Eisentraut http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

Peter Eisentraut <peter.eisentraut@2ndquadrant.com> writes:

On 2020-04-26 21:13, Tom Lane wrote:

"&pi;" renders poorly in our PDF docs: as shown in the attached
screenshot, it doesn't line up on the baseline.

The real problem here is that the default font (Times or Times New
Roman) embedded in PDF readers doesn't have these off-the-beaten-path
glyphs. I'm surprised you see anything at all.

Well, I do ...

My proposal is to use the DejaVu fonts, which are open source and easily
available for common operating systems. (Arguably, they also give the
documentation a slightly fresher look.)
The attached patch implements this. You just have to install the fonts
somehow. Red Hat and Debian should have packages for this. We should
write instructions for this in any case.

I think making the built documentation depend on nonstandard fonts
is a truly awful idea. It'd be okay perhaps if the requirement only
applied to people building the docs, but won't the requirement also
flow through to end users?

regards, tom lane

On 2020-04-29 21:58, Tom Lane wrote:

I think making the built documentation depend on nonstandard fonts
is a truly awful idea. It'd be okay perhaps if the requirement only
applied to people building the docs, but won't the requirement also
flow through to end users?

No, the font is embedded into the built PDF.

--
Peter Eisentraut http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

Peter Eisentraut <peter.eisentraut@2ndquadrant.com> writes:

On 2020-04-29 21:58, Tom Lane wrote:

I think making the built documentation depend on nonstandard fonts
is a truly awful idea. It'd be okay perhaps if the requirement only
applied to people building the docs, but won't the requirement also
flow through to end users?

No, the font is embedded into the built PDF.

Ah. Well, if it doesn't enlarge the file very much, I guess that'd
be fine.

regards, tom lane

On 2020-Apr-29, Peter Eisentraut wrote:

To use a different font, you have to (a) pick one, and (b) install it
locally when you build the PDFs.

My proposal is to use the DejaVu fonts, which are open source and easily
available for common operating systems. (Arguably, they also give the
documentation a slightly fresher look.)

The attached patch implements this. You just have to install the fonts
somehow. Red Hat and Debian should have packages for this. We should write
instructions for this in any case.

It's not easy to build the PDF with this. There's a stray > in fop.xml.
After fixing that, I get a warning about fontbox java lib not being installed.
OK, I can install libfontbox-java and that one disappears. Then there's
this other warning:

[warning] /usr/bin/fop: JVM flavor 'sun' not understood

which seems to be innocuous. The build it still dies because of a CFF
type1 something or other:

Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/fontbox/cff/CFFType1Font
at org.apache.fop.fonts.truetype.OTFFile.isType1(OTFFile.java:151)

After a quick search I found this bug
https://bugs.debian.org/cgi-bin/bugreport.cgi?bug=584472
which suggests that I patch /usr/bin/fop to find_jars in "fontbox2"
instead of fontbox. OK, remove package libfontbox-java, patch the
script, try again. Now it seems to work, and the doc looks pretty.

But apparently it's not sufficient -- the new font is not used
everywhere. For example footnotes seem to use a different font than the
main body of text. (I altered the fontname to Gentium, which I like
better, and uses a different glyph for "g" which is easy to spot ... and
notably absent in footnote in page 5 under 1.4 Accessing a Database.)

I +1 the idea of using a more complete font if it means we can render
contributor names better, though :-)

--
�lvaro Herrera https://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

Hello hackers,

30.04.2020 00:23, Alvaro Herrera wrote:

But apparently it's not sufficient -- the new font is not used
everywhere. For example footnotes seem to use a different font than the
main body of text. (I altered the fontname to Gentium, which I like
better, and uses a different glyph for "g" which is easy to spot ... and
notably absent in footnote in page 5 under 1.4 Accessing a Database.)

I +1 the idea of using a more complete font if it means we can render
contributor names better, though :-)

We at Postgres Pro use the attached fop-config.xml (passed to fop as "-c
.../fop-config.xml"). Please try it and see, whether the glyphs rendered
as expected.
You can also look at the generated pdf:
https://postgrespro.com/media/docs/postgresql/12/en/postgres-A4.pdf
But π (pi) is still rendered unusual as you can see on the page 179, so
I would prefer the symbol font anyway.

Best regards,
Alexander
