Parallel Aggregates for string_agg and array_agg

Hi David,

On 12/17/17 9:30 AM, David Rowley wrote:

I'm going to add this to PG11's final commitfest rather than the
January 'fest as it seems more like a final commitfest type of patch.

This patch applies but no longer builds:

$ make -C /home/vagrant/test/build
<...>
cd /postgres/src/include/catalog && '/usr/bin/perl' ./duplicate_oids
3419
3420
3421
3422

Looks like duplicate OIDs in pg_proc.h.

Thanks,
--
-David
david@pgmasters.net

Hi,

On 2017-12-18 03:30:55 +1300, David Rowley wrote:

While working on partial aggregation a few years ago, I didn't really
think it was worthwhile allowing partial aggregation of string_agg and
array_agg. I soon realised that I was wrong about that and allowing
parallelisation of these aggregates still could be very useful when
many rows are filtered out during the scan.

+1

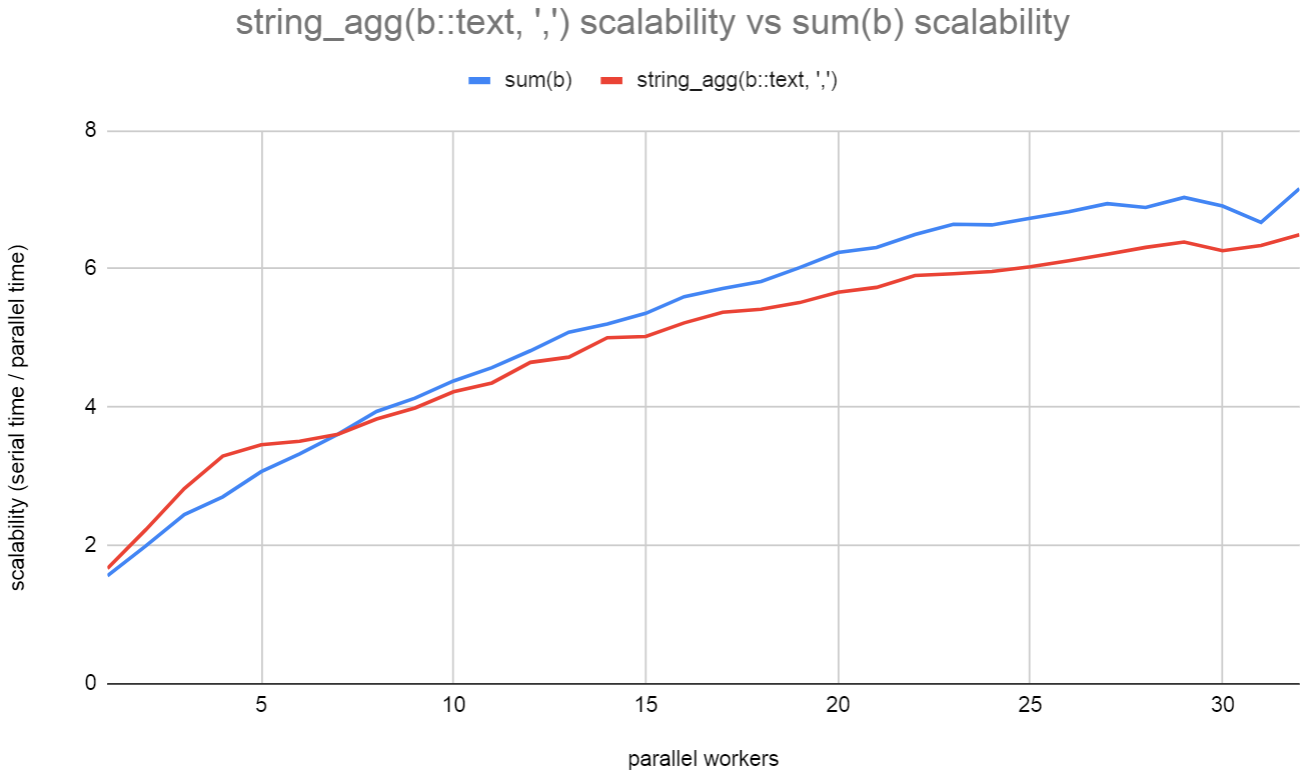

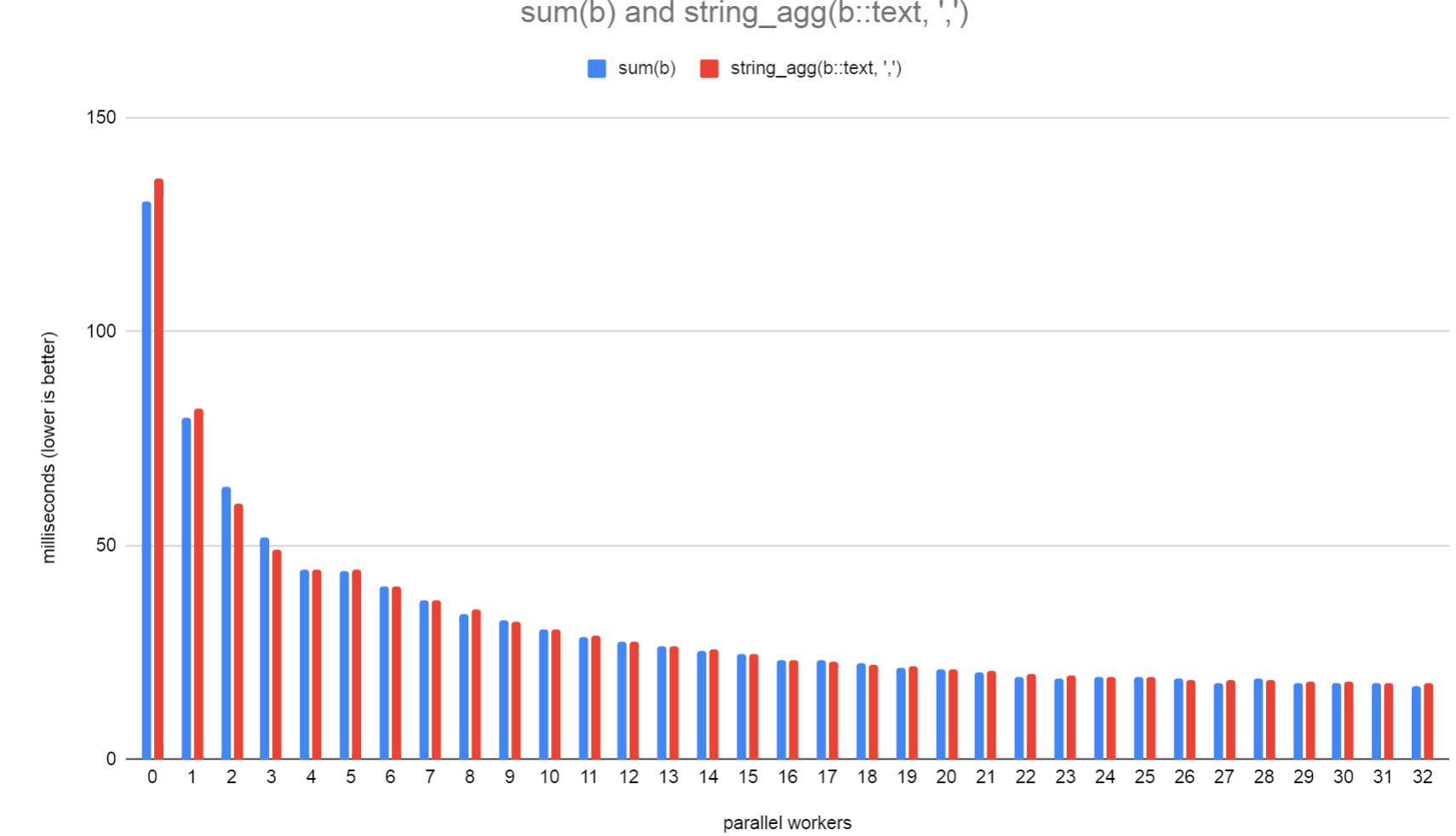

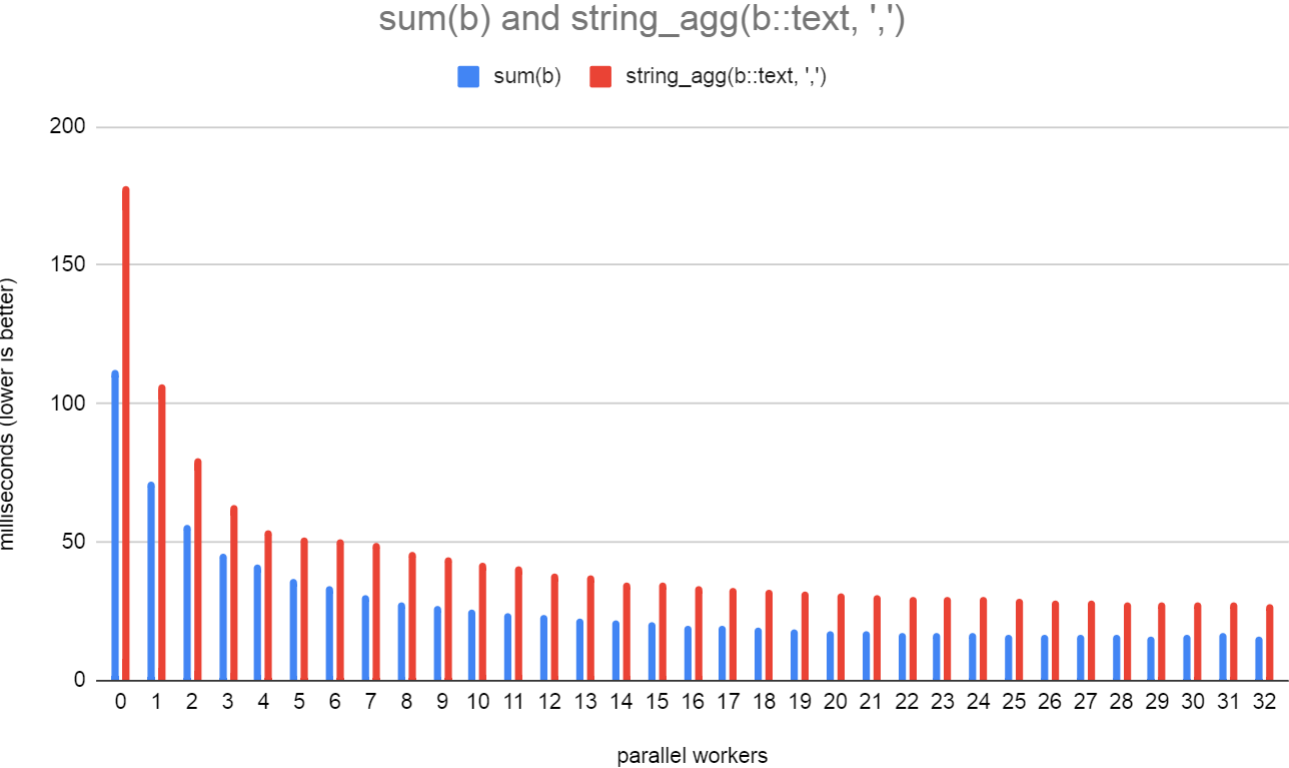

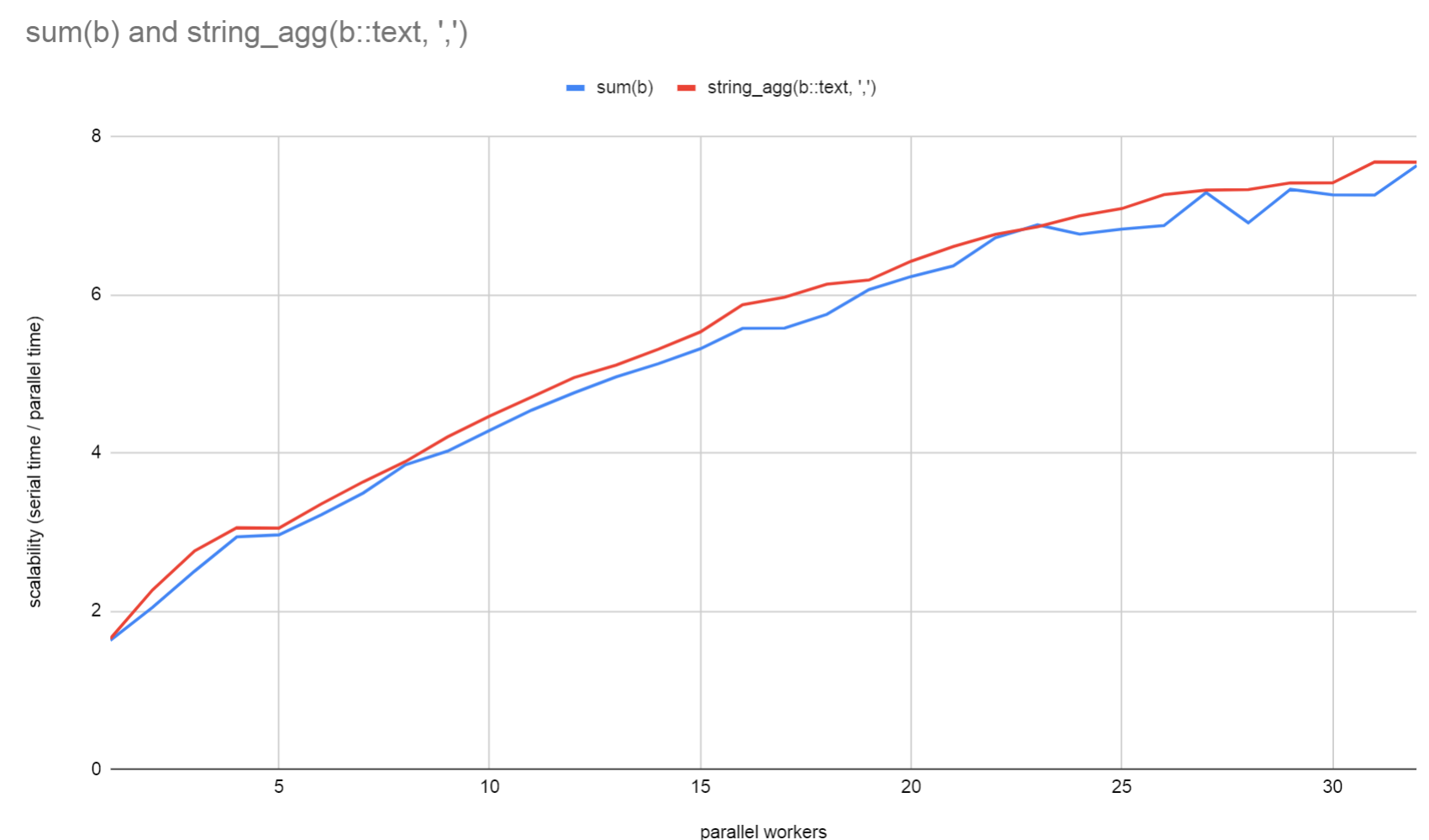

Some benchmarks that I've done locally show that parallel string_agg
and array_agg do actually perform better, despite the fact that the
aggregate state grows linearly with each aggregated item.

It also allows *other* aggregates with different space consumption to be
computed in parallel, that can be fairly huge.

Just a handful of aggregates now don't support partial aggregation;

postgres=# select aggfnoid from pg_aggregate where aggcombinefn=0 and
aggkind='n';
aggfnoid
------------------
xmlagg
json_agg
json_object_agg
jsonb_agg
jsonb_object_agg
(5 rows)

FWIW, I've heard numerous people yearn for json*agg

I'm going to add this to PG11's final commitfest rather than the
January 'fest as it seems more like a final commitfest type of patch.

Not sure I understand?

+/*
+ * array_agg_serialize
+ *		Serialize ArrayBuildState into bytea.
+ */
+Datum
+array_agg_serialize(PG_FUNCTION_ARGS)
+{

+	/*
+	 * dvalues -- this is very simple when the value type is byval, we can
+	 * simply just send the Datums over, however, for non-byval types we must
+	 * work a little harder.
+	 */
+	if (state->typbyval)
+		pq_sendbytes(&buf, (char *) state->dvalues, sizeof(Datum) * state->nelems);
+	else
+	{
+		Oid			typsend;
+		bool		typisvarlena;
+		bytea	   *outputbytes;
+		int			i;
+
+		/* XXX is there anywhere to cache this to save calling each time? */
+		getTypeBinaryOutputInfo(state->element_type, &typsend, &typisvarlena);

Yes, you should be able to store this in fcinfo->flinfo->fn_extra. Or do
you see a problem doing so?

+
+Datum
+array_agg_deserialize(PG_FUNCTION_ARGS)
+{

+	/*
+	 * dvalues -- this is very simple when the value type is byval, we can
+	 * simply just get all the Datums at once, however, for non-byval types we
+	 * must work a little harder.
+	 */
+	if (result->typbyval)
+	{
+		temp = pq_getmsgbytes(&buf, sizeof(Datum) * nelems);
+		memcpy(result->dvalues, temp, sizeof(Datum) * nelems);
+	}
+	else
+	{
+		Oid		typreceive;
+		Oid		typioparam;
+		int		i;
+
+		getTypeBinaryInputInfo(element_type, &typreceive, &typioparam);
+
+		for (i = 0; i < nelems; i++)
+		{
+			/* XXX? Surely this cannot be the way to do this? */
+			StringInfoData tmp;
+			tmp.cursor = 0;
+			tmp.maxlen = tmp.len = pq_getmsgint(&buf, 4);
+			tmp.data = (char *) pq_getmsgbytes(&buf, tmp.len);
+
+			result->dvalues[i] = OidReceiveFunctionCall(typreceive, &tmp,
+														typioparam, -1);

Hm, doesn't look too bad to me? What's your concern here?

This isn't a real review, I was basically just doing a quick
scroll-through.

Greetings,

Andres Freund

Thanks for looking at the patch.

On 2 March 2018 at 08:33, David Steele <david@pgmasters.net> wrote:

This patch applies but no longer builds:

...

Looks like duplicate OIDs in pg_proc.h.

Who stole my OIDs?!

Updated patch attached.

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 2 March 2018 at 10:26, Andres Freund <andres@anarazel.de> wrote:

On 2017-12-18 03:30:55 +1300, David Rowley wrote:

Just a handful of aggregates now don't support partial aggregation;

postgres=# select aggfnoid from pg_aggregate where aggcombinefn=0 and
aggkind='n';
aggfnoid
------------------
xmlagg
json_agg
json_object_agg
jsonb_agg
jsonb_object_agg
(5 rows)

FWIW, I've heard numerous people yearn for json*agg

I guess it'll need to be PG12 for now. I'd imagine string_agg and
array_agg are more important ones to tick off for now, but I bet many
people would disagree with that.

I'm going to add this to PG11's final commitfest rather than the
January 'fest as it seems more like a final commitfest type of patch.

Not sure I understand?

hmm, yeah. That was more of a consideration that I should be working
hard on + reviewing more complex and invasive patches before the final
'fest. I saw this more as something that would gain more interest once
patches such as partition-wise aggs gets in.

+             /* XXX is there anywhere to cache this to save calling each time? */
+             getTypeBinaryOutputInfo(state->element_type, &typsend, &typisvarlena);

Yes, you should be able to store this in fcinfo->flinfo->fn_extra. Or do
you see a problem doing so?

No, just didn't think of it.

+                     /* XXX? Surely this cannot be the way to do this? */
+                     StringInfoData tmp;
+                     tmp.cursor = 0;
+                     tmp.maxlen = tmp.len = pq_getmsgint(&buf, 4);
+                     tmp.data = (char *) pq_getmsgbytes(&buf, tmp.len);
+
+                     result->dvalues[i] = OidReceiveFunctionCall(typreceive, &tmp,
+                                                                                                             typioparam, -1);

Hm, doesn't look too bad to me? What's your concern here?

I was just surprised at having to fake up a StringInfoData.

This isn't a real review, I was basically just doing a quick
scroll-through.

Understood.

I've attached a delta patch which can be applied on top of the v2
patch which removes that XXX comment above and also implements the
fn_extra caching.

Thanks for looking!

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 2018-03-02 13:48:00 +1300, David Rowley wrote:

On 2 March 2018 at 10:26, Andres Freund <andres@anarazel.de> wrote:

FWIW, I've heard numerous people yearn for json*agg

I guess it'll need to be PG12 for now. I'd imagine string_agg and
array_agg are more important ones to tick off for now, but I bet many
people would disagree with that.

Oh, this was definitely not meant as an ask for something done together
with this submission.

Thanks for the quick update.

Greetings,

Andres Freund

I've attached a rebased patch which fixes the conflicts caused by fd1a421.

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Hi,

I've looked at the rebased patch you sent yesterday, and I do have a
couple of comments.

1) There seems to be forgotten declaration of initArrayResultInternal in
arrayfuncs.c. I suppose you've renamed it to initArrayResultWithSize and
moved it to a header file, and forgotten to remove this bit.

2) bytea_string_agg_deserialize has this comment:

/*
* data: technically we could reuse the buf.data buffer, but that is
* slightly larger than we need due to the extra 4 bytes for the cursor
*/

I find the argument "it has 4 extra bytes, so we'll allocate new chunk"
somewhat weak. We do allocate the memory in 2^n chunks anyway, so the
new chunk is likely to be much larger anyway. I'm not saying we need to
reuse the buffer, IMHO the savings will be non-measurable.

3) string_agg_transfn and bytea_string_agg_transfn say this"

/*
* We always append the delimiter text before the value text, even
* with the first aggregated item. The reason for this is that if
* this state needs to be combined with another state using the
* aggregate's combine function, then we need to have the delimiter
* for the first aggregated item. The first delimiter will be
* stripped off in the final function anyway. We use a little cheat
* here and store the position of the actual first value (after the
* delimiter) using the StringInfo's cursor variable. This relies on
* the cursor not being used for any other purpose.
*/

How does this make the code any simpler, compared to not adding the
delimiter (as before) and adding it when combining the values (at which
point you should know when it's actually needed)?

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 5 March 2018 at 04:54, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

1) There seems to be forgotten declaration of initArrayResultInternal in
arrayfuncs.c. I suppose you've renamed it to initArrayResultWithSize and
moved it to a header file, and forgotten to remove this bit.

Oops. Must be left over from trying things another way. Removed.

2) bytea_string_agg_deserialize has this comment:

/*
* data: technically we could reuse the buf.data buffer, but that is
* slightly larger than we need due to the extra 4 bytes for the cursor
*/

I find the argument "it has 4 extra bytes, so we'll allocate new chunk"
somewhat weak. We do allocate the memory in 2^n chunks anyway, so the
new chunk is likely to be much larger anyway. I'm not saying we need to
reuse the buffer, IMHO the savings will be non-measurable.

Agreed. I've removed that part of the comment.

3) string_agg_transfn and bytea_string_agg_transfn say this"

/*
* We always append the delimiter text before the value text, even
* with the first aggregated item. The reason for this is that if
* this state needs to be combined with another state using the
* aggregate's combine function, then we need to have the delimiter
* for the first aggregated item. The first delimiter will be
* stripped off in the final function anyway. We use a little cheat
* here and store the position of the actual first value (after the
* delimiter) using the StringInfo's cursor variable. This relies on
* the cursor not being used for any other purpose.
*/

How does this make the code any simpler, compared to not adding the
delimiter (as before) and adding it when combining the values (at which
point you should know when it's actually needed)?

The problem is that if we don't record the first delimiter then we
won't know what it is when it comes to combining the states.

Consider the following slightly backward-looking case;

select string_agg(',', x::text) from generate_Series(1,10)x;
string_agg
----------------------
,2,3,4,5,6,7,8,9,10,

Here the delimiter is the number, not the ','. Of course, the
delimiter for the first aggregated result is not shown. The previous
implementation of the transfn for this aggregate just threw away the
first delimiter, but that's no good for parallel aggregates as the
transfn may be getting called in a parallel worker, in which case
we'll need that delimiter in the combine function to properly join to
the other partial aggregated results matching the same group.

Probably I could improve the comment a bit. I understand that having a
variable delimiter is not commonplace in the normal world. I certainly
had never considered it before working on this. I scratched my head a
bit when doing this and thought about inventing a new trans type, but
I decided that the most efficient design for an aggregate state was to
store the delimiter and data all in one buffer and have a pointer to
the start of the actual data... StringInfo has exactly what's required
if you use the cursor as the pointer, so I didn't go and reinvent the
wheel.

I've now changed the comment to read:

/*
* It's important that we store the delimiter text for all aggregated
* items, even the first one, which at first thought you might think
* could just be discarded. The reason for this is that if this
* function is being called from a parallel worker, then we'll need
* the first delimiter in order to properly combine the partially
* aggregated state with the states coming from other workers. In the
* final output, the first delimiter will be stripped off of the final
* aggregate state, but in order to know where the actual first data
* is we must store the position of the first data value somewhere.
* Conveniently, StringInfo has a cursor property which can be used
* to serve our needs here.
*/

I've also updated an incorrect Assert in array_agg_array_serialize.

Please find attached the updated patch.

Many thanks for reviewing this.

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 03/05/2018 04:51 AM, David Rowley wrote:

On 5 March 2018 at 04:54, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

1) There seems to be forgotten declaration of initArrayResultInternal in
arrayfuncs.c. I suppose you've renamed it to initArrayResultWithSize and
moved it to a header file, and forgotten to remove this bit.

Oops. Must be left over from trying things another way. Removed.

2) bytea_string_agg_deserialize has this comment:

/*
* data: technically we could reuse the buf.data buffer, but that is
* slightly larger than we need due to the extra 4 bytes for the cursor
*/

I find the argument "it has 4 extra bytes, so we'll allocate new chunk"
somewhat weak. We do allocate the memory in 2^n chunks anyway, so the
new chunk is likely to be much larger anyway. I'm not saying we need to
reuse the buffer, IMHO the savings will be non-measurable.

Agreed. I've removed that part of the comment.

3) string_agg_transfn and bytea_string_agg_transfn say this"

/*
* We always append the delimiter text before the value text, even
* with the first aggregated item. The reason for this is that if
* this state needs to be combined with another state using the
* aggregate's combine function, then we need to have the delimiter
* for the first aggregated item. The first delimiter will be
* stripped off in the final function anyway. We use a little cheat
* here and store the position of the actual first value (after the
* delimiter) using the StringInfo's cursor variable. This relies on
* the cursor not being used for any other purpose.
*/

How does this make the code any simpler, compared to not adding the
delimiter (as before) and adding it when combining the values (at which
point you should know when it's actually needed)?

The problem is that if we don't record the first delimiter then we
won't know what it is when it comes to combining the states.

Consider the following slightly backward-looking case;

select string_agg(',', x::text) from generate_Series(1,10)x;
string_agg
----------------------
,2,3,4,5,6,7,8,9,10,

Here the delimiter is the number, not the ','. Of course, the
delimiter for the first aggregated result is not shown. The previous
implementation of the transfn for this aggregate just threw away the
first delimiter, but that's no good for parallel aggregates as the
transfn may be getting called in a parallel worker, in which case
we'll need that delimiter in the combine function to properly join to
the other partial aggregated results matching the same group.

Hmmm, you're right I haven't considered the delimiter might be variable.
But isn't just yet another hint that while StringInfo was suitable for
aggregate state of non-parallel string_agg, it may not be for the
parallel version?

What if the parallel string_agg instead used something like this:

struct StringAggState
{
char *delimiter; /* first delimiter */
StringInfoData str; /* partial aggregate state */
} StringAggState;

I think that would make the code cleaner, compared to using the cursor
field for that purpose. But maybe it'd make it not possible to share
code with the non-parallel aggregate, not sure.

I always considered the cursor field to be meant for scanning through
StringInfo, so using it for this purpose seems a bit like a misuse.

Probably I could improve the comment a bit. I understand that having a
variable delimiter is not commonplace in the normal world. I certainly
had never considered it before working on this. I scratched my head a
bit when doing this and thought about inventing a new trans type, but
I decided that the most efficient design for an aggregate state was to
store the delimiter and data all in one buffer and have a pointer to
the start of the actual data... StringInfo has exactly what's required
if you use the cursor as the pointer, so I didn't go and reinvent the
wheel.

I wonder why the variable delimiter is not mentioned in the docs ... (at
least I haven't found anything mentioning the behavior).

I've now changed the comment to read:

/*
* It's important that we store the delimiter text for all aggregated
* items, even the first one, which at first thought you might think
* could just be discarded. The reason for this is that if this
* function is being called from a parallel worker, then we'll need
* the first delimiter in order to properly combine the partially
* aggregated state with the states coming from other workers. In the
* final output, the first delimiter will be stripped off of the final
* aggregate state, but in order to know where the actual first data
* is we must store the position of the first data value somewhere.
* Conveniently, StringInfo has a cursor property which can be used
* to serve our needs here.
*/

I've also updated an incorrect Assert in array_agg_array_serialize.

Please find attached the updated patch.

Seems fine to me. I plan to do a bit more testing/review next week, but
I plan to move it to RFC after that (unless I run into something during
the review, but I don't expect that).

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 11 March 2018 at 12:11, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

On 03/05/2018 04:51 AM, David Rowley wrote:

On 5 March 2018 at 04:54, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:
Consider the following slightly backward-looking case;

select string_agg(',', x::text) from generate_Series(1,10)x;
string_agg
----------------------
,2,3,4,5,6,7,8,9,10,

Here the delimiter is the number, not the ','. Of course, the
delimiter for the first aggregated result is not shown. The previous
implementation of the transfn for this aggregate just threw away the
first delimiter, but that's no good for parallel aggregates as the
transfn may be getting called in a parallel worker, in which case
we'll need that delimiter in the combine function to properly join to
the other partial aggregated results matching the same group.

Hmmm, you're right I haven't considered the delimiter might be variable.
But isn't just yet another hint that while StringInfo was suitable for
aggregate state of non-parallel string_agg, it may not be for the
parallel version?

What if the parallel string_agg instead used something like this:

struct StringAggState
{
char *delimiter; /* first delimiter */
StringInfoData str; /* partial aggregate state */
} StringAggState;

I think that would make the code cleaner, compared to using the cursor
field for that purpose. But maybe it'd make it not possible to share
code with the non-parallel aggregate, not sure.

It would be possible to use something like that. The final function
would just need to take 'str' and ignore 'delimiter', whereas the
combine function would need both. However, you could optimize the
above to just have a single StringInfoData and have a pointer to the
start of the actual data (beyond the first delimiter), that would save
us a call to palloc and also allow the state's data to exist in one
contiguous block of memory, which will be more cache friendly when it
comes to reading it back again. The pointer here would, of course,
have to be an offset into the data array, since repallocs would cause
problems as the state grew.

This is kinda the option I was going for with using the cursor. I
didn't think that was going to be a problem. It seems that cursor was
invented so that users of StringInfo could store a marker somehow
along with the string. The comment for cursor read:

* cursor is initialized to zero by makeStringInfo or initStringInfo,
* but is not otherwise touched by the stringinfo.c routines.
* Some routines use it to scan through a StringInfo.

The use of the cursor field does not interfere with pqformat.c's use
of it as in the serialization functions we're creating a new
StringInfo for the 'result'. If anything tries to send the internal
state, then that's certainly broken. It needs to be serialized before
that can happen.

I don't quite see how inventing a new struct would make the code
cleaner. It would make the serialization and deserialization functions
have to write and read more fields for the lengths of the data
contained in the state.

I understand that the cursor field is used in pqformat.c quite a bit,
but I don't quite understand why it should get to use that field the
way it wants, but the serialization and deserialization functions
shouldn't. I'd understand that if we were trying to phase out the
cursor field from StringInfoData, but I can't imagine that's going to
happen.

Of course, with that all said. If you really strongly object to how
I've done this, then I'll change it to use a new struct type. I had
just tried to make the patch footprint as small as possible, and the
above text is me just explaining my reasoning behind this, not me
objecting to your request for me to change it. Let me know your
thoughts after reading the above.

In the meantime, I've attached an updated patch. The only change it
contains is updating the "Partial Mode" column in the docs from "No"
to "Yes".

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

On 03/11/2018 07:31 AM, David Rowley wrote:

On 11 March 2018 at 12:11, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

On 03/05/2018 04:51 AM, David Rowley wrote:

On 5 March 2018 at 04:54, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:
Consider the following slightly backward-looking case;

select string_agg(',', x::text) from generate_Series(1,10)x;
string_agg
----------------------
,2,3,4,5,6,7,8,9,10,

Here the delimiter is the number, not the ','. Of course, the
delimiter for the first aggregated result is not shown. The previous
implementation of the transfn for this aggregate just threw away the
first delimiter, but that's no good for parallel aggregates as the
transfn may be getting called in a parallel worker, in which case
we'll need that delimiter in the combine function to properly join to
the other partial aggregated results matching the same group.

Hmmm, you're right I haven't considered the delimiter might be variable.
But isn't just yet another hint that while StringInfo was suitable for
aggregate state of non-parallel string_agg, it may not be for the
parallel version?

What if the parallel string_agg instead used something like this:

struct StringAggState
{
char *delimiter; /* first delimiter */
StringInfoData str; /* partial aggregate state */
} StringAggState;

I think that would make the code cleaner, compared to using the cursor
field for that purpose. But maybe it'd make it not possible to share
code with the non-parallel aggregate, not sure.

It would be possible to use something like that. The final function
would just need to take 'str' and ignore 'delimiter', whereas the
combine function would need both. However, you could optimize the
above to just have a single StringInfoData and have a pointer to the
start of the actual data (beyond the first delimiter), that would save
us a call to palloc and also allow the state's data to exist in one
contiguous block of memory, which will be more cache friendly when it
comes to reading it back again. The pointer here would, of course,
have to be an offset into the data array, since repallocs would cause
problems as the state grew.

This is kinda the option I was going for with using the cursor. I
didn't think that was going to be a problem. It seems that cursor was
invented so that users of StringInfo could store a marker somehow
along with the string. The comment for cursor read:

* cursor is initialized to zero by makeStringInfo or initStringInfo,
* but is not otherwise touched by the stringinfo.c routines.
* Some routines use it to scan through a StringInfo.

The use of the cursor field does not interfere with pqformat.c's use
of it as in the serialization functions we're creating a new
StringInfo for the 'result'. If anything tries to send the internal
state, then that's certainly broken. It needs to be serialized before
that can happen.

I don't quite see how inventing a new struct would make the code
cleaner. It would make the serialization and deserialization functions
have to write and read more fields for the lengths of the data
contained in the state.

I understand that the cursor field is used in pqformat.c quite a bit,
but I don't quite understand why it should get to use that field the
way it wants, but the serialization and deserialization functions
shouldn't. I'd understand that if we were trying to phase out the
cursor field from StringInfoData, but I can't imagine that's going to
happen.

Of course, with that all said. If you really strongly object to how
I've done this, then I'll change it to use a new struct type. I had
just tried to make the patch footprint as small as possible, and the
above text is me just explaining my reasoning behind this, not me
objecting to your request for me to change it. Let me know your
thoughts after reading the above.

Hmmm, I guess you're right, I didn't really thought that through. I
don't object to sticking to the current approach.

In the meantime, I've attached an updated patch. The only change it
contains is updating the "Partial Mode" column in the docs from "No"
to "Yes".

Yeah, seems fine to me. I wonder what else would be needed before
switching the patch to RFC. I plan to do that after a bit more testing
sometime early next week, unless someone objects.

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 03/11/2018 12:10 PM, Tomas Vondra wrote:

...

Yeah, seems fine to me. I wonder what else would be needed before
switching the patch to RFC. I plan to do that after a bit more
testing sometime early next week, unless someone objects.

I've done more testing on this patch, and I haven't found any new issues
with it, so PFA I'm marking it as ready for committer.

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services

On 16 March 2018 at 13:46, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

I've done more testing on this patch, and I haven't found any new issues
with it, so PFA I'm marking it as ready for committer.

Great! Many thanks for the review.

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Greetings,

* David Rowley (david.rowley@2ndquadrant.com) wrote:

On 16 March 2018 at 13:46, Tomas Vondra <tomas.vondra@2ndquadrant.com> wrote:

I've done more testing on this patch, and I haven't found any new issues
with it, so PFA I'm marking it as ready for committer.

Great! Many thanks for the review.

I read through the thread and started reviewing this, comments below.

diff --git a/src/backend/utils/adt/array_userfuncs.c b/src/backend/utils/adt/array_userfuncs.c
[...]
+		for (i = 0; i < state2->nelems; i++)
+			state1->dvalues[i] = datumCopy(state2->dvalues[i],
+										   state1->typbyval, state1->typlen);
+
+		memcpy(state1->dnulls, state2->dnulls, sizeof(bool) * state2->nelems);

The header at the top of datumCopy() pretty clearly says that it's for
"non-NULL" datums, yet this function seems to be happily ignoring that
and just trying to use it to copy everything. Perhaps I'm missing
something, but I don't see anything obvious that would lead me to
conclude that what's being done here (or in other similar cases in this
patch) is acceptable.

[...]

+		for (i = 0; i < state->nelems; i++)
+		{
+			outputbytes = OidSendFunctionCall(iodata->typsend, state->dvalues[i]);
+			pq_sendint32(&buf, VARSIZE(outputbytes) - VARHDRSZ);
+			pq_sendbytes(&buf, VARDATA(outputbytes),
+							VARSIZE(outputbytes) - VARHDRSZ);
+		}
+	}
+
+	/* dnulls */
+	pq_sendbytes(&buf, (char *) state->dnulls, sizeof(bool) * state->nelems);

SendFunctionCall() has a similar "Do not call this on NULL datums"
comment.

+		for (i = 0; i < nelems; i++)
+		{
+			StringInfoData tmp;
+			tmp.cursor = 0;
+			tmp.maxlen = tmp.len = pq_getmsgint(&buf, 4);
+			tmp.data = (char *) pq_getmsgbytes(&buf, tmp.len);
+
+			result->dvalues[i] = OidReceiveFunctionCall(iodata->typreceive,
+														&tmp,
+														iodata->typioparam,
+														-1);
+		}
+	}
+
+	/* dnulls */
+	temp = pq_getmsgbytes(&buf, sizeof(bool) * nelems);
+	memcpy(result->dnulls, temp, sizeof(bool) * nelems);

And if we aren't sending them then we probably need to do something
different on the receive side...

I glanced through the rest and it seemed alright, but will want to still
go over it more carefully once the above comments are addressed.

Marking Waiting-for-Author.

Thanks!

Stephen

On 26 March 2018 at 15:26, Stephen Frost <sfrost@snowman.net> wrote:

The header at the top of datumCopy() pretty clearly says that it's for
"non-NULL" datums, yet this function seems to be happily ignoring that
and just trying to use it to copy everything. Perhaps I'm missing
something, but I don't see anything obvious that would lead me to
conclude that what's being done here (or in other similar cases in this
patch) is acceptable.

Thanks for looking at this.

You're right. I've overlooked this. The code should be checking for
NULL value Datums there. I've fixed this locally, but on testing, I
discovered another bug around string_agg. At the moment string_agg's
transfn only allocates the state when it gets a non-NULL string to
aggregate, whereas it seems other trans functions which return an
internal state allocate their state on the first call. e.g.
int8_avg_accum(). This NULL state is causing the serial function
segfault on a null pointer dereference. I think the fix is to always
allocate the state in the transfn, but I just wanted to point this out
before I go and do that.

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

Greetings,

* David Rowley (david.rowley@2ndquadrant.com) wrote:

On 26 March 2018 at 15:26, Stephen Frost <sfrost@snowman.net> wrote:

The header at the top of datumCopy() pretty clearly says that it's for
"non-NULL" datums, yet this function seems to be happily ignoring that
and just trying to use it to copy everything. Perhaps I'm missing
something, but I don't see anything obvious that would lead me to
conclude that what's being done here (or in other similar cases in this
patch) is acceptable.

Thanks for looking at this.

You're right. I've overlooked this. The code should be checking for
NULL value Datums there. I've fixed this locally, but on testing, I
discovered another bug around string_agg. At the moment string_agg's
transfn only allocates the state when it gets a non-NULL string to
aggregate, whereas it seems other trans functions which return an
internal state allocate their state on the first call. e.g.
int8_avg_accum(). This NULL state is causing the serial function
segfault on a null pointer dereference. I think the fix is to always
allocate the state in the transfn, but I just wanted to point this out
before I go and do that.

Just to be clear- the segfault is just happening with your patch and
you're just contemplating having string_agg always allocate state on the
first call, similar to what int8_avg_accum() does?

If so, then, yes, that seems alright to me.

Thanks!

Stephen

On 27 March 2018 at 02:20, Stephen Frost <sfrost@snowman.net> wrote:

Just to be clear- the segfault is just happening with your patch and
you're just contemplating having string_agg always allocate state on the
first call, similar to what int8_avg_accum() does?

If so, then, yes, that seems alright to me.

I did write some code to do this, but I ended up having to invent a
new state type which contained an additional "gotvalue" bool flag. We
needed to know the difference between a new state and one that's just
not had any non-NULL values aggregated yet. This meant the transfn and
combinefn needed to track this extra flag, and the serial and deserial
functions had to send it too. It started to look pretty horrible so I
started wondering about modifying the serial and deserial functions to
allow NULL states instead, that's when I realised that the serial and
deserial functions were both strict, and should never have been called
with NULL states in the first place!

It turns out this is a bit of an existing bug, but perhaps one that is
pretty harmless without this patch. Basically, the string_agg trans
function was always returning PG_RETURN_POINTER(state), even when the
state was NULL. This meant that the fcinfo->isnull flag was not
properly set, which caused the nodeAgg.c code to call the strict
serial function regardless.

In the end, I just fixed this by changing the PG_RETURN_POINTER(state) into:

if (state)
PG_RETURN_POINTER(state);
PG_RETURN_NULL();

The final functions seem to have managed to escape this bug by the way
they check for NULL states:

state = PG_ARGISNULL(0) ? NULL : (StringInfo) PG_GETARG_POINTER(0);

if (state != NULL)
...

Which allows an SQL null, or a NULL pointer. These could probably now
be changed to become:

if (!PG_ARGISNULL(0))
{
state = (StringInfo) PG_GETARG_POINTER(0);
...

Or it may be possible to make the finalfn strict, but I didn't do
either of these things.

I did also wonder if PG_RETURN_POINTER should test for NULL pointers
and set fcinfo->isnull, but there might be valid cases where we'd want
to not set the flag... I just can't imagine a valid reason why right
now.

In the attached, I also got rid of the serial and deserial function
for string_agg(text). I realised that these were doing pq_sendtext()
instead of pq_sendbytes. This meant that text would be changed to the
client encoding which was not what we wanted as we were not sending
anything to the client. Fixing this meant that the string_agg(bytea)
and string_agg(text) aggregates had identical serial/deserial
functions, so they now share the functions instead.

I also looked at all the built-in aggregate trans functions which use
an internal aggregate state to verify they're also doing the right
thing in regards to NULLs. The following query returns 16 distinct
functions, all of these apart from the ones I've fixed in the attached
patch all allocate the internal state on first call, so it does not
appear that there's anything else to fix in this area:

select distinct aggtransfn from pg_aggregate where aggtranstype=2281 order by 1;

--
David Rowley http://www.2ndQuadrant.com/
PostgreSQL Development, 24x7 Support, Training & Services

David Rowley <david.rowley@2ndquadrant.com> writes:

[ combinefn_for_string_and_array_aggs_v7.patch ]

I spent a fair amount of time hacking on this with intent to commit,
but just as I was getting to code that I liked, I started to have second
thoughts about whether this is a good idea at all. I quote from the fine
manual:

The aggregate functions array_agg, json_agg, jsonb_agg,
json_object_agg, jsonb_object_agg, string_agg, and xmlagg, as well as
similar user-defined aggregate functions, produce meaningfully
different result values depending on the order of the input
values. This ordering is unspecified by default, but can be controlled
by writing an ORDER BY clause within the aggregate call, as shown in
Section 4.2.7. Alternatively, supplying the input values from a sorted
subquery will usually work ...

I do not think it is accidental that these aggregates are exactly the ones
that do not have parallelism support today. Rather, that's because you
just about always have an interest in the order in which the inputs get
aggregated, which is something that parallel aggregation cannot support.

I fear that what will happen, if we commit this, is that something like
0.01% of the users of array_agg and string_agg will be pleased, another
maybe 20% will be unaffected because they wrote ORDER BY which prevents
parallel aggregation, and the remaining 80% will scream because we broke
their queries. Telling them they should've written ORDER BY isn't going
to cut it, IMO, when the benefit of that breakage will accrue only to some
very tiny fraction of use-cases.

In short, I think we ought to reject this.

Just in case I'm outvoted, attached is what I'd gotten done so far.
The main noncosmetic changes I'd made were to improve the caching logic
(it's silly to set up a lookup cache and then not cache the fmgr_info
lookup) and to not cheat quite as much on the StringInfo passed down to
the element typreceive function. There isn't any other place, I don't
think, where we don't honor the expectation that StringInfos have trailing
null bytes, and some places may depend on it --- array_recv does.

The main thing that remains undone is to get some test coverage ---
AFAICS, none of these new functions get exercised in the standard
regression tests.

I'm also a bit unhappy that the patch introduces code into
array_userfuncs.c that knows everything there is to know about the
contents of ArrayBuildState and ArrayBuildStateArr. Previously that
knowledge was pretty well localized in arrayfuncs.c. I wonder if it'd
be better to move the new combinefuncs and serial/deserial funcs into
arrayfuncs.c. Or perhaps export primitives from there that could be
used to build them.

regards, tom lane

On 03/26/2018 10:27 PM, Tom Lane wrote:

David Rowley <david.rowley@2ndquadrant.com> writes:

[ combinefn_for_string_and_array_aggs_v7.patch ]

I spent a fair amount of time hacking on this with intent to commit,
but just as I was getting to code that I liked, I started to have second
thoughts about whether this is a good idea at all. I quote from the fine
manual:

The aggregate functions array_agg, json_agg, jsonb_agg,
json_object_agg, jsonb_object_agg, string_agg, and xmlagg, as well as
similar user-defined aggregate functions, produce meaningfully
different result values depending on the order of the input
values. This ordering is unspecified by default, but can be controlled
by writing an ORDER BY clause within the aggregate call, as shown in
Section 4.2.7. Alternatively, supplying the input values from a sorted
subquery will usually work ...

I do not think it is accidental that these aggregates are exactly the ones
that do not have parallelism support today. Rather, that's because you
just about always have an interest in the order in which the inputs get
aggregated, which is something that parallel aggregation cannot support.

I don't think that's quite true. I know plenty of people who do things
like this:

SELECT
a,
b,
avg(c),
sum(d),
array_agg(e),
array_agg(f),
string_agg(g)
FROM hugetable GROUP BY a,b HAVING avg(c) > 100.89;

and then do some additional processing on the result in some way
(subquery, matview, ...). They don't really care about ordering of
values in the arrays, as long as orderings of all the arrays match.

Currently queries like this can use parallelism at all, and the patch
fixes that I believe.

I fear that what will happen, if we commit this, is that something like
0.01% of the users of array_agg and string_agg will be pleased, another
maybe 20% will be unaffected because they wrote ORDER BY which prevents
parallel aggregation, and the remaining 80% will scream because we broke
their queries. Telling them they should've written ORDER BY isn't going
to cut it, IMO, when the benefit of that breakage will accrue only to some
very tiny fraction of use-cases.

Isn't the ordering unreliable *already*? It depends on ordering of
tuples on the input. So if the table is scanned by index scan or
sequential scan, that will affect the array_agg/string_agg results. If
the input is a join, it's even more volatile.

IMHO it's not like we're making the ordering unpredictable - it's been
like that since forever.

Also, how is this different from ORDER BY clause? If a user does not
specify an ORDER BY clause, I don't think we'd care very much about
changes to output ordering due to plan changes, for example.

regards

--
Tomas Vondra http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services
